Prusa i3 Horizontal LCD Mounting Bracket

139016_installed
139016_parts 139016_top_parts 139016_mounted



Description
This is another Prusa i3 LCD holder. The LCD display (from RepRap Discount) is installed horizontally leaving free the top of the printer. It can be installed either on the left or the right. One of the LCD holders has a slot for the SD-card.

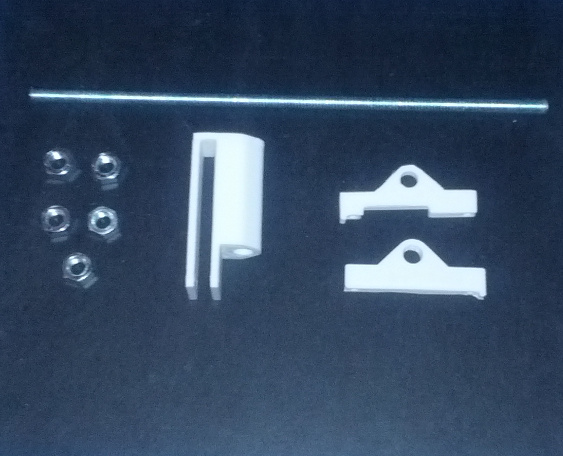

You will need:

  • 1 x 23 cm (9″) 8 mm or 5/16″ threaded rod
  • 5 x 8 mm or 5/16″ nuts
  • 6 x M3 (4-40) x 2 cm (3/4″) bolts
  • 6 x M3 (4-40) nuts
  • 4 x M3 or (4-40) washers
  • The plastic parts
  • a zip tie (optional)

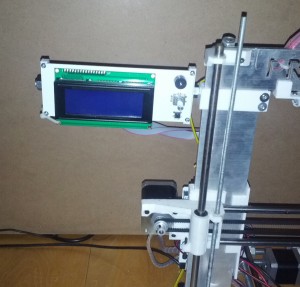

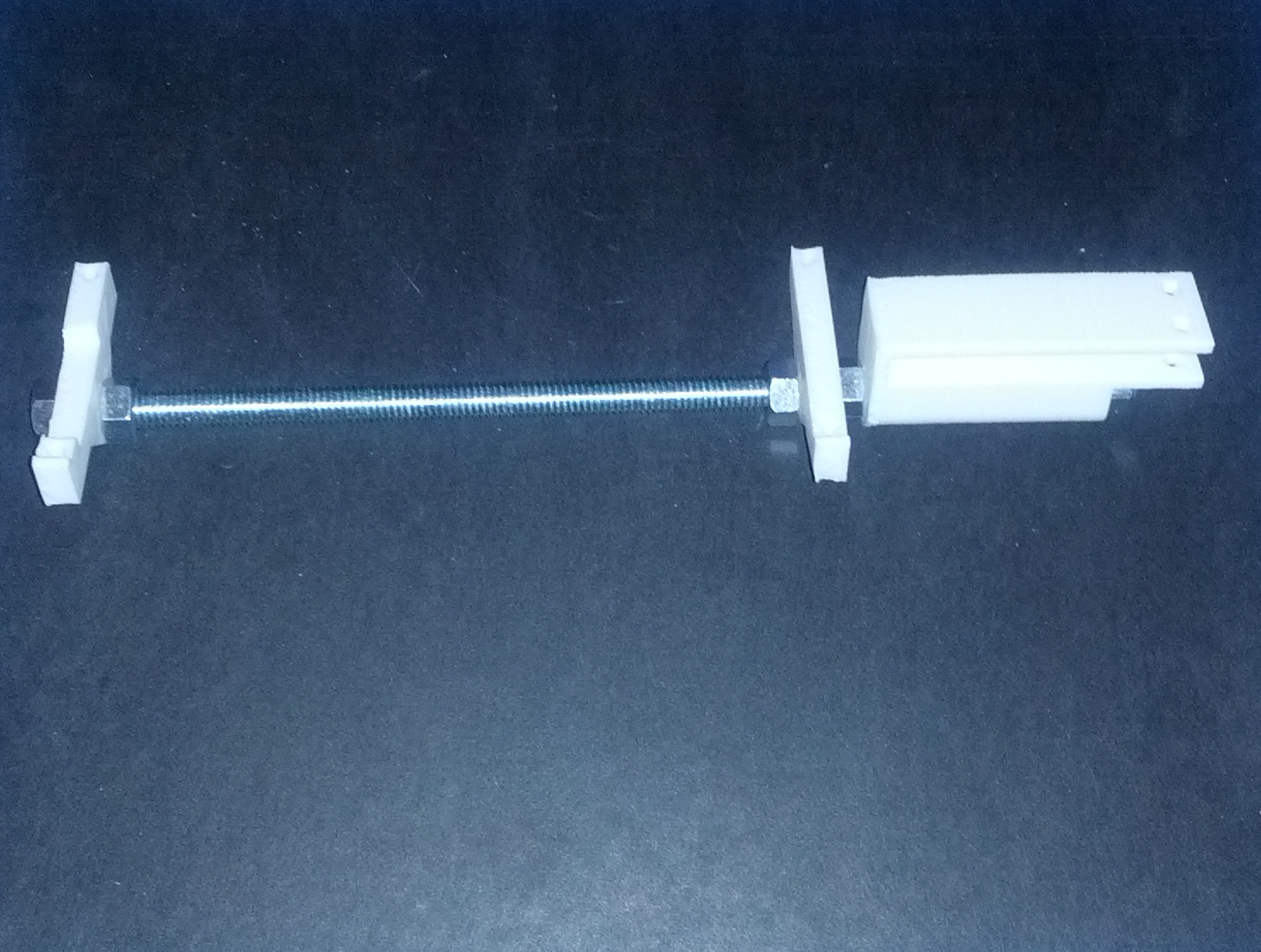

Mount it as shown on the pictures. A zip tie is installed to prevent the LCD from vibrating. You do not need to drill holes in the frame to install this holder.



Printable Files

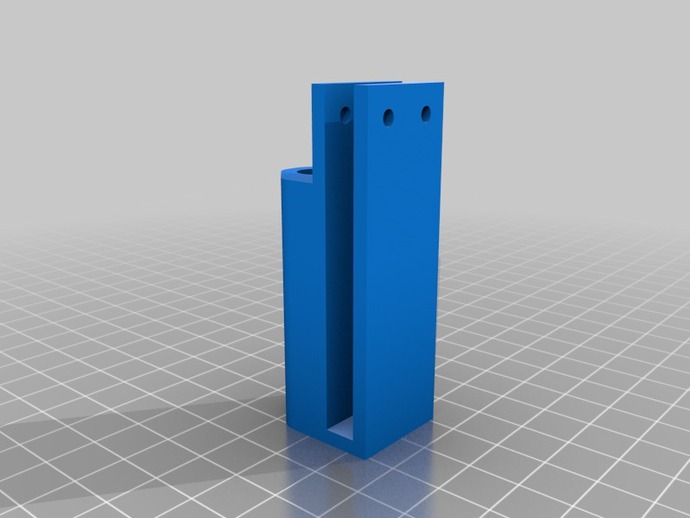

139016_Prusa_i3_Horizontal_LCD_Frame_Holder_preview_featured 139016_Prusa_i3_Horizontal_LCD_Frame_Holder

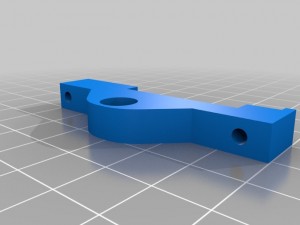

139016_Prusa_i3_Horizontal_LCD_Holder_Left_preview_featured 139016_Prusa_i3_Horizontal_LCD_Holder_Left

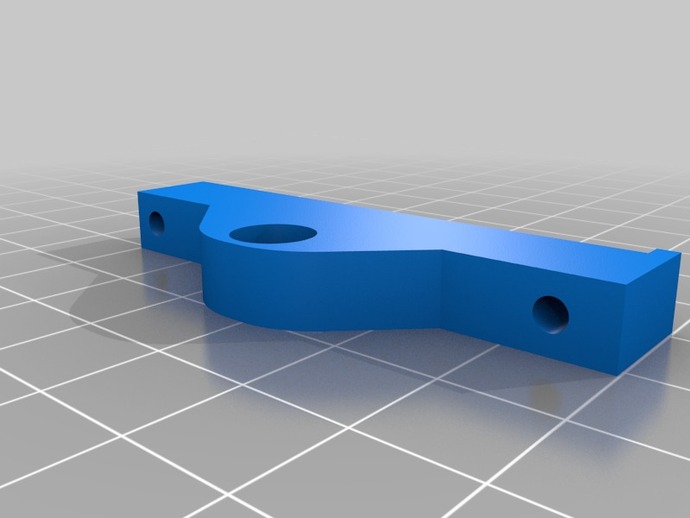

139016_Prusa_i3_Horizontal_LCD_Holder_Right_preview_featured 139016_Prusa_i3_Horizontal_LCD_Holder_Right
