Prusa i3 Metal Frame Filament Guide Revisited

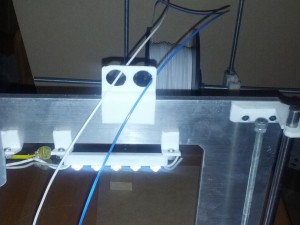

117720_installed_preview_featured

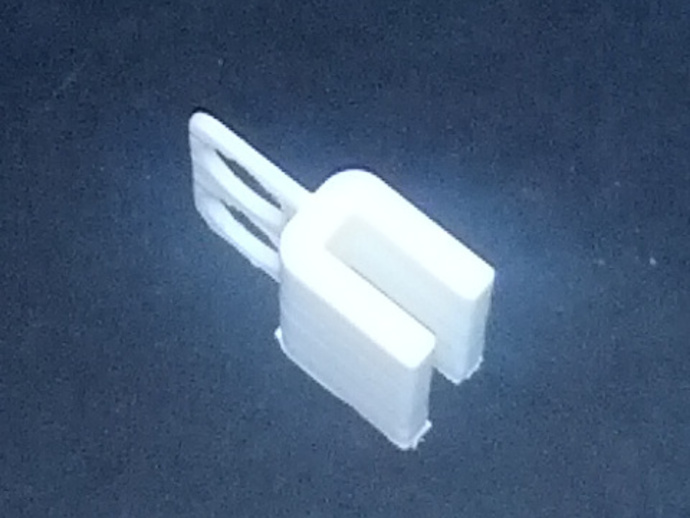

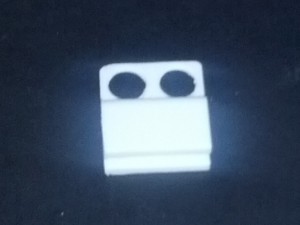

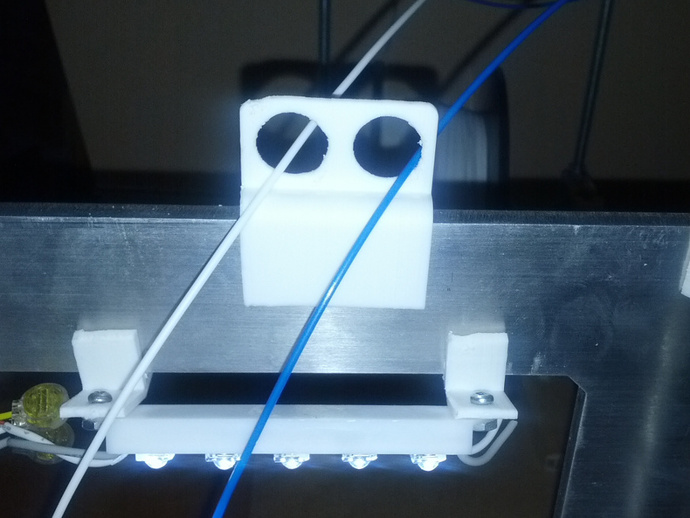

117720_closeup_preview_featured 117720_top_preview_featured 117720_side_preview_featured



Description
This is a second iteration of Prusa i3 Metal Frame Filament Guide. The loops for the filament are larger and thinner. Depending on the feed angle of the filament, the first iteration was sometimes restricting the filament movement.

Furthermore, there are four files: two for a dual extruder and two for a single extruder printer. Each group has a 6.5 mm and a 7 mm grip width. Depending on the material, the 6.5 mm version is sometimes a bit too tight.



Printable Files

117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_6.5_mm_preview_featured 117720_Simple_Prusa_i3_Metal_Frame_Filament_Guide_6.5_mm
117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_7_mm_preview_featured 117720_Simple_Prusa_i3_Metal_Frame_Filament_Guide_7_mm

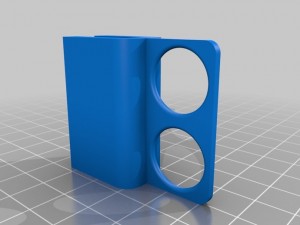

117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_6.5_mm_preview_featured 117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_6.5_mm

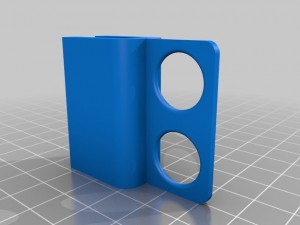

117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_7_mm_preview_featured 117720_Double_Prusa_i3_Metal_Frame_Filament_Guide_7_mm



Copyright 2012-2013 by Claude Théroux
