4 Litres Airtight Container Filament Name Cardholder
 |  |

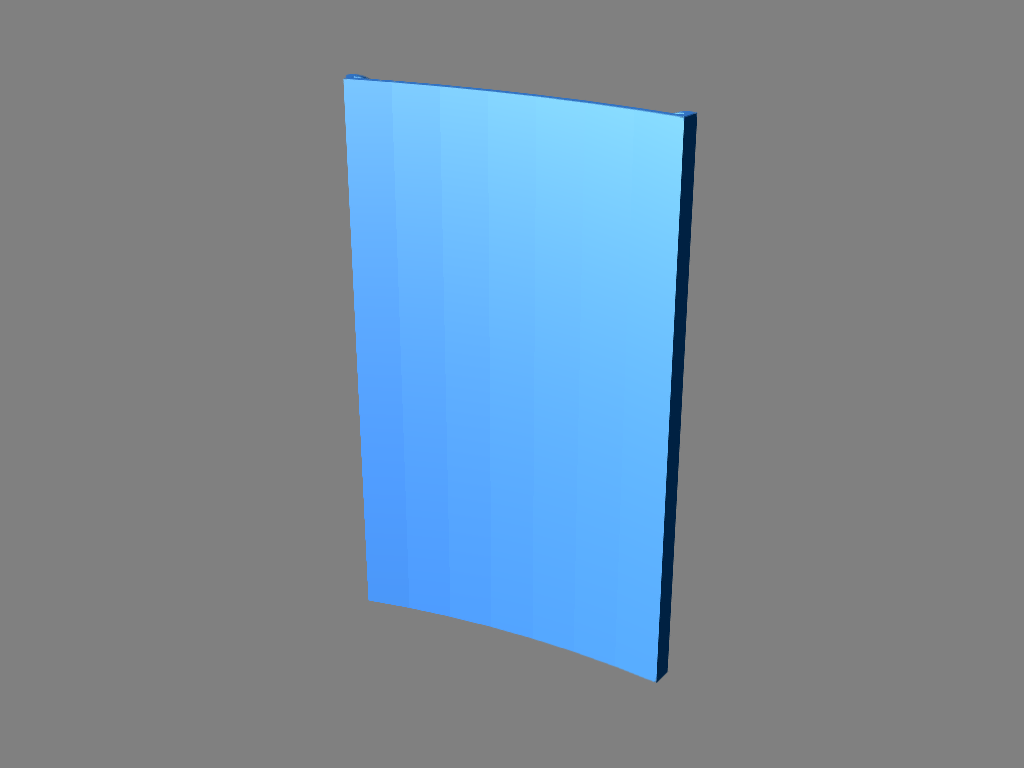

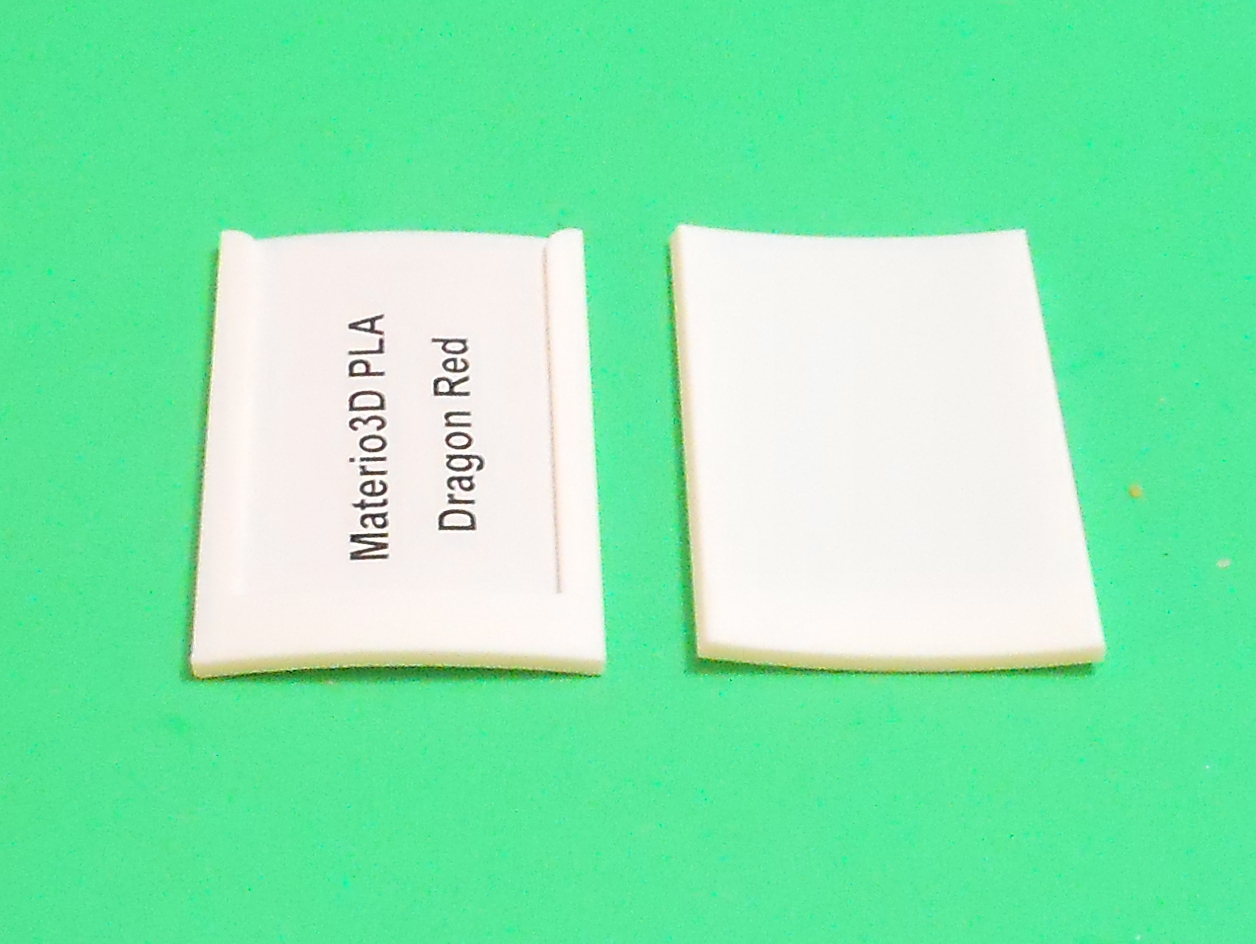

This is a device that holds cards that identify the filament stored in a 4 litres airtight container. This design is slightly curved to fit the end of the container. The size of the cards are 42.3 mm x 76 mm, which corresponds to a 1/3 of a 5 x 3 inches index card. A template that lets you print 3 cards per index card is also included.
A brim is required. It should be printed upright without support. An infill of 20% is recommended.
This object was designed using Solid Edge Community Edition.
Printable Files
| | 4 Litres Airtigh Container Filament Name Card Holder |
 | Card Printing Template |
This object is also published on the following site(s):
* Prusa Printers
* Thingiverse
* Maker World
The source files are available:
You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:
You are free to:
| * | Share — copy and redistribute the material except the source files in any medium or format |
| * | Adapt — remix, transform, and build upon the material |
You agree to:
| * | give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. |
| * | not use the material for commercial purposes |
| * | distribute your contributions under the same license as the original if you remix, transform, or build upon the material |
| * | not apply legal terms or technological measures that legally restrict others from doing anything the license permits. |
| * | not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files. |
If you do not agree to any of these conditions, do NOT request the source files.
