Battery Mockups
 |  |

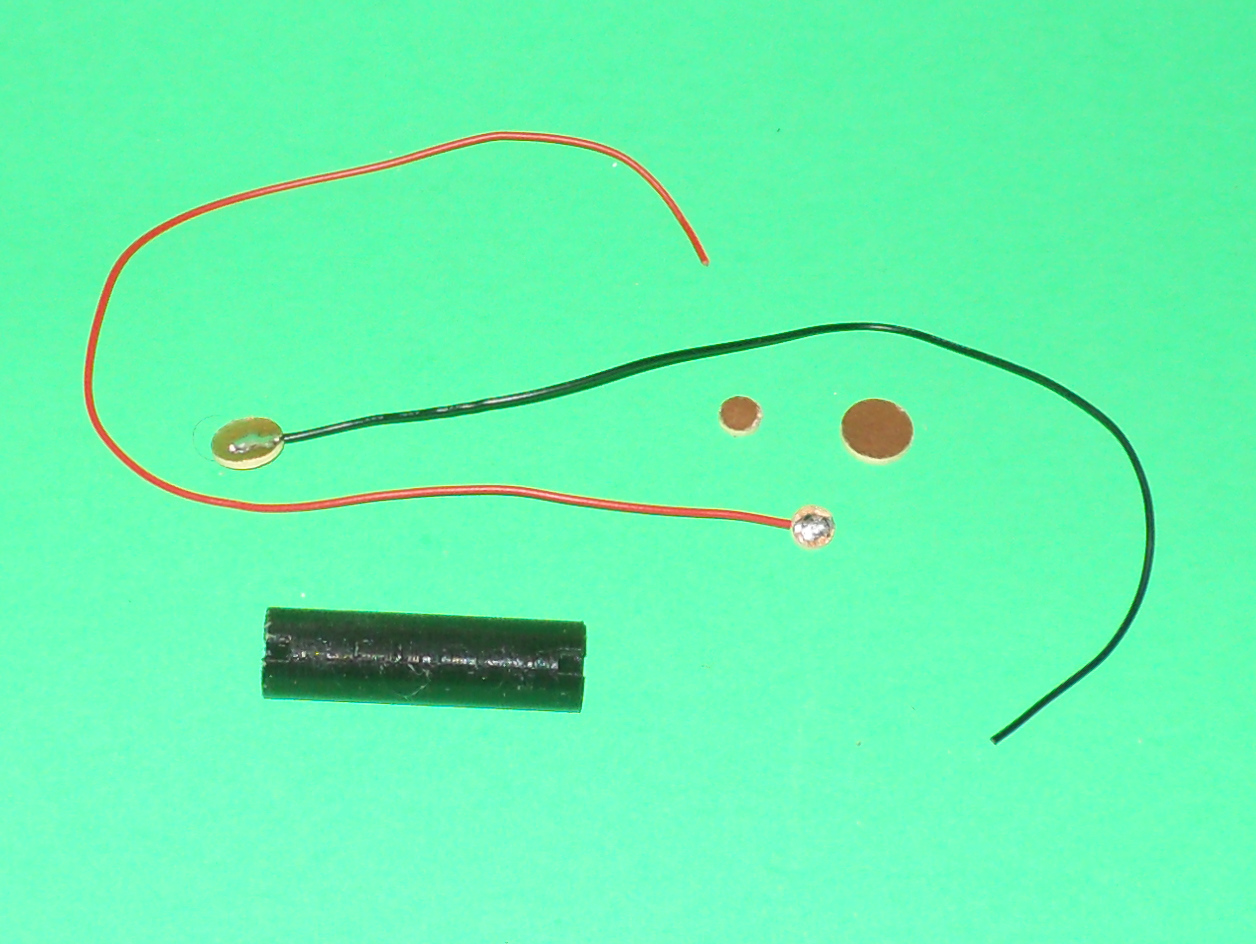

This is an AA battery mockup designed to replace AA batteries with an external power source. You will need 2 one-sided PCB pieces. One with a 5 mm diameter and another one with a 9 mm diameter. You will need to print 2 body and attach one PCB piece at the end of each one. The 9 mm PCB piece will act as the negative pole, while the 5 mm one as the positive pole. Some glue is needed to attach the PCB pieces to the end of the battery mockups. You will also need a soldering iron. You will need to solder a wire to each PCB piece.
Support material is not required. An infill of 20% is recommended.
This object was designed using Solid Edge Community Edition.
Printable Files

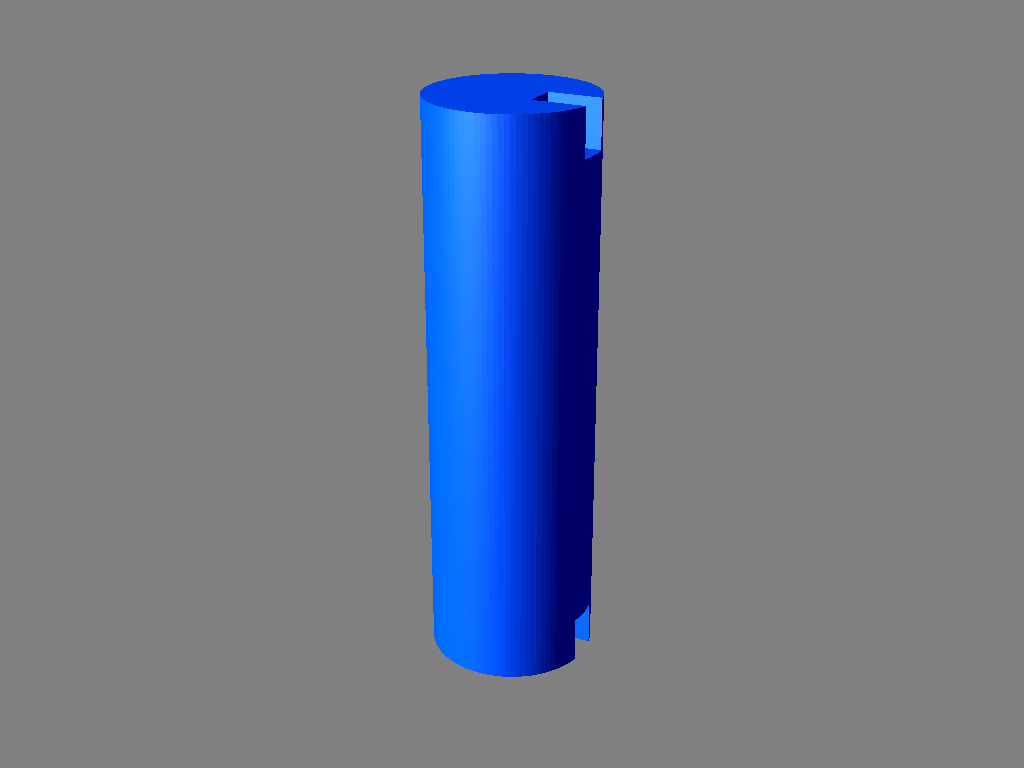

| | AA Battery Mockup Body |
 | Battery mockup generator |
This object is also published on the following site(s):
* Prusa Printers
* Thingiverse
The source files are available:
You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:
You are free to:
| * | Share — copy and redistribute the material except the source files in any medium or format |
| * | Adapt — remix, transform, and build upon the material |
You agree to:
| * | give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. |
| * | not use the material for commercial purposes |
| * | distribute your contributions under the same license as the original if you remix, transform, or build upon the material |
| * | not apply legal terms or technological measures that legally restrict others from doing anything the license permits. |
| * | not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files. |
If you do not agree to any of these conditions, do NOT request the source files.
Copyright 2012-2022 by Claude “Tryphon” Théroux
In the description it is stated: “The 5 mm PCB piece will act as the negative pole, while the 9 mm one as the positive pole.” – but the picture with color cables soldered-in (and common sense) suggests otherwise.
Thanks. You’re right.
