DT3 USB Cable Tester Case

July 27, 2024 3D Printing object

Description

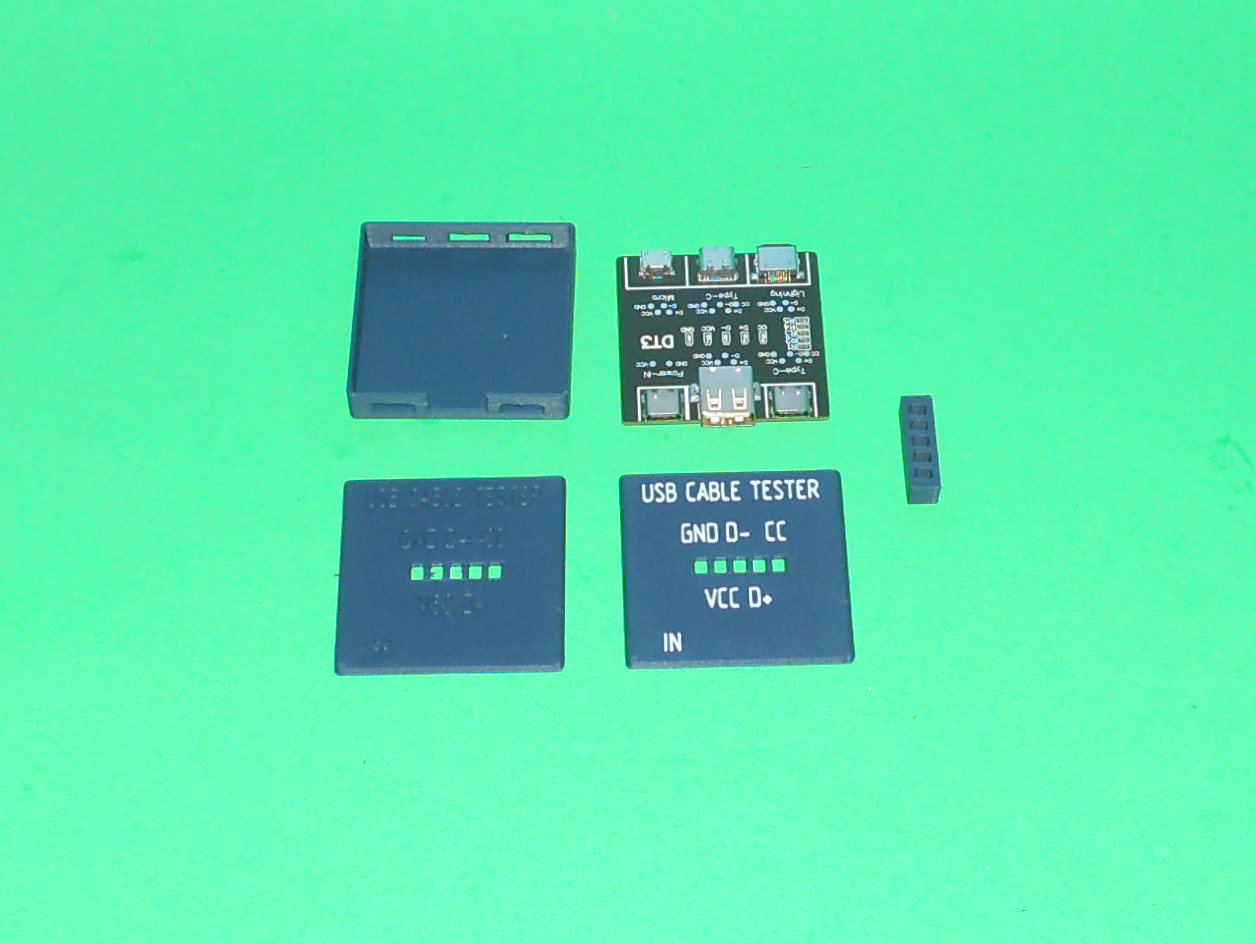

This is a case for a DT3 USB Cable Tester board. It is available in monochrome and coloured versions. You will need to assemble it using some CA glue. You'll have to glue the light conduits to the inside top cover, aligning the 5 holes. Use the alignment tool to assemble the light conduits. Be careful no to glue is. Glue is required only in the centre of the conduits.

Support material is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

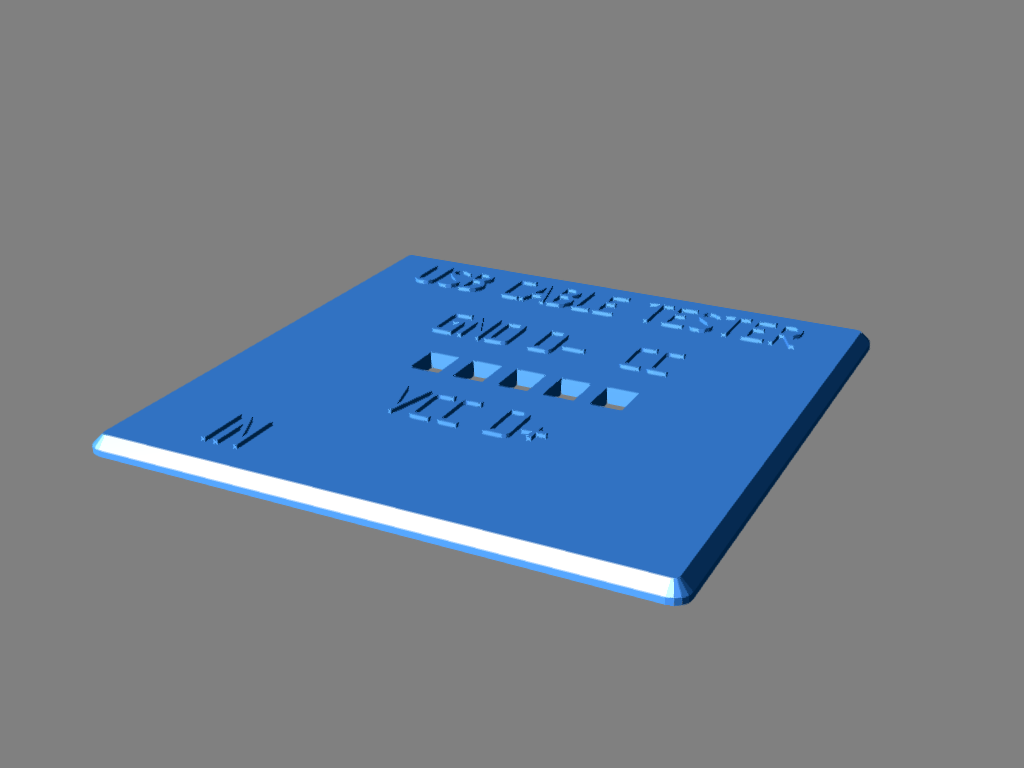

	TopMonoChrome.stl
	TopMultiColor.3mf

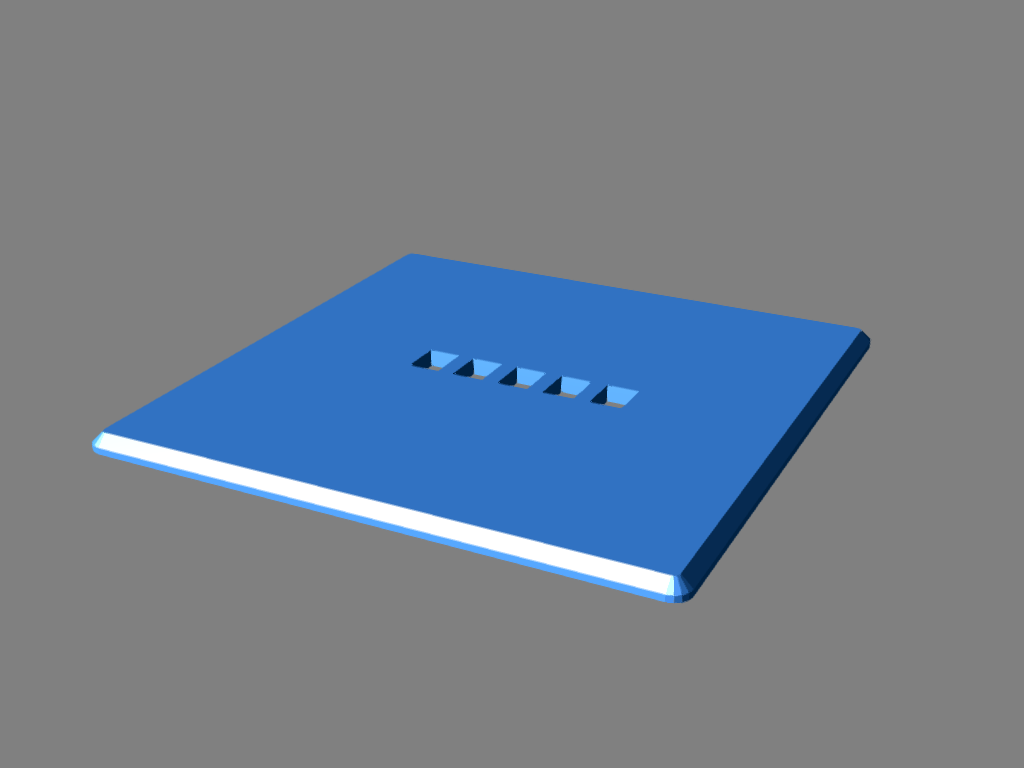

	TopNoText.stl

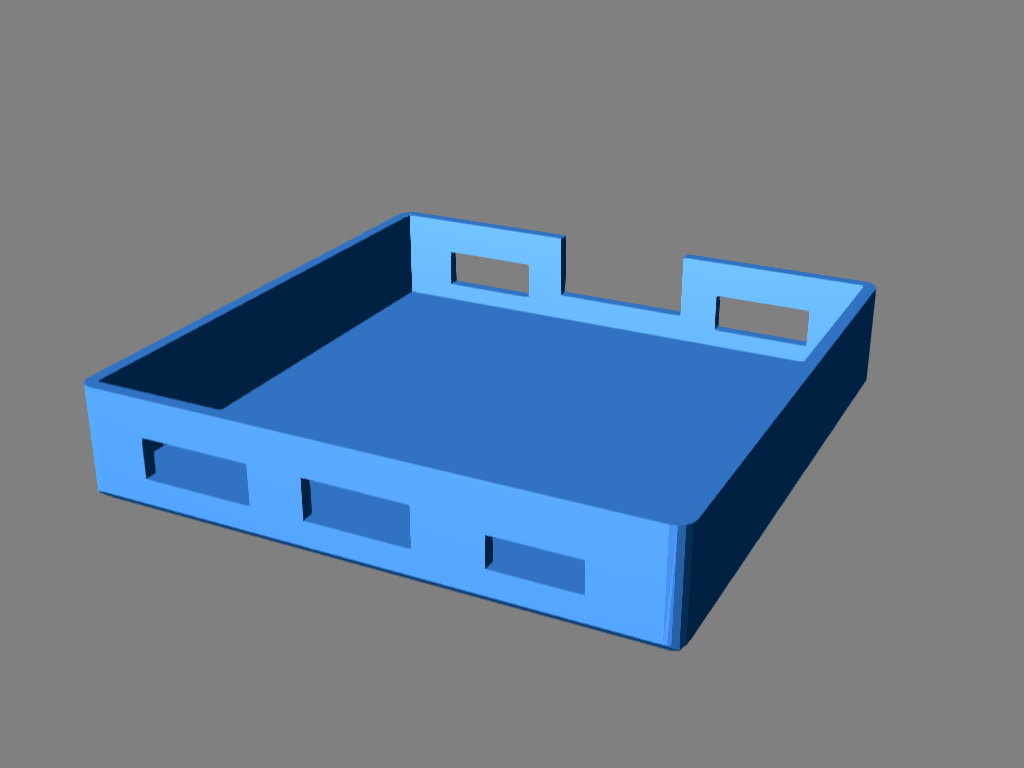

	Base.stl

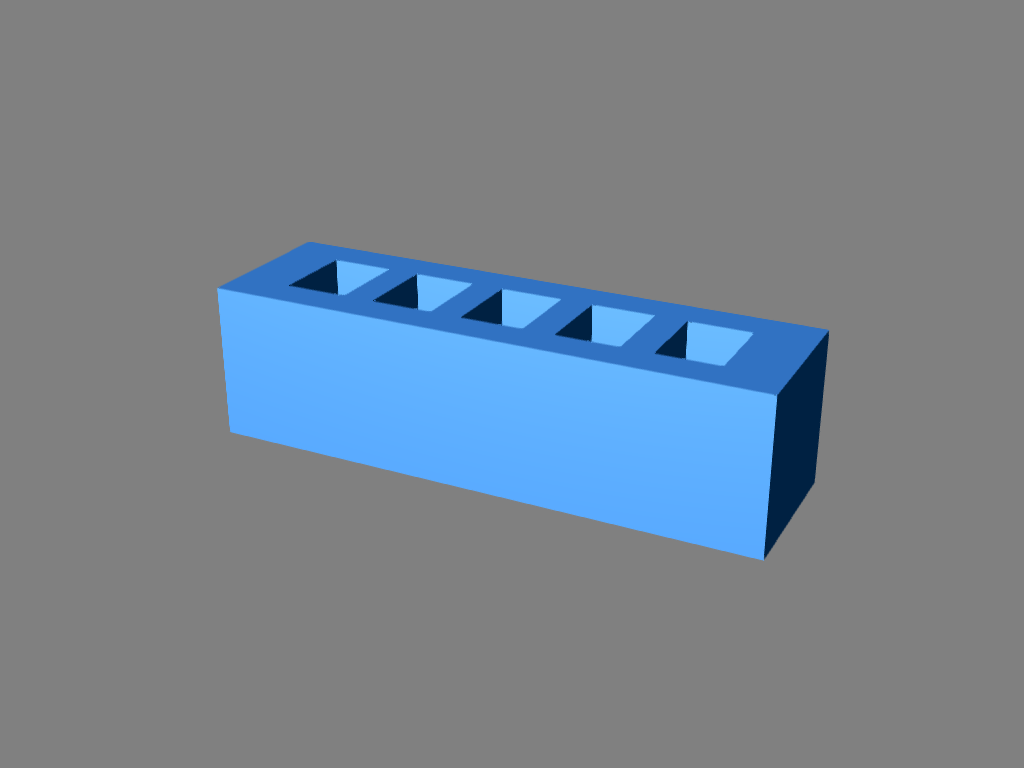

	LightConduits.stl

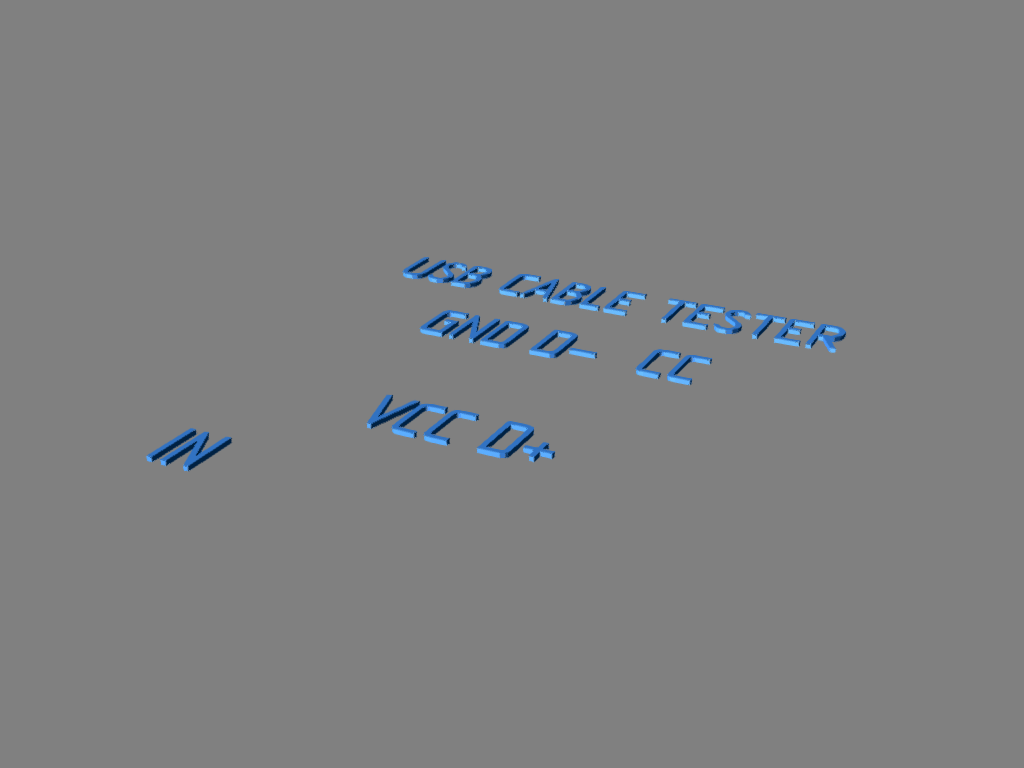

	TextOnly.stl

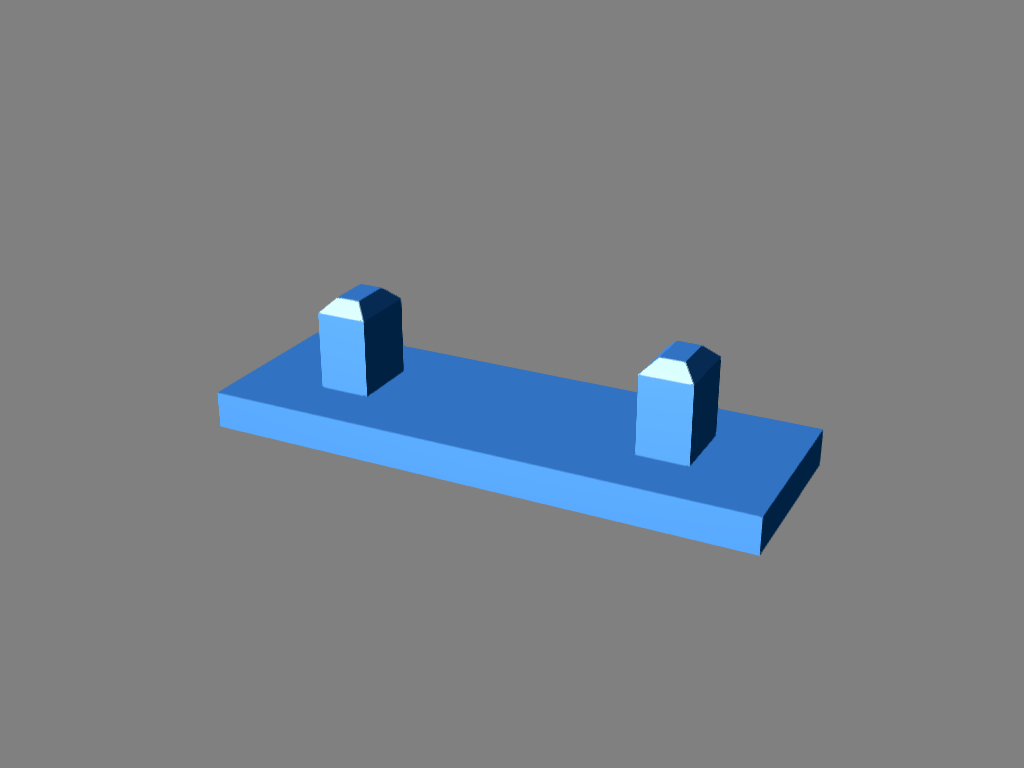

	AlignmentPin.stl

This object is also published on the following site(s):

DT3 USB Cable Tester Case (412)

You may request the source file(s) for this object by posting a comment below. Your email address will be used solely to deliver the requested source file(s) and for no other purpose.\r\n\r\nBy requesting the source file(s), you are granted permission to:\r\n\r\n- Share — Copy and redistribute the material, excluding the source file(s), in any medium or format.\r\n- Adapt — Remix, transform, and build upon the material.\r\n\r\nBy requesting the source file(s), you also agree to:\r\n\r\n- Give appropriate credit, provide a link to the license, and indicate whether changes were made. You may do so in any reasonable manner, provided that it does not suggest that the licensor endorses you or your use.\r\n- Not use the material for commercial purposes.\r\n- Distribute any derivative works under the same license as the original if you remix, transform, or build upon the material.\r\n- Not apply legal terms or technological measures that legally restrict others from exercising the rights granted by the license.\r\n- Not upload the source file(s) or any modified versions of the source file(s) to any website or file-sharing service. \r\n- The source file(s) are provided for your personal use only. However, you may freely upload and distribute any STL or OBJ files generated from the source file(s).\r\n\r\nIf you do not agree to all of these conditions, please do not request the source file(s).

Name

Comment

Do you agree to all these conditions?

This form cannot be submitted until 30 seconds have elapsed. You have time to read the conditions and fill out the form.

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.

Comments

Bastien Nocera January 27, 2026

Hey,
Would love to get the OBJ files for this, as I'd like to have a case for a mod I made. Thanks!

ctheroux April 18, 2026

Hi, sorry for the late response. You will receive them shortly. Regards

Jay Ryder May 5, 2025

Great case, would love to remix with some slight tweaks to remove the need for glue if you're ok to share the source? Thank you :)

ctheroux May 10, 2025

Hi, I will send you the source files in the next few days. Please, share your remixes. Regards.
