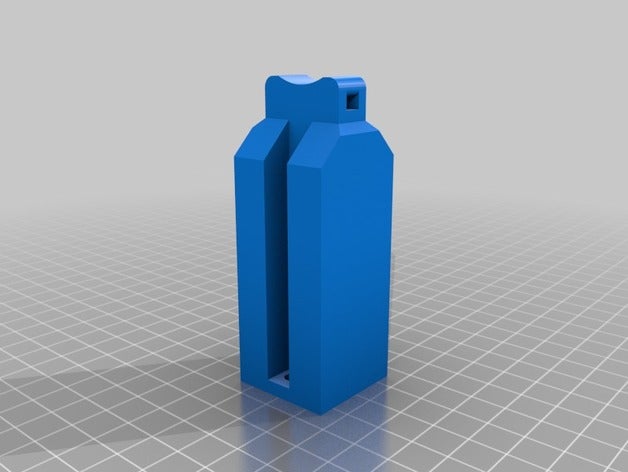

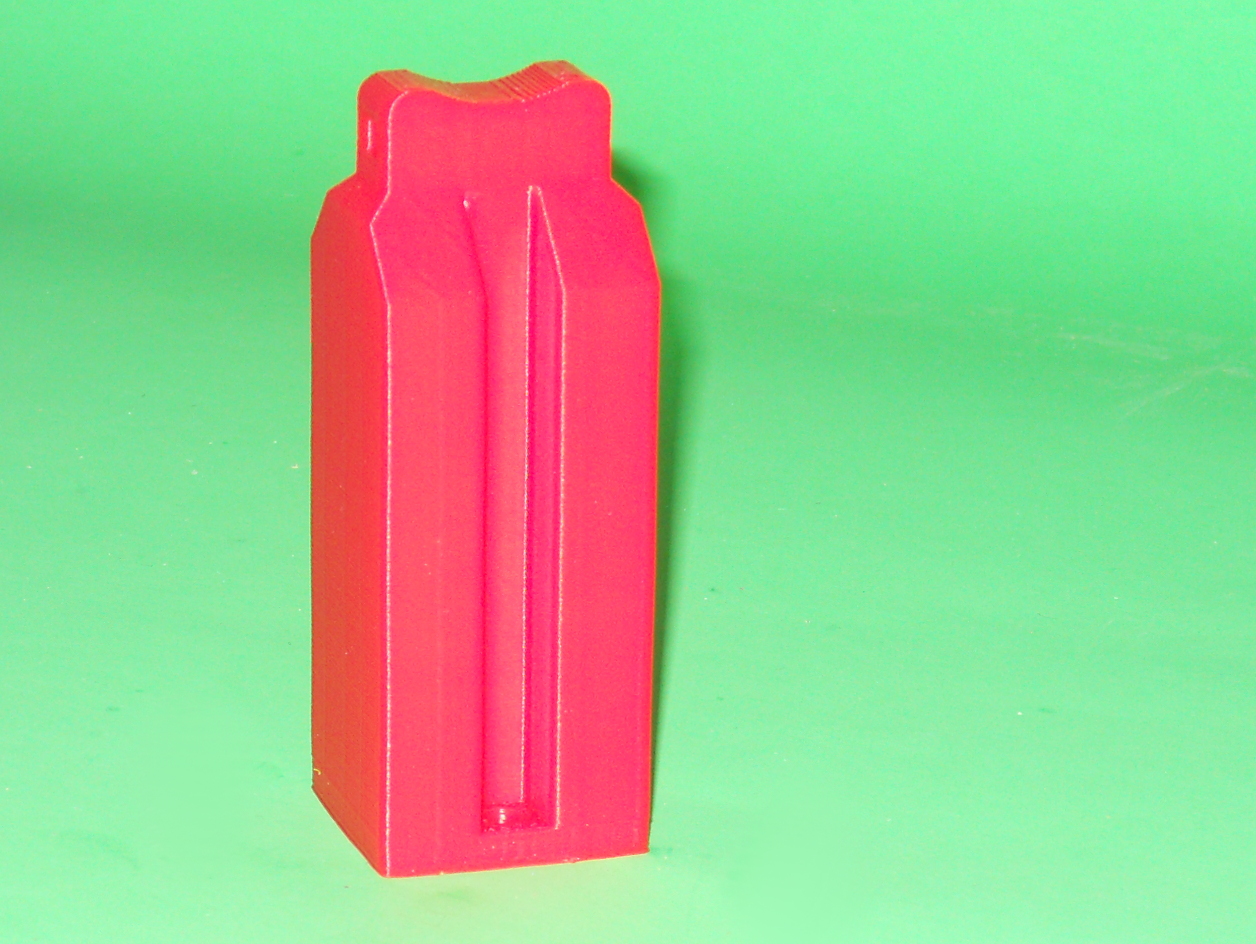

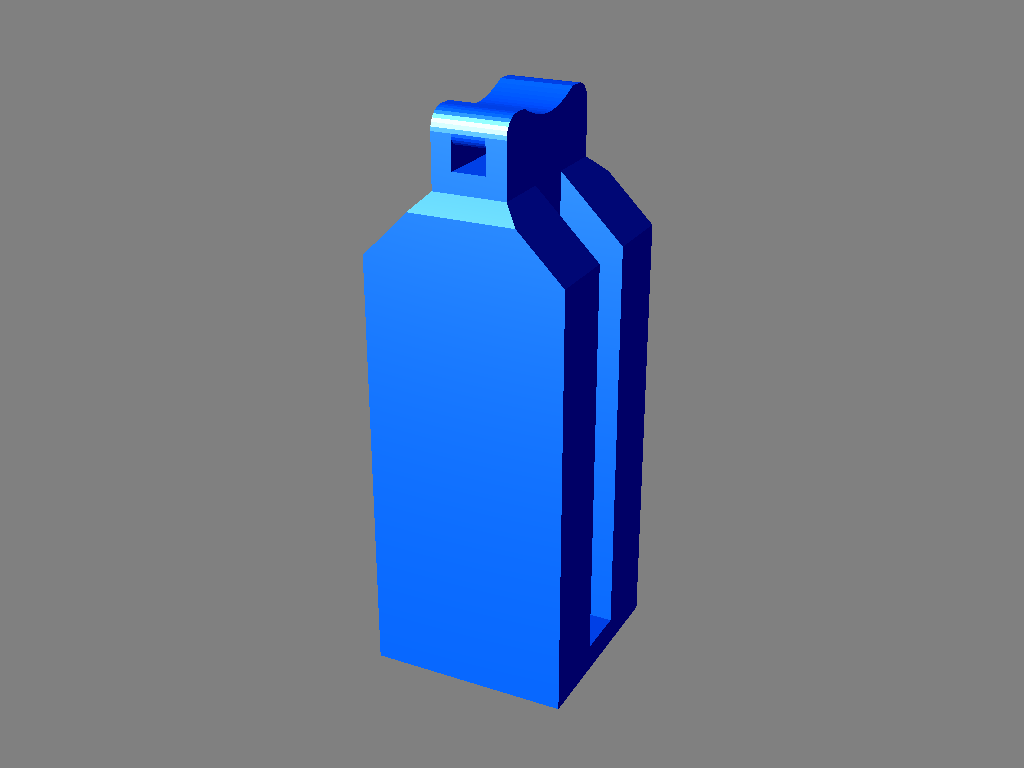

FLSun Cube Extruder Cable Strain Relief/Holder i2
 |  |  |
This is a strain relief for the wires and the PTFE tube attached to the extruder of the FLSun Cube 3D printer. It is installed using the bolts of 2 of the linear bearing holders. The M4x16 bolts will need to be replaced by M4x20 bolts. A zip tie is used to attach the wires and the PTFE tube.
No support is required to print this part. 20% infill is sufficient.
This is a more robust version of https://www.thingiverse.com/thing:3744362 .
This object was designed using Fusion 360
