Parametric Vesa Monitor Extension
 |  |  |  |

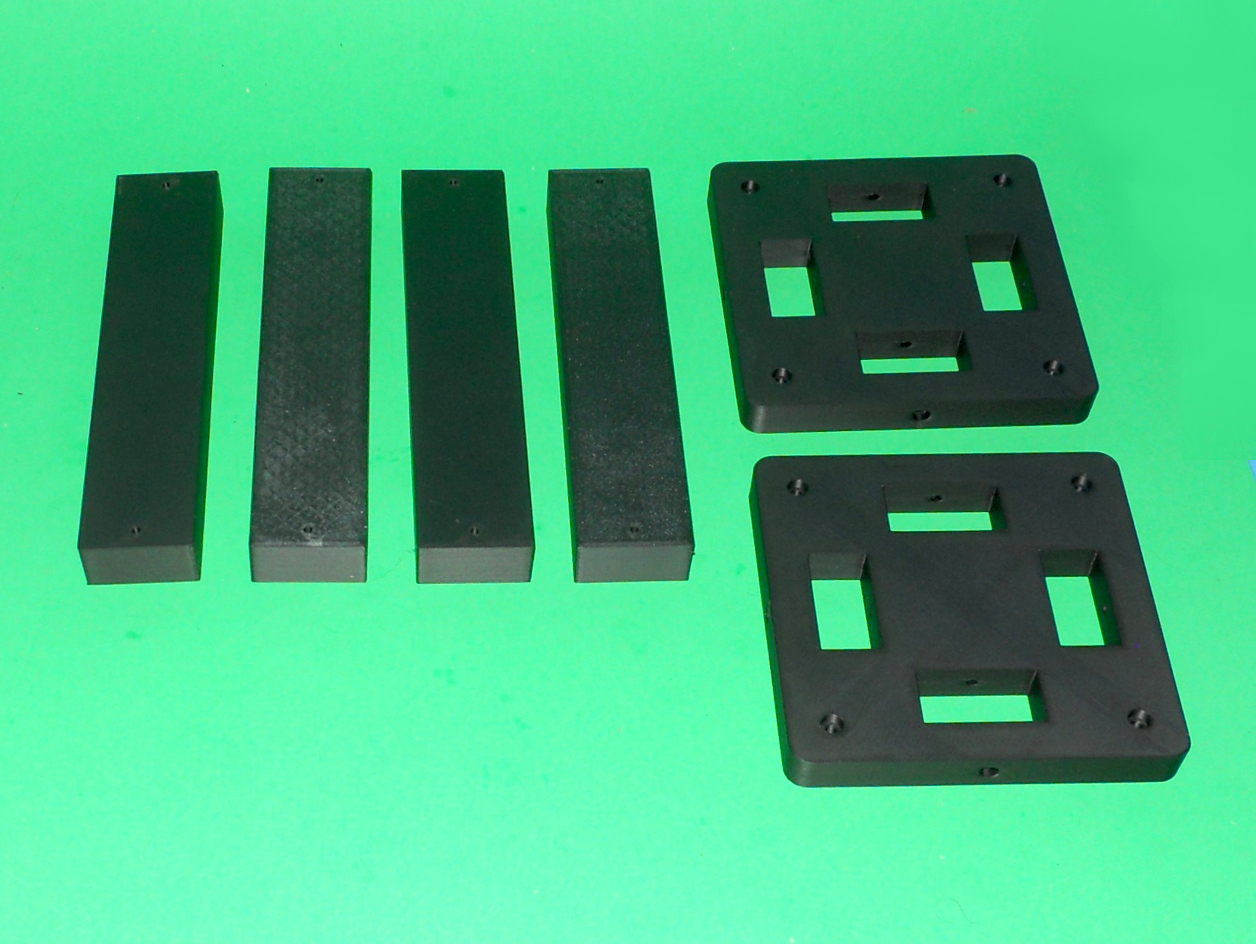

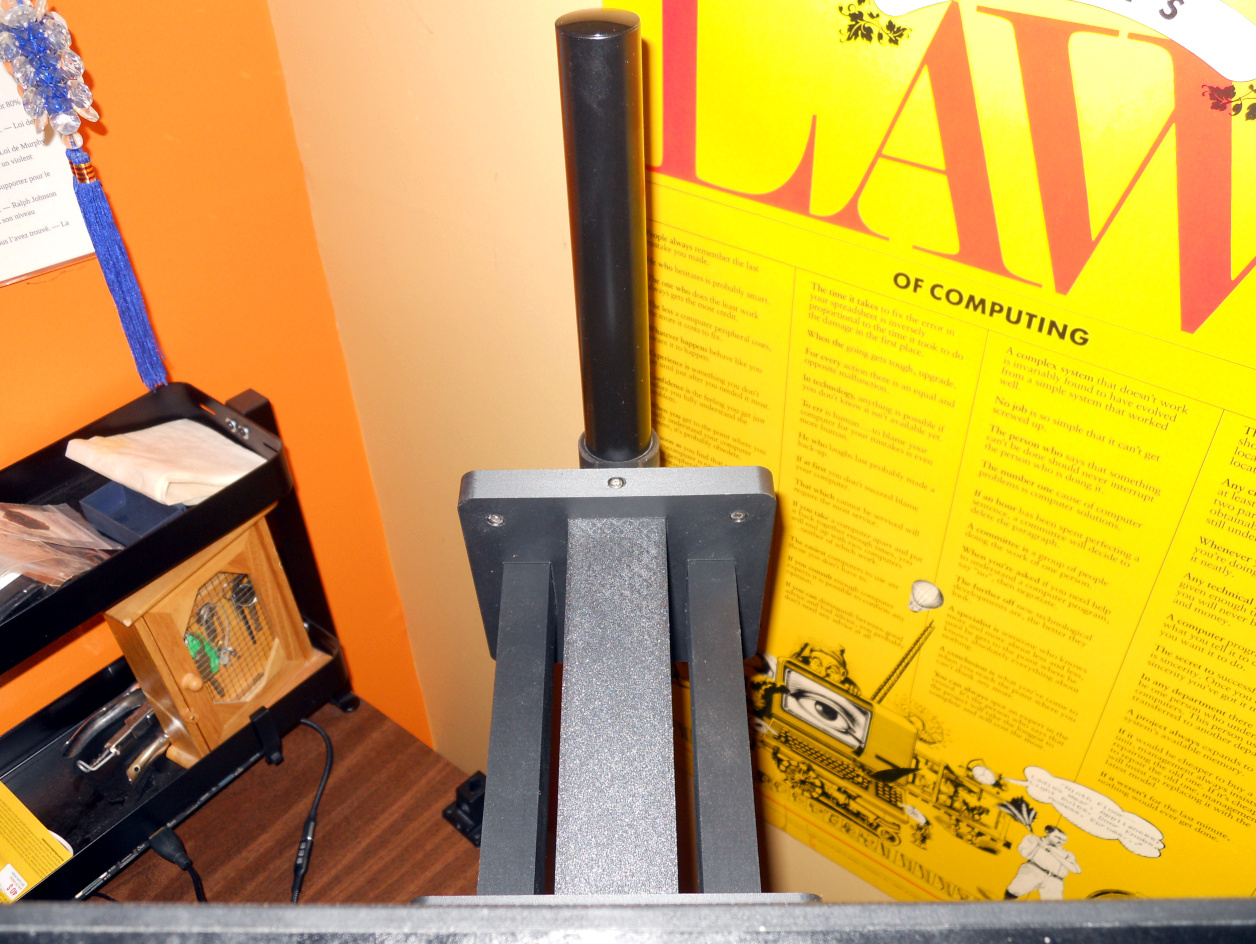

This is a parametric Vesa Monitor extension. Be careful of the length of it since it’s made of plastic. It may either break or you mounting device will break. Use it at your own risk. I’m using it for a 27-inch monitor, held by a vertical 1.25 inch tube. I’ve added a strain relief but be put at the bottom of the extension between the extension and the holding tube. You will need 8 M3 x 45 mm, 8 M4 x 20 mm hex cap screws, 4 M4 nuts along with 4 M4 washers.
Support material is not required. An infill of 20% is recommended. I’ve printed it using 1 mm top and bottom, 5 walls. Print the parts flat on the print bed for a maximum of strength.
This object was designed using openSCAD.
Printable Files

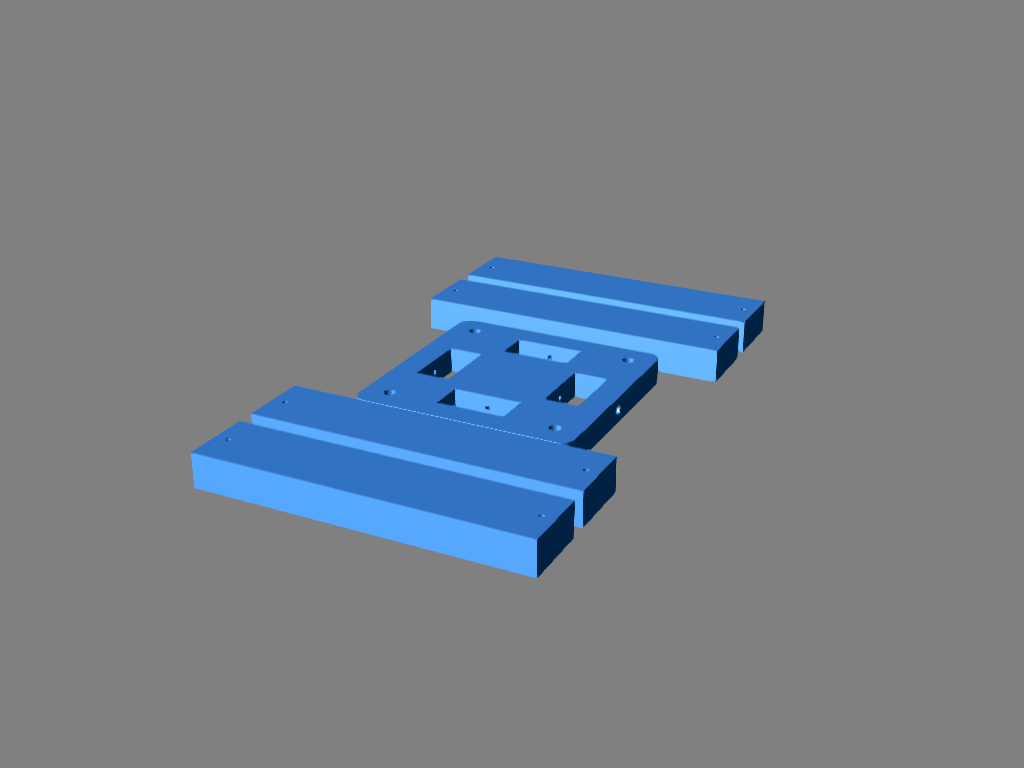

| | A 19 cm monitor extension I’m using. |
 | Parameters for the 19 cm monitor extension. |
| | Monitor extension generator main code |

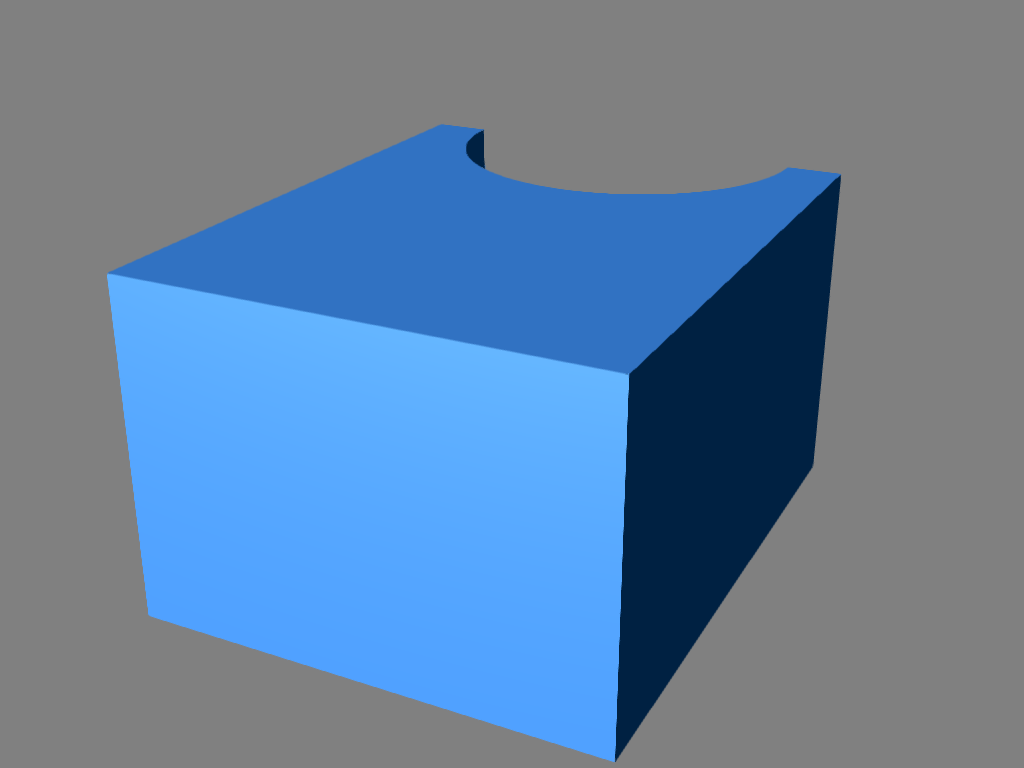

| | Strain relief, 35 mm from extension to pole |
| | Parametric strain relief generator |
