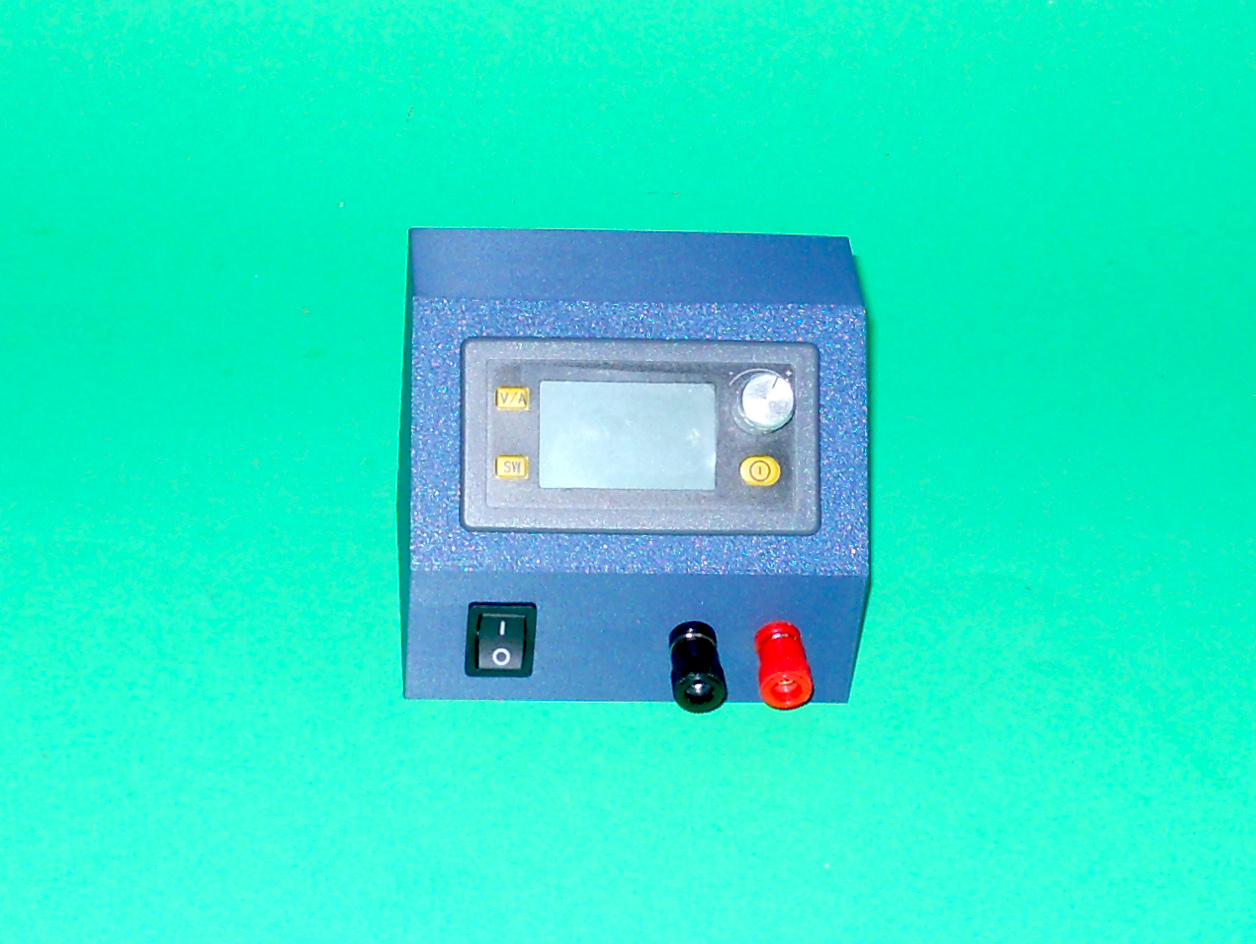

XY-SK80H Buck Boost Converter Case

This is a case for a XY-SK80H Buck Boost Converter. It fits many different models having this form factor (39mm x 71.3 mm). You’ll need the following to assemble it:

  • 4 M3 x 5 mm brass insert or glue
  • 4 M3 x 8 mm screws or glue
  • 4 ferrules (optional)
  • 1 KCD1-101 switch
  • 2 black binding posts (mounting diameter of 8 mm)
  • 2 red binding posts (mounting diameter of 8 mm)

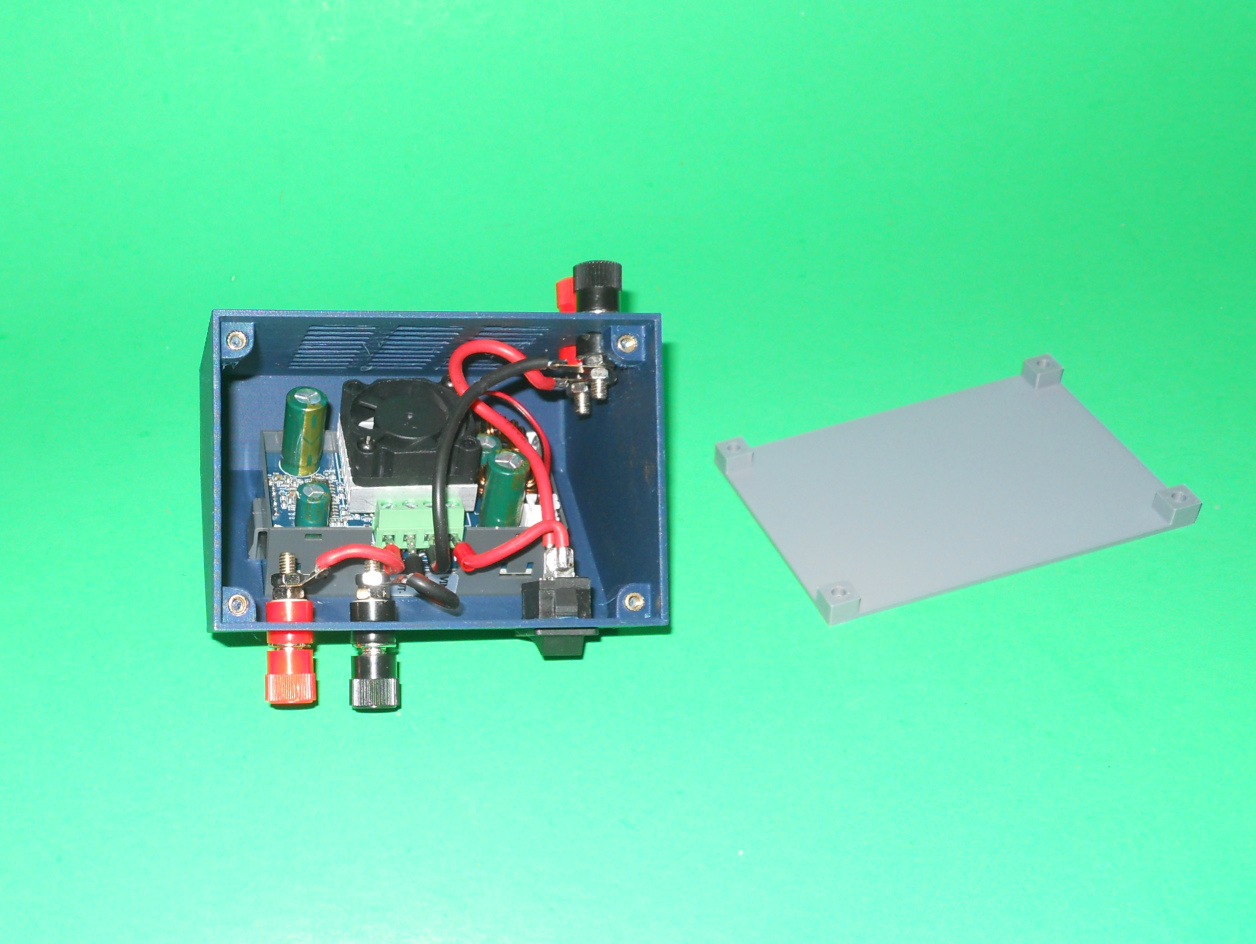

  • Some wire
  • Soldering related tools

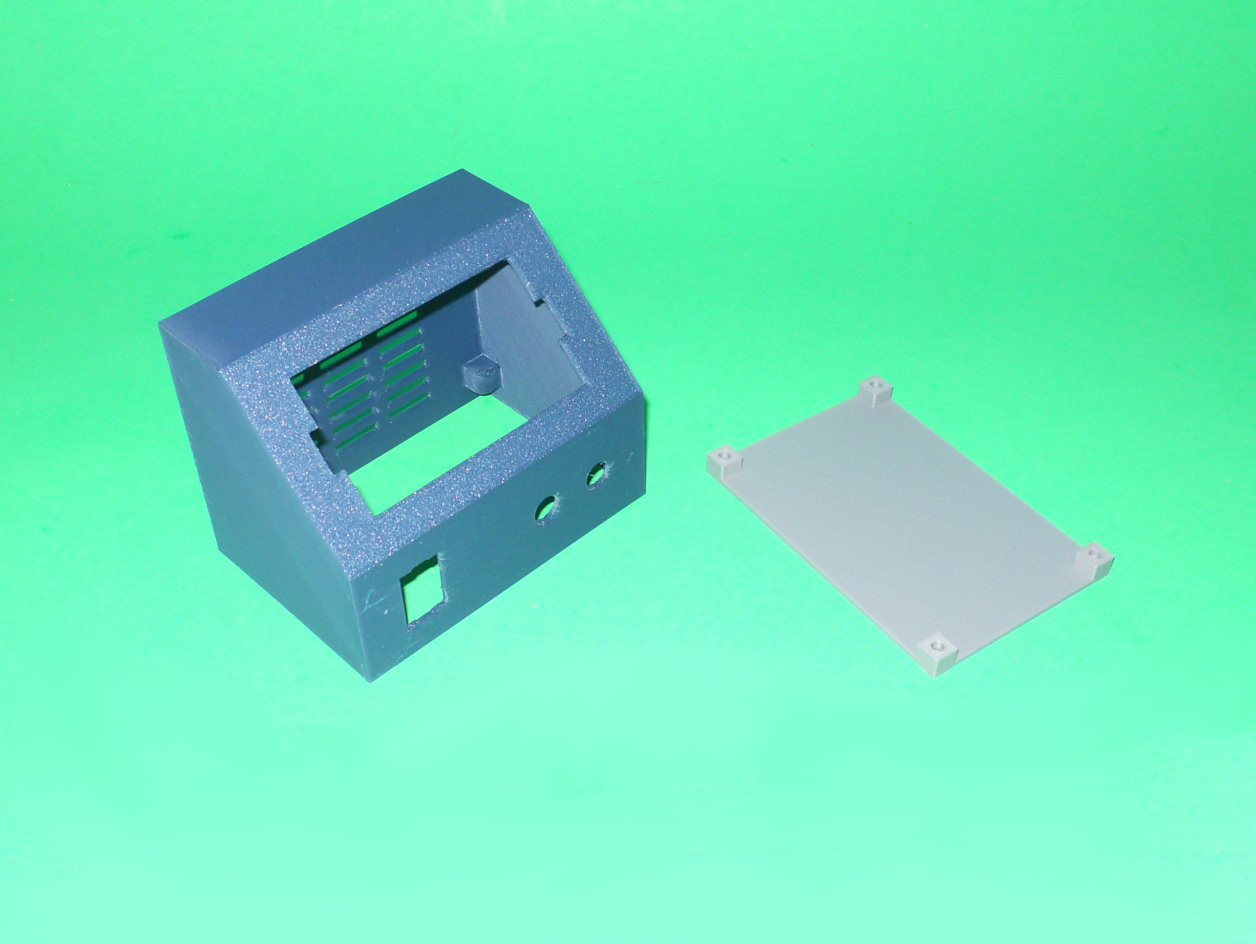

Support material is not required for the main body. Support material that touch the build plate is required for the bottom cover. An infill of 25% is recommended.

This object was designed using Solid Edge Community Edition.

Printable Files

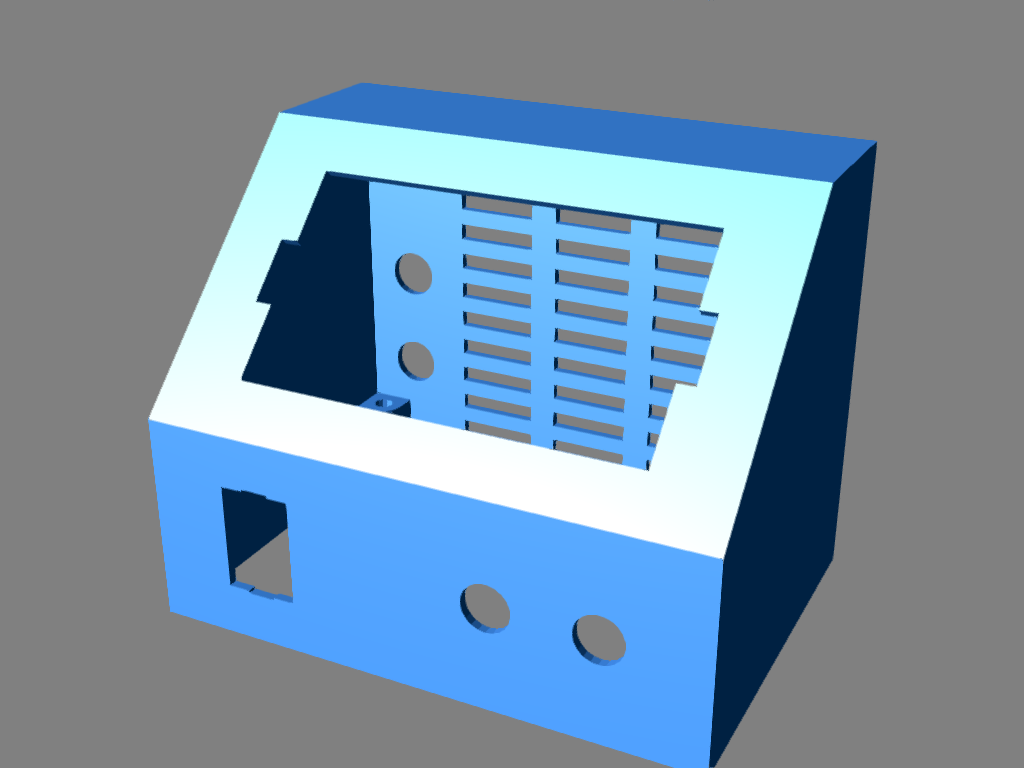

  XY-SK80H Case Main Body

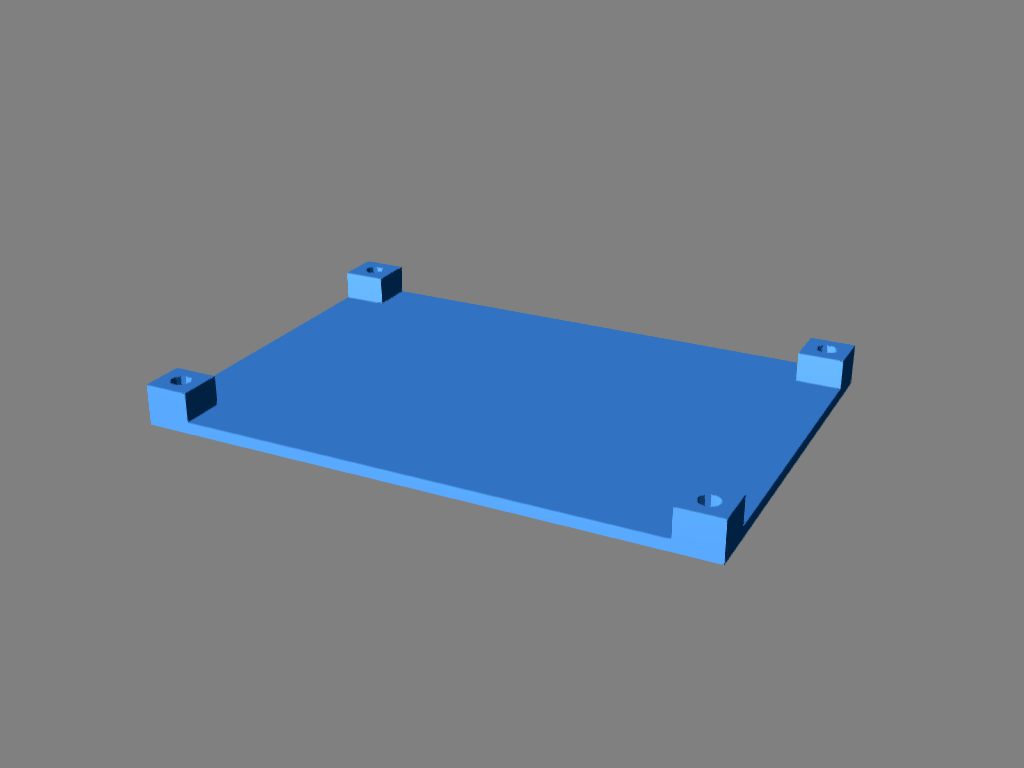

  XY-SK80H Case Bottom Cover
