DT3 USB Cable Tester Case

July 27, 2024 3D Printing object

Description

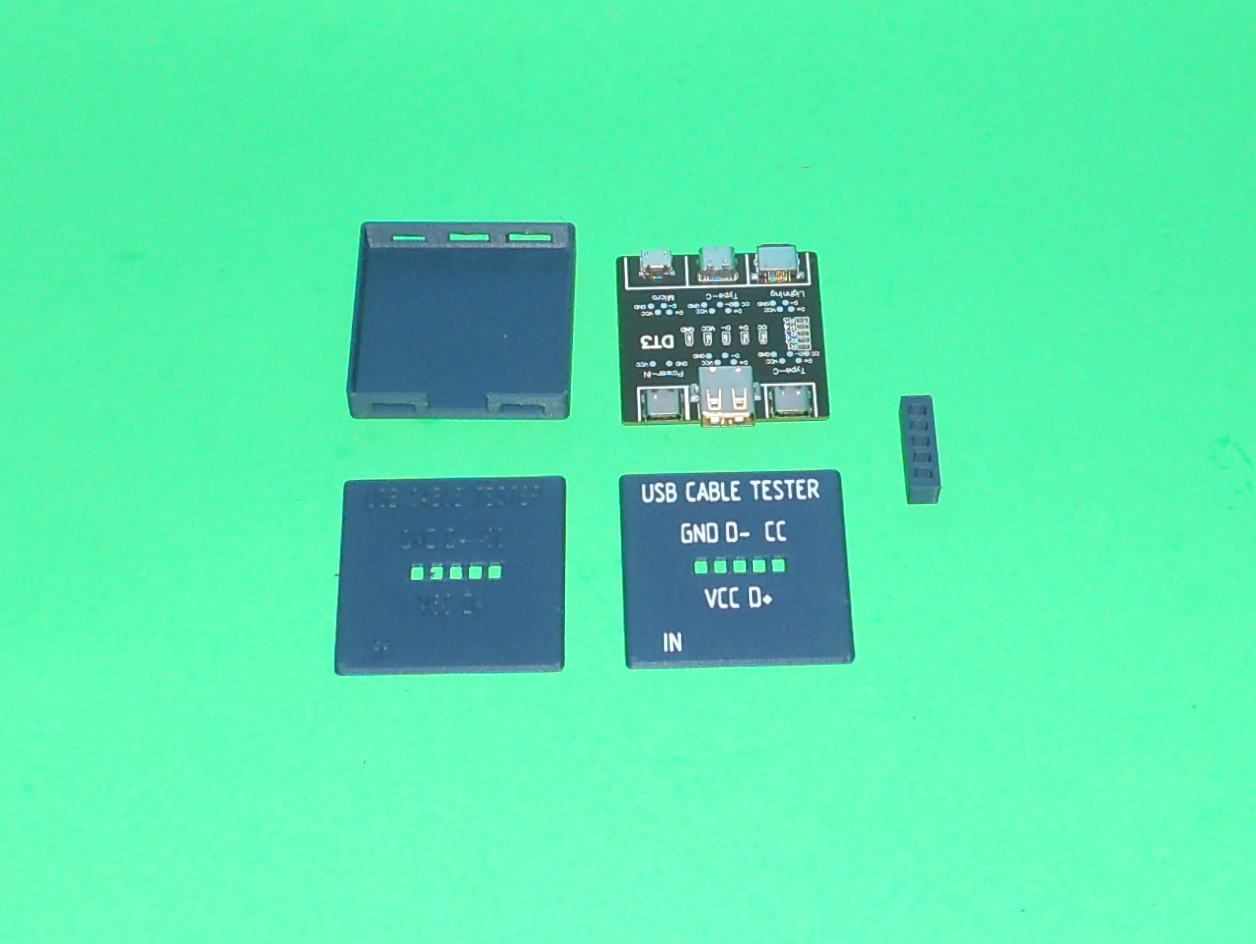

This is a case for a DT3 USB Cable Tester board. It is available in monochrome and coloured versions. You will need to assemble it using some CA glue. You'll have to glue the light conduits to the inside top cover, aligning the 5 holes. Use the alignment tool to assemble the light conduits. Be careful no to glue is. Glue is required only in the centre of the conduits.

Support material is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

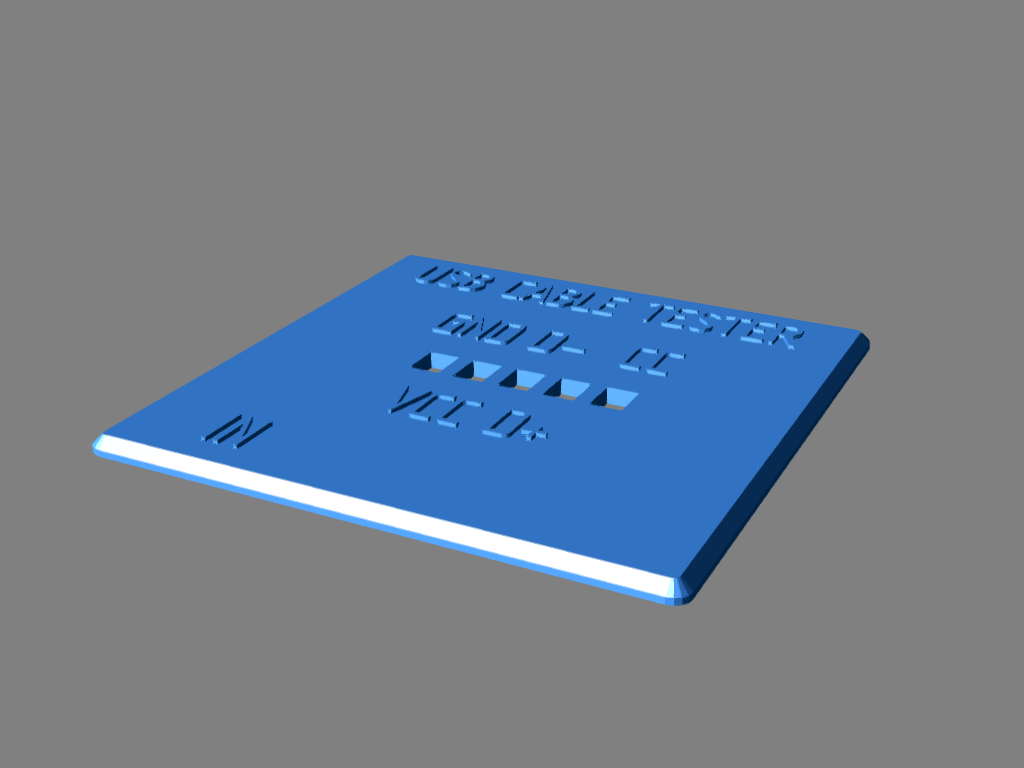

	TopMonoChrome.stl
	TopMultiColor.3mf

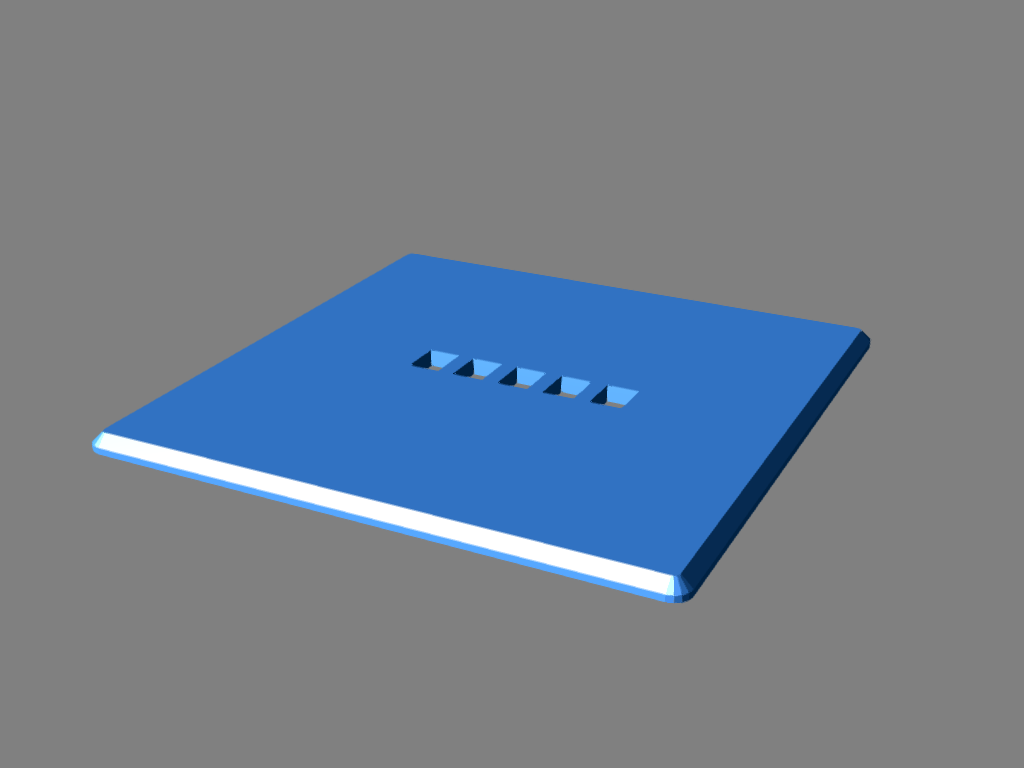

	TopNoText.stl

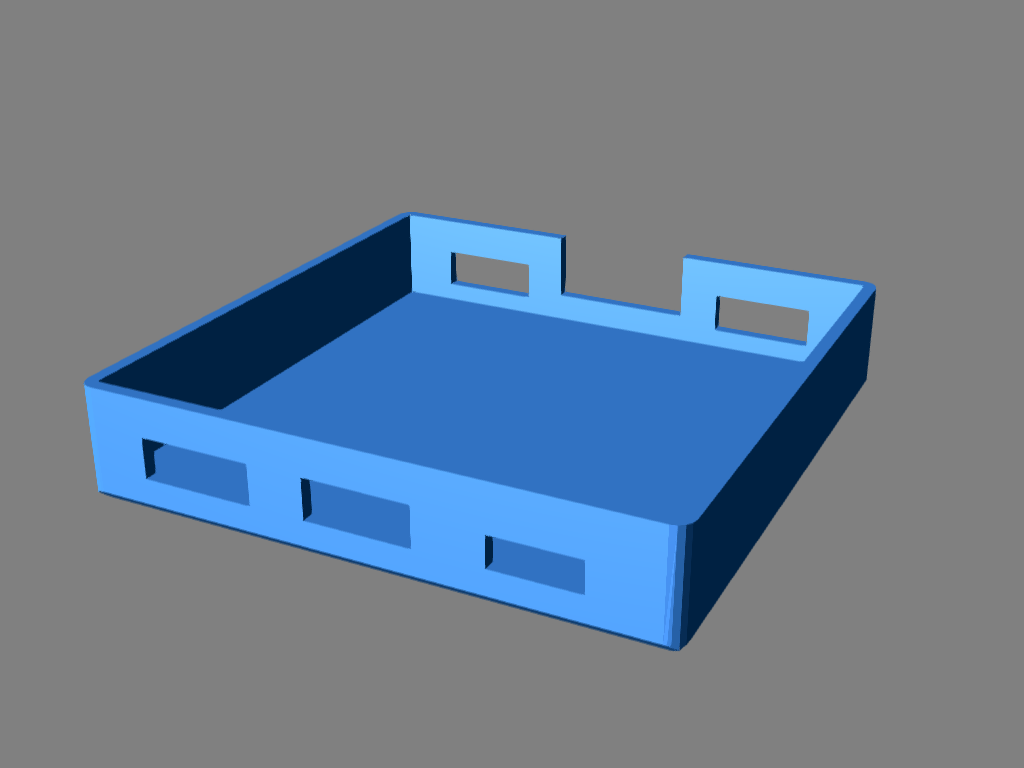

	Base.stl

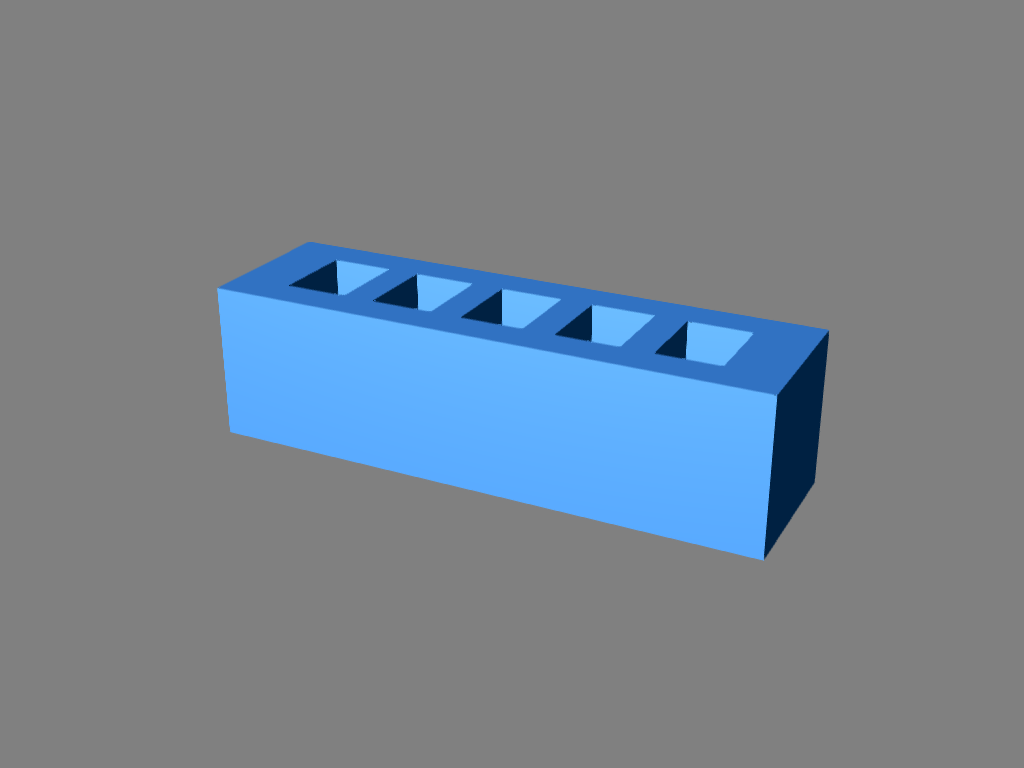

	LightConduits.stl

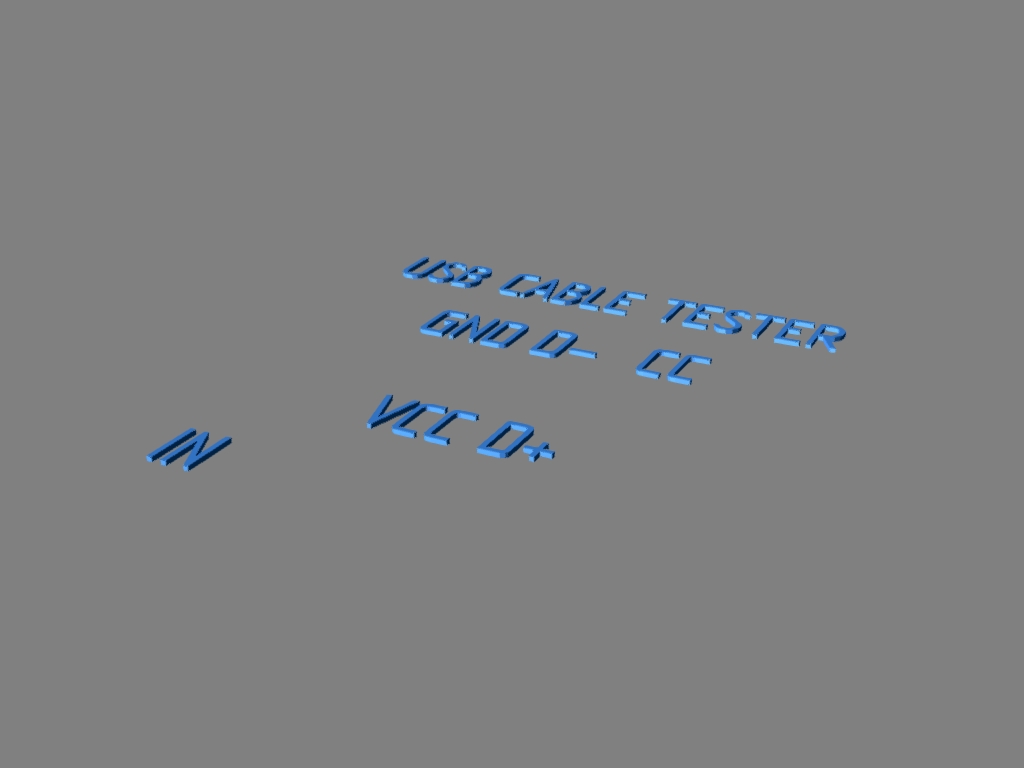

	TextOnly.stl

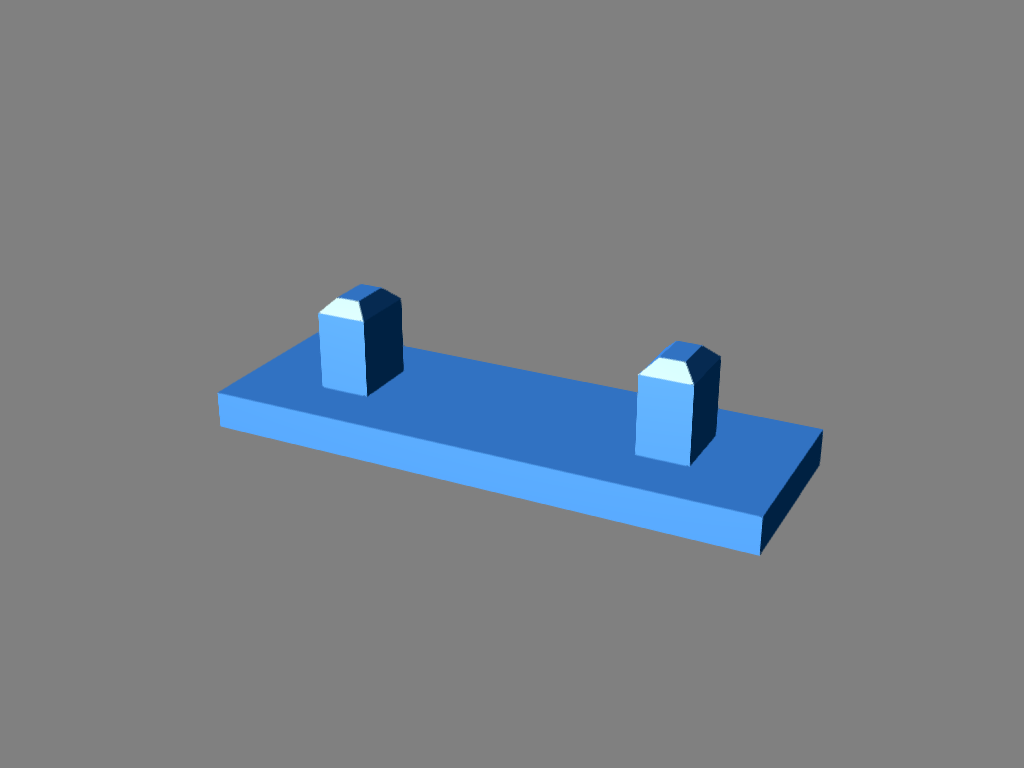

	AlignmentPin.stl
