Ikea 10 Liters 2 Spool Filament Dry Box

November 1, 2025 3D Printing object

Description

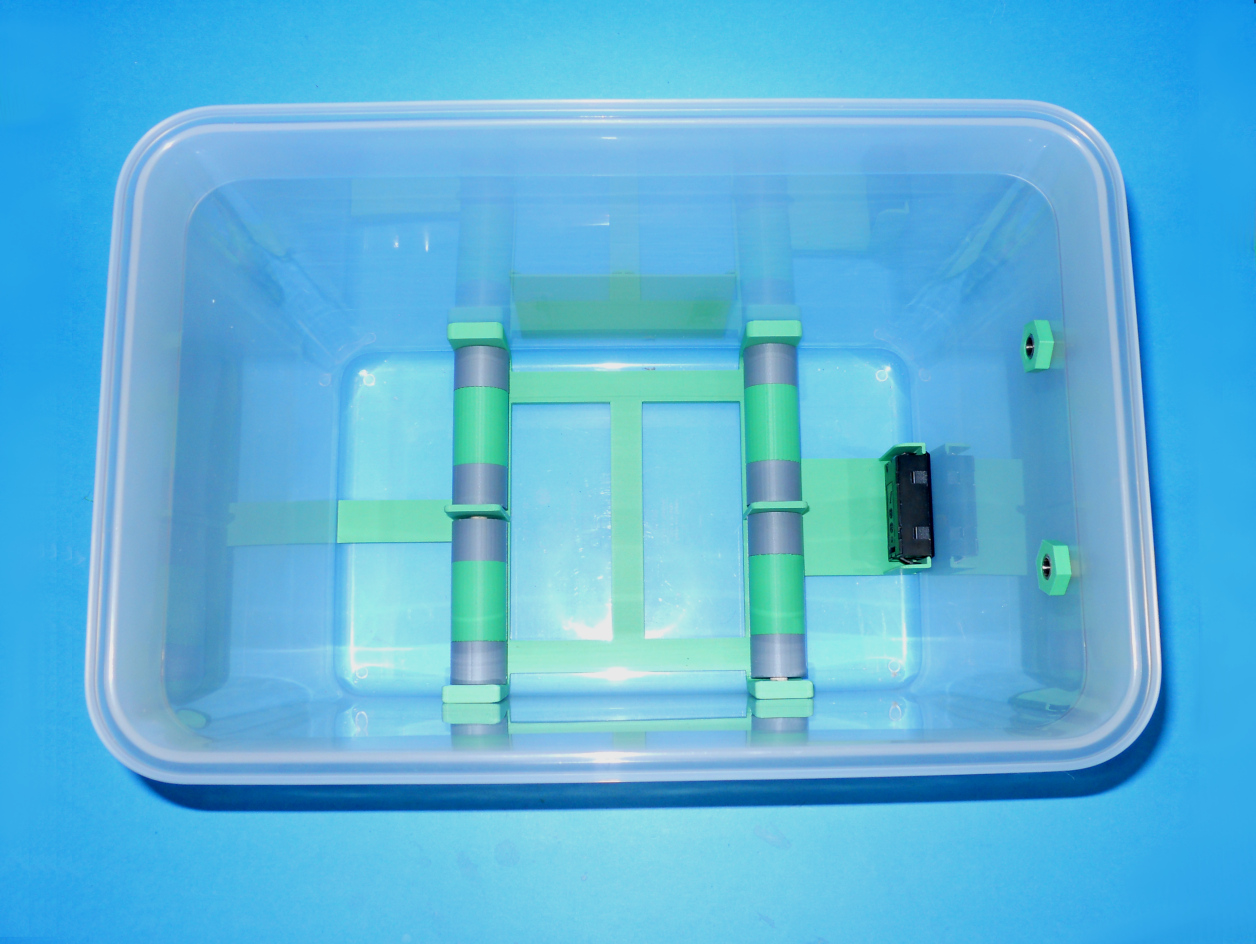

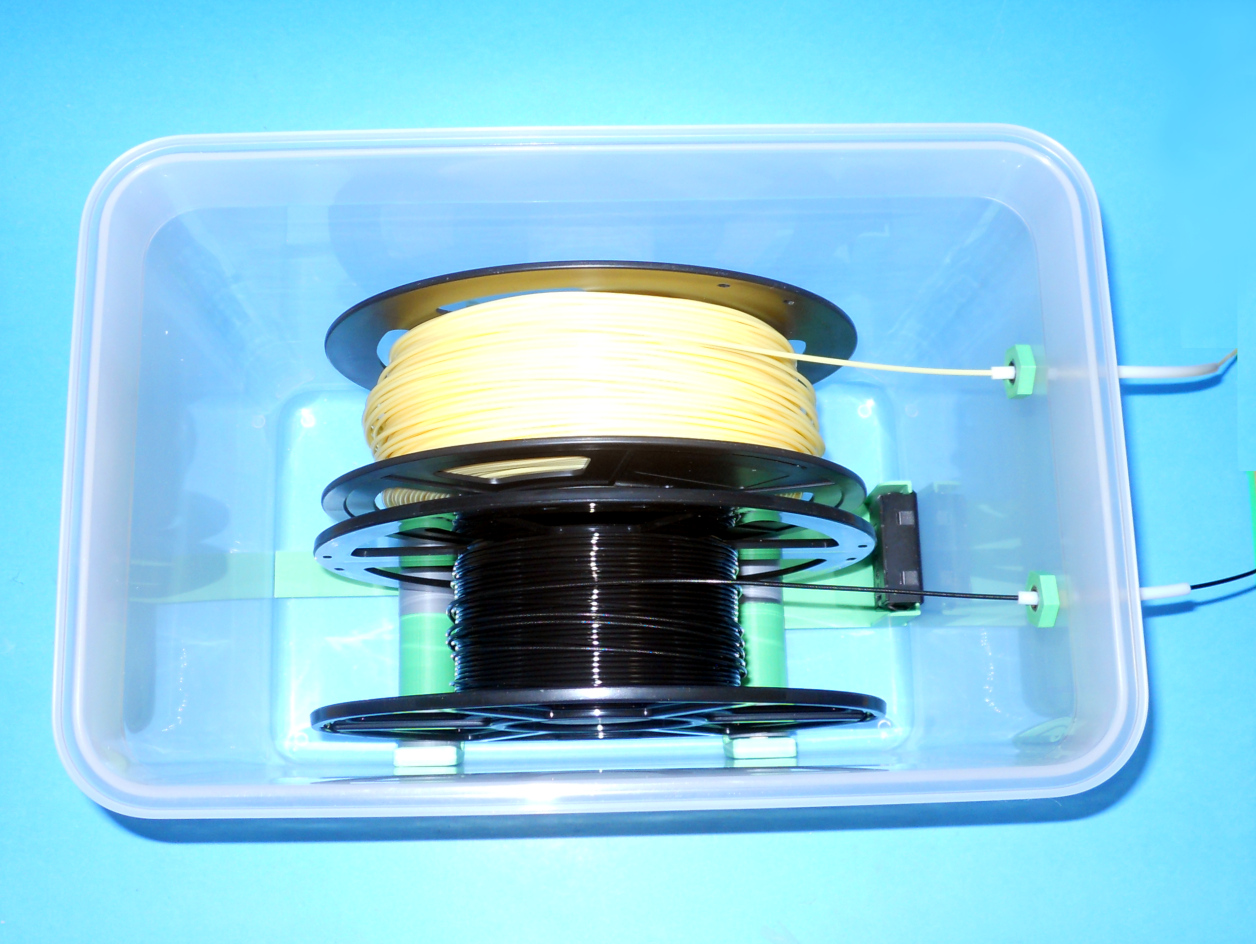

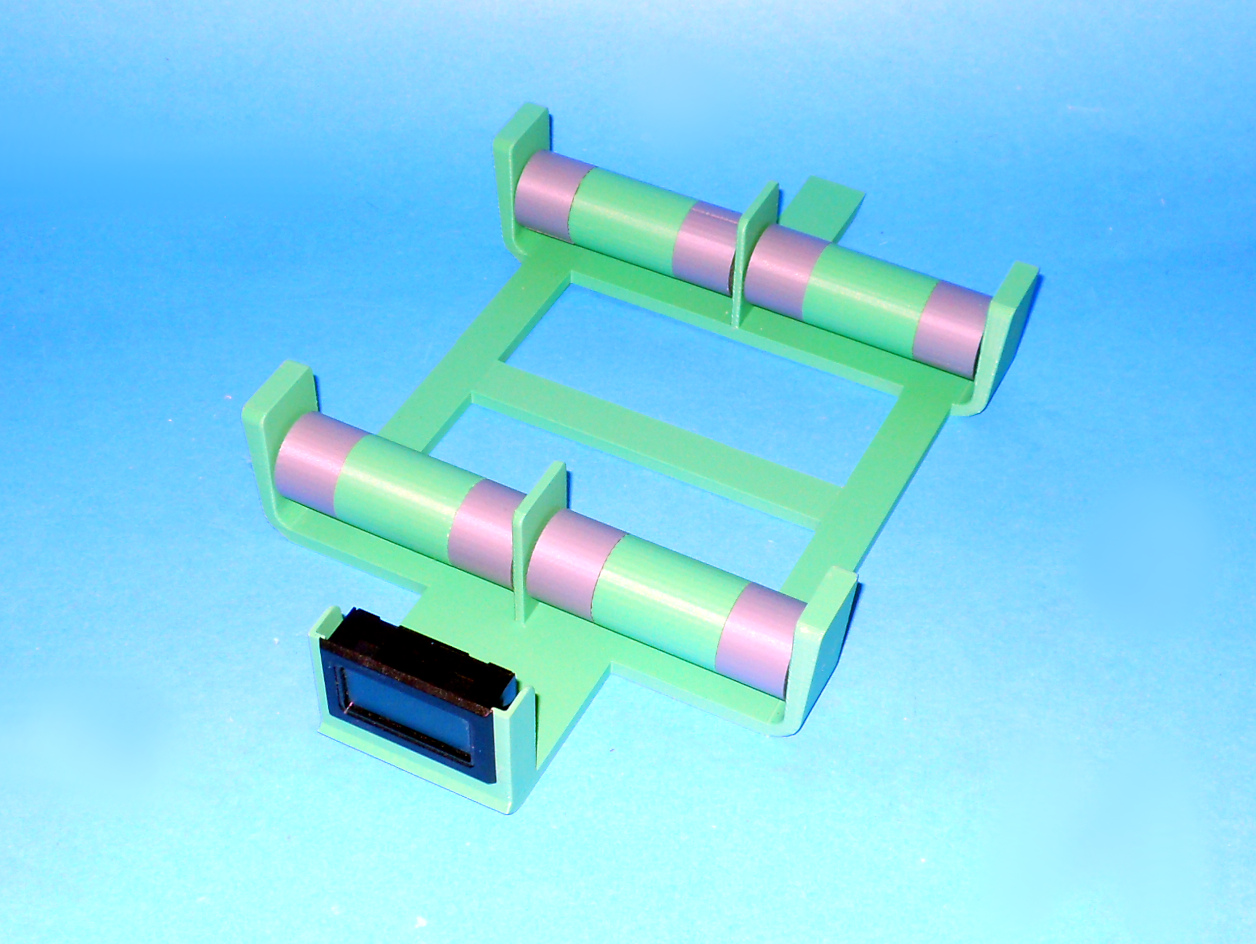

This is an IKEA 10-liter dual-spool filament dry box. It can hold two filament spools along with desiccant packs and a hygrometer. The filament can be fed directly from the box to your 3D printer.

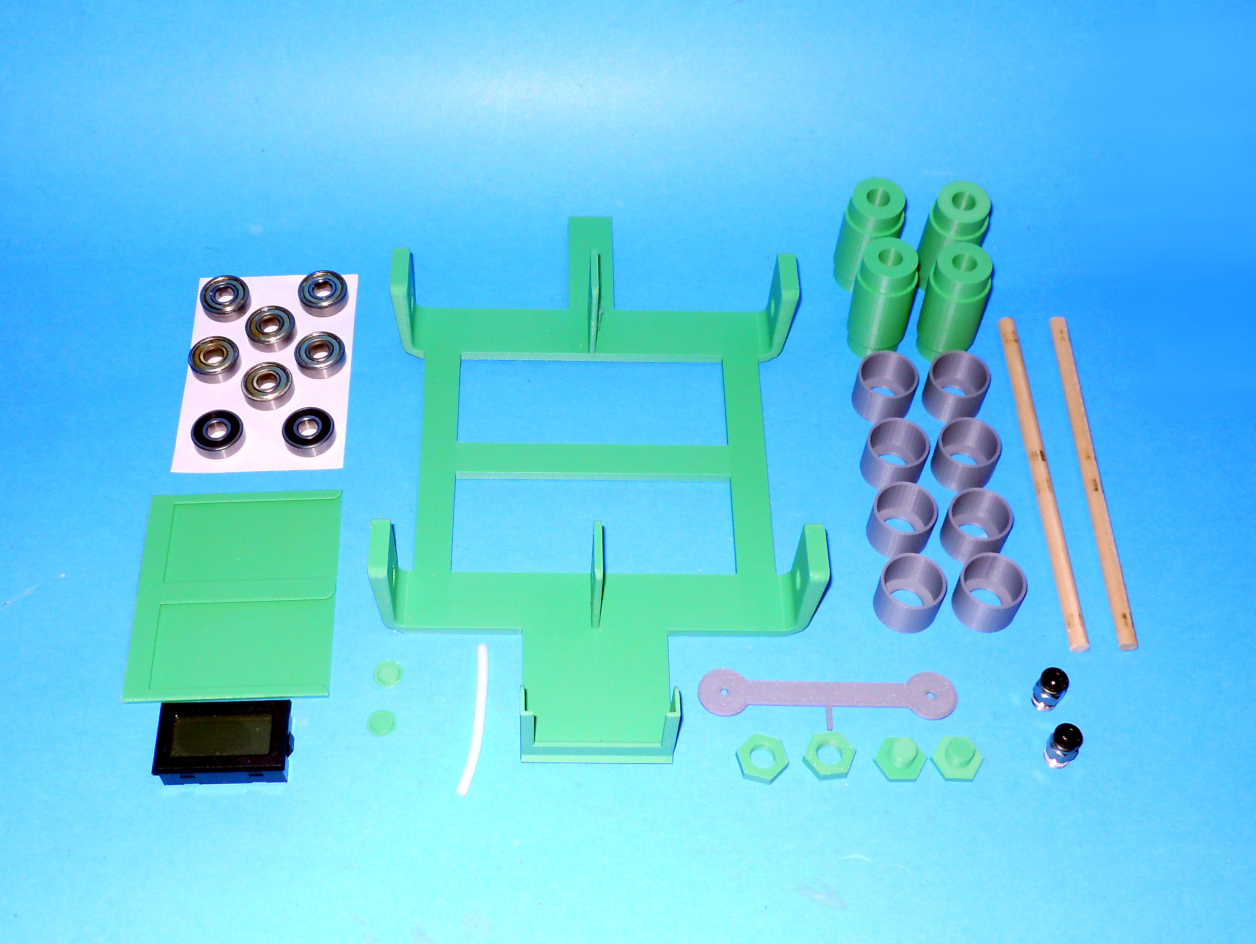

You will need some glue, four PC4-M10 pneumatic connectors, eight 608ZZ bearings, some PTFE tube, and two 8 mm (5/16 in) rods, each 160 mm long.

The model is relatively large, and individual components are provided in case your printer cannot accommodate the full assembly in a single print. If printed in separate parts, you will need glue to assemble them.

I place a desiccant container in the center of each spool. I use the 50 mm version of these containers, which can be found here: https://www.printables.com/model/65922-silica-gel-spool-container

The hygrometer I use can be found here: https://www.aliexpress.com/item/1005008841100994.html

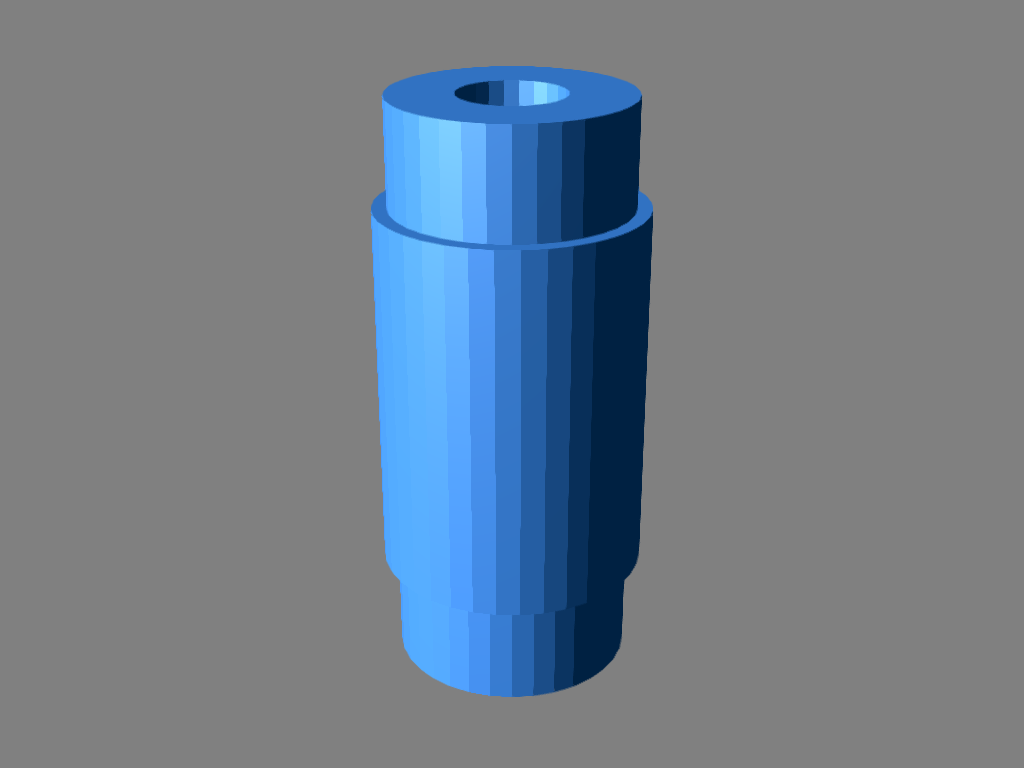

Support material is not required except for the rollers. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

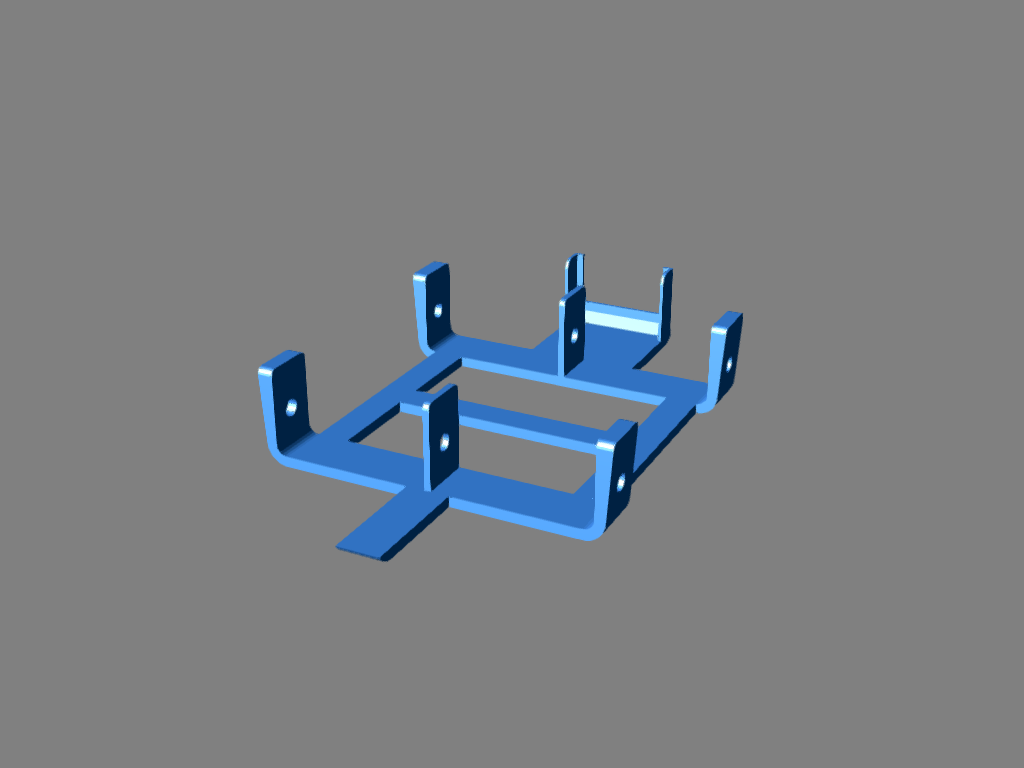

	FinalAssembly.stl

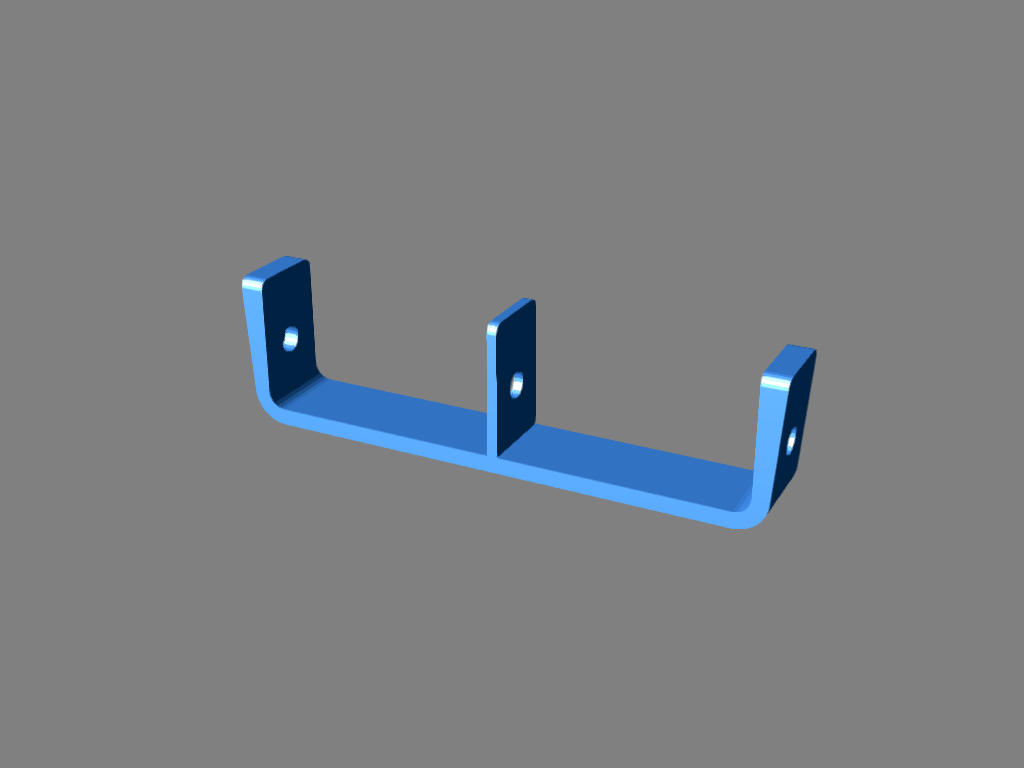

	RollerBase.stl
	RollerBase.stl

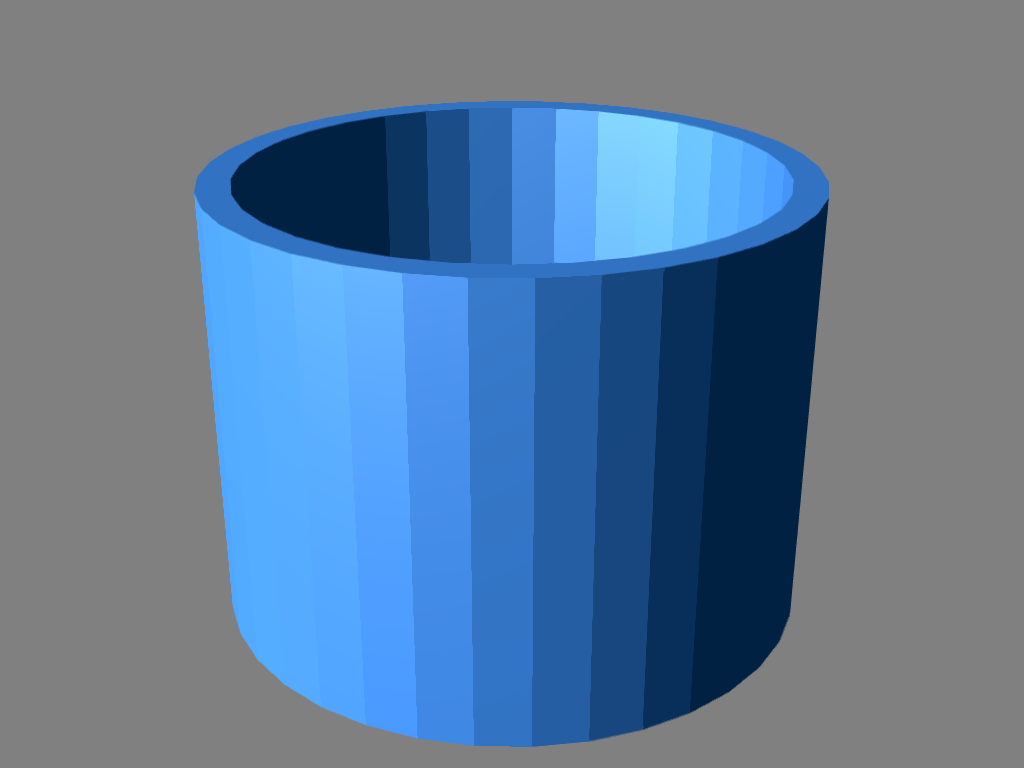

	BearingHolder608ZZ.stl

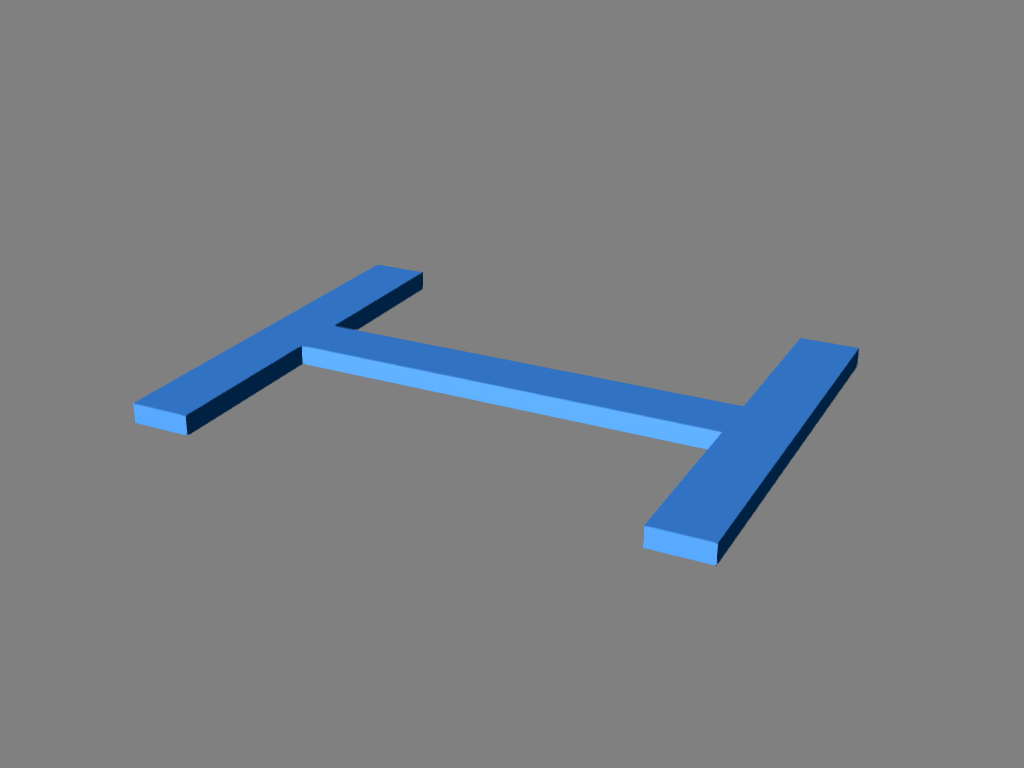

	CenterBrace.stl

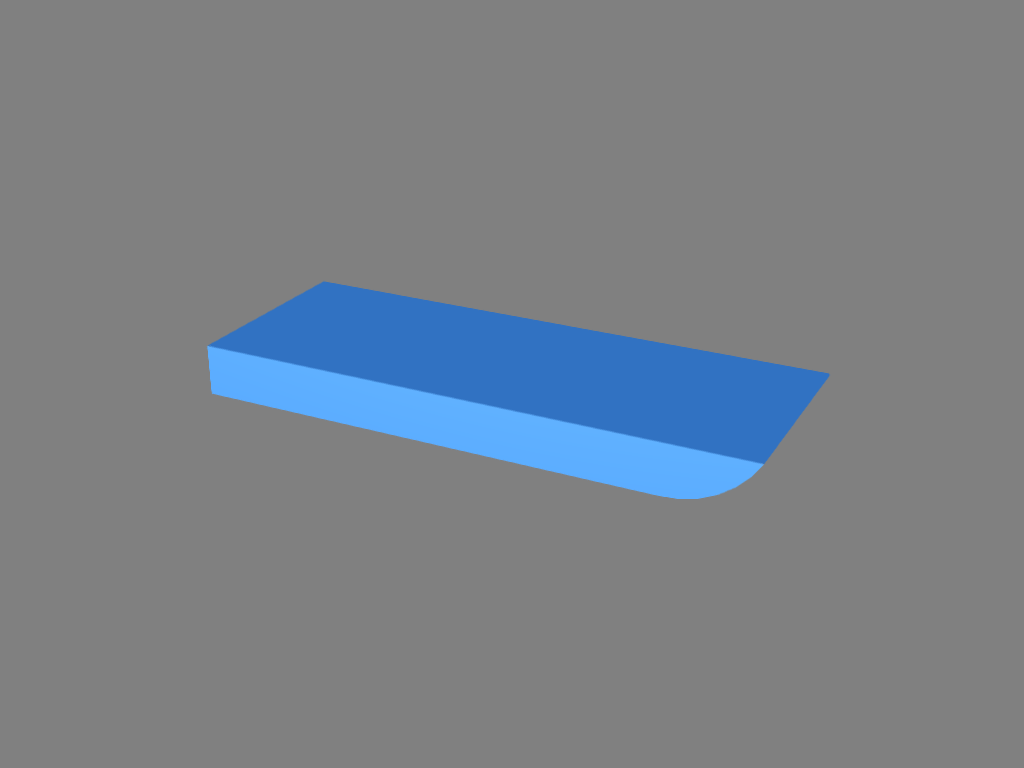

	SideBrace.stl

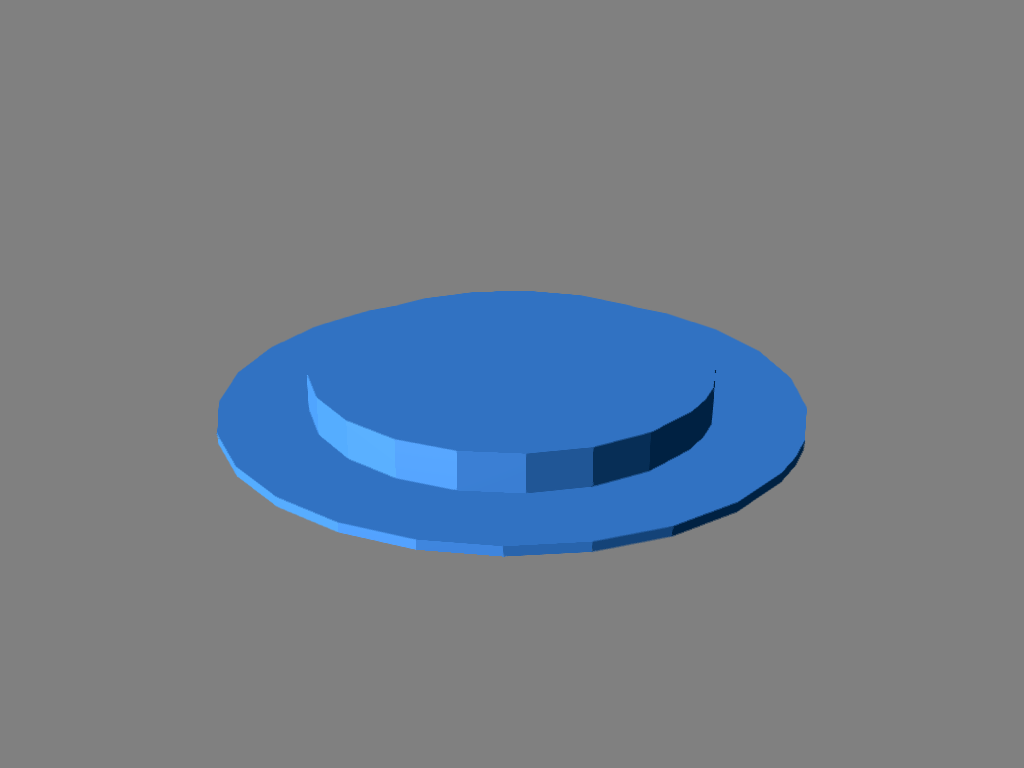

	RodCap.stl

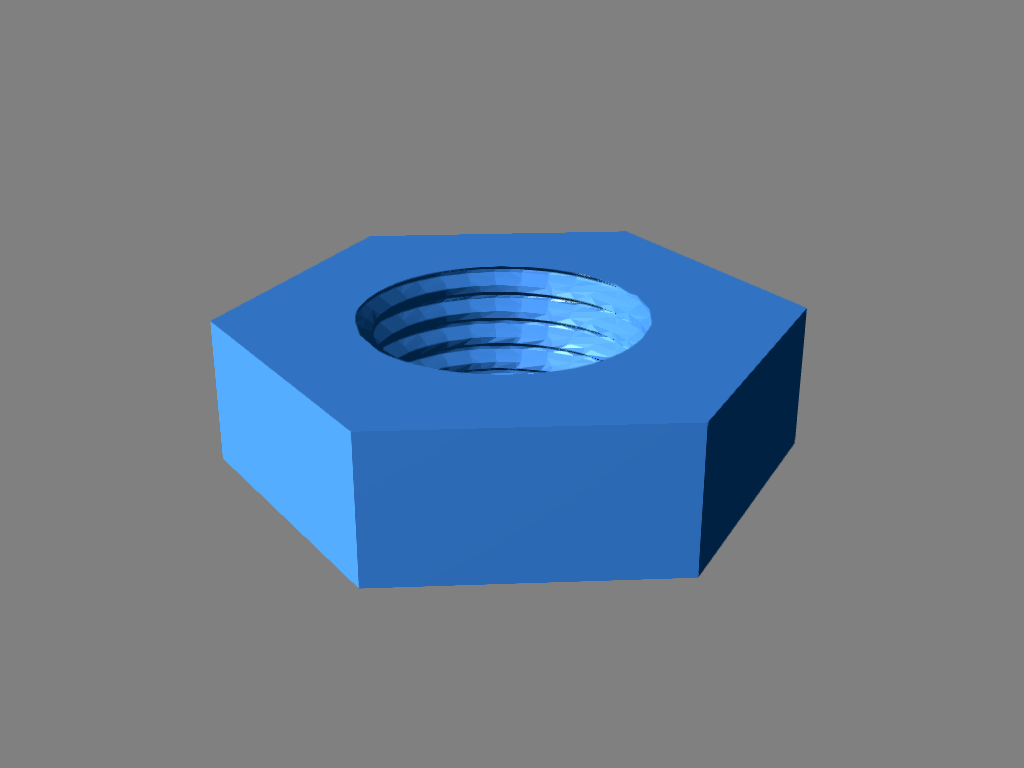

	PC4-M10-Nut-5mm.stl

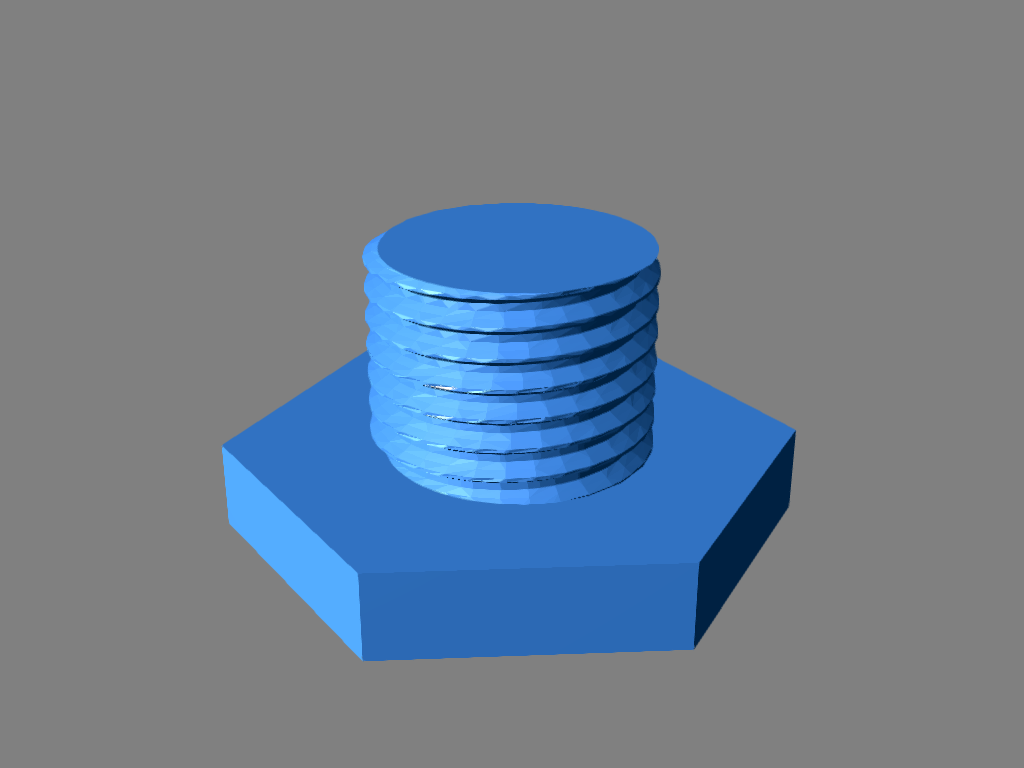

	PC4-M10-Bolt-7mm.stl

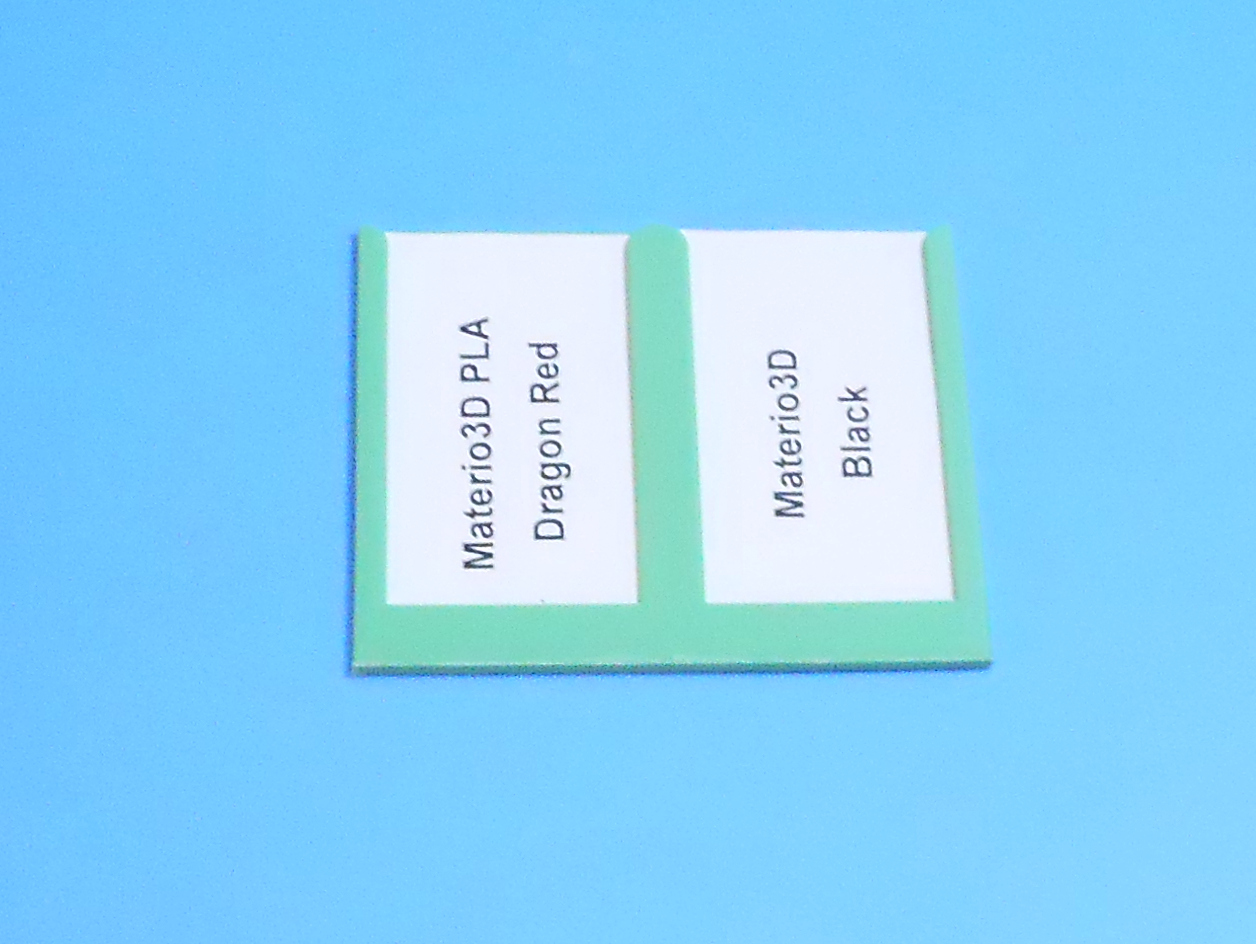

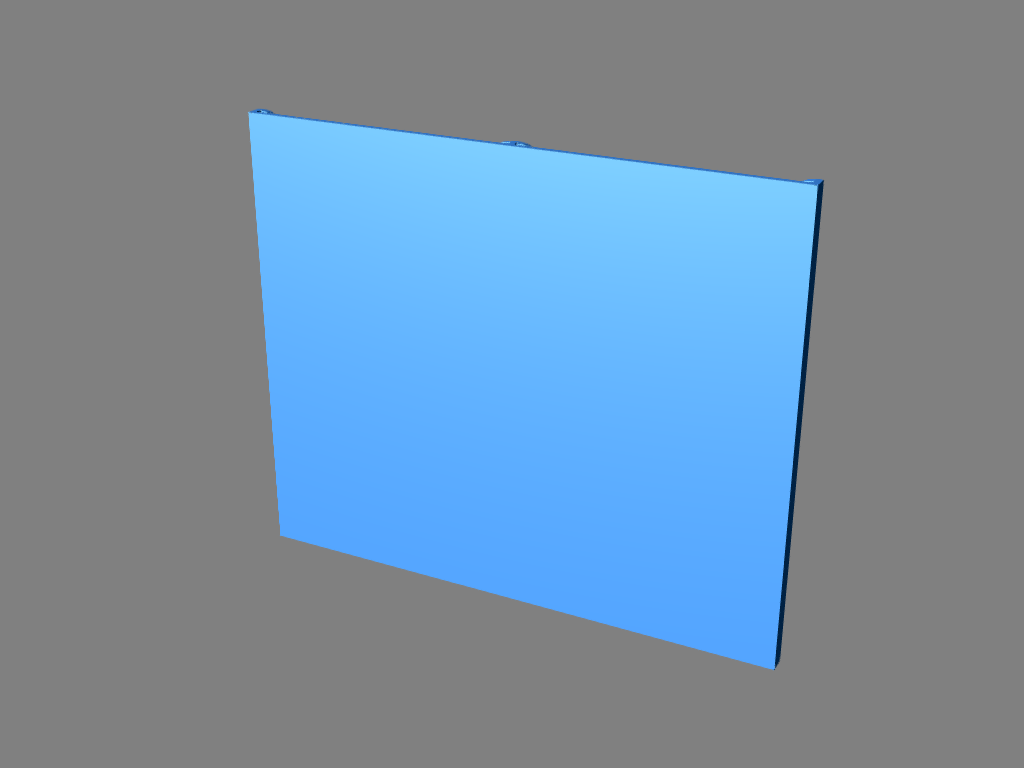

	FilamentCardHolder.stl

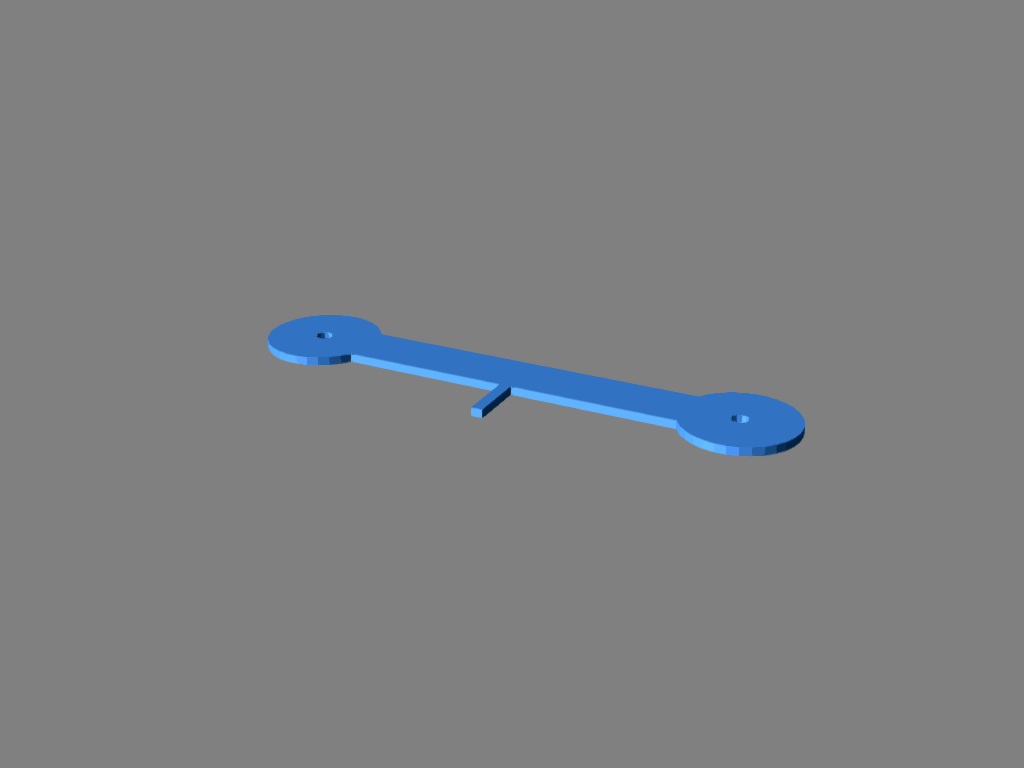

	DrillingGuide.stl

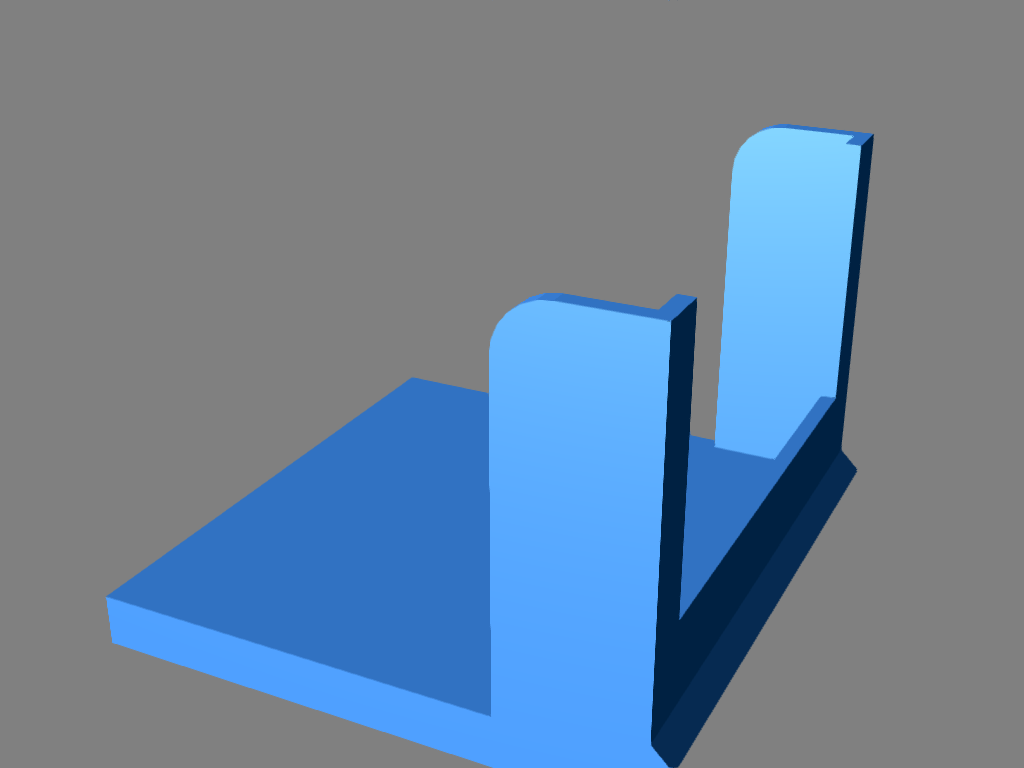

	SideBraceForSquareHygrometer.stl
