Ikea Bror Caster Holder V02

July 6, 2024 3D Printing object

Description

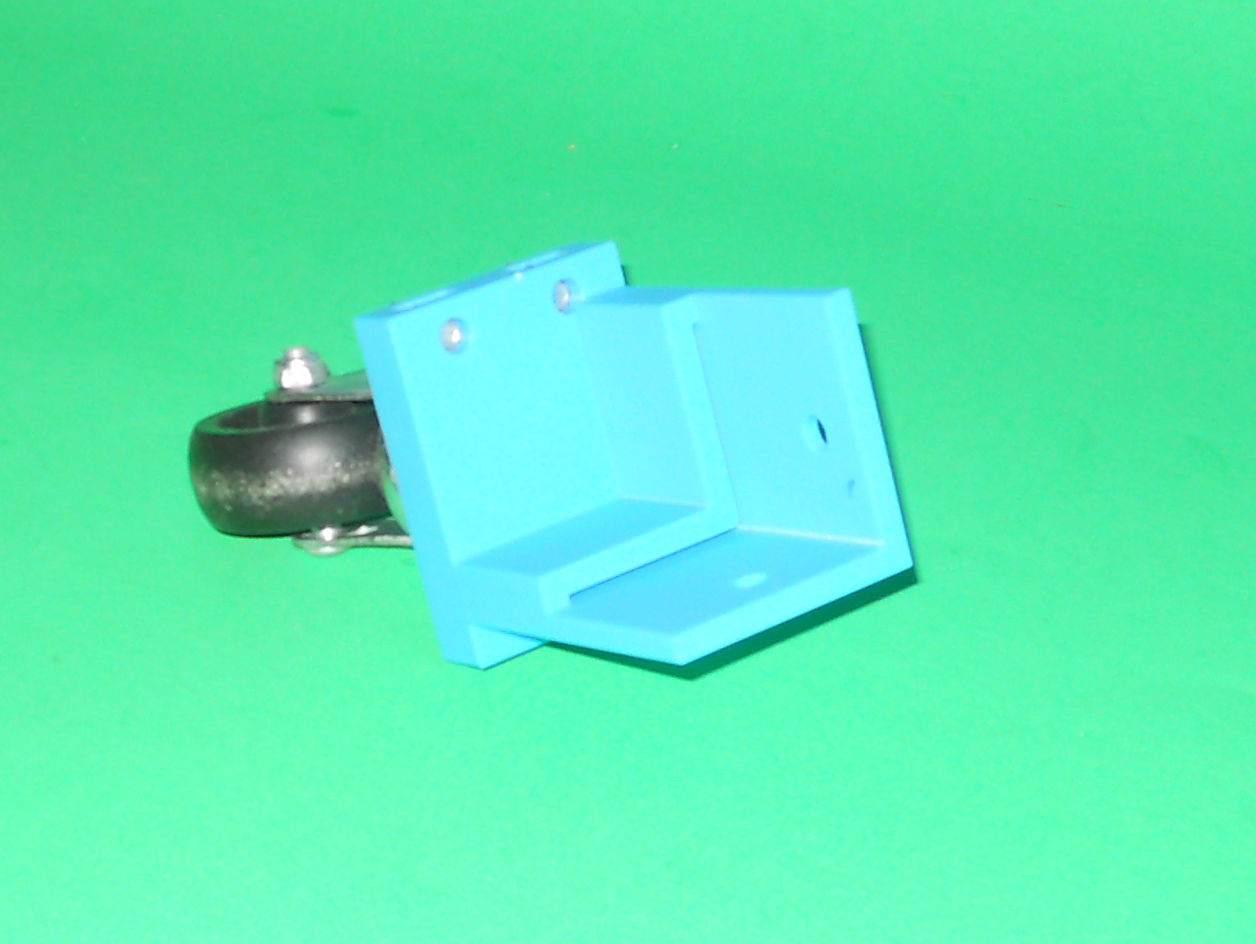

This object lets you install casters to a Bror workbench. This is a new version of my previous design ( http://www.ctheroux.com/ikea-bror-caster-holder/ ). It is more robust. This design was inspired from the design of Arek ( https://www.printables.com/model/453244-ikea-bror-wheel-caster-mount ). It is designed for 1-7/8" (48.5 mm) x 2-9/16" (65.5 mm) casters. The holes for the bolts are 2-1/8" (54 mm) x 1" (25 mm) apart. The bolts I used are 1/4" (6.25 mm) in diameter, 1/2" (12.5 mm) long.

This object works very well for me. Nevertheless, YOU must make sure that this object can handle the usage you will make of it. Many factors may contribute to making this object fail. The quality of the print, the strength of the casters, and so on. You are solely responsible for using it.

Printing them at 45 degrees will make them way stronger. You'll need to print 2 that has been mirrored. Support material is not needed. An infill of 35% is recommended.

This object was designed using Solid Edge Community Edition.

Files

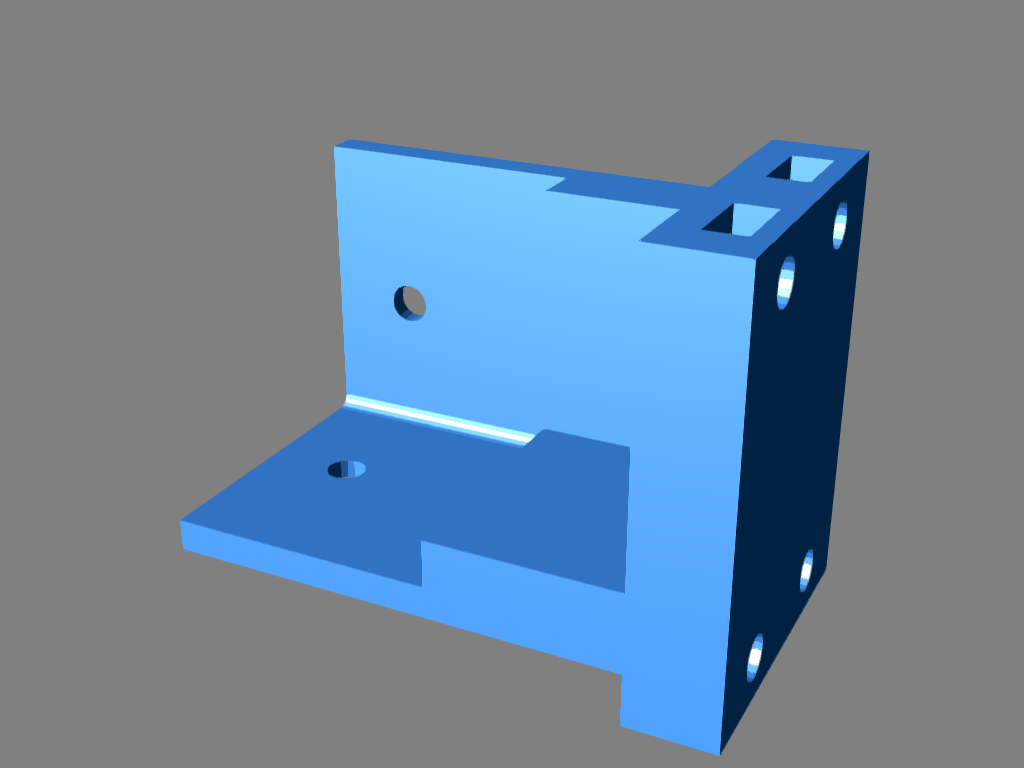

IkeaBrorCasterHolderV02.stl
