Parametric Modular Bench Organizer V2

This is a parametric modular bench organizer generator. It allows you to create as many modules as needed, which all fit together seamlessly. A small amount of 1.75 mm filament is required for assembly.

This project is part of a tool kit, and there is a learning curve to using it. Having a basic understanding of OpenSCAD will be beneficial. I recommend making small adjustments to the provided examples and progressing gradually toward your objective.

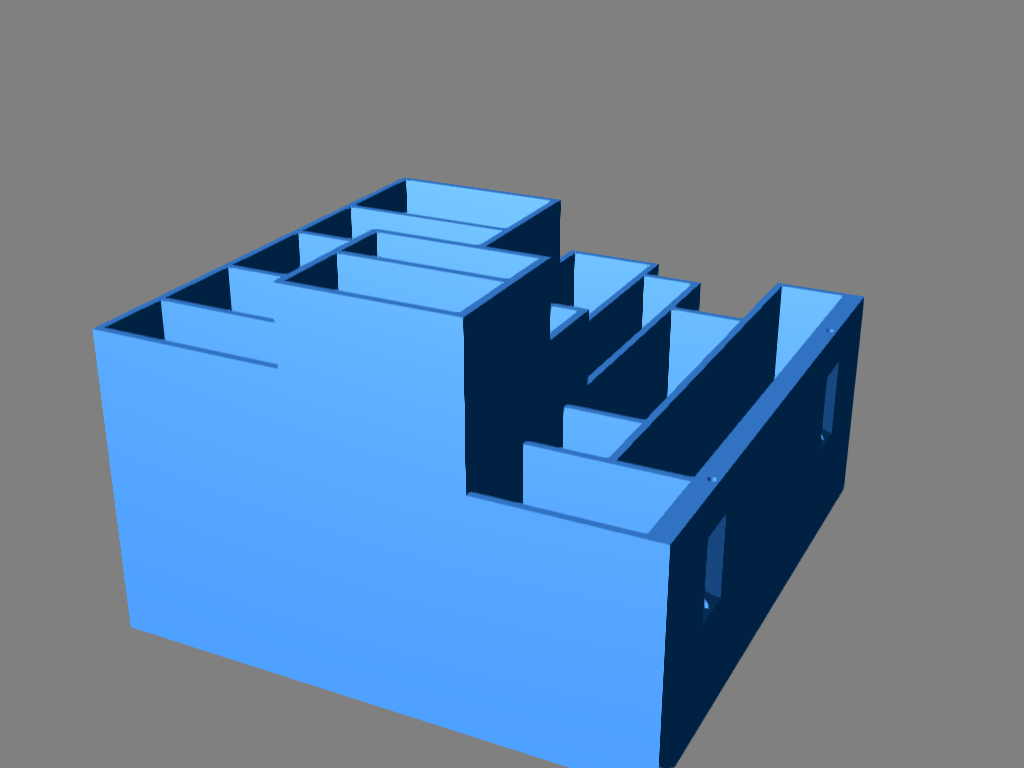

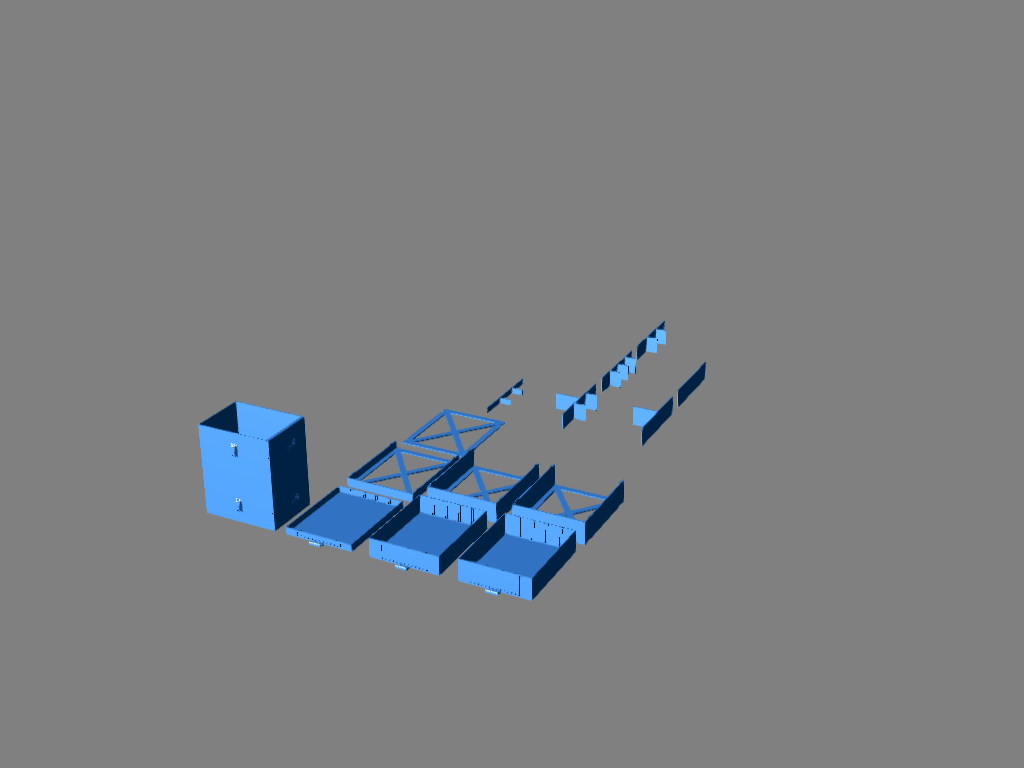

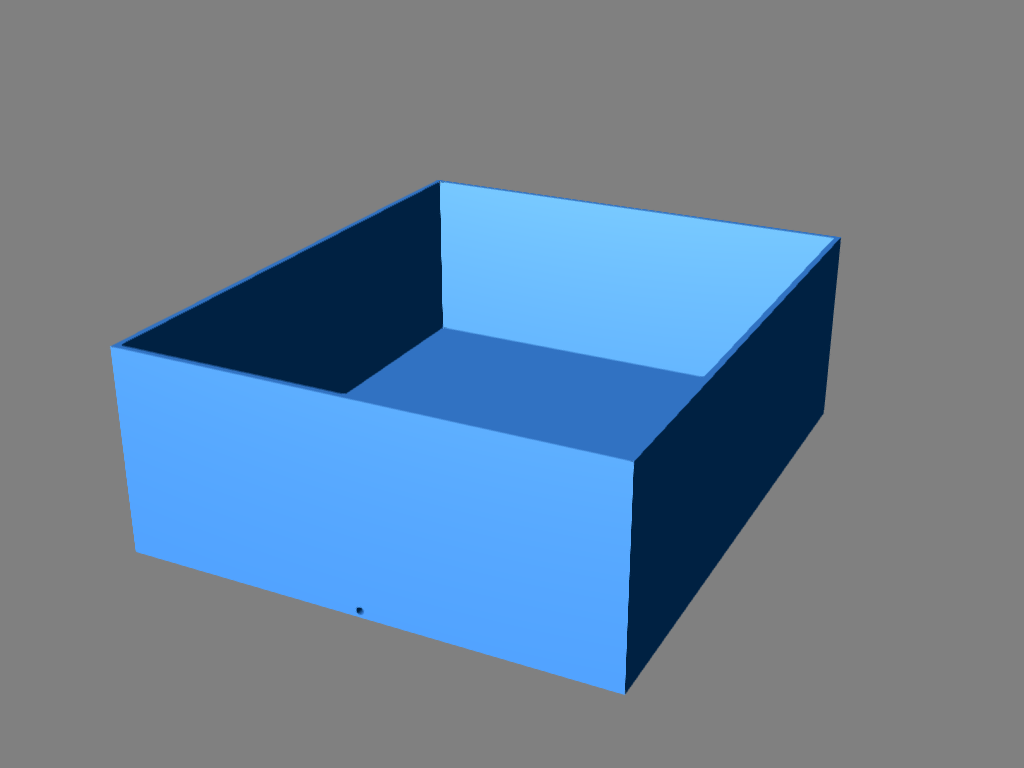

A significant amount of valuable information is displayed in the console. This information will assist you in providing the various required parameters. Make sure that all major components (DrawerModule, MiscBucket, and ToolsOrganizer) have the same depth. The overall depth is displayed in the console, prefixed with ***. Carefully review the generated objects before printing anything.

The three OpenSCAD scripts use libraries that have been merged into the code to make them easier to use. Parameters located below the comment stating “Nothing shall be modified below this line” may appear in all three scripts. Changing such a parameter in one script will require updating it in the others as well.

Support material is not required. An infill of 20% is recommended.

This object was designed using openSCAD.
