Parametric Shaft Lock
March 9, 2024
3D Printing
object
Description

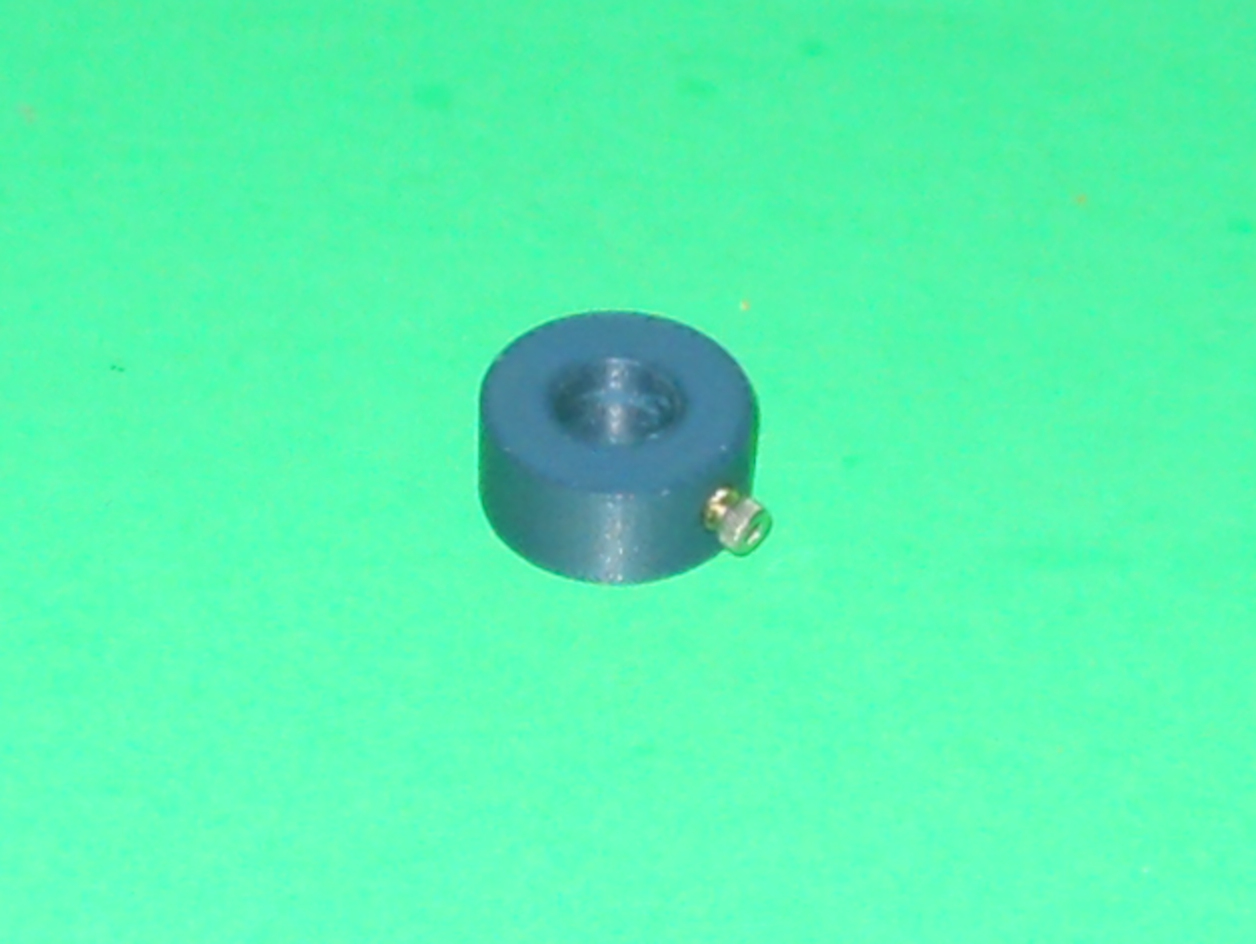

This is an object used to lock a shaft. Its design is parametric. It is recommended to use a brass insert to hold the grub screw.
Support material is not required. An infill of 40% is recommended.

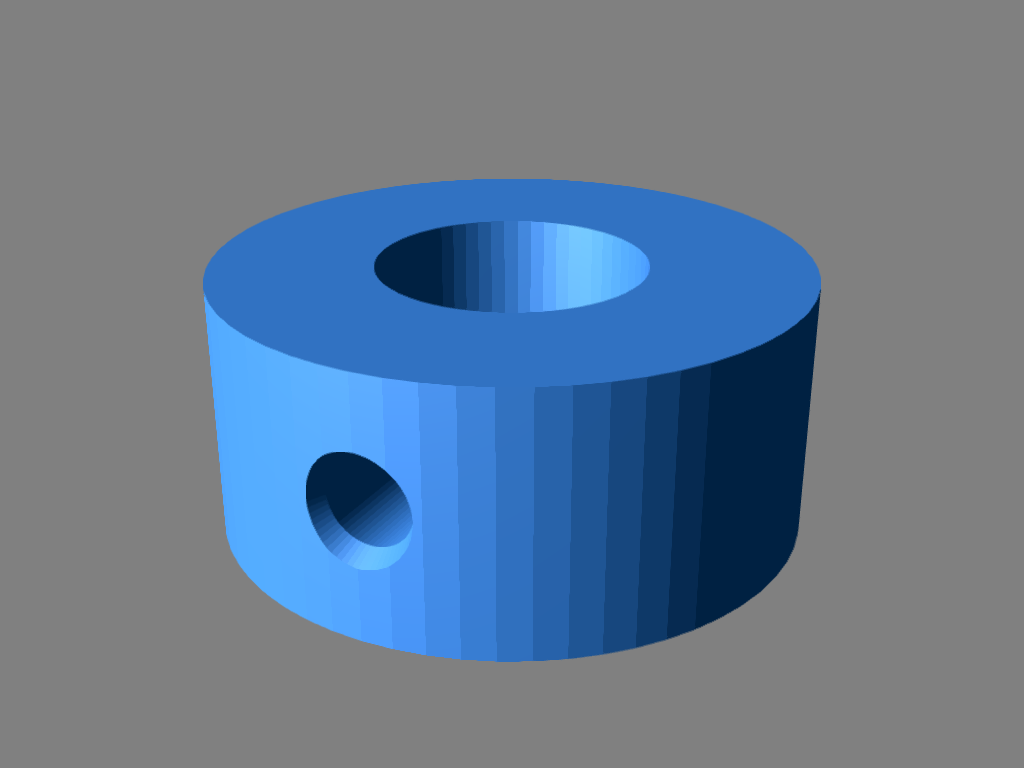

This object was designed using openSCAD.
Files
|
ParametricShaftLock.scad |
|
|
ParametricShaftLock8mm.stl |
