ALTERA FPGA Cyclone II Minimum System Board Plate

view2
view1 Altera_Minimum_Development_Board_Plate_preview_featured



Description

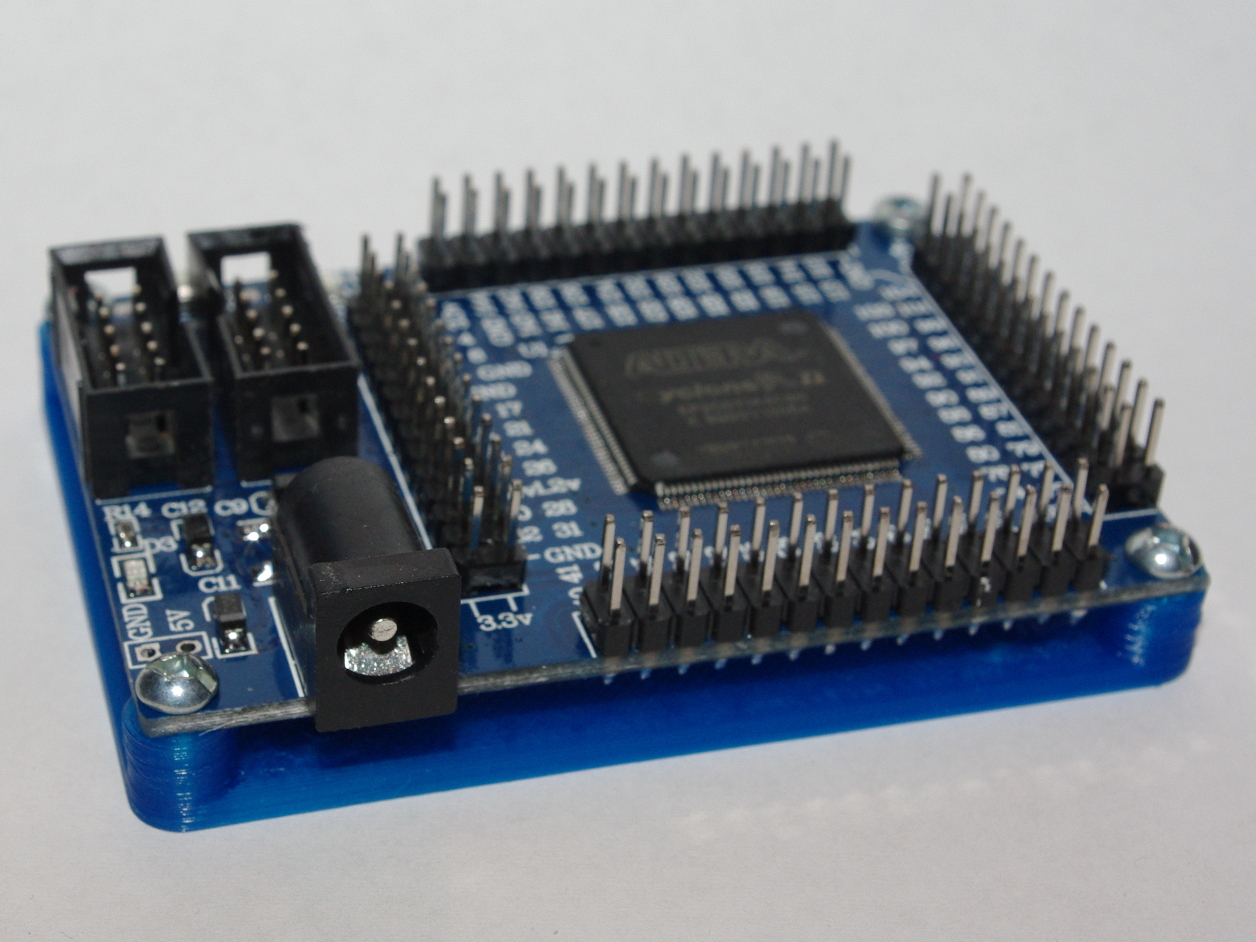

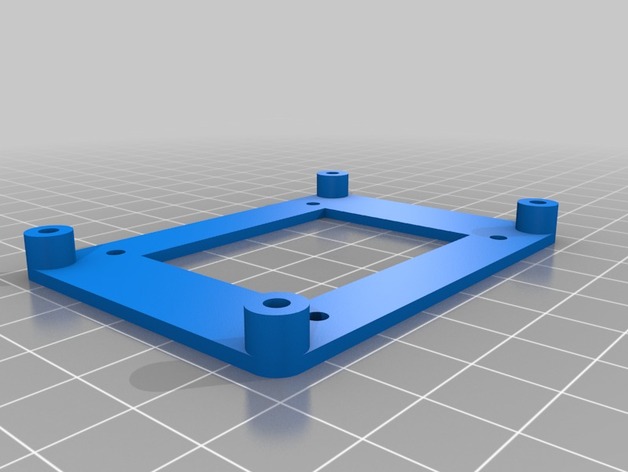

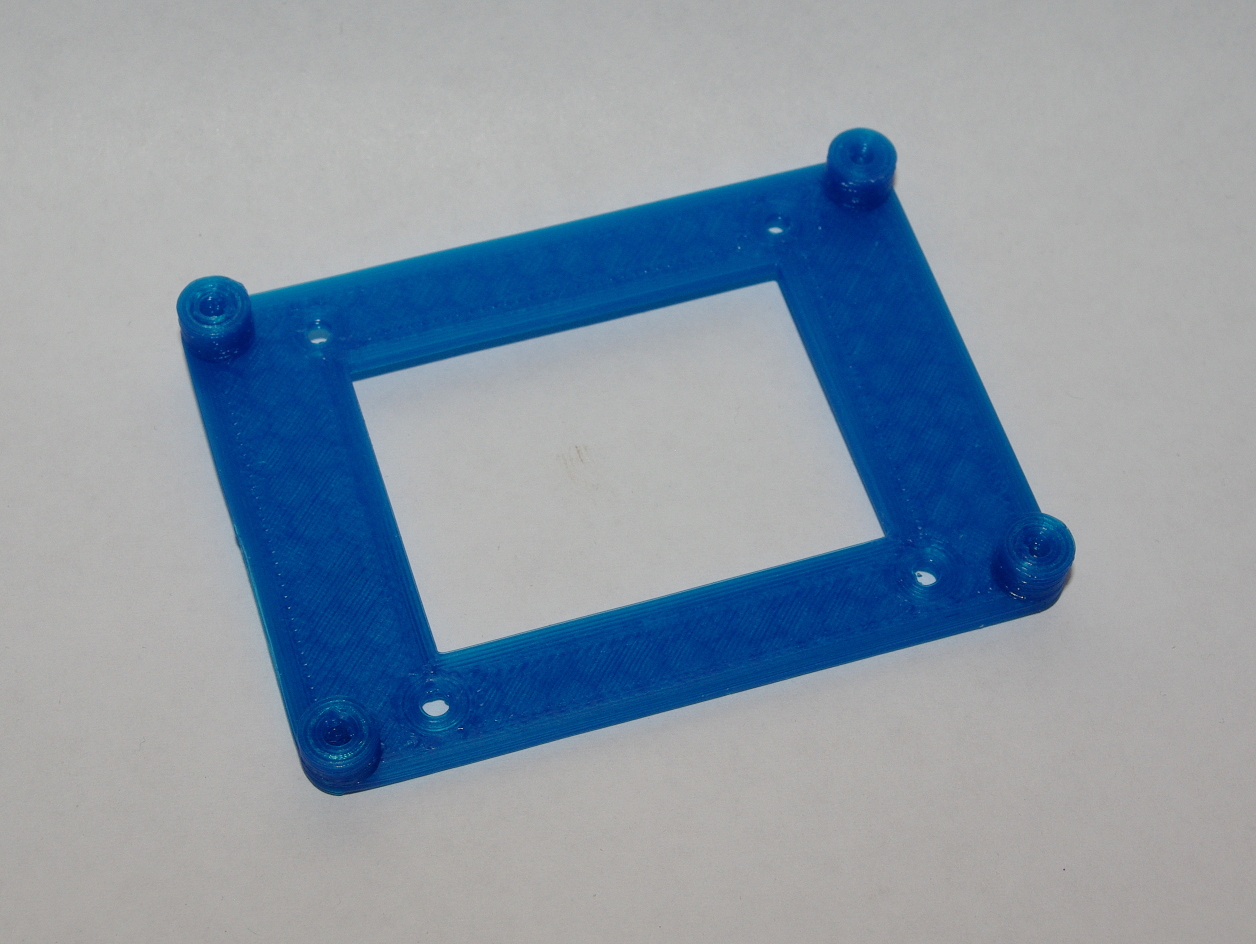

This is a simple base plate for an ALTERA FPGA Cyclone II EP2C5T144 Minimum System Board. 4-40, 1/4″ screws are used to mount the board onto the plate.



Printable Files

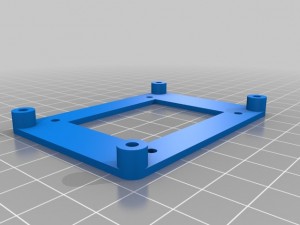

Altera_Minimum_Development_Board_Plate_preview_featured Altera Minimum Development Board Plate



Copyright 2012-2014 by Claude Théroux
