Arduino UNO / Duemilanove / Diecimila / Leonardo / NG / Extreme Drilling And Mounting Plates

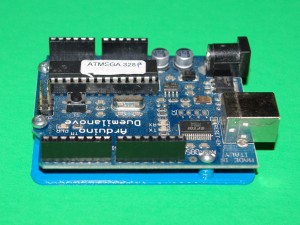

arduino view 1

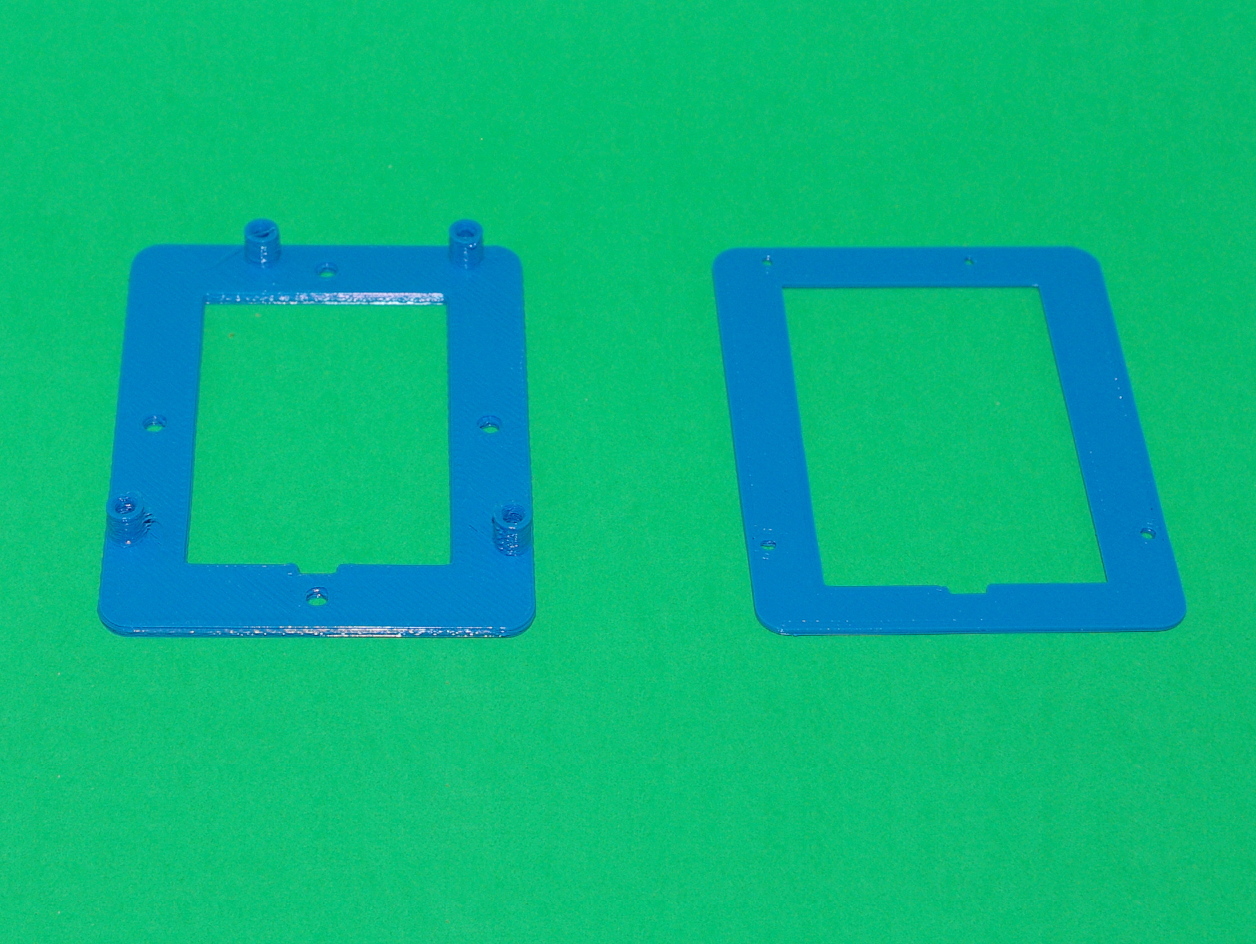

arduino view 2 Arduino_Mounting_Plate_preview_featured Arduino_Drilling_Guide_preview_featured



Description
This thing contains a mounting plate and a drilling guide for the “Arduino UNO / Duemilanove / Diecimila / Leonardo / NG / Extreme”.

The plates are not symmetrical. The notch shall be on the power jack and ethernet cable side. The base plate is 2 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

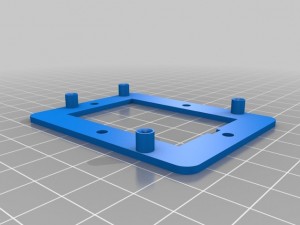

Arduino_Mounting_Plate_preview_featured Arduino Mounting Plate

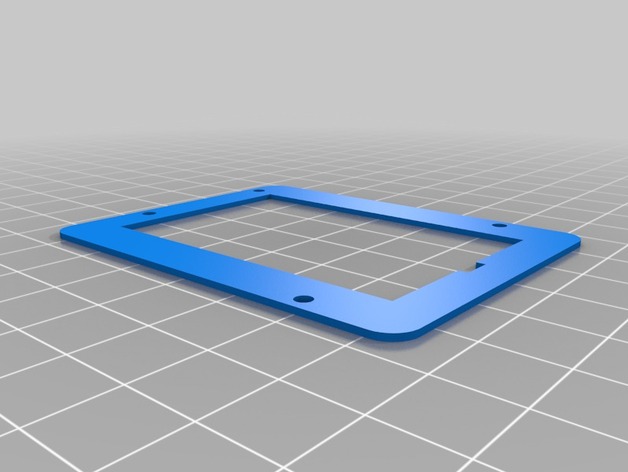

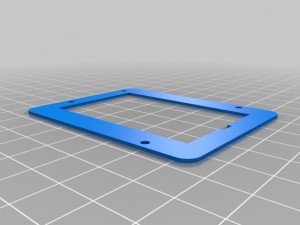

Arduino_Drilling_Guide_preview_featured Arduino Drilling Guide



Copyright 2012-2015 by Claude Théroux
