Beaglebone Black Drilling And Mounting Plates

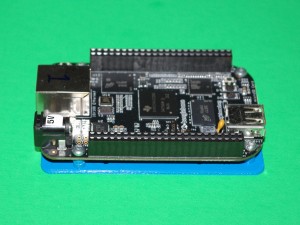

Beaglebone Black view 2

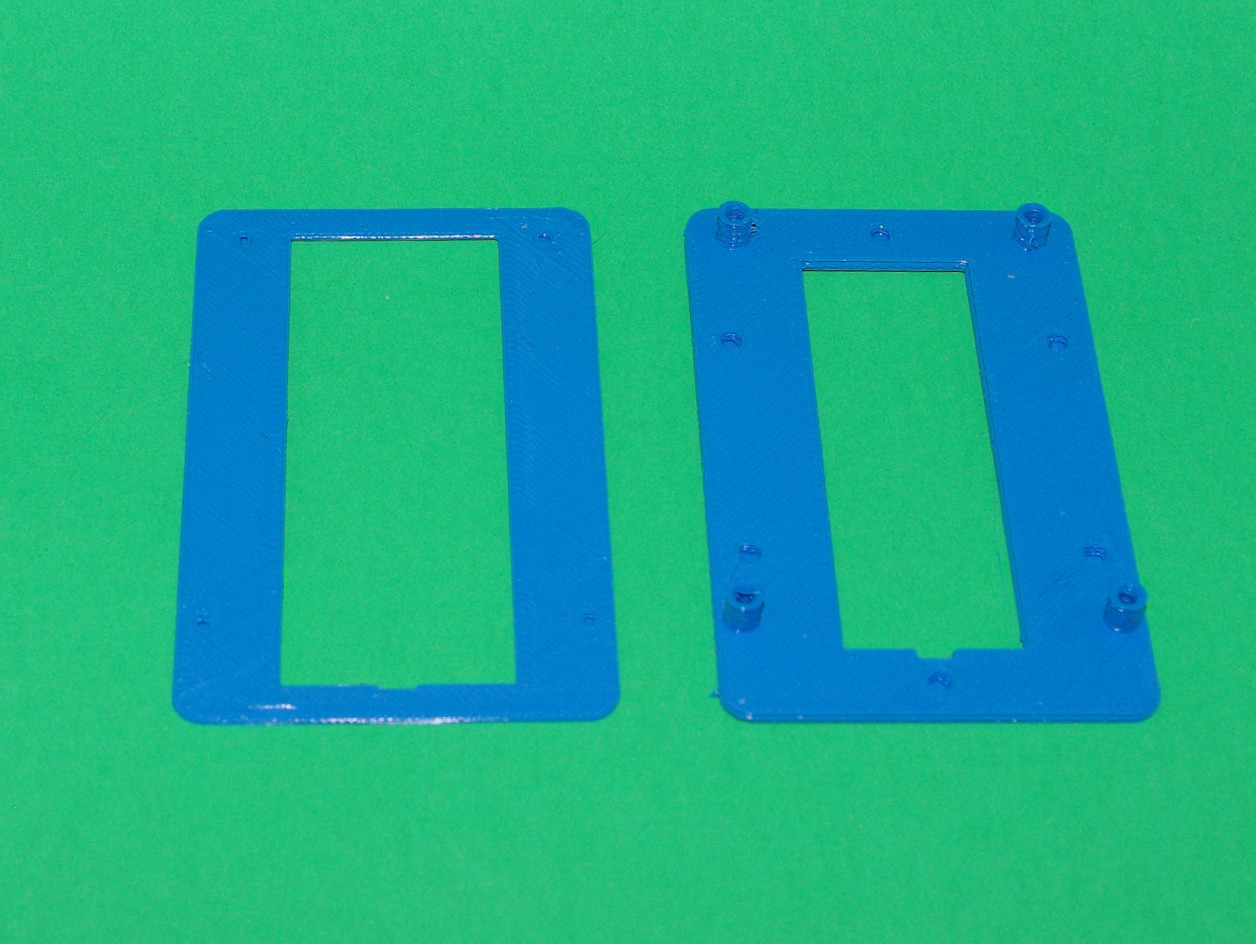

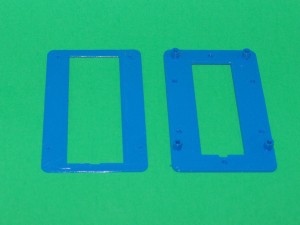

Beaglebone Black view 1 Beaglebone_Black_Base_Mounting_Plate_preview_featured Beaglebone_Black_Drilling_Guide_preview_featured



Description
This thing contains a mounting plate and a drilling guide for the “Beaglebone Black”.

The plates are not symmetrical. The notch shall be on the power jack and ethernet cable side. The base plate is 2 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

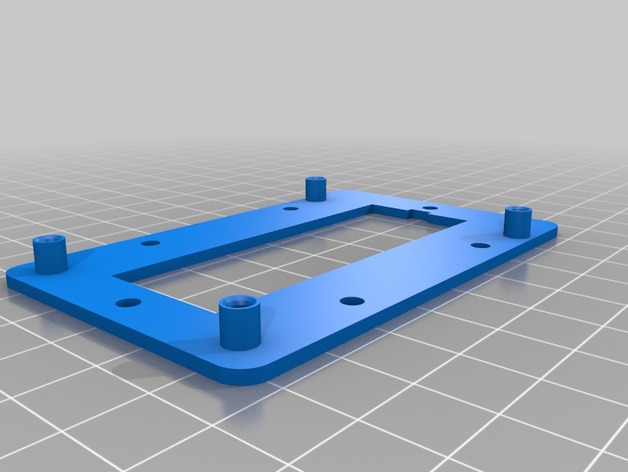

Beaglebone_Black_Base_Mounting_Plate_preview_featured Beaglebone Black Base Mounting Plate

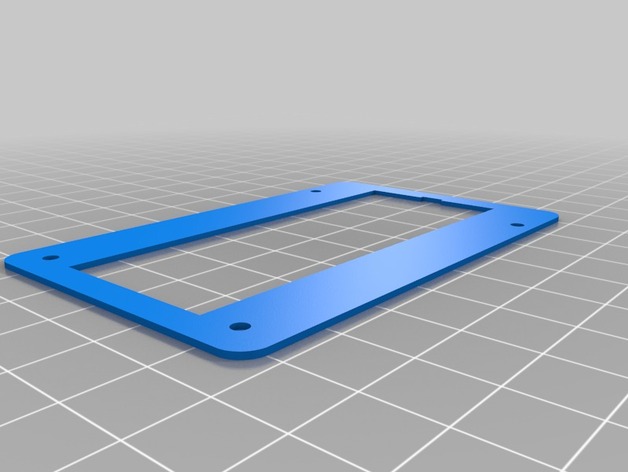

Beaglebone_Black_Drilling_Guide_preview_featured Beaglebone Black Drilling Guide
