Keyes Mosfet Power Control Board Mounting And Drilling Plates

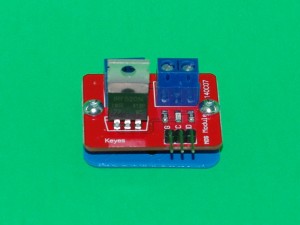

Keyes Mosfet Power Control view1

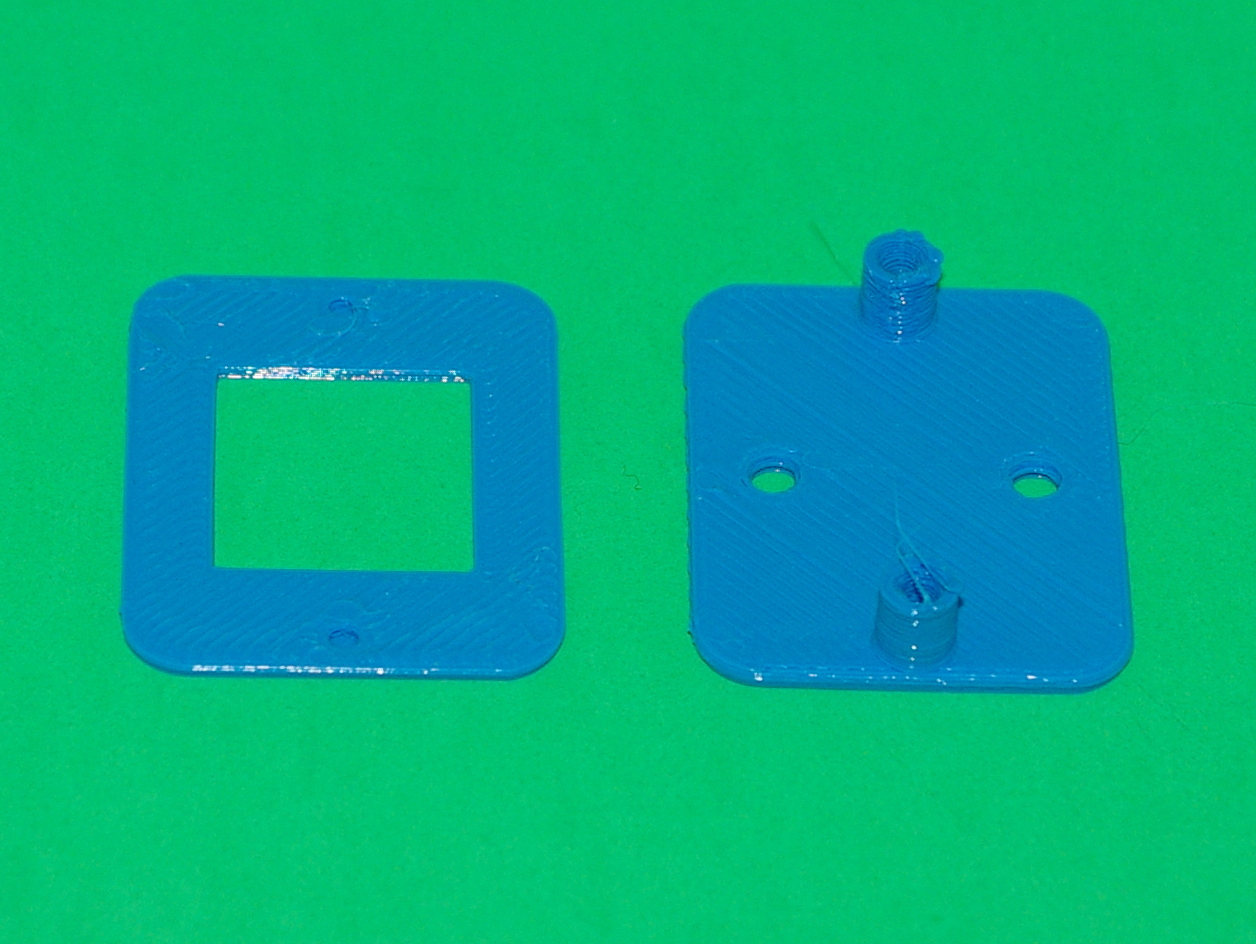

Keyes Mosfet Power Control view2 Keyes_Mosfet_Power_Control_Mounting_Plate_preview_featured Keyes_Mosfet_Power_Control_Drilling_Guide_preview_featured



Description
This thing contains a mounting plate and a drilling guide for the “Keyes Mosfet Power Control Board”.

The base plate is 1.5 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

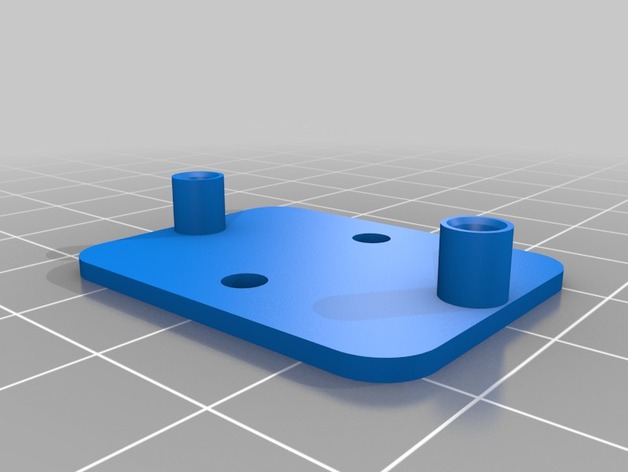

Keyes_Mosfet_Power_Control_Mounting_Plate_preview_featured Keyes Mosfet Power Control Mounting Plate

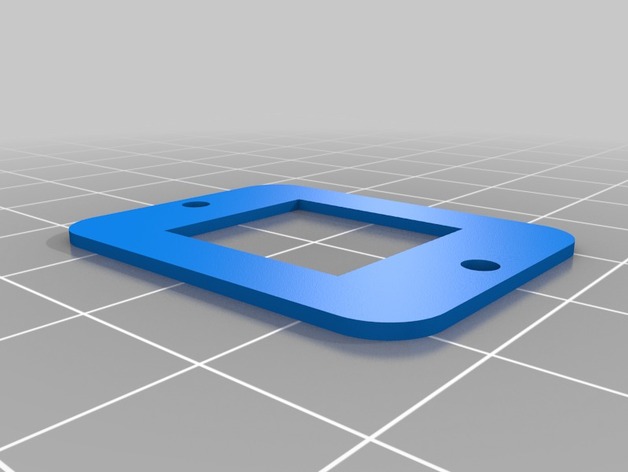

Keyes_Mosfet_Power_Control_Drilling_Guide_preview_featured Keyes Mosfet Power Control Drilling Guide



Copyright 2012-2015 by Claude Théroux
