Misan’s Another Compact Extruder Fan Deflector V2

view2
view1 Misan_Another_Compact_Extruder_Fan_Deflector_preview_featured Misan_Another_Compact_Extruder_Fan_Extruder_Holder_preview_tinycard



Description

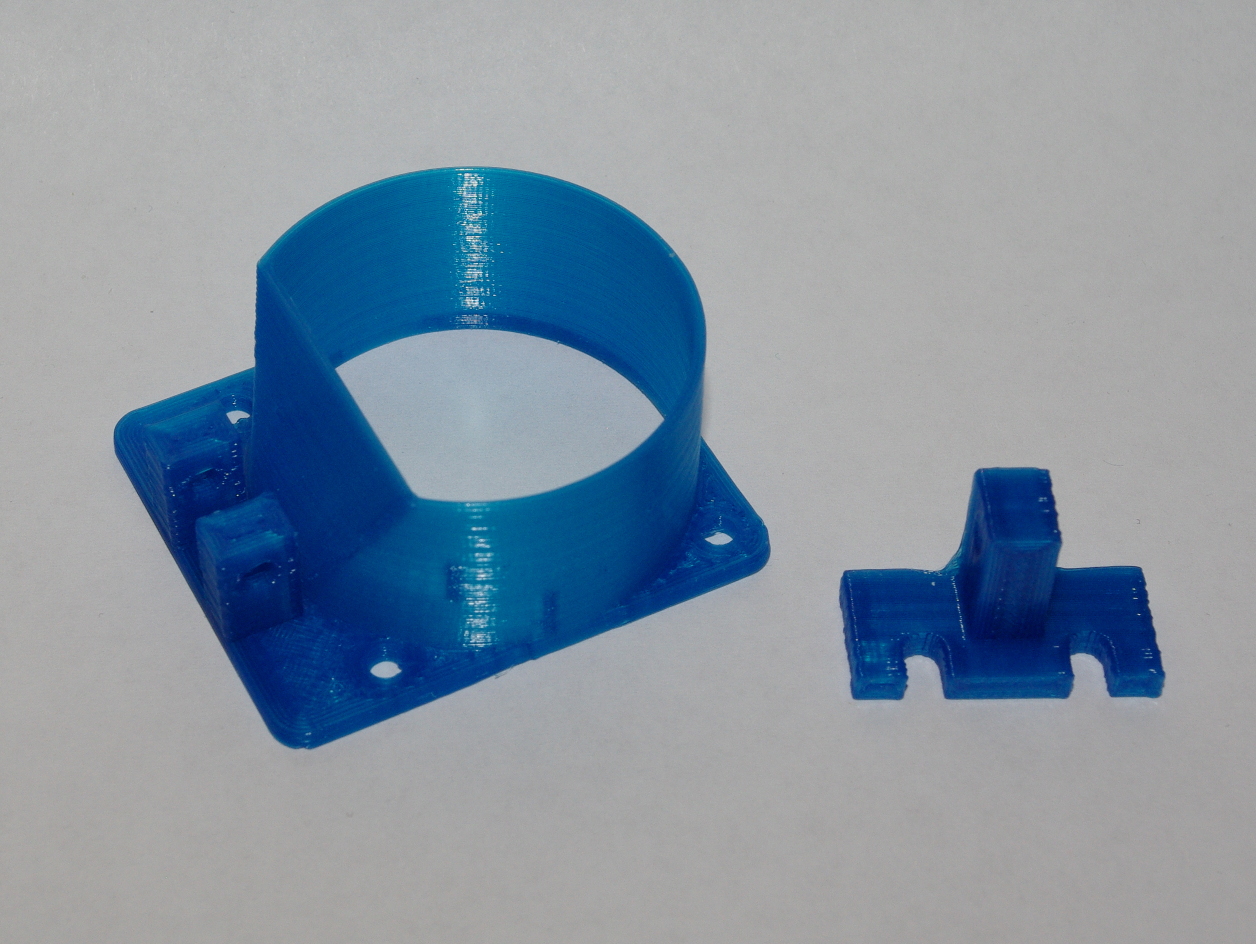

The deflector holder is held by the two screws that secure the J-Head. The deflector is mounted on the deflector holder using a M3, 20 mm long screw and a nut. The deflector can be adjusted when PLA or ABS is printed.



Printable Files

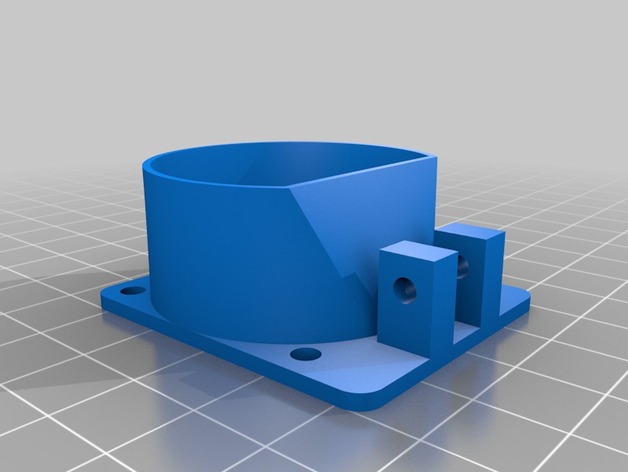

Misan_Another_Compact_Extruder_Fan_Deflector_preview_featured Misan Another Compact Extruder Fan Deflector
Misan_Another_Compact_Extruder_Fan_Extruder_Holder_preview_tinycard Misan Another Compact Extruder Fan Extruder Holder



Copyright 2012-2014 by Claude Théroux
