Mounting plate for Arduino UNO/Duemilanove/Diecimila

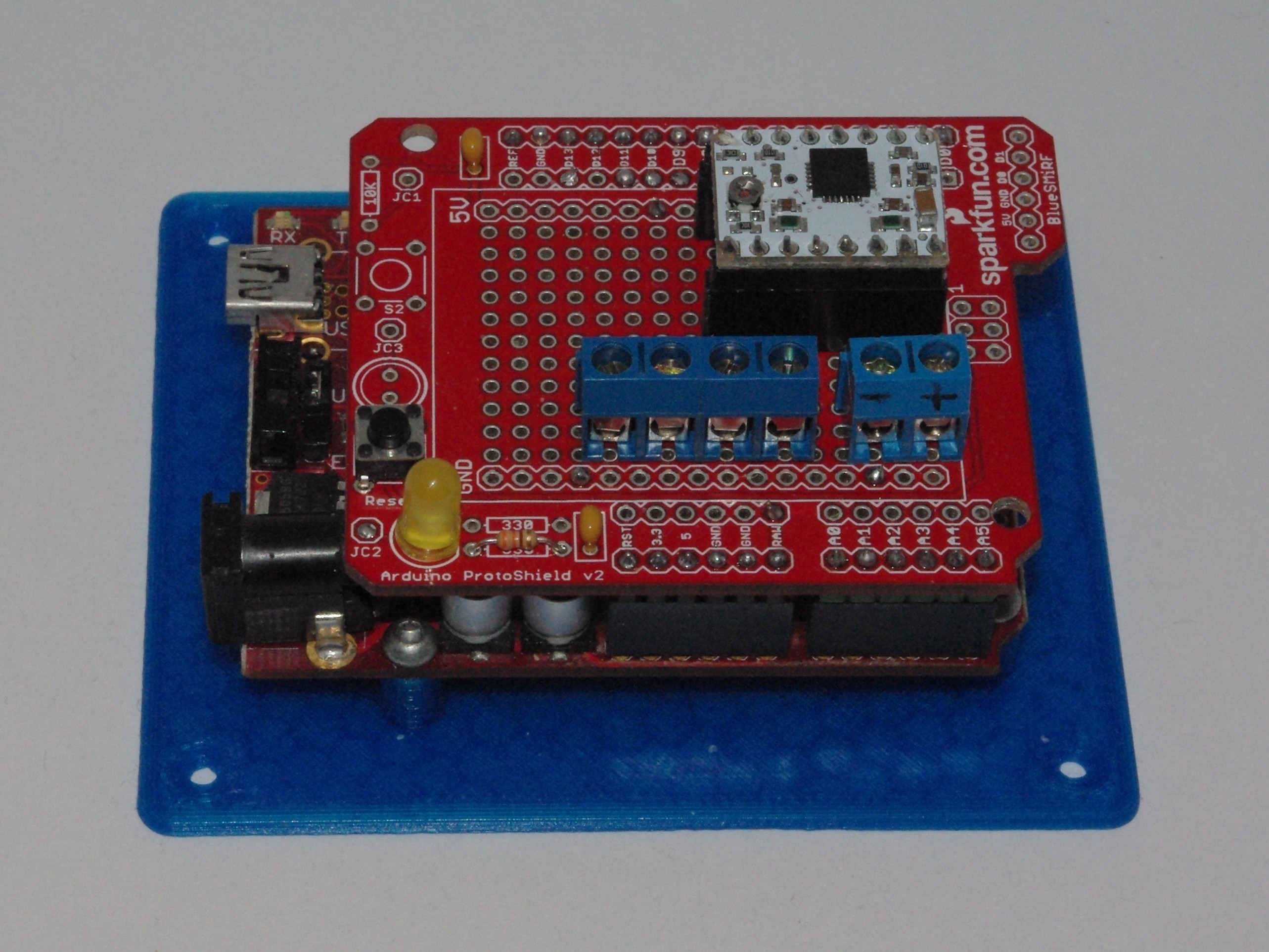

mounted

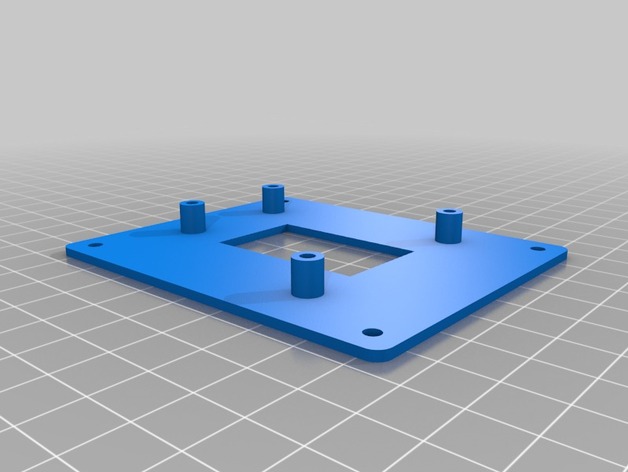

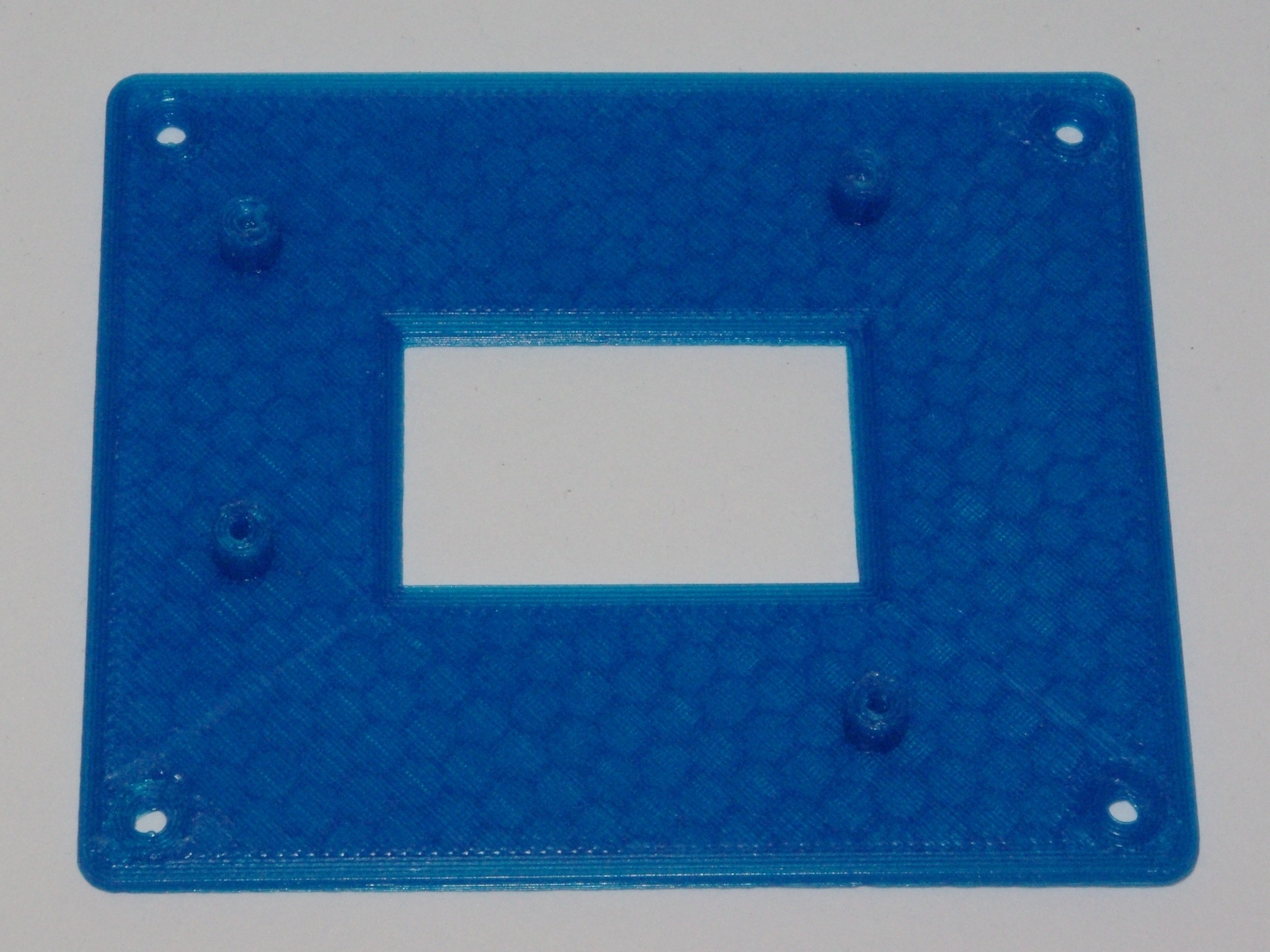

view Arduino_Duemilanove_Mounting_Plate_preview_featured



Description
A simple mounting plate for the Arduino UNO, Duemilavone, Diecimila, Freeduino or any other compatible boards.

Use #4-40 screws to mount the board on the mounting plate.



Printable Files

Arduino_Duemilanove_Mounting_Plate_preview_featured Arduino Duemilanove Mounting Plate
