PN532 Breakout Board Mounting Plate And Drilling Guide

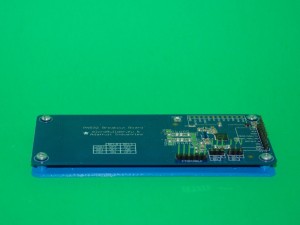

pn532 view1

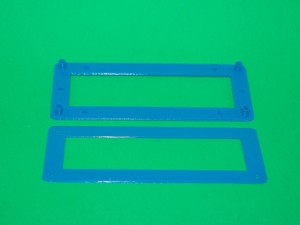

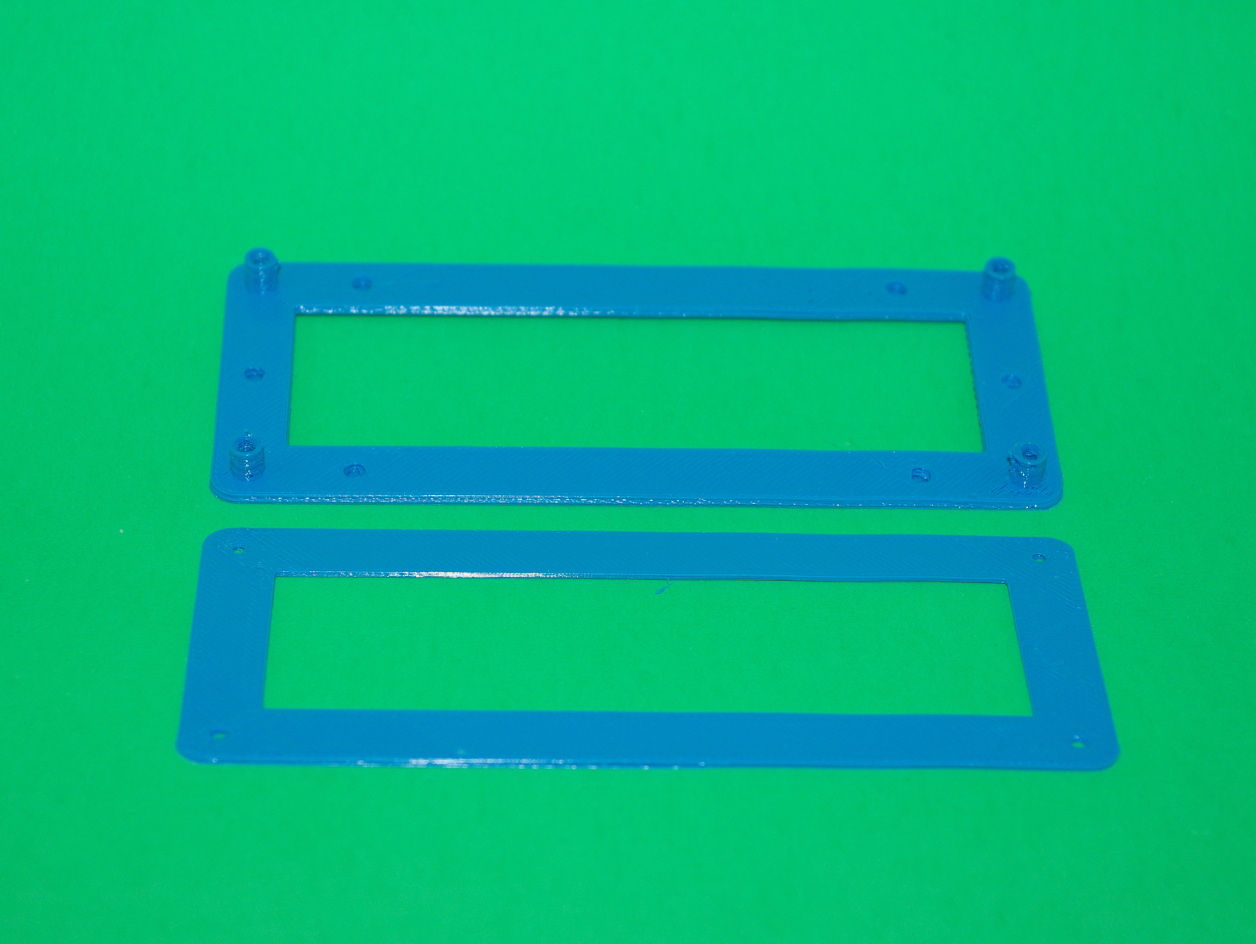

pn532 view2 PN532_NFC_Reader_Mounting_Plate_preview_featured PN532_NFC_Reader_Drilling_Guide_preview_featured



Description
This thing contains a mounting plate and a drilling guide for the Adafruit “PN532 Breakout Board” (ID 364).

The base plate is two mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

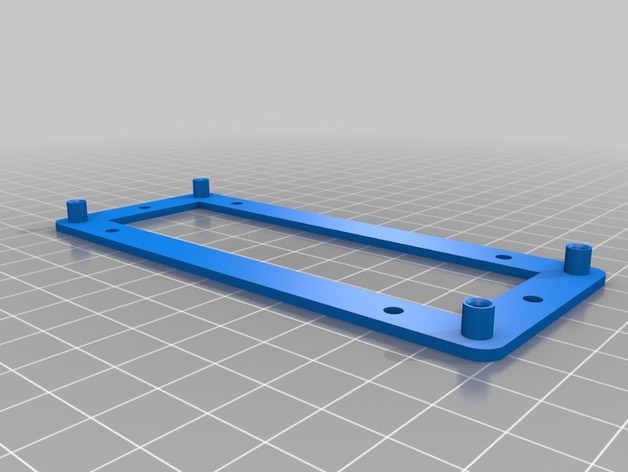

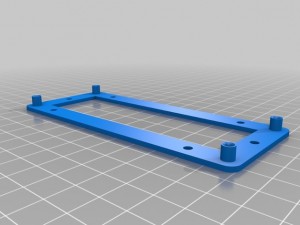

PN532_NFC_Reader_Mounting_Plate_preview_featured PN532 NFC Reader Mounting Plate

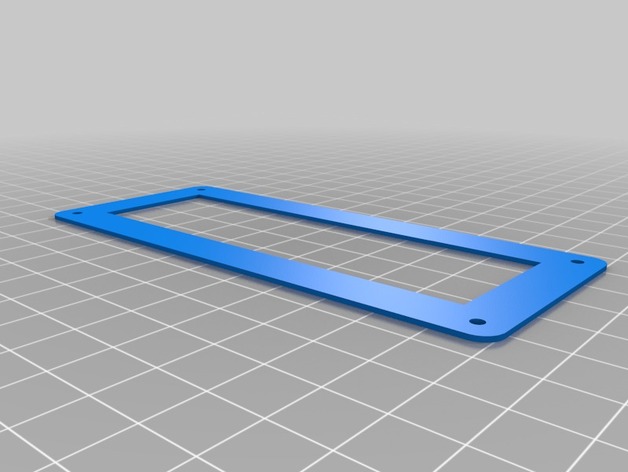

PN532_NFC_Reader_Drilling_Guide_preview_featured PN532 NFC Reader Drilling Guide



Copyright 2012-2015 by Claude Théroux
