Raspberry Pi Model B Drilling And Mounting Plates

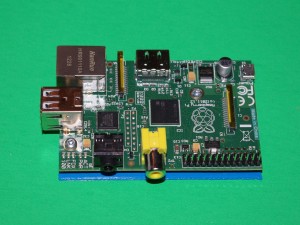

Raspberry Pi B view 1

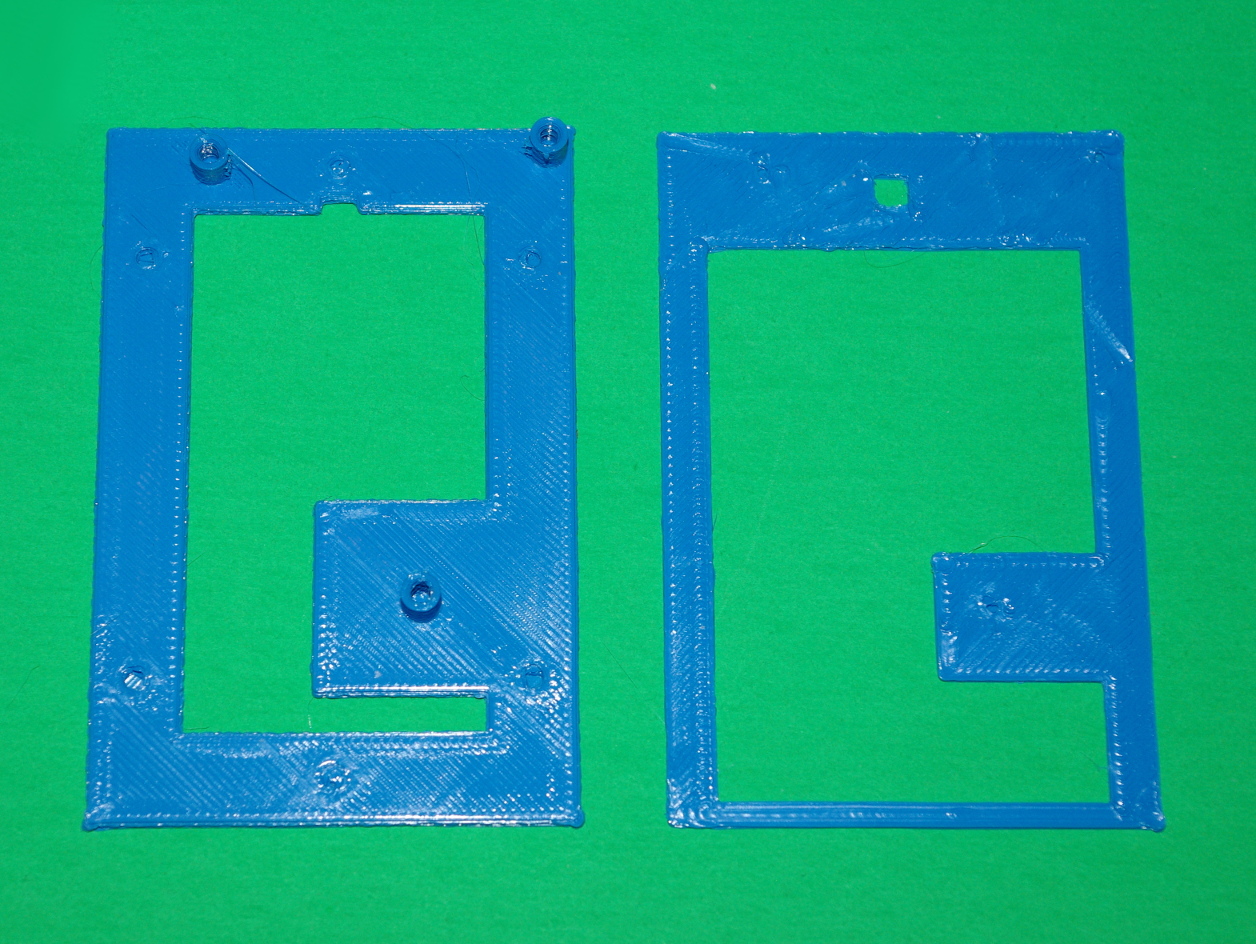

Raspberry Pi B view 2 Raspberry_Pi_B_Mounting_Plate_preview_featured Raspberry_Pi_B_Drilling_Guide_preview_featured


This thing contains a mounting plate and a drilling guide for the “Raspberry Pi Model B”.

The plates are not symmetrical. The notch shall be on the power jack and ethernet cable side. The base plate is 2 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.


Printable Files

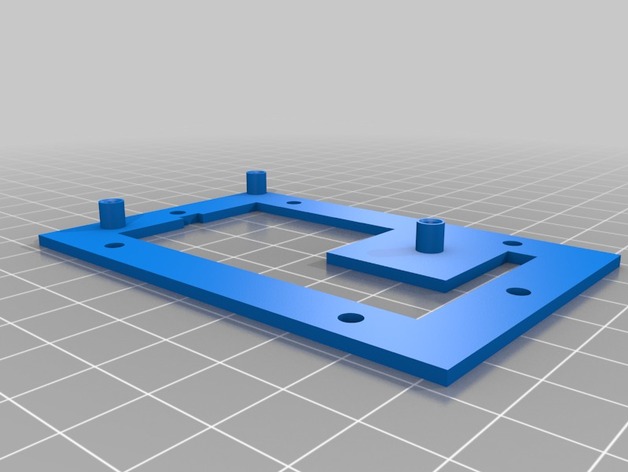

Raspberry_Pi_B_Mounting_Plate_preview_featured Raspberry Pi B Mounting Plate

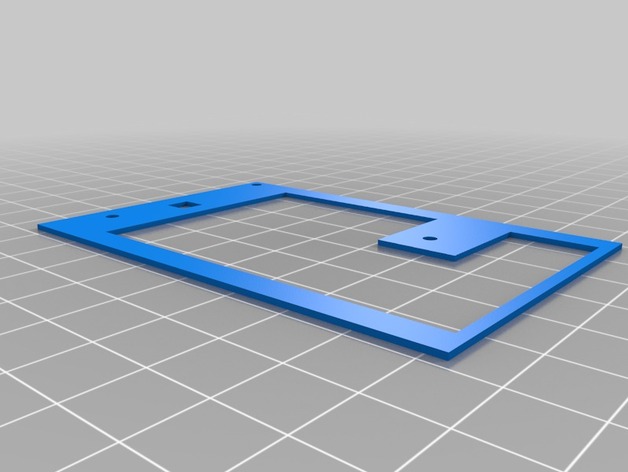

Raspberry_Pi_B_Drilling_Guide_preview_featured Raspberry Pi B Drilling Guide


Copyright 2012-2015 by Claude Théroux
