Solarbotics L298 Compact Motor Driver Drilling and Mounting Plates

Solarbotics L298 Compact Motor Driver view1
Solarbotics L298 Compact Motor Driver view2 Solarbotics_L298_Compact_Motor_Driver_Mounting_Plate_preview_featured Solarbotics_L298_Compact_Motor_Driver_Drilling_Guide_preview_featured



Description

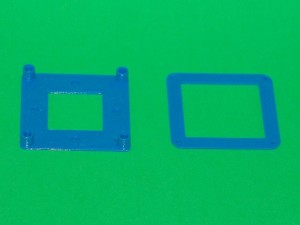

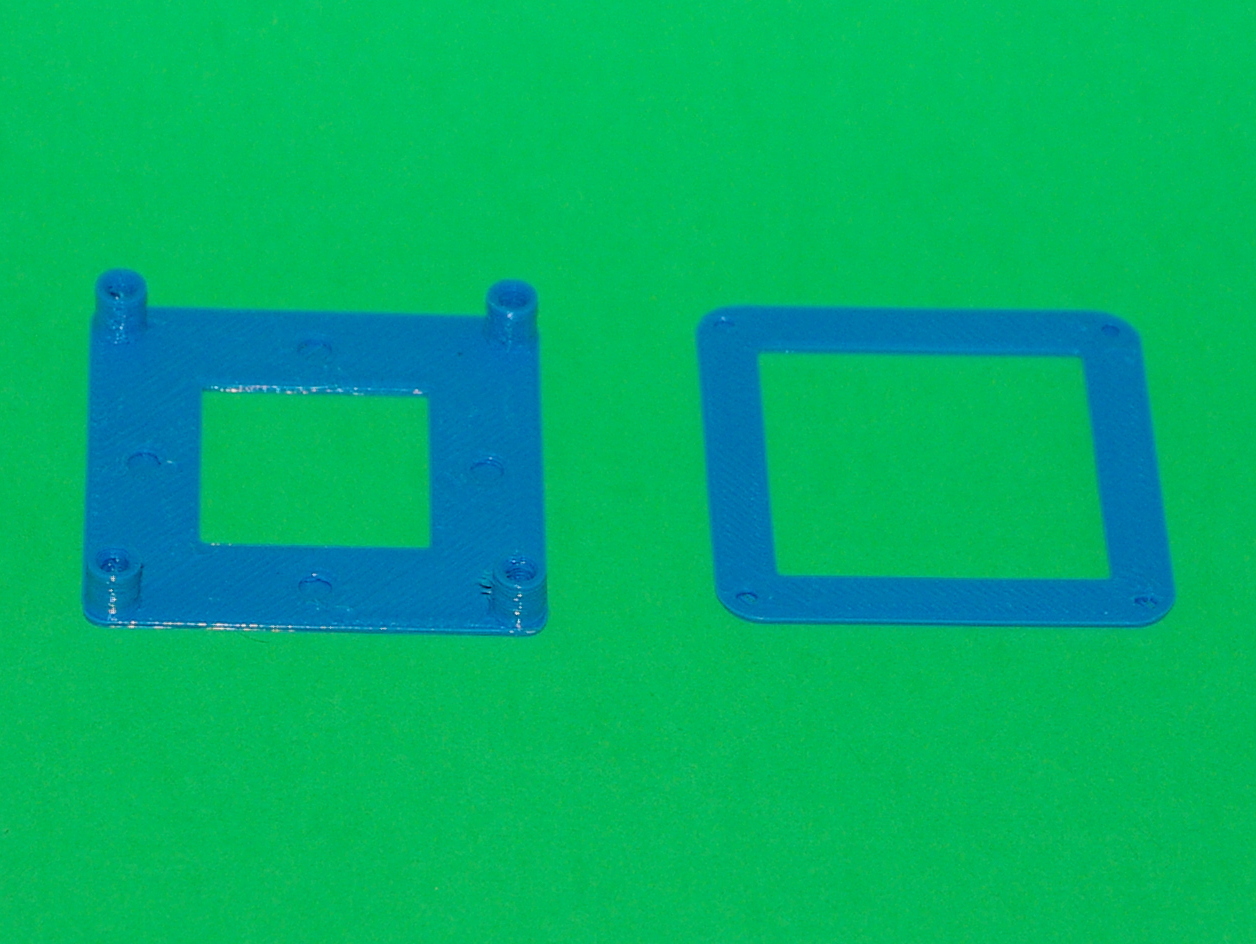

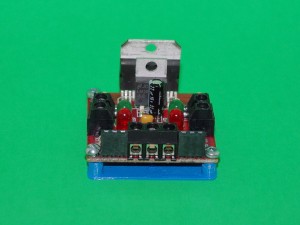

This thing contains a mounting plate and a drilling guide for the “Solarbotics L298 Compact Motor Driver”.

The base plate is 1.5 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

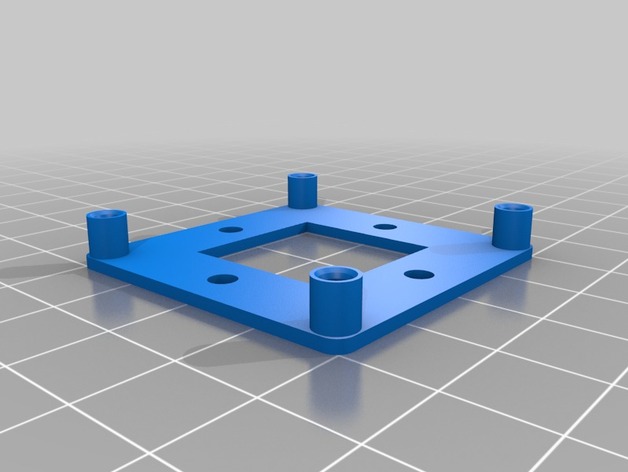

Solarbotics_L298_Compact_Motor_Driver_Mounting_Plate_preview_featured Solarbotics L298 Compact Motor Driver Mounting Plate

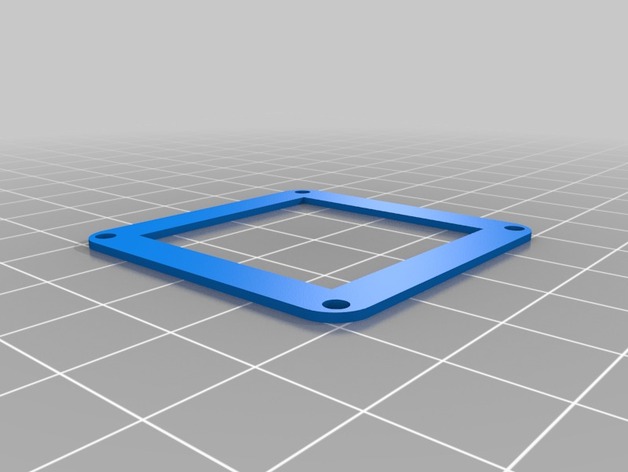

Solarbotics_L298_Compact_Motor_Driver_Drilling_Guide_preview_featured Solarbotics L298 Compact Motor Driver Drilling Guide



Copyright 2012-2015 by Claude Théroux
