Terminal Block Holder for Aluminium Extrusion

view2
view1 Extrusion_Terminal_Right_Bracket_preview_featured Extrusion_Terminal_Left_Bracket_preview_featured



Description

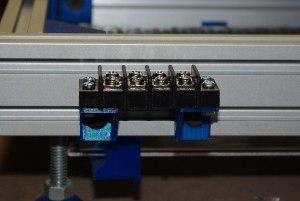

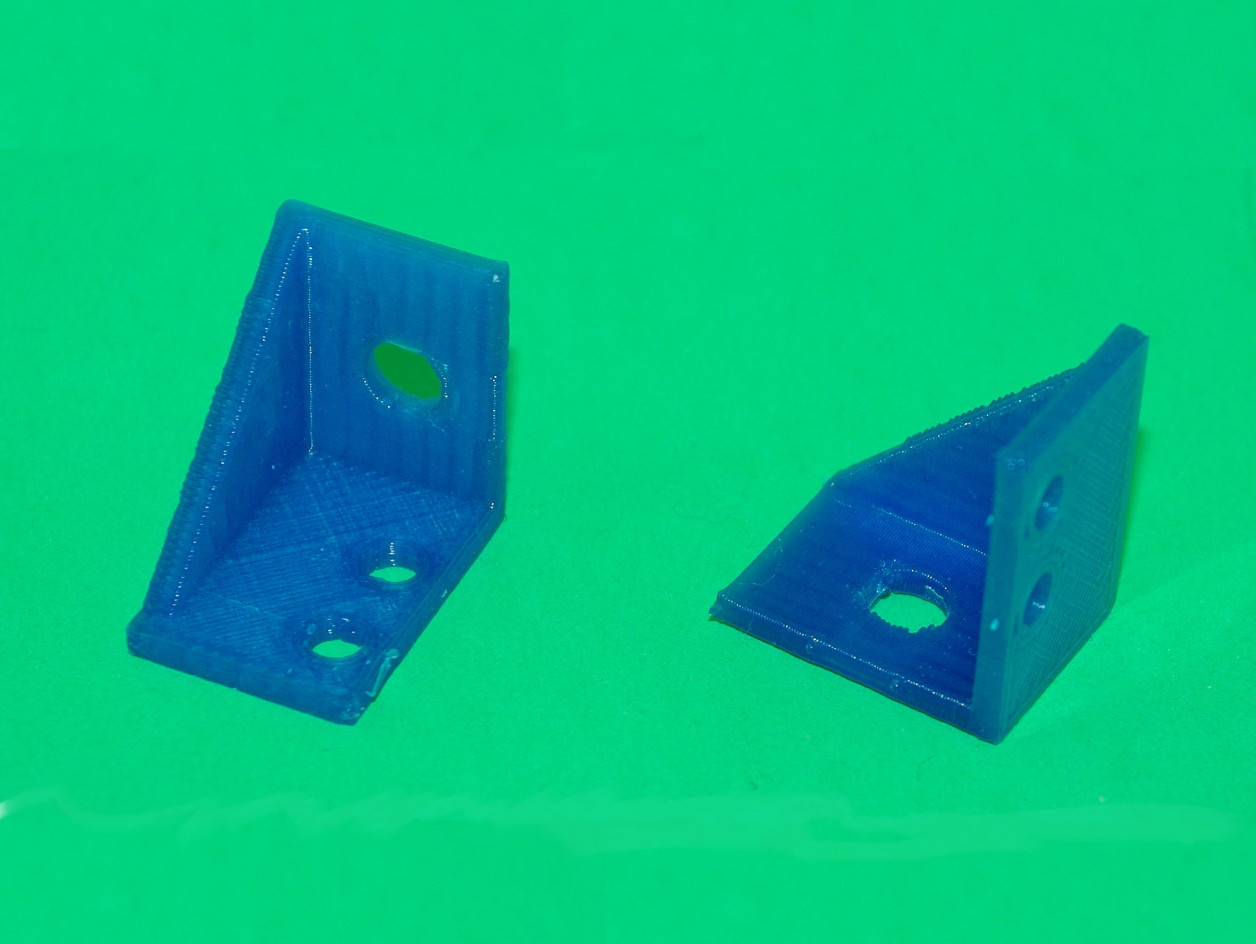

These are simple terminal block holders for Misumi aluminium extrusion (or equivalent). There is a 3 to 4 mm space between the extrusion and the terminal block to run some wires.



Printable Files

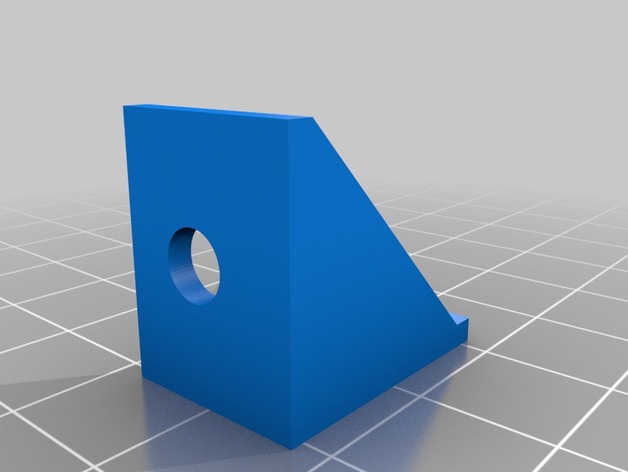

Extrusion_Terminal_Left_Bracket_preview_featured Extrusion Terminal Left Bracket

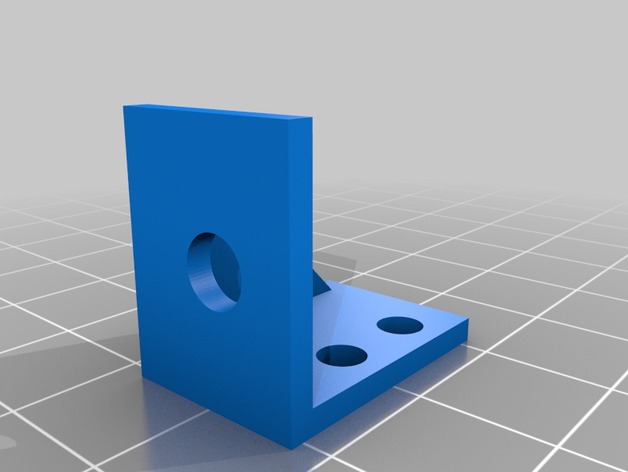

Extrusion_Terminal_Right_Bracket_preview_featured Extrusion Terminal Right Bracket



Copyright 2012-2015 by Claude Théroux
