Voltmeter Support Plate

view3
view1 view2 Voltmeter_Support_preview_featured



Description

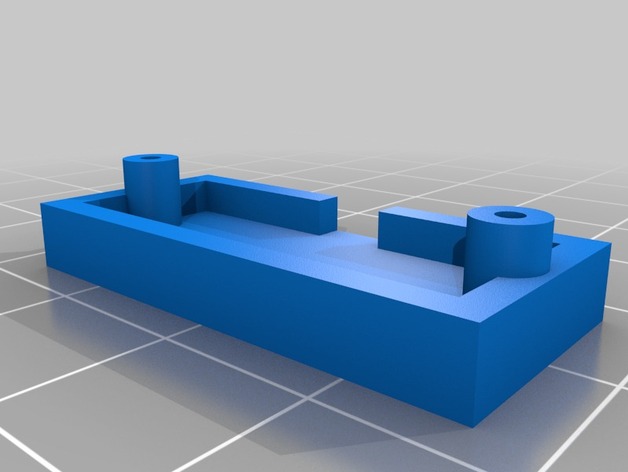

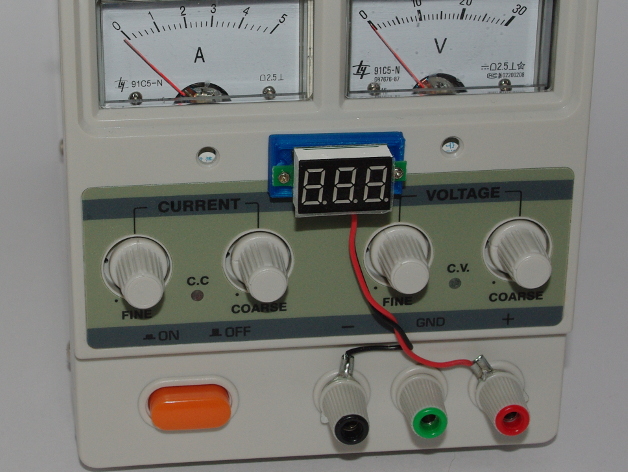

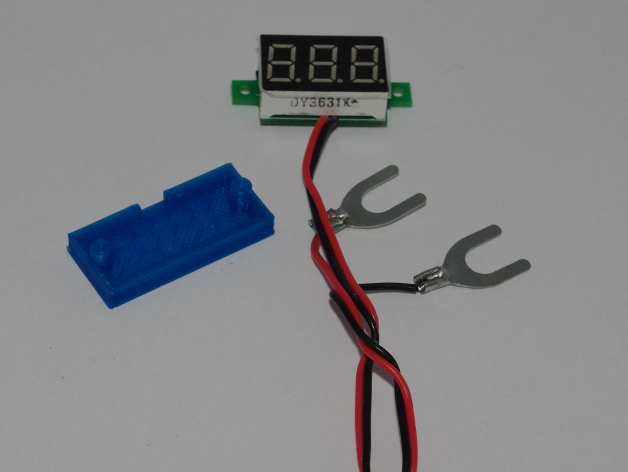

This is a simple plate for a cheap voltmeter. The voltmeter dimensions are 23 mm x 14 mm. The holes to screw the voltmeter to the plate are 28 mm apart. Once the voltmeter is on the plate, glue or double face tape is used to mount is on whatever you want.



Printable Files

Voltmeter_Support_preview_featured Voltmeter Support
