Freescale FRDM-KL25Z Board Drilling And Mounting Plates

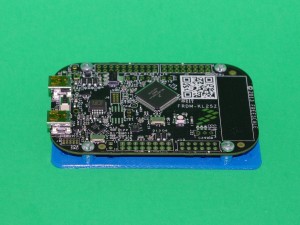

Freescale KL25Z view 2

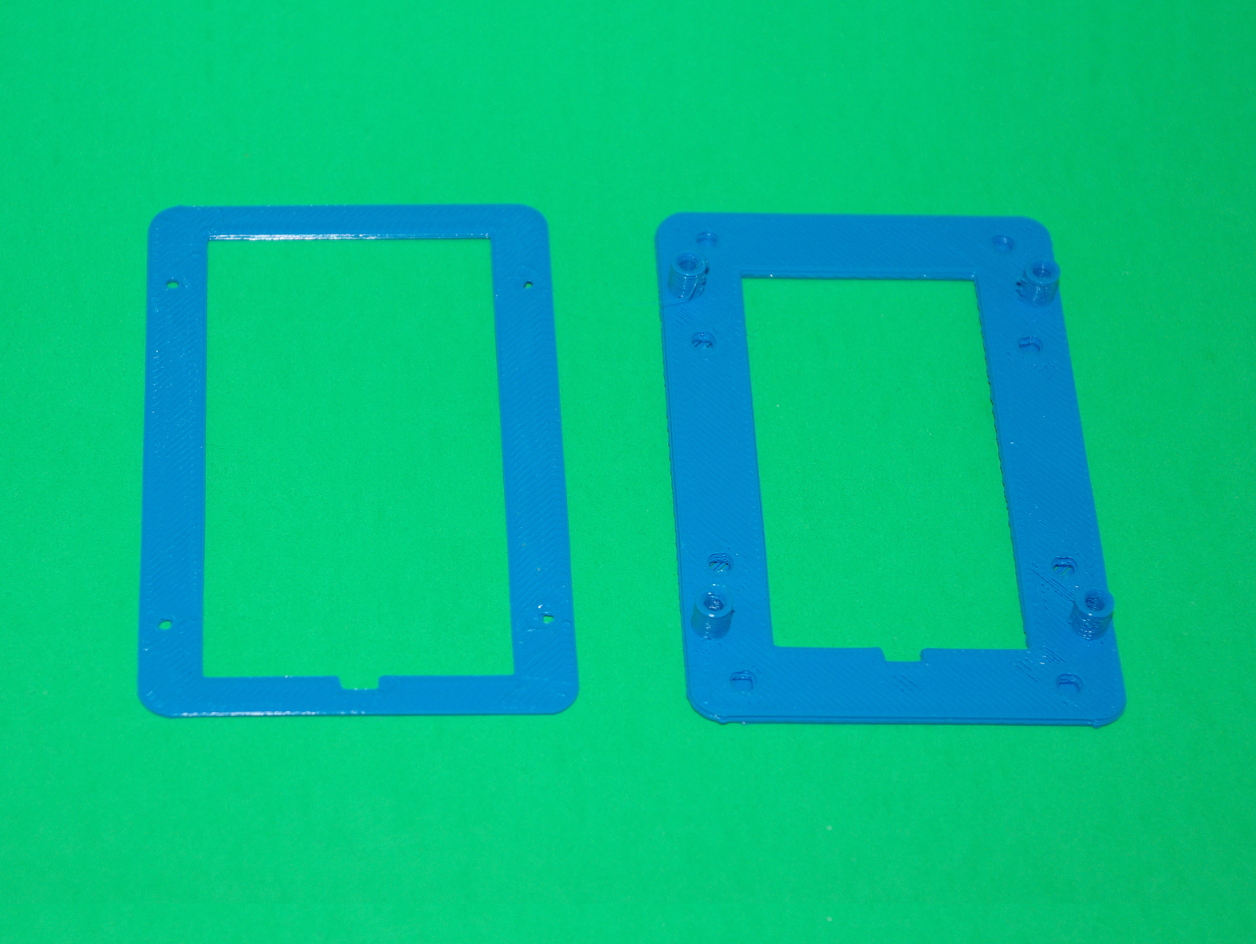

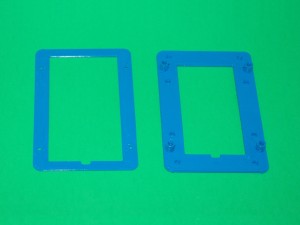

Freescale KL25Z view 1 Freescale_KL25Z_Mounting_Plate_preview_featured Freescale_KL25Z_Drilling_Guide_preview_featured



Description
This thing contains a mounting plate and a drilling guide for the “Freescale FRDM-KL25Z Board”.

The plates are not symmetrical. The notch shall be on the USB connectors’ side. The base plate is 2 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter.

The holes do not go through the lower layer to make it easier to print. You will have to drill them.



Printable Files

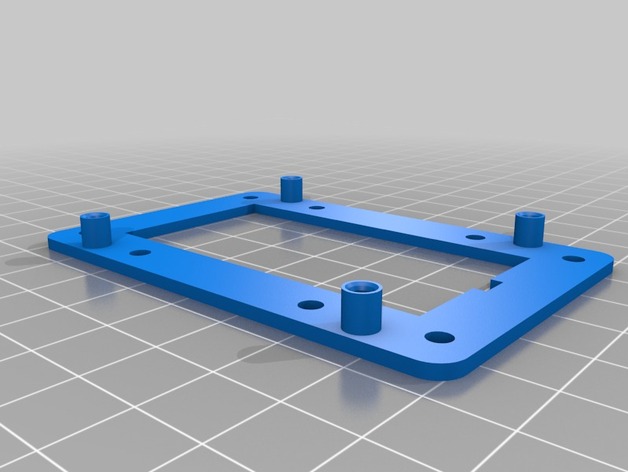

Freescale_KL25Z_Mounting_Plate_preview_featured Freescale KL25Z Mounting Plate

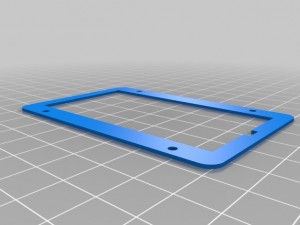

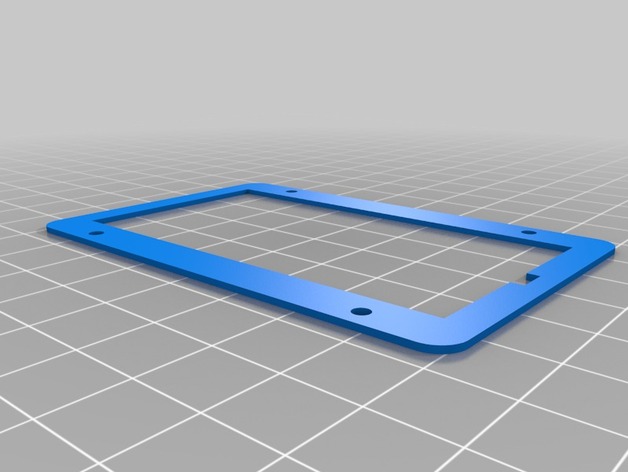

Freescale_KL25Z_Drilling_Guide_preview_featured Freescale KL25Z Drilling Guide



Copyright 2012-2015 by Claude Théroux
