Prusa i3 Metal Frame Heat Shield

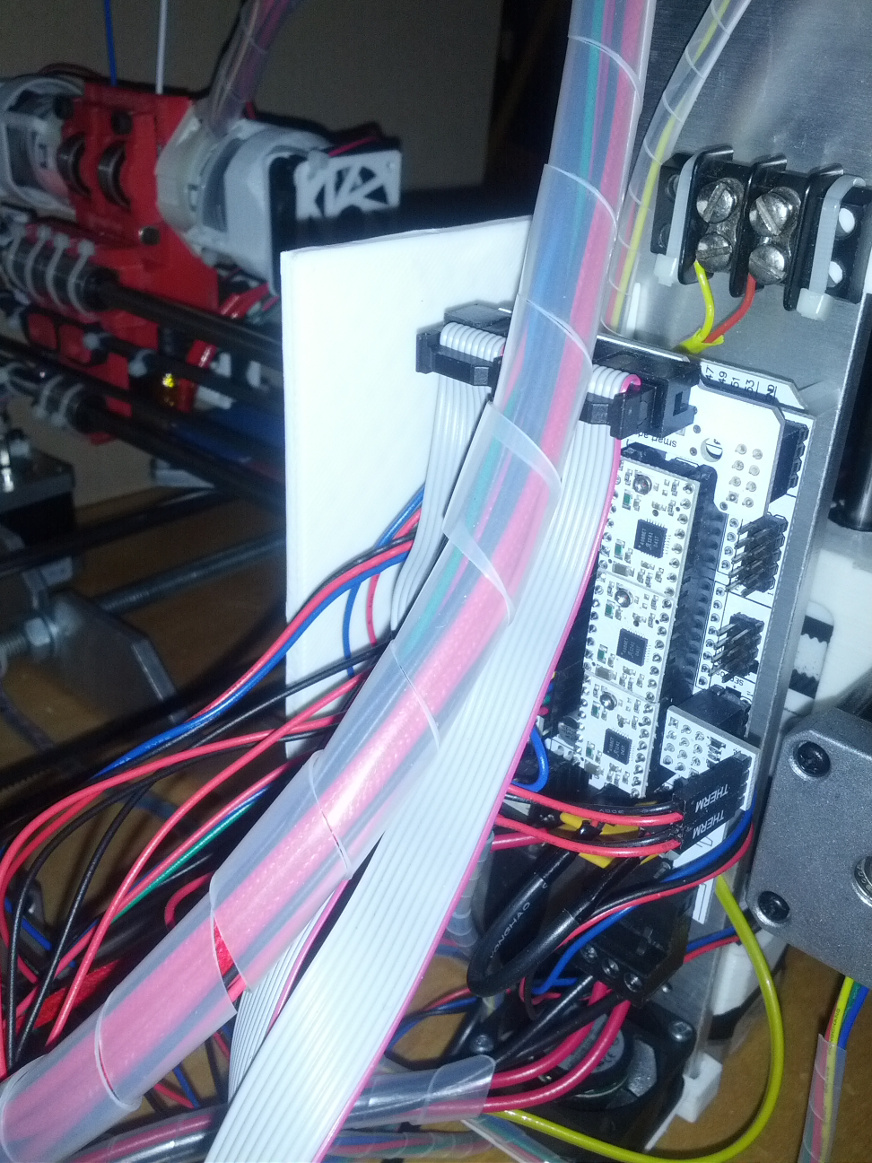

117169_left

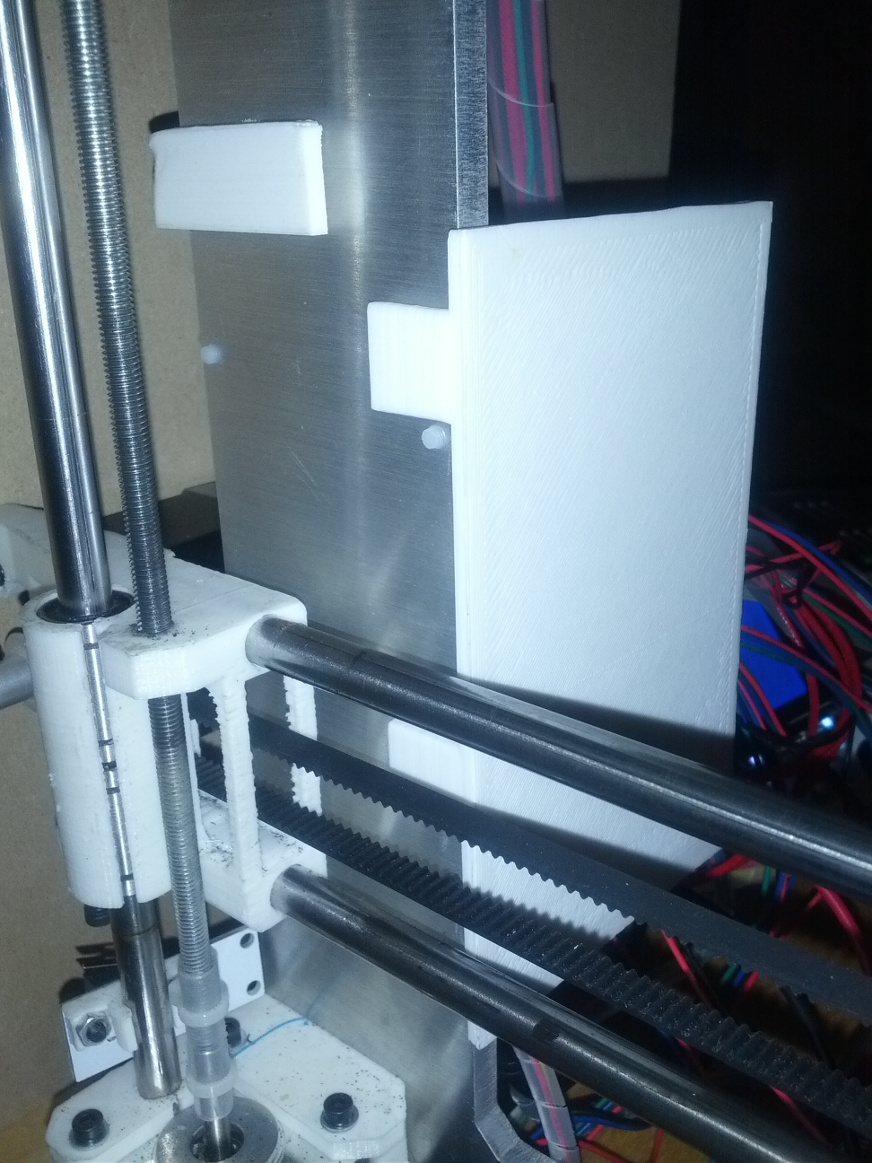

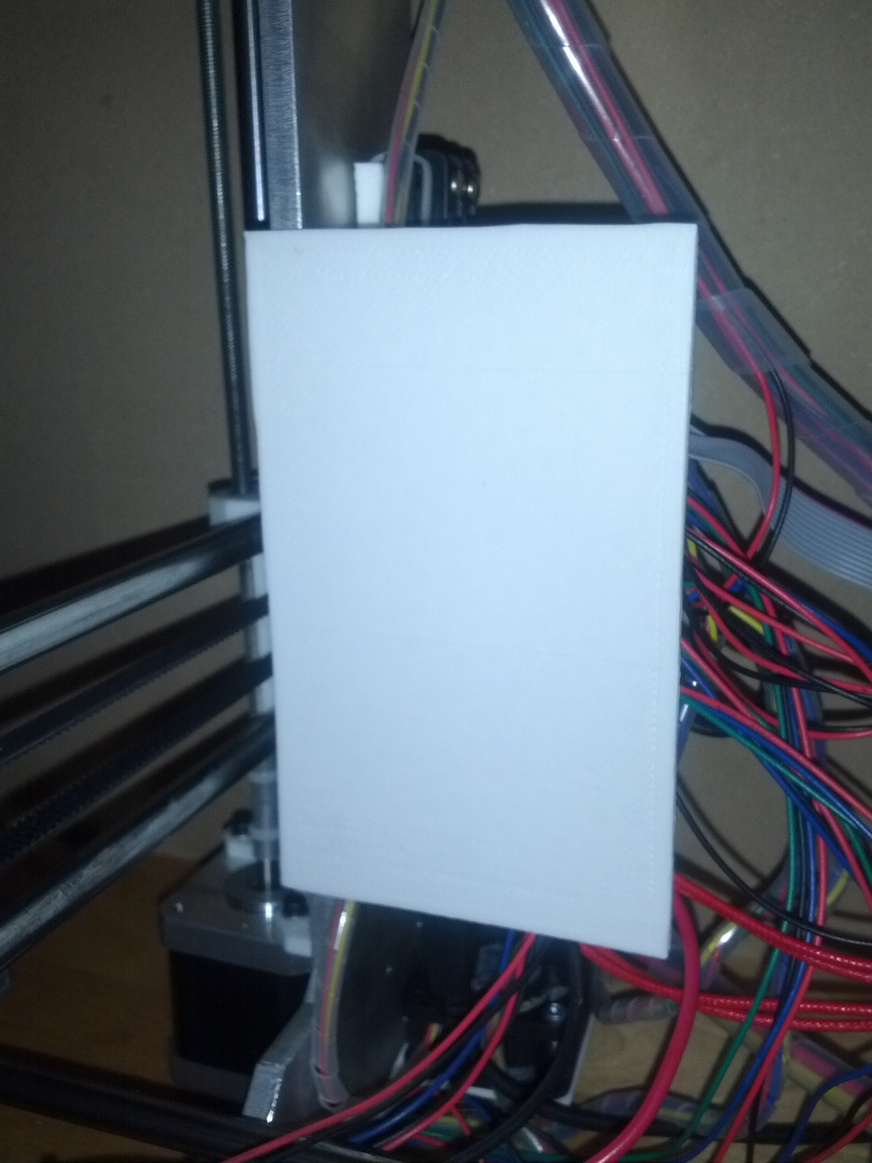

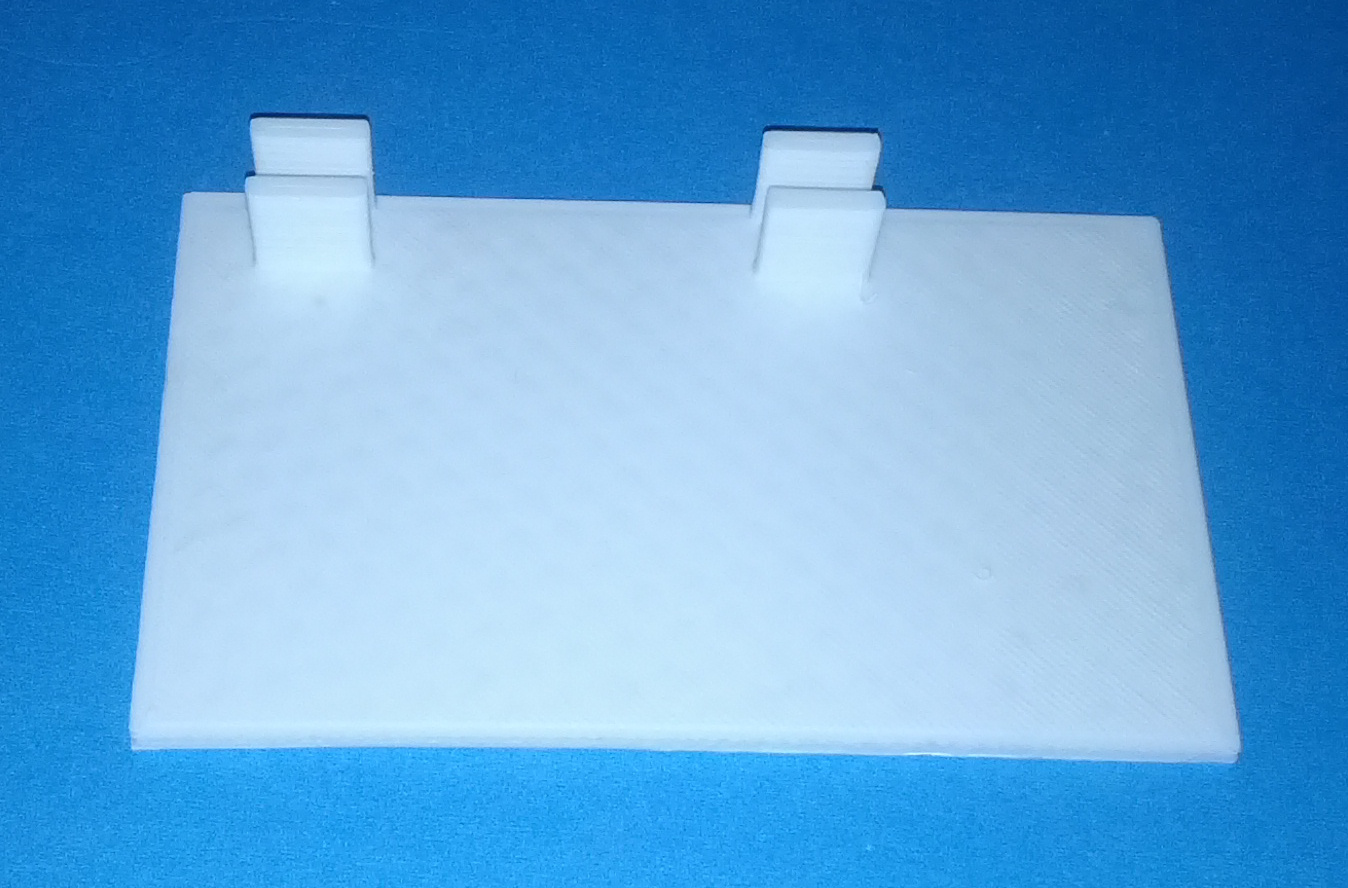

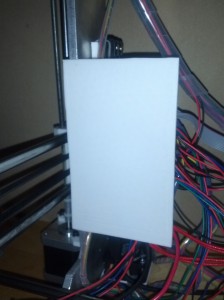

117169_front 117169_right 117169_top



Description
This thing helps prevent the heat of the heated bed to reach the ramp installed on the frame. Also, it prevents cool drafts reaching the model if a fan such as Prusa i3 Metal Frame Ramp Fan Holder is installed to cool off the ramp. This might be critical to print with ABS.



Printable Files

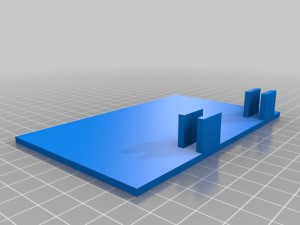

117169_Prusa_i3_Ramp_Heat_Shield_preview_featured 117169_Prusa_i3_Ramp_Heat_Shield



Copyright 2012-2013 by Claude Théroux
