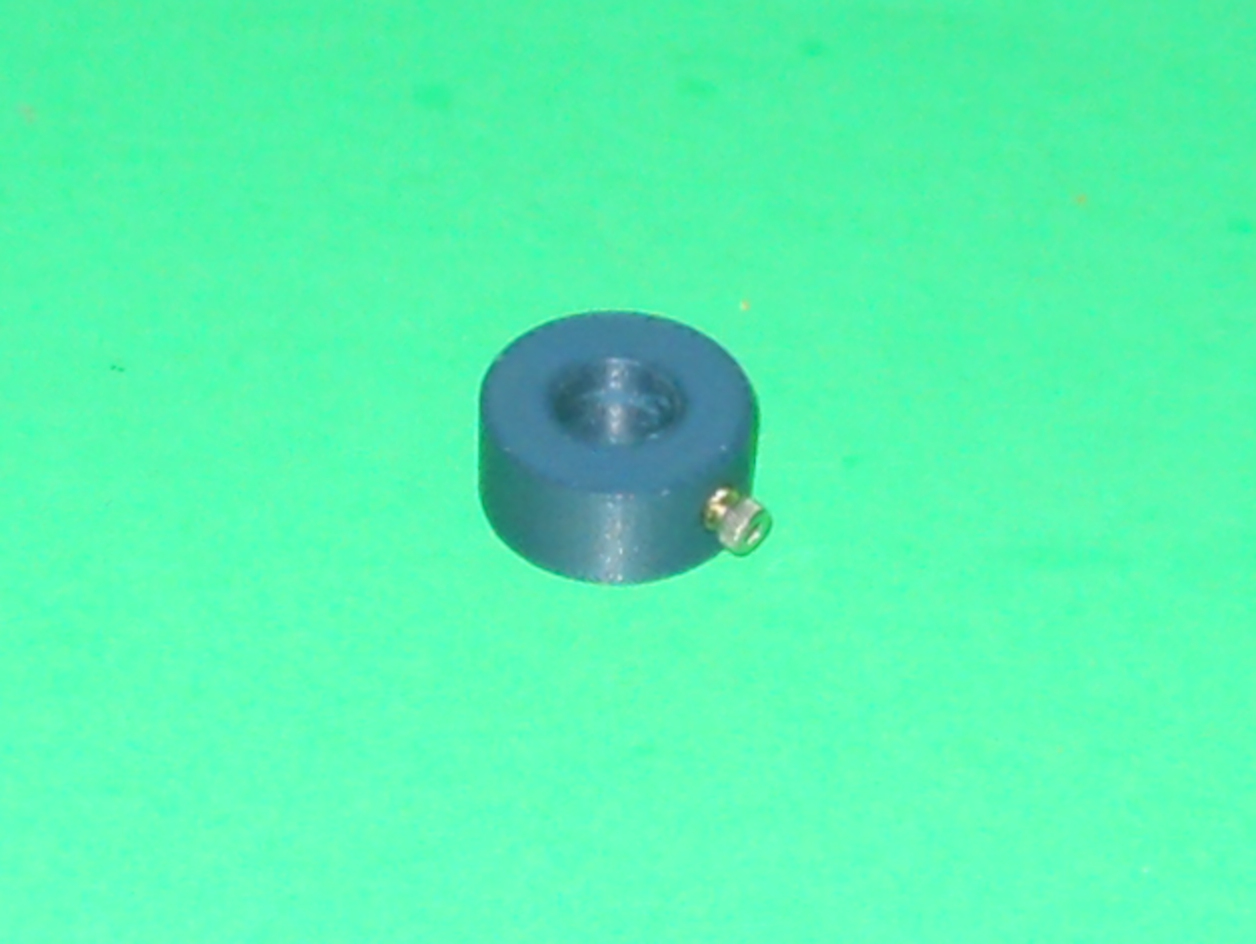

Parametric Shaft Lock

This is an object used to lock a shaft. Its design is parametric. It is recommended to use a brass insert to hold the grub screw.

Support material is not required. An infill of 40% is recommended.

This object was designed using openSCAD.

Printable Files

  Parametric Shaft Lock OpenSCAD File

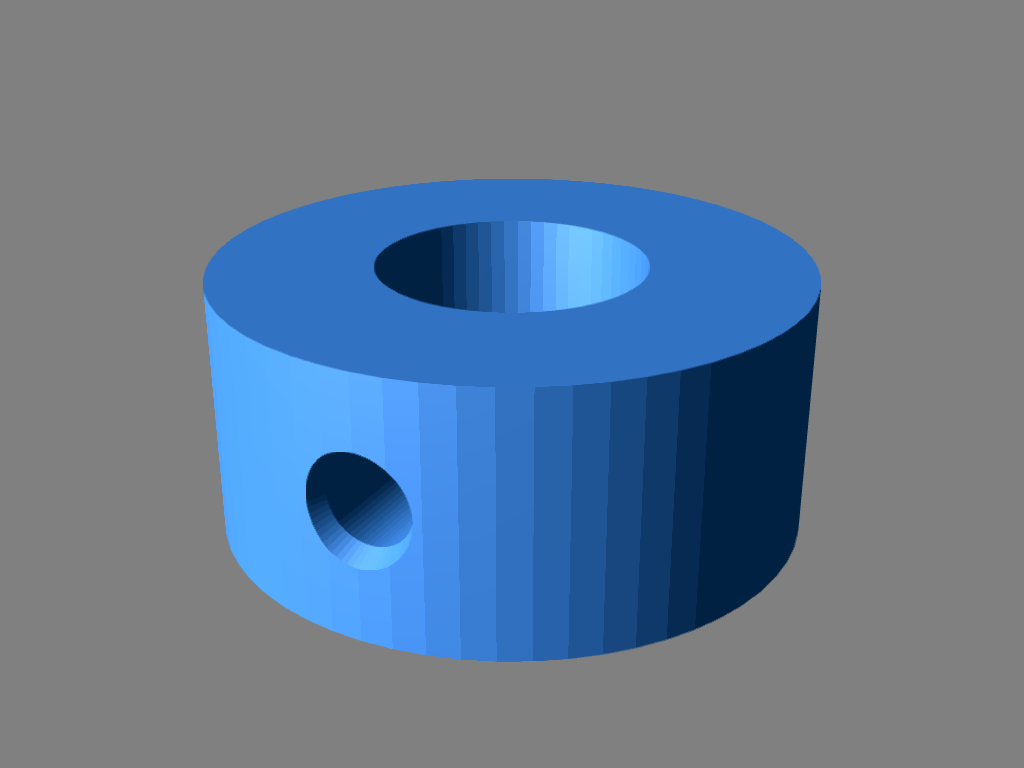

  8 mm Shaft Lock Sample File

This object is also published on the following site(s):
Prusa Printers
