Prusa i3 Metal Frame Ramp Fan Holder

117161_installed
117161_top



Description

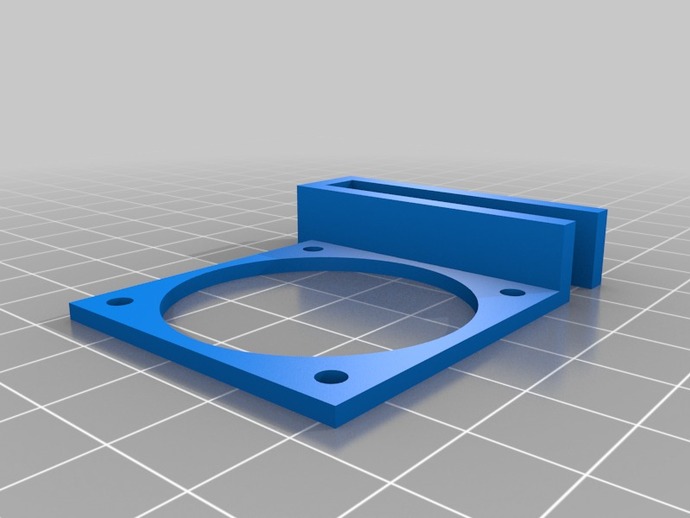

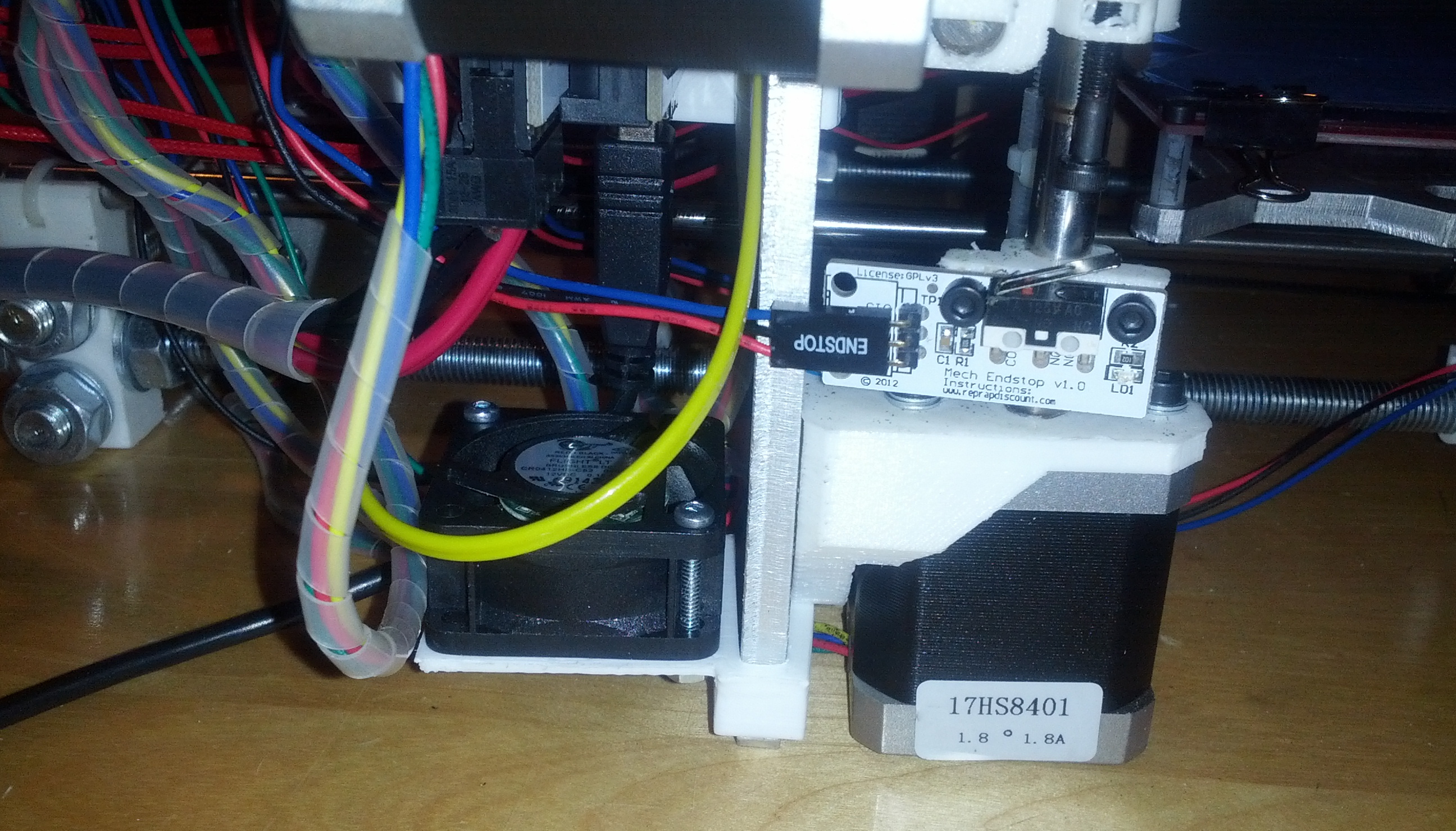

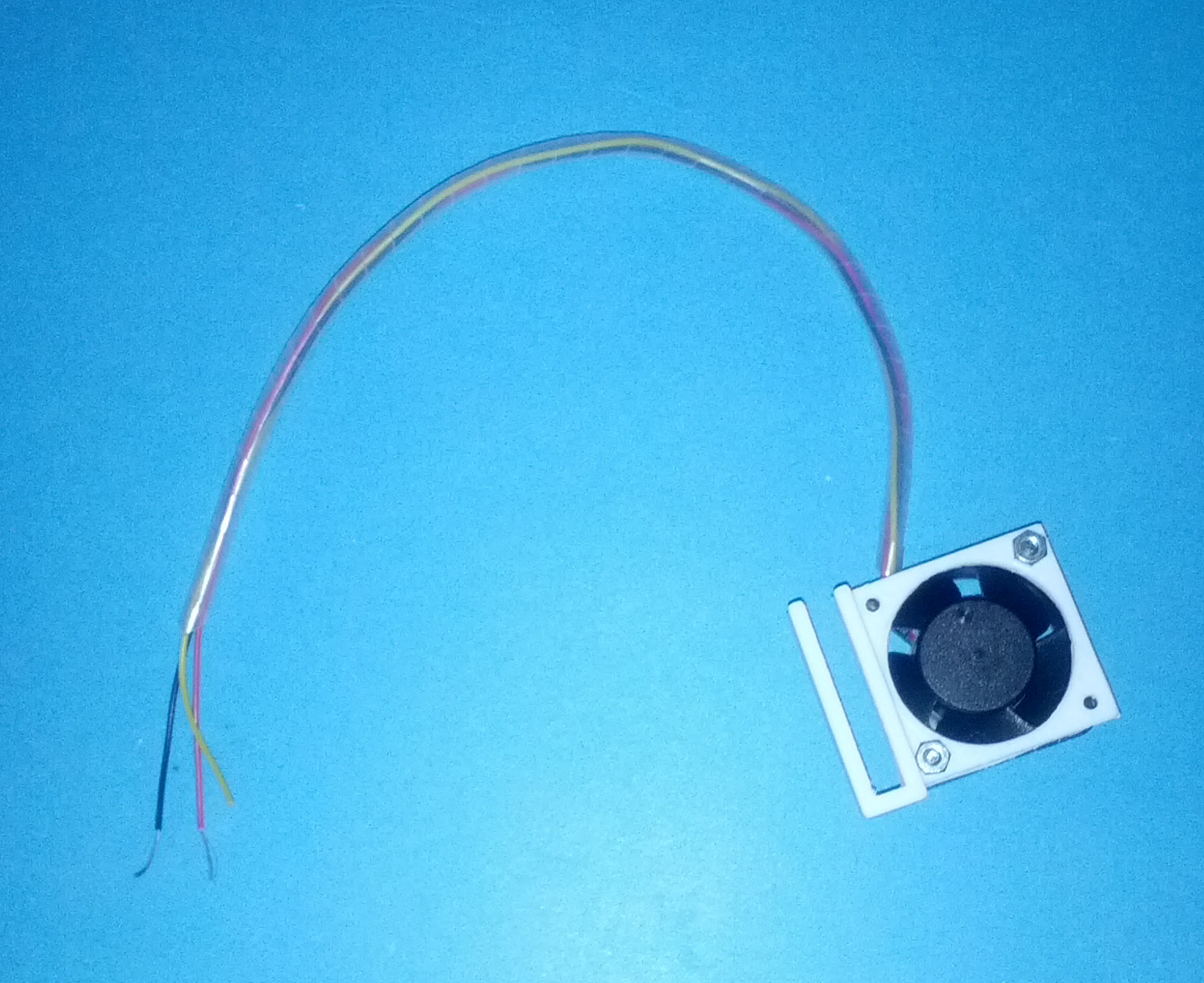

Holds a 40mm fan underneath the ramp to cool it. The fan is screwed on the holder with 4-40 screws. The holder is snapped on the Prusa frame (6.5 mm). Make sure that the fan blows upward.

On my printer, the fan is connected using Prusa i3 Metal Frame Terminal Block Holder.
