Surface Mount Rod Bracket

36168_usage



Description

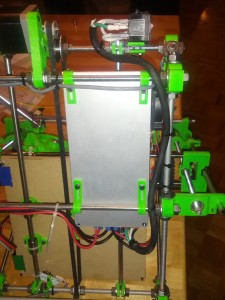

Parametric bracket that let you mount something on a rod with a screw. The length, width and tickness can be easily modified in the scad file. I use this bracket to mount a power supply under the bed of a Prusa Mendel.

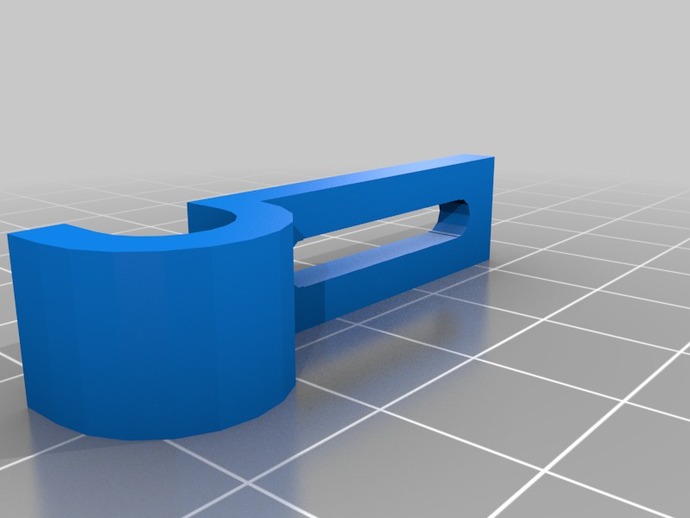

The stl file is for a 30 mm x 10 mm bracket. For any other sizes, edit the scad file, render it and print it.



Printable Files

36168_Surface_Mount_Bracket_preview_featured 36168_under-bed-power-supply-surface-mount
36168_Surface_Mount_Bracket_preview_featured under-bed-power-supply-surface-mount-20
36168_Surface_Mount_Bracket_preview_featured under-bed-power-supply-surface-mount-30
