Altoids Tins Like Parametric Containers

This is a script that generates Altoids Tins like parametric containers. You need to put all the files into a directory to generate your own containers. Copy one of the provided parameter files and update the various parameters. Open it with openSCAD and press F5, F6 and F7 in sequence to generate the model. Then, just print it.

Support material is not required. An infill of 20% is recommended.

This object was designed using openSCAD.


Printable Files

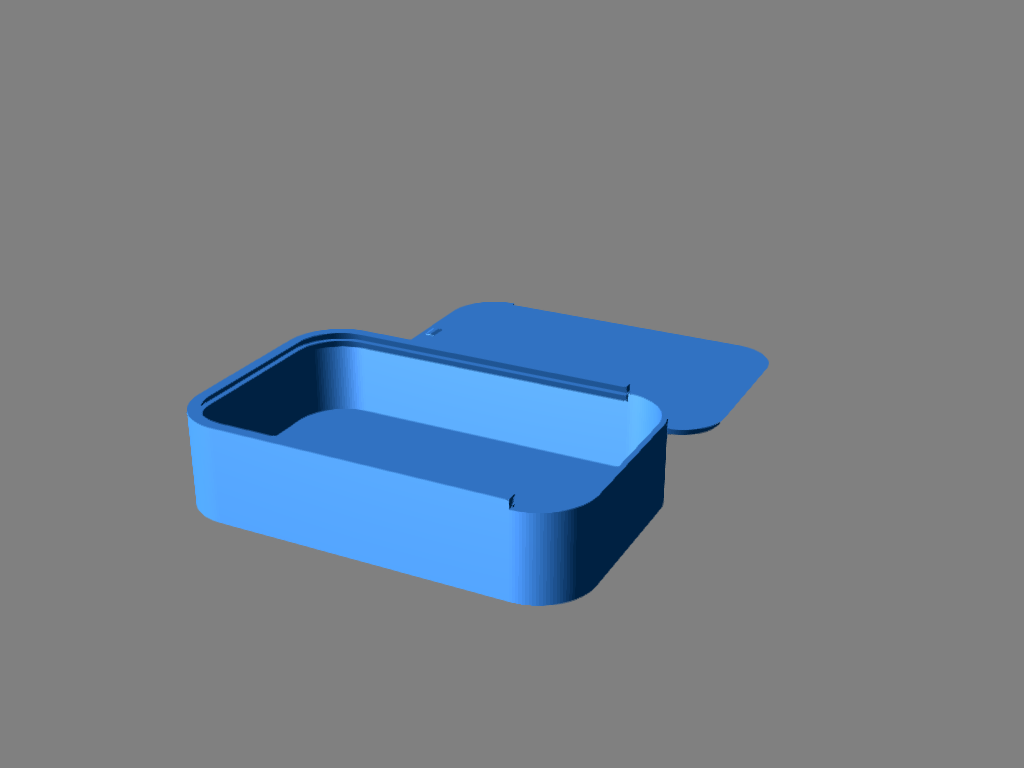

  Standard Size Altoids Tins Container
  Standard Size Altoids Tins Container Parameters

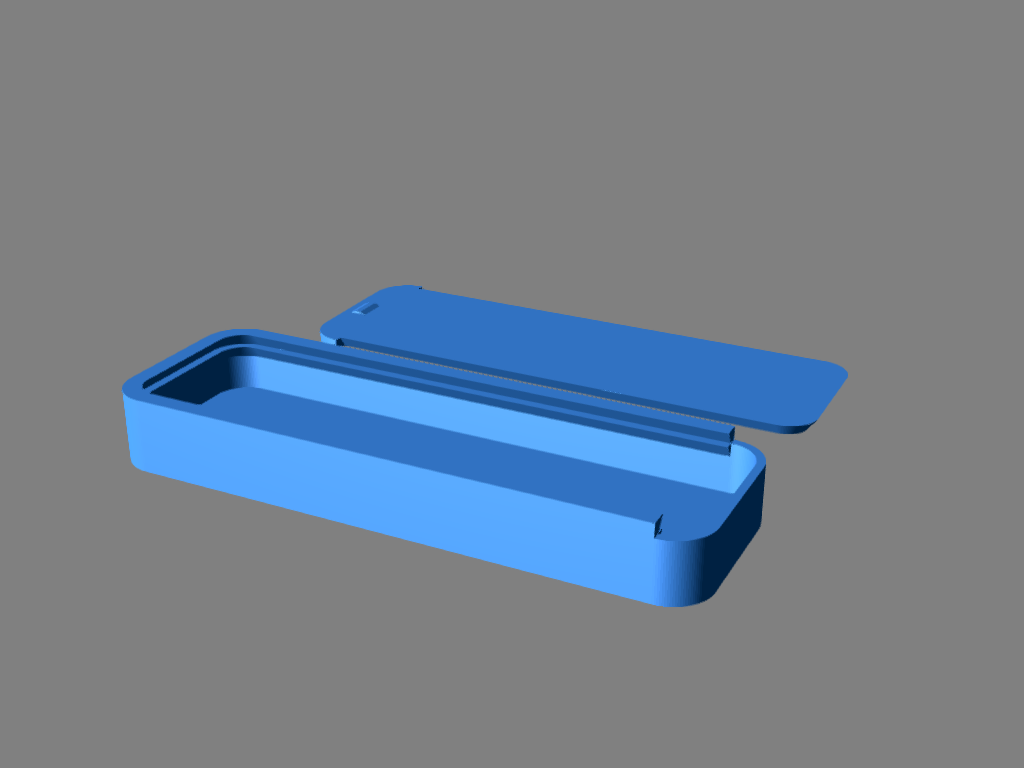

  12 Screw Driver Bits Container
  12 Screw Driver Bits Container Parameters
  Container Generator Library

This object is also published on the following site(s):
Prusa Printers
Thingiverse


Copyright 2012-2024 by Claude “Tryphon” Théroux
