FLsun Cube Bed Adjustment Improvements

October 5, 2019 3D Printing object

Description

These are some improvements to the bed adjustment mechanism of the FLsun Cube. They provide:

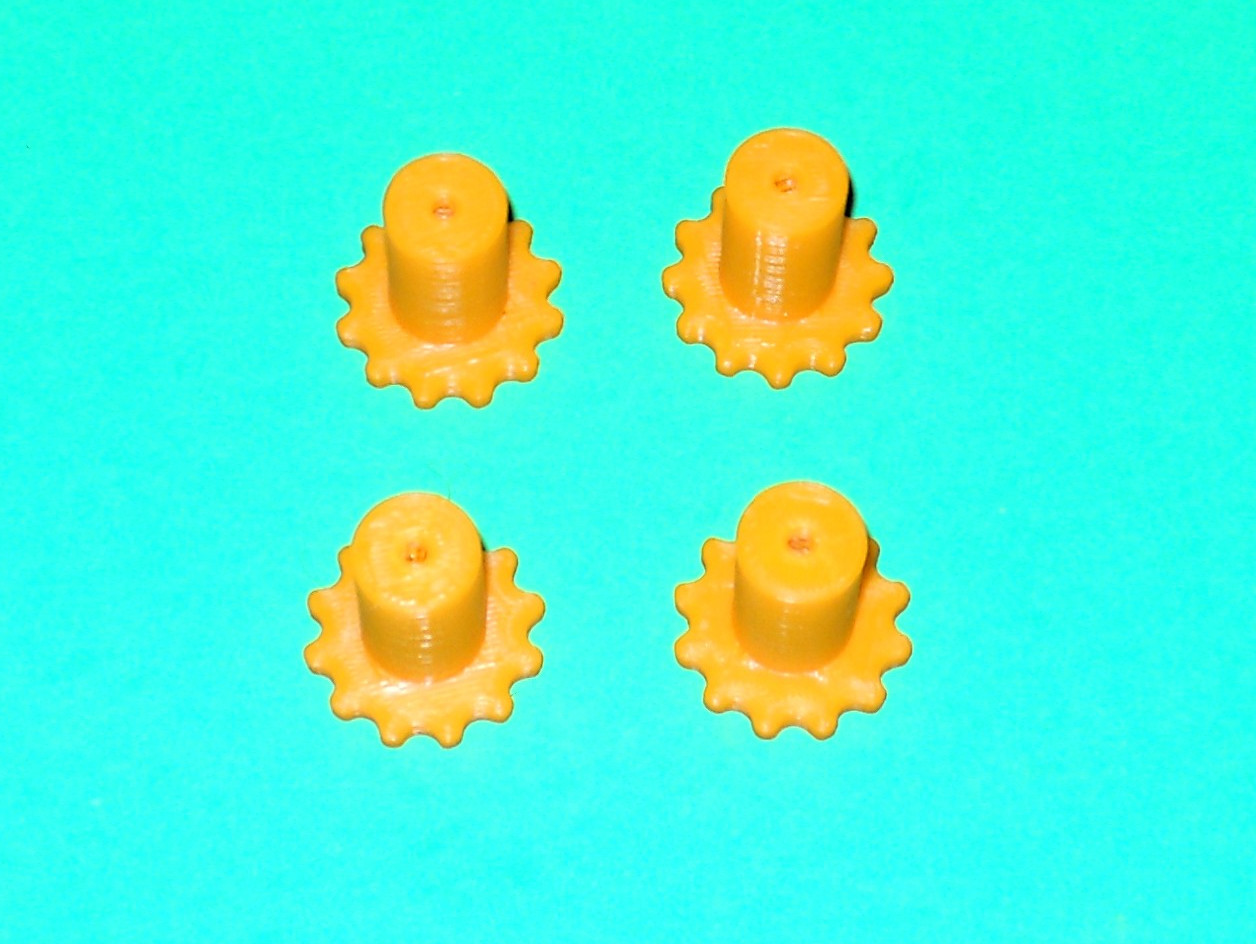

larger adjustment knobs

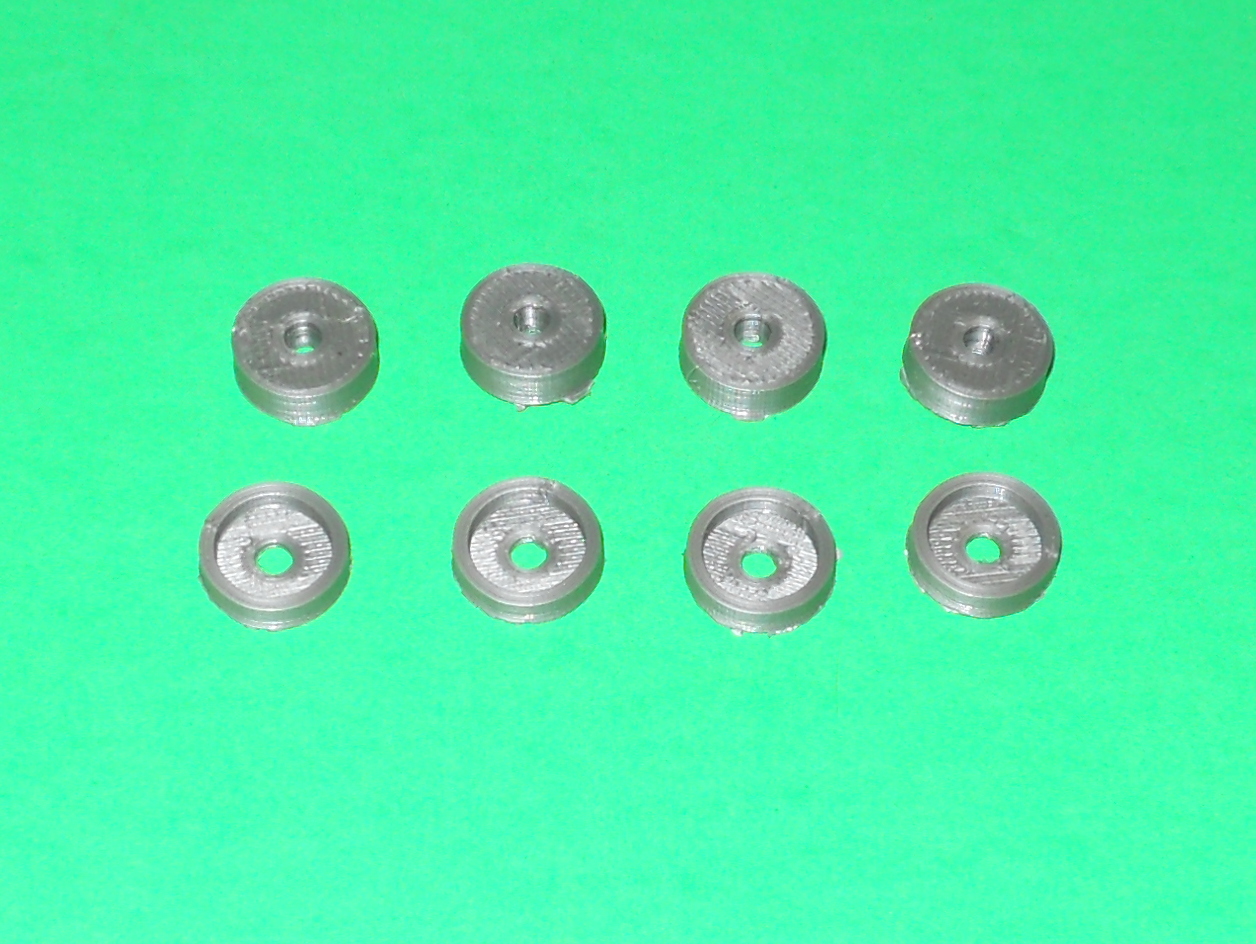

protector for the heated bed
protector for the aluminum bar.

You need to print 4 of each. You will also need 4 x M3 nuts.

Use the screw pulling technique to bring the nut into the knob. To do so, you will need an M3 screw and a washer.

Support is not required.

This object was designed using Fusion 360

Files

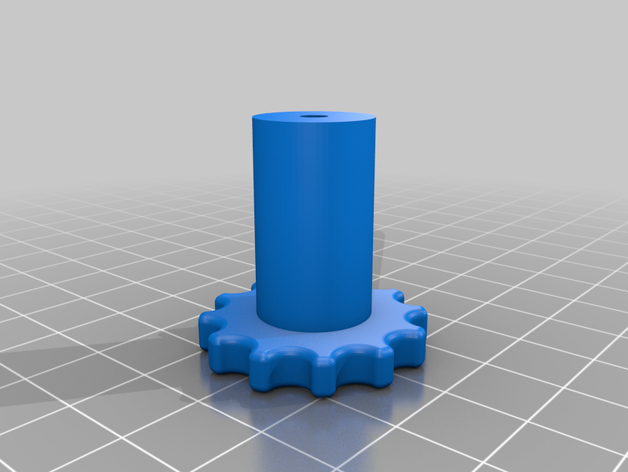

	Adjustment-Knob.stl

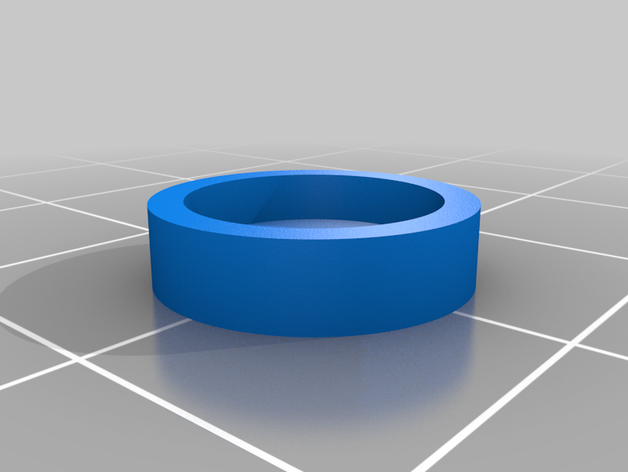

	Bed-Protector.stl

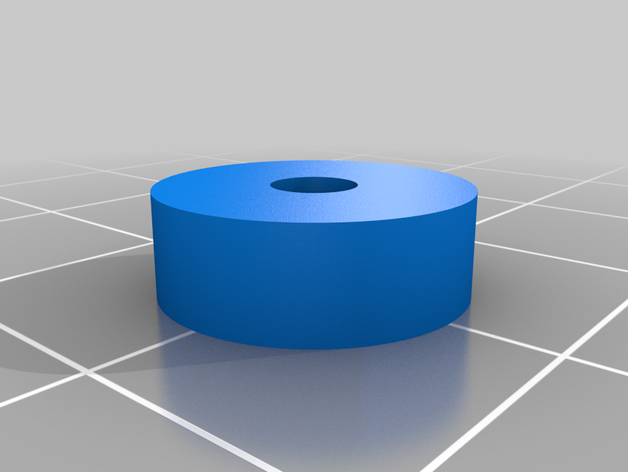

	Bed-Spacer.stl

This object is also published on the following site(s):

Thingiverse
