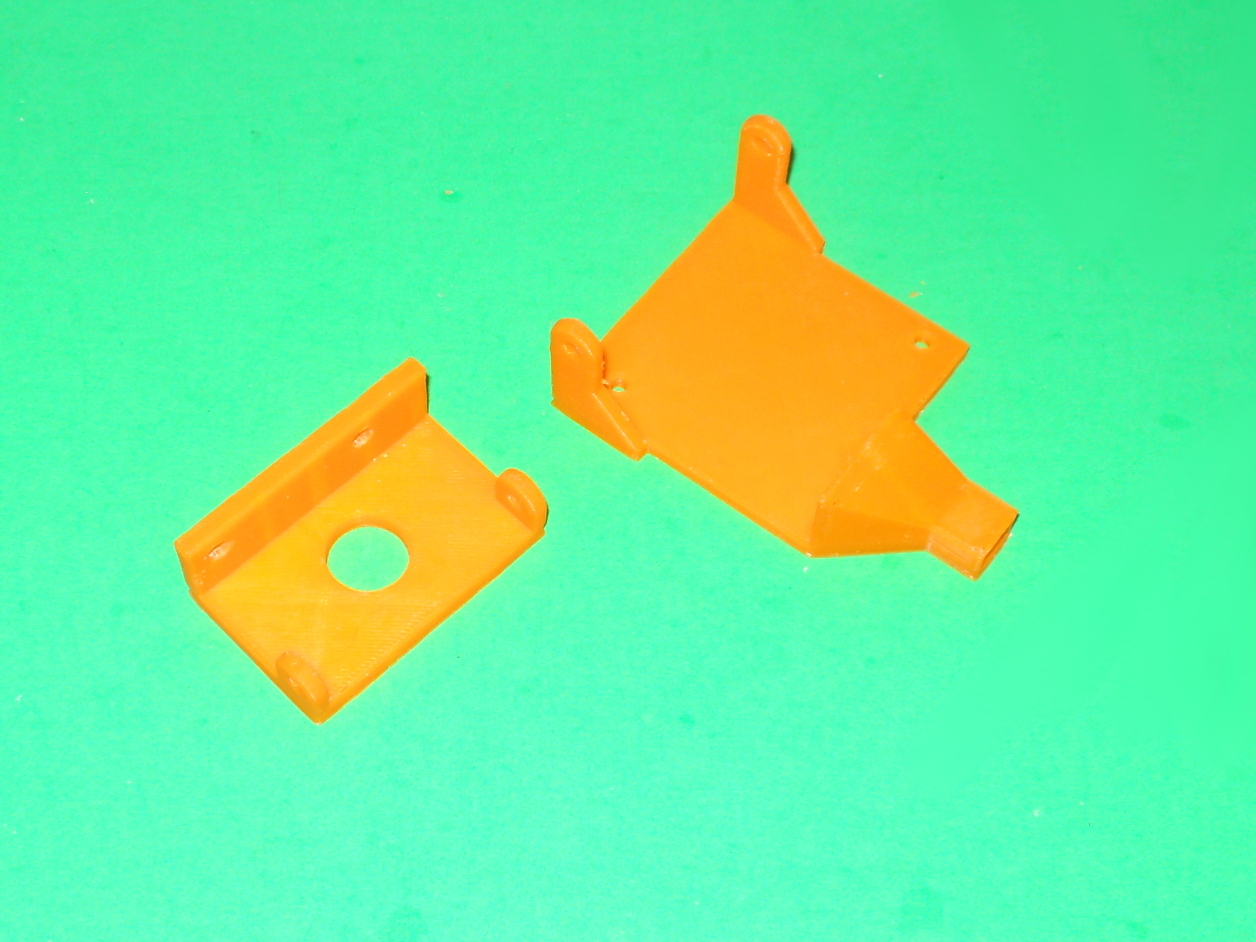

FLSun Cube Part Cooling Fan




This is a part cooling fan for the FlSun. The original design has only one fan that cools the extruder and the part at the same time but it doesn’t do a good job.

This part cooling fan is a complement to the extruder cooling fan that can be found here: https://www.thingiverse.com/thing:3994567

You’ll need these to install this part cooling fan:

  • a 5015s radial fan
  • two M4 x 20mm screws and nuts (to replaces the existing screws)
  • two M3 x 22mm screws and nuts
  • two M3 x 10mm screws and nuts

The part cooling fan is held to the X carriage using two of the screws holding the linear bearing. Nevertheless, you will need to use de M4 screws mentioned above.

You will need to change the wiring to install the cooling fan. Thus, you will need to reflash Marlin. It is recommended to do it also for the extruder fan.

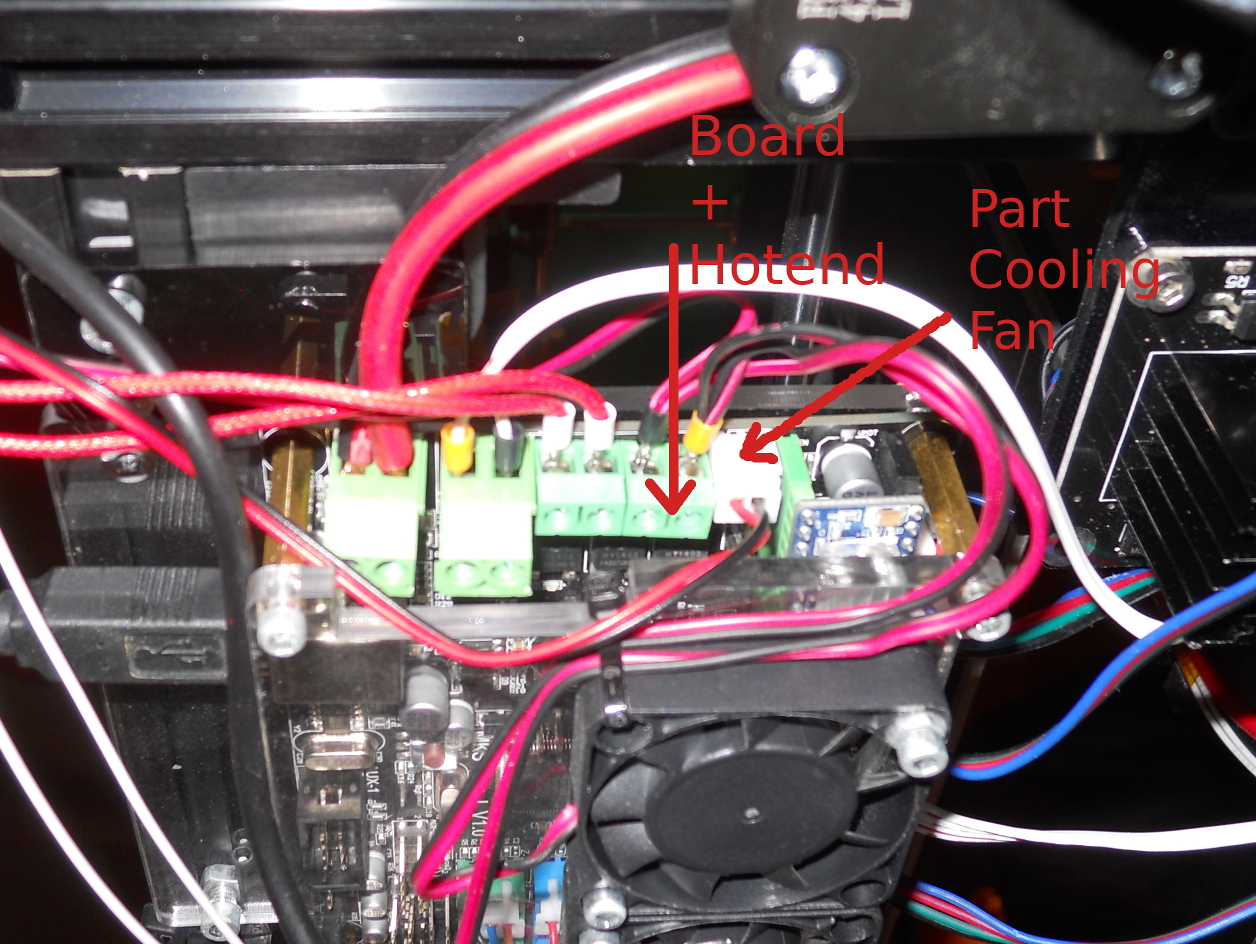

I’ve connected the board fans along with the extruder fan on port D7. I modified the following parameters in Configuration_adv.h:

  • #define E0_AUTO_FAN_PIN 7
  • #define EXTRUDER_AUTO_FAN_TEMPERATURE 40

This way, the extruder, and board fans run only if the extruder temperature is above 40C which is a big relief when it is not printing.

The part cooling fan is installed on D9. To do so, I’ve modified the following parameters in Configuration_adv.h.

  • #define FANMUX0_PIN 9

While doing it, I recommend you to make sure that THERMAL_PROTECTION_HOTENDS and THERMAL_PROTECTION_BED are enabled in Configuration.h

This object was designed using Fusion 360


Printable Files

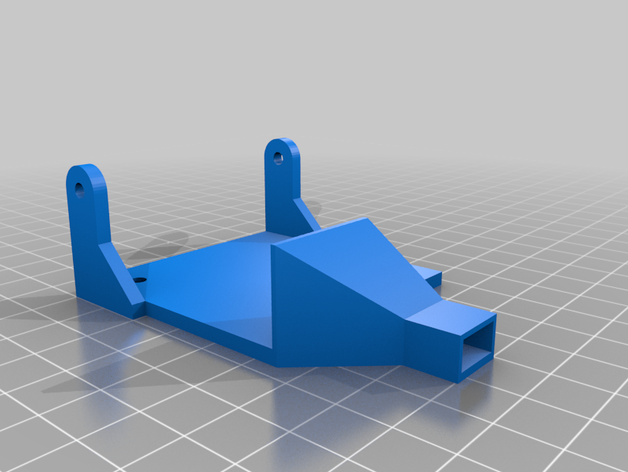

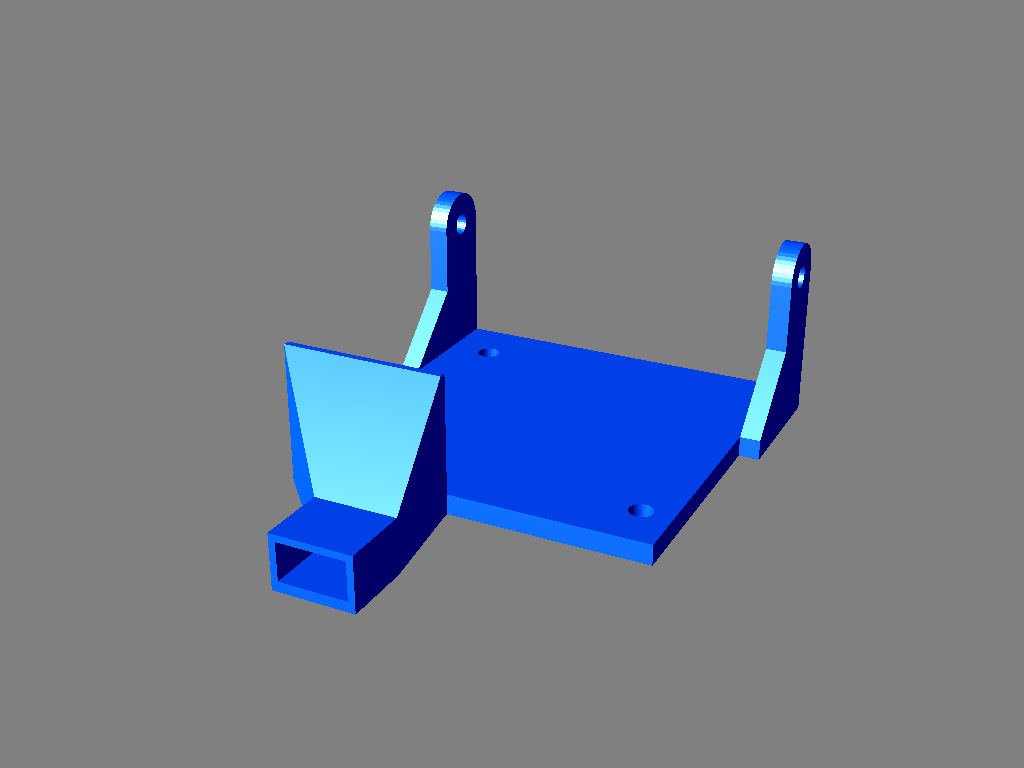

 Part Cooling Fan Nozzle

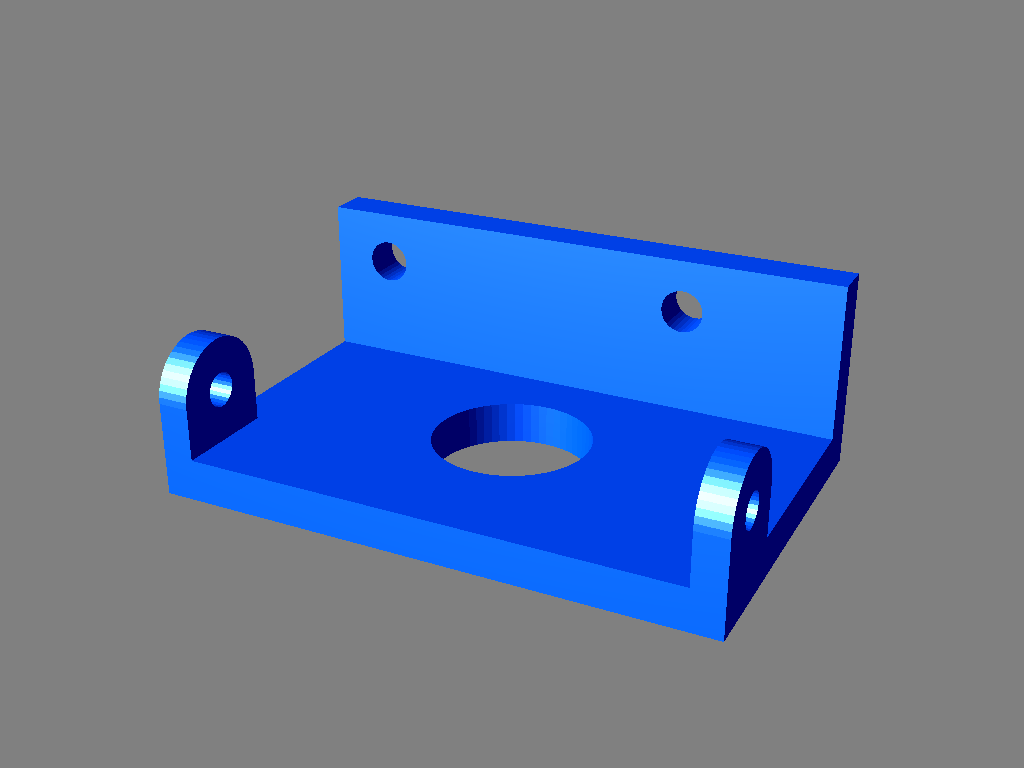

 Part Cooling Fan Base


This object is also published on the following site(s):
Thingiverse


The source files are available:

You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:

You are free to:

* Share — copy and redistribute the material except the source files in any medium or format
* Adapt — remix, transform, and build upon the material

You agree to:

* give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
* not use the material for commercial purposes
* distribute your contributions under the same license as the original if you remix, transform, or build upon the material
* not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
* not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files.

If you do not agree to any of these conditions, do NOT request the source files.
