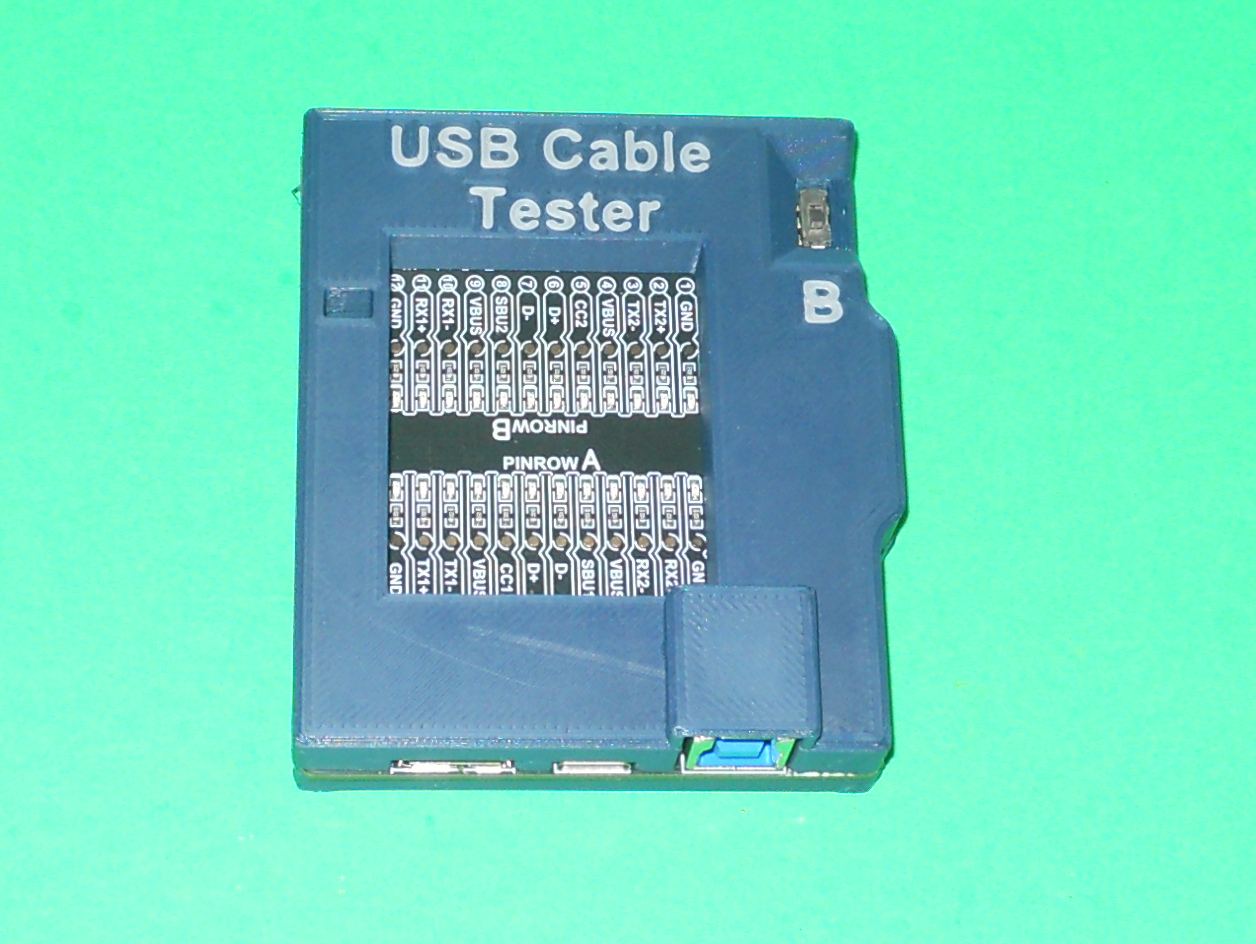

MRB063A USB Cable Checker Case
 |  |  |  |
This is a case for a USB Cable Checker model MRB063A available from many sources such as AliExpress. The top part shall be printed with is face on the bed. The 3mf file contains the top part with lettering to be printed with 2 colors. The USB B connector cap must be glued with a few dabs of superglue. 4 2.5 mm x 5 mm brass inserts along with 4 M2.5 x 8 mm screws are required. They can be replaced with other screws without brass inserts.
Support material is optional but not required. An infill of 20% is recommended.
This object was designed using Solid Edge Community Edition.
Printable Files

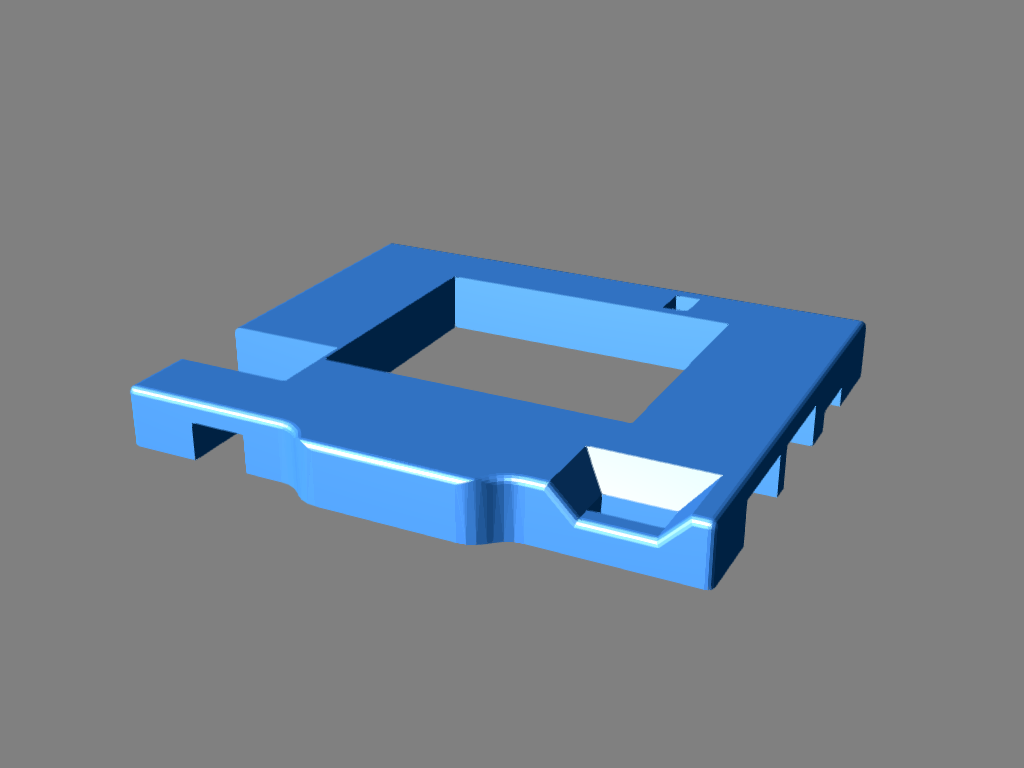

 | Case top with lettering |
| | Case top without lettering |

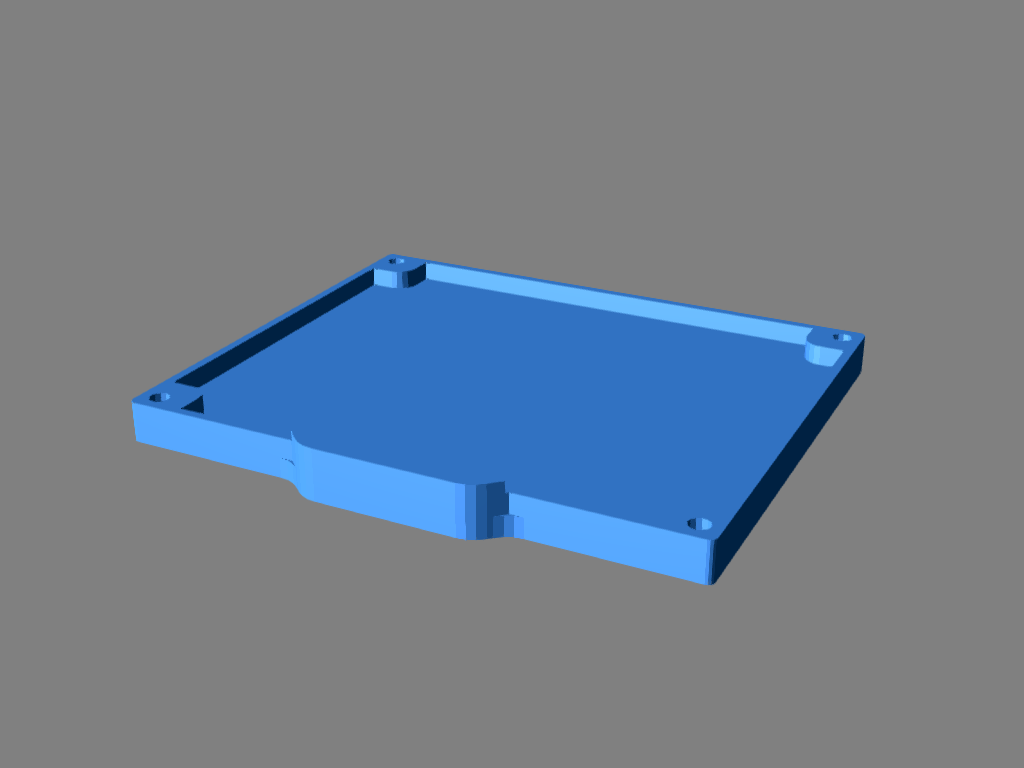

| | Case bottom |

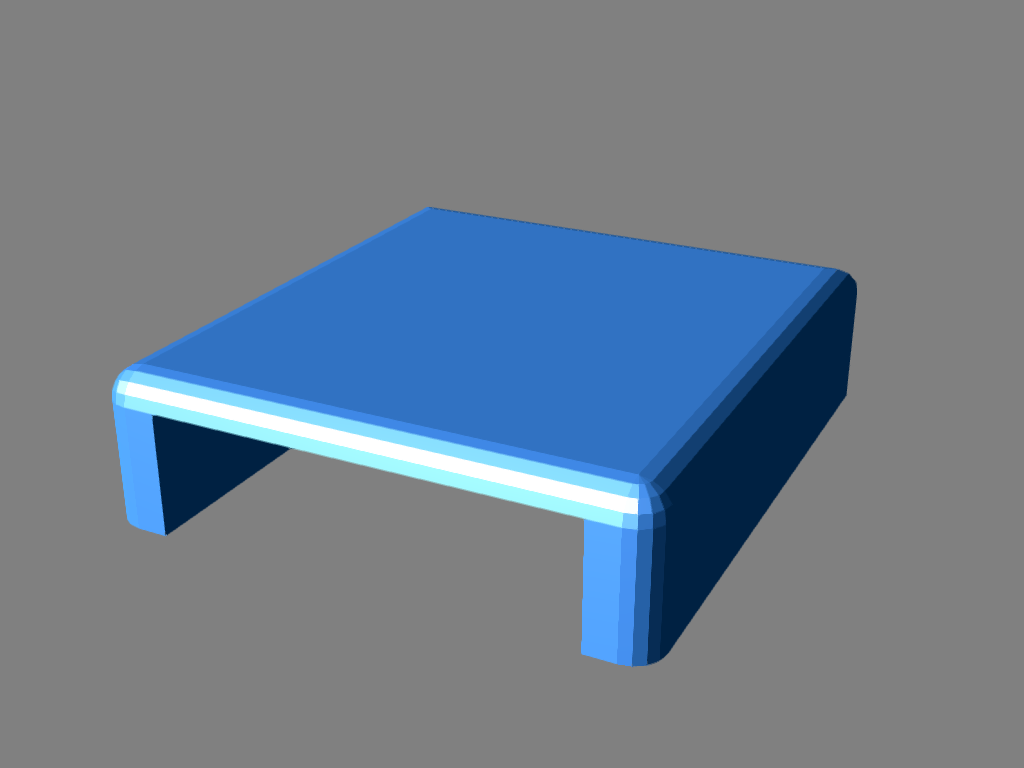

| | Cap for the USB 3.0 Type B connector |
