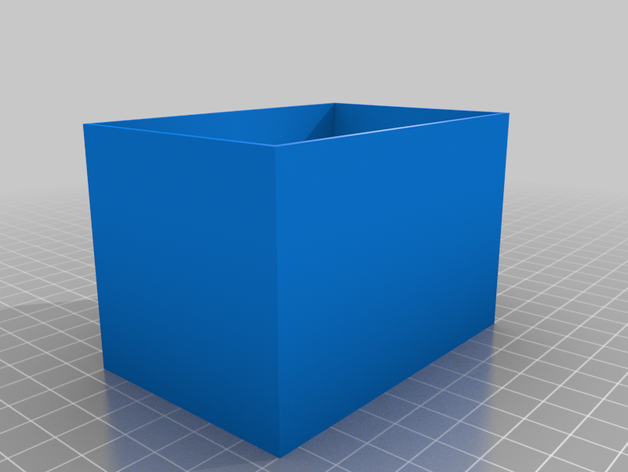

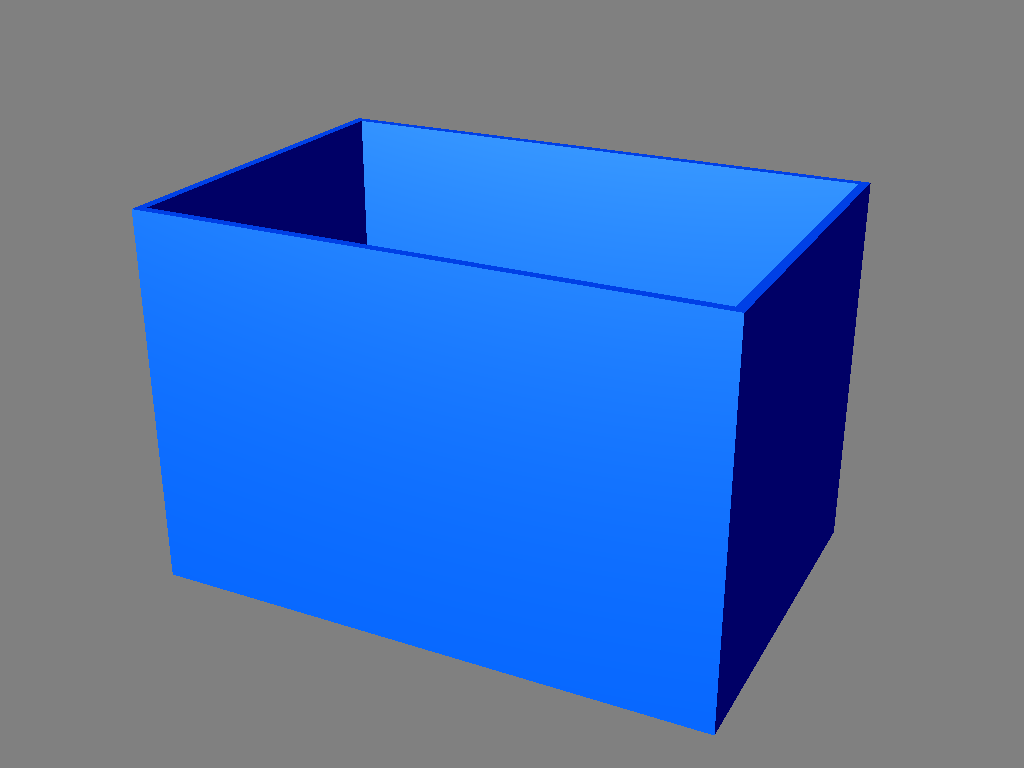

Parametric Open Box




This is a simple SCAD file that generates simple open boxes without chamfers or fillets. They fit snuggly together. A sample is included. To create a custom one:

  1. Open the ParametricOpenBox.scad file with openScad ( http://www.openscad.org/ )
  2. Modify the variables outerSizeX, outerSizeY, outerSizeZ and thickness to suit your needs.
  3. Press [F5] and then [F6] to generate the cover.
  4. Export it as an STL file
  5. Slice it using your favorite software and print it!

It can be printed without support.

This object was designed using OpenSCAD


Printable Files

 Parametric Open Box (OpenSCAD file)

 Parametric Open Box (Sample Object)


This object is also published on the following site(s):
Thingiverse


Copyright 2012-2020 by Claude “Tryphon” Théroux
