Parametric Round Container




It is a simple parametric round container.

  1. Open the ParametricBox.scad file with openScad ( http://www.openscad.org/ )
  2. Modify the variables in Parameters.scad to suit your needs and save it.

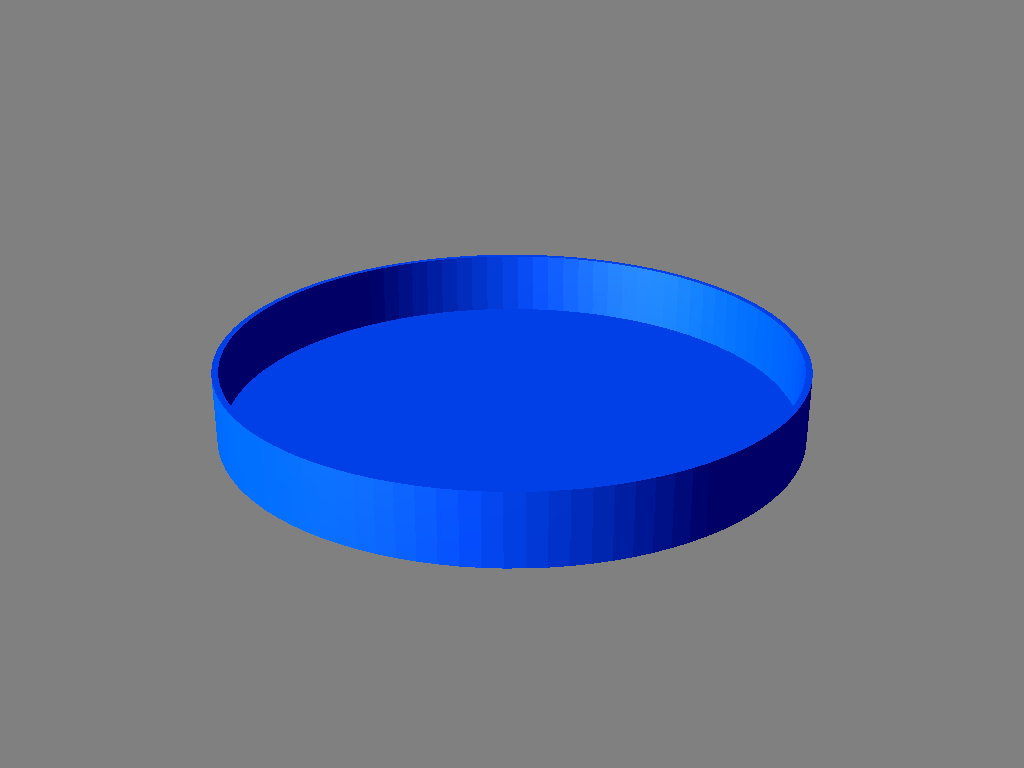

  3. Open lid.scad with OpenSCAD.
  4. Press [F5] and then [F6] to generate the lid.
  5. Export it as an STL file.

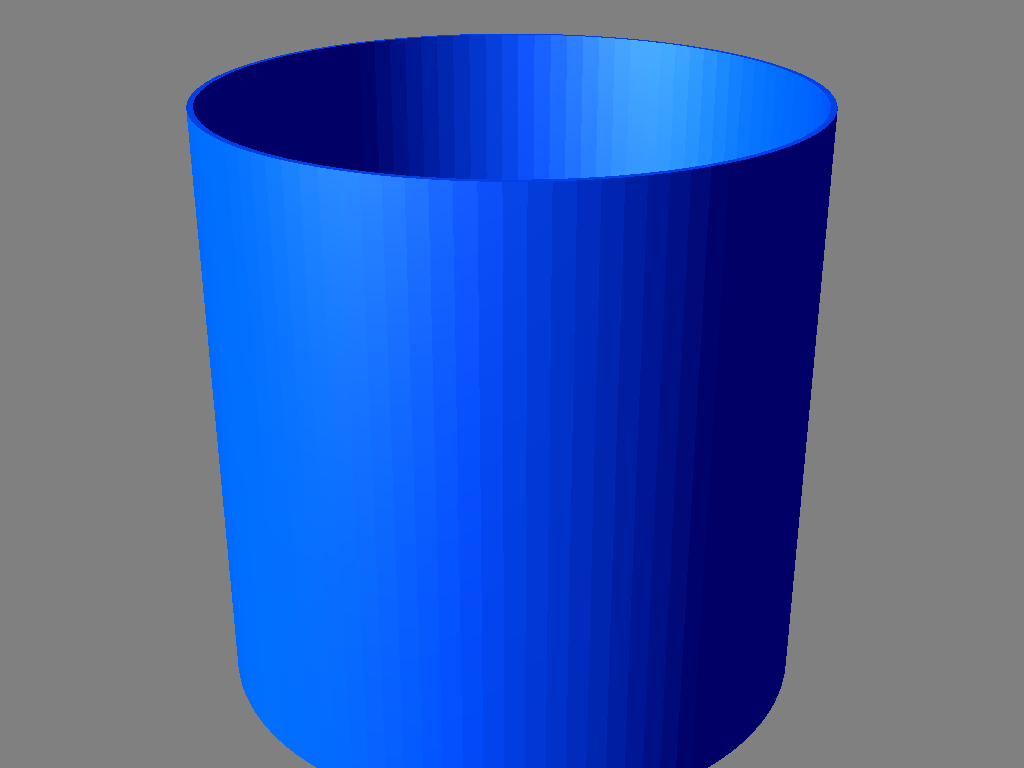

  6. Open body.scad with OpenSCAD.
  7. Press [F5] and then [F6] to generate the body.
  8. Export it as an STL file.

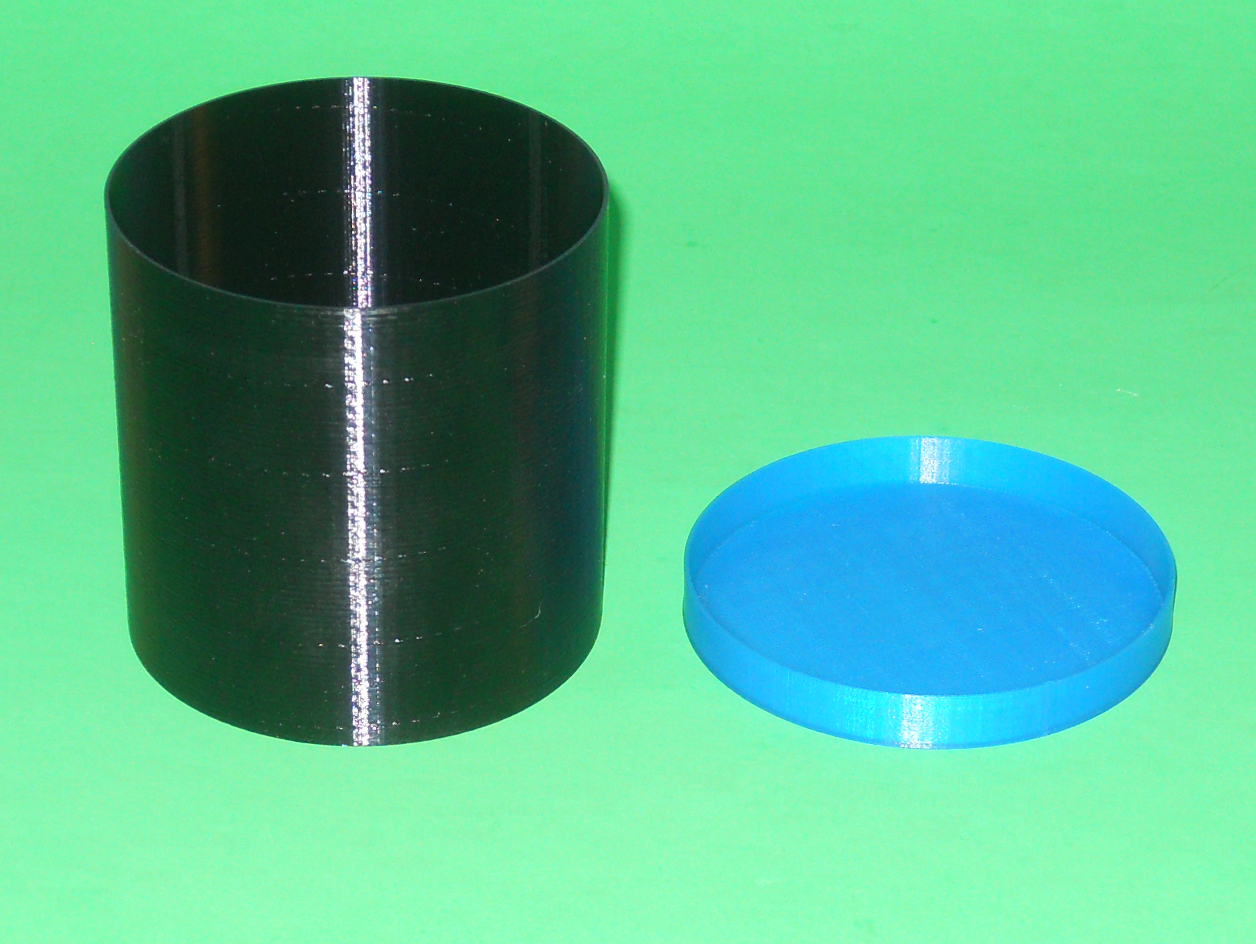

An example of an 80 mm x 80mm container is given.
You might need to drill a small hole to ease its opening or closing.
It can be printed without support.

This object was designed using OpenSCAD


Printable Files

  Parameters

  Body

  Lid

  Body (80 mm)

  Lid (80 mm)


This object is also published on the following site(s):
Thingiverse
