Ikea Bror Caster Holder

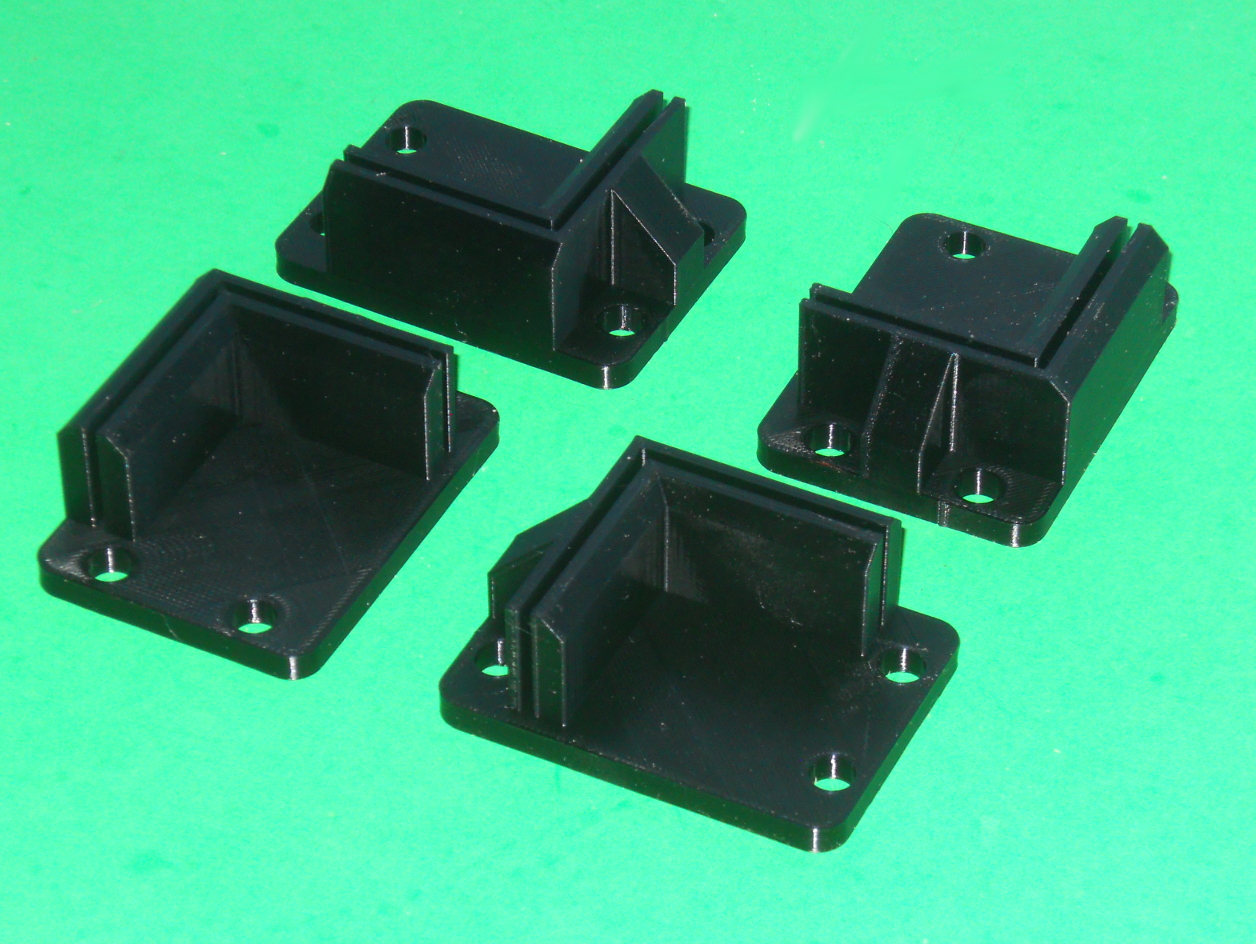

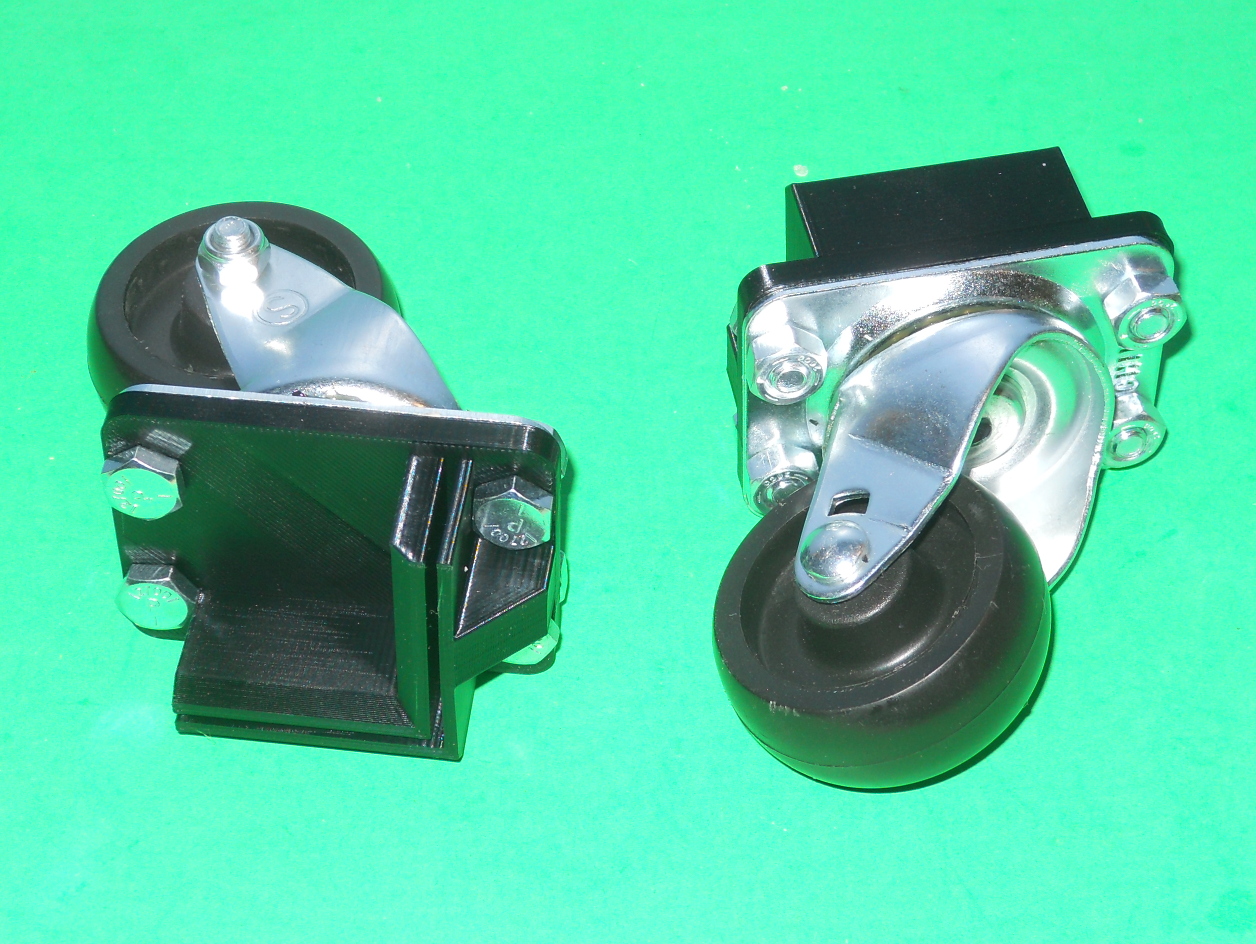

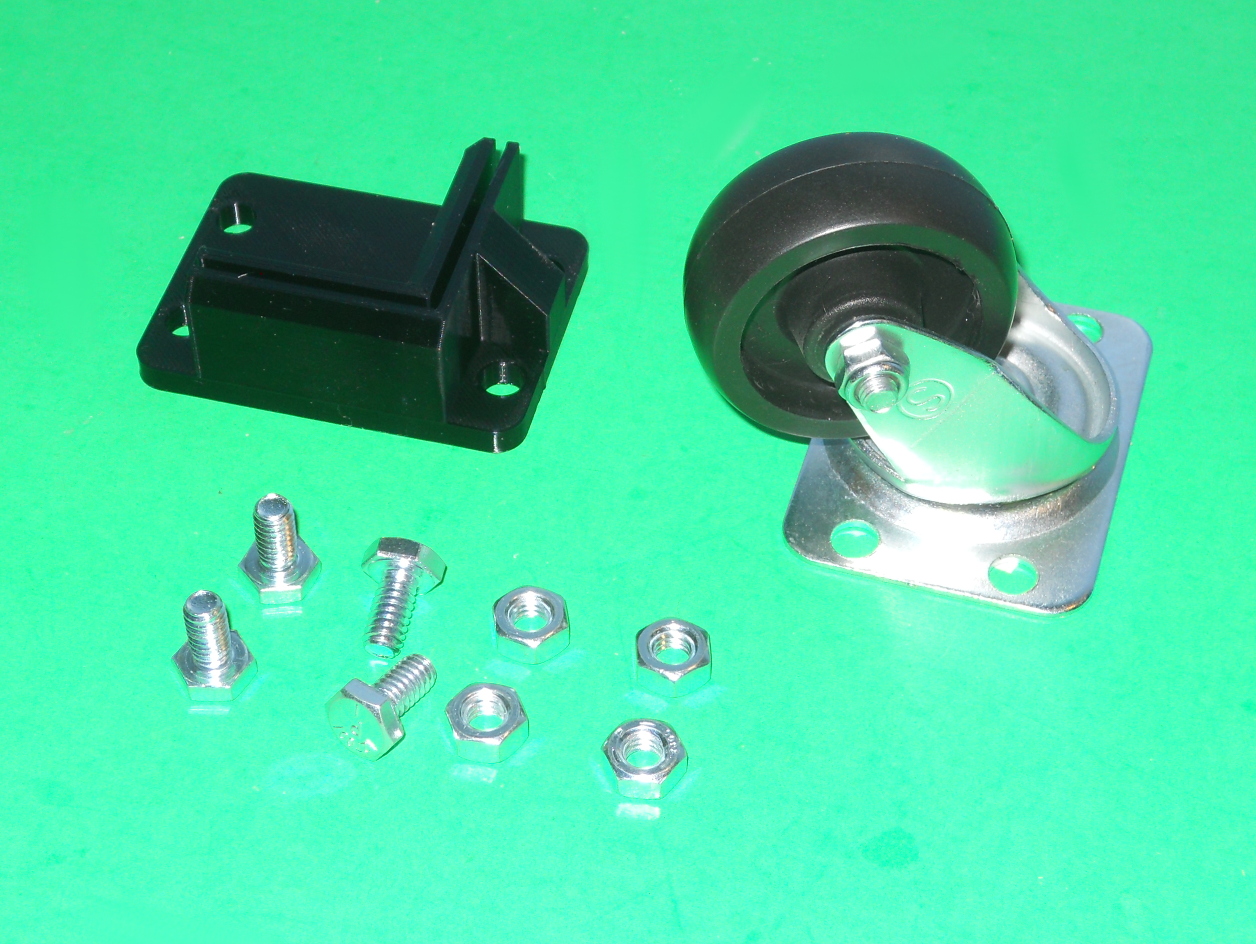

This object lets you install casters to a Bror workbench. It is designed for 1-7/8″ (48.5 mm) x 2-9/16″ (65.5 mm) casters. The holes for the bolts are 2-1/8″ (54 mm) x 1″ (25 mm) apart. The bolts I used are 1/4″ (6.25 mm) in diameter, 1/2″ (12.5 mm) long.

This object works very well for me. Nevertheless, YOU must make sure that this object can handle the usage you will make of it. Many factors may contribute to making this object fail. The quality of the print, the strength of the casters, and so on. You are solely responsible for using it.

Support material is not needed. An infill of 35% is recommended.

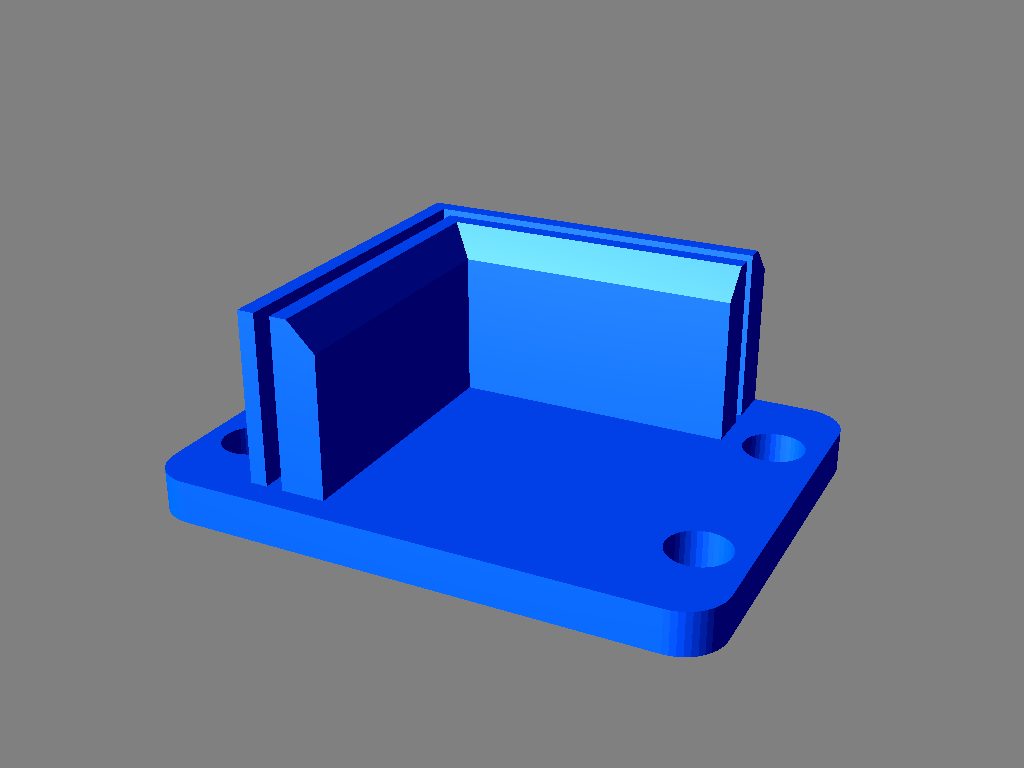

This object was designed using Fusion 360

Printable Files

  Ikea Bror Wheel Holder

This object is also published on the following site(s):

The source files are available:

You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:

You are free to:

* Share — copy and redistribute the material except the source files in any medium or format
* Adapt — remix, transform, and build upon the material

You agree to:

* give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
* not use the material for commercial purposes
* distribute your contributions under the same license as the original if you remix, transform, or build upon the material
* not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
* not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files.

If you do not agree to any of these conditions, do NOT request the source files.

Copyright 2012-2020 by Claude “Tryphon” Théroux

30 thoughts on “Ikea Bror Caster Holder

  1. Hello. Could you send me the source files for these, please? I need to adapt them for local product availability. Thank you!

    • Hi, you’ll receive shortly a link from fileconvoy.com to download the file. You shall be aware that this model or the prints cannot be sold. Also, you shall publish freely any improvements you make.

      • Hello Ctheroux. Thank you for sending the link. Unfortunately, the link wasn’t working. It didn’t download anything. Could you send the link again? (I sent you an email last week to the address provided but I am not sure if you saw it). Thank you. I appreciate your patience.

        • Hi, sorry to hear that. Can you describe me the issue? I will send you the link within 24 hours. Regards.

  2. Hey, I couldn’t find any casters that match your design and I would like to modify the base plate. I would be really happy, if you could send me your source file! Thx, mighty

  3. Can you send me the source files for this? I’ve had several fails with the interior, and wanted to add some kind of buttress, support and maybe a hole for a bolt to go through the Bror metal

  4. C’est exactement ce que je cherche; connais tu une place à Montréal qui pourrait me l’imprimer?

    • Bonjour, je ne suis pas en mesure de vous recommander un imprimeur 3D. Cordialement. Claude

      • Bonjour, pouvez vous m’envoyer le fichier? je vais tâcher de trouver quelqu’un pour l’imprimer. Merci

  5. Hi, thanks for sharing your design. I want to try to do the same with my Bror Benchwork, but I can’t find the same casters, could you send me a link with the casters to purchase them (could be in amazon?). I could try to modify your file, if you kindly send it to me, but I don’t have too much faculties with cad software. Can it be modified in Tinkercad??
    Thanks and best regards

    • Hi, these coasters were bought locally in Canada from a hardware store owned by Lowes. The source files were designed using Fusion 360. You will receive a link soon to download the source file. I don’t know if you will be able to modify it using Tinkercad. Best regards, Claude

  6. Please could you send me the source file for the caster holder.
    Thank you

  7. Hi, sorry I’m not sure I understand this thread, since I’m not very tech savvy. But this product is exactly what I need, are these commercially available? Do you make and sell them? Or are you just offering a digital file for people to make-it-themselves on a 3D printer? Thx

    • Hi, I designed this caster holder. I have made the source file available for anybody that wants to print them by themselves. I don’t sell them. Regards.

  8. Hi mate, great job! Can i have the source for different casters set?
    Thank you very much!

    • Hi, you will receive an email from fileconvoy.com with a link to download it. Regards, Claude

  9. Hi,
    I checked my emails but I don’t find anything from you, did you send it?
    A thousand thanks

    • Hi, I sent it the day you ask for it. I will send it again within an hour. One suggestion, check your spam folder.

    • Hi, you will receive a notification from fileconvoy.com with a link to download the file.

  10. Hi,
    Could I get the source files for the caster holders?
    The casters I got are different.
    Thanks a lot

  11. Can I please have the source files for this? I would like to make a set of casters, however the plate on my casters differs a bit in size from the one here. Thanks!
