Makebase MKS PI and TS-35 Case

These are cases for the MKS PI and the TS-35 display running Klipper from MakerBase. These cases let you mount the MKS PI and the TS-35 separately on your 3D Printer.

Support material is not required to print the 4 required parts. An infill of 20% is recommended.

You’ll need the following hardware to assemble it:

– Two M5 x 10 mm screws
– Two M5 nuts
– Four or more M5 x 10 mm screws and M5 T-nuts
– Four M3 x 15 mm screws
– Four M2.5 x 10 mm screws
– Optionally some 9 mm flatten shrink tubing to protect the flat cable
– Optionally a 30 mm x 8 mm fan

Some of the screws can be replaced with some glue or may be substituted. Do not overtighten the screws.

Make sure that the connector of the screen is on your left when the display is set at its final position. This will ensure that the content of the display is upright.

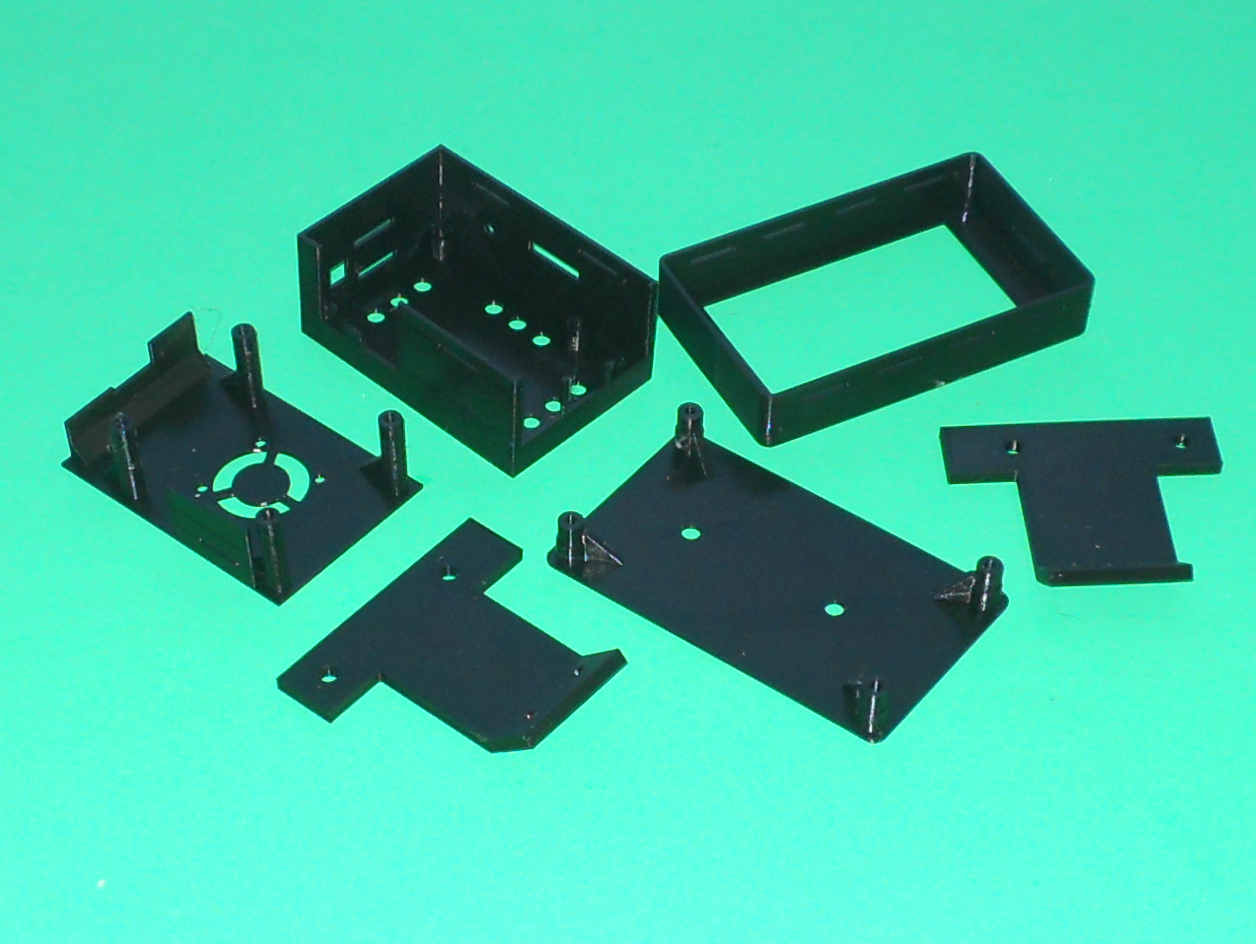

The four printed parts should be assembled in this order:

1) Install one of the two holder named ScreenHorizontalHolder and ScreenVerticalHolder on the flat side of the backplate of the screen bezel (ScreenBackPlate). Use two M5 x 10 mm screws and two M5 nuts. Make sure that the holder is centered.

2) Put the TS-35 screen in the bezel named ScreenBezelNoBrassInserts. Install the bezel on the ScreenBackPlate. Pass the end of the flat cable in the slot on the side of the bezel. I suggest putting the flat cable into a flatten shrink tubing to protect it. Handle the flat cable with care. It is fragile. Use four M3 x 15 mm screws to attach the screen bezel to its back plate. It can then be mounted on the printer using two M5 x 10 mm screws and T-nuts.

3) Attach the main body of the MKS PI case (CPUBoardMainBody) using some M5 x 10 mm screws along with some M5 T-nuts on the printer frame. The mounting holes are on the bottom of the main body of the case.

4) Connect the power cable to the MKS PI.

5) Insert the MKS PI into the main body. Connect the screen to the MKS PI.

6) Attach the plate (CPUBoardTopPlate) on the main body using four M2.5 x 10 mm screws.

This object was designed using Solid Edge Community Edition.

Printable Files

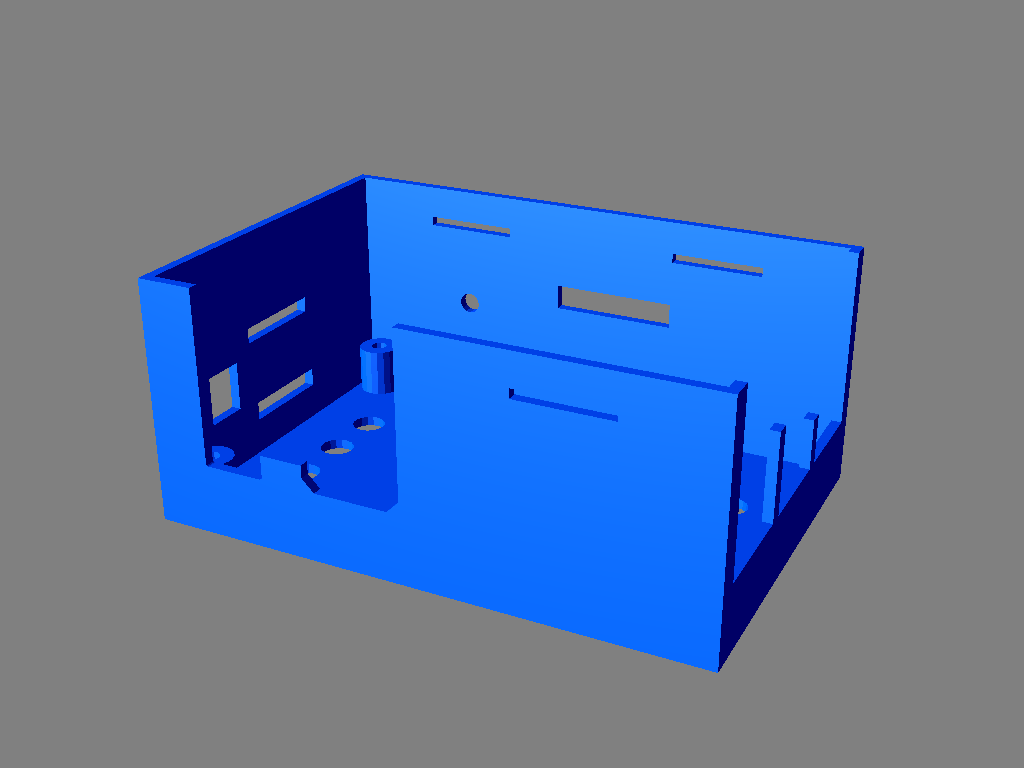

  CPU Board Main Body

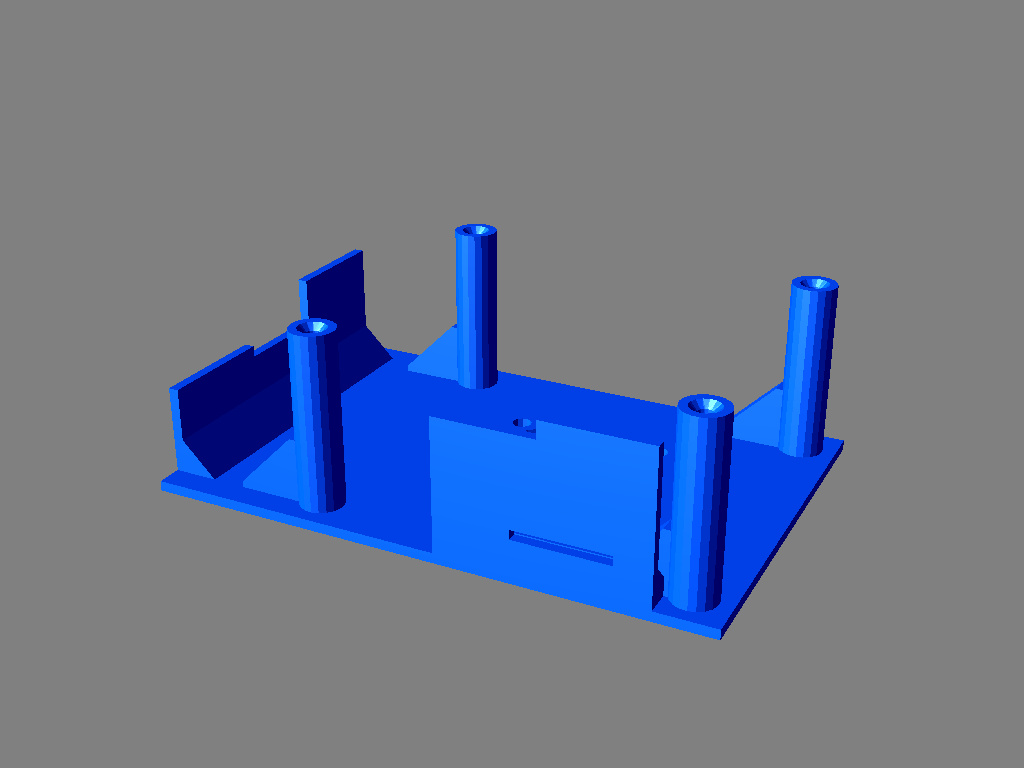

  CPU Board Top Plate

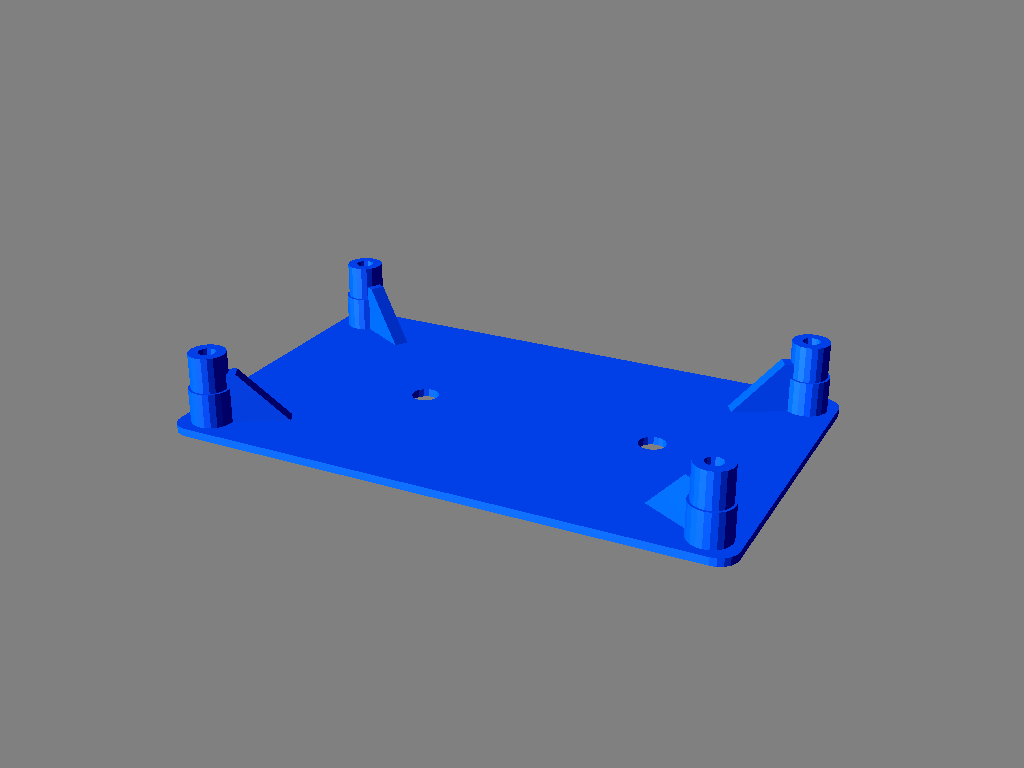

  Screen Back Plate

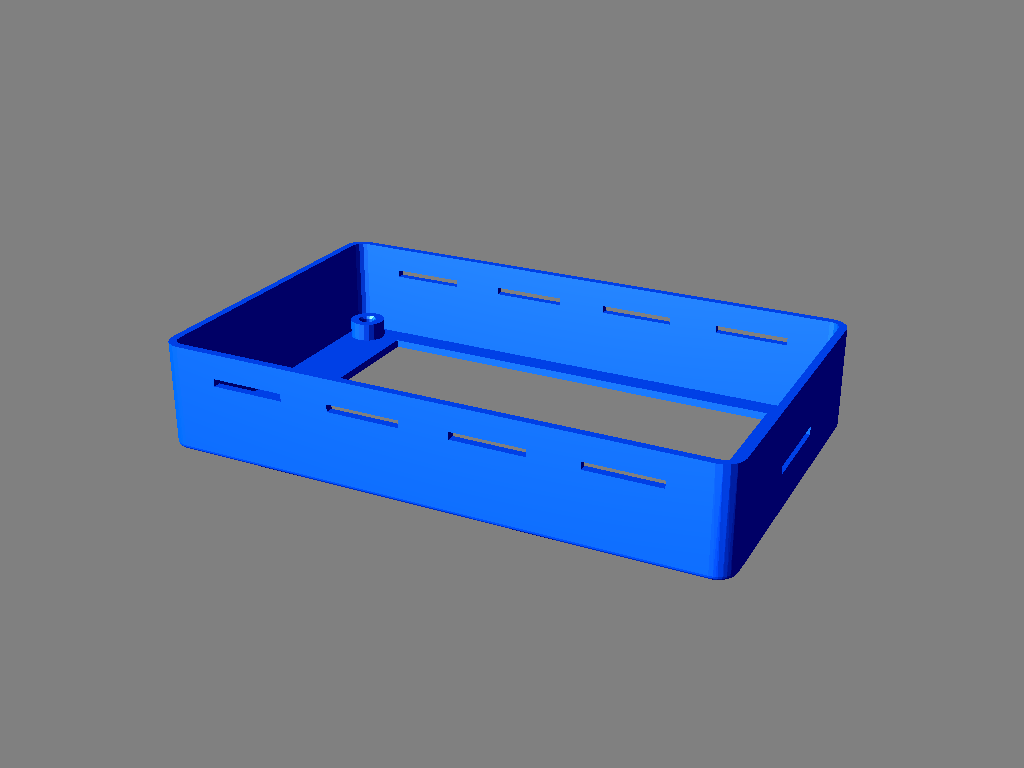

  Screen Bezel
  Screen Horizontal Holder
  Screen Vertical Holder

This object is also published on the following site(s):
Prusa Printers

The source files are available:

You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:

You are free to:

* Share — copy and redistribute the material except the source files in any medium or format
* Adapt — remix, transform, and build upon the material

You agree to:

* give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
* not use the material for commercial purposes
* distribute your contributions under the same license as the original if you remix, transform, or build upon the material
* not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
* not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files.

If you do not agree to any of these conditions, do NOT request the source files.
