Makebase MKS PI and TS-35 Case

This is a single case for the MKS PI and the TS-35 display running Klipper from MakerBase. This case combines the MKS PI board and the display into a single module.

Support material is not required to print the 4 required parts. An infill of 20% is recommended. For the CPUBoardTopPlateVertical, an 25% infill, 6 top bottom, 6 top layers and 3 verticals layer are recommended. This part needs to be sturdy.

You’ll need the following hardware to assemble it:
– Four M5 x 10 mm screws
– Two M5 T-nuts
– Two M5 nuts
– Four M3 x 15 mm screws
– Four M2.5 x 10 mm screws
– Optionally a 30 mm x 8 mm fan

Some of the screws can be replaced with some glue or may be substituted. Do not overtighten the screws.

Make sure that the connector of the screen is on your left when the display is set at its final position. This will ensure that the content of the display is upright.

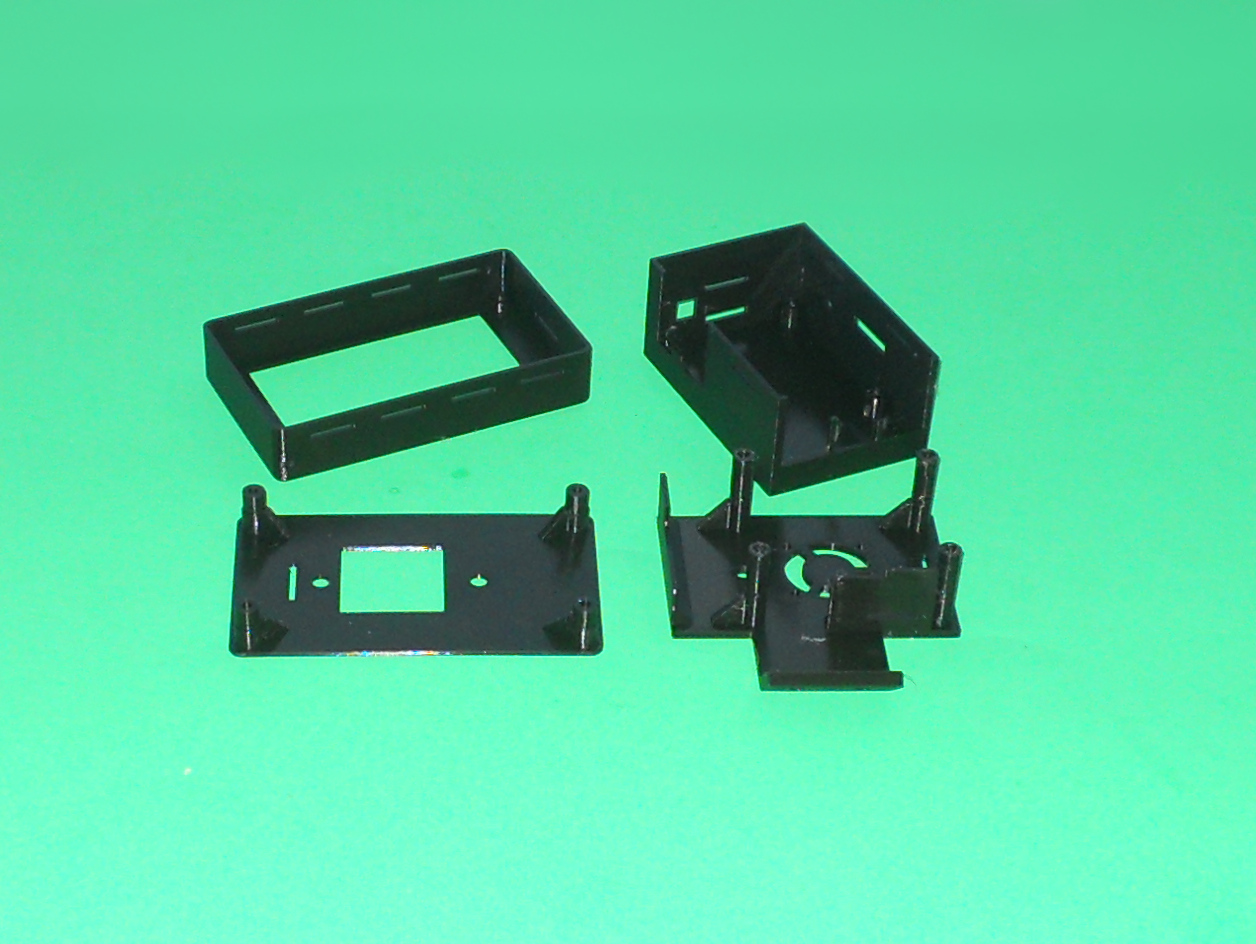

The four printed parts should be assembled in this order:

1) The ScreenBackPlate and the CPUBoardTopPlateVertical must be assembled first. Put both flat sides against each other. The holes in each of them must be aligned. Use two M5 x 10 mm screws along with two nuts. The CPUBoardTopPlateVertical part shall be centered relative to the ScreenBackPlate.

2) Put the TS-35 screen in the bezel named ScreenBezelNoBrassInserts. Install the bezel on the ScreenBackPlate. Make sure that the screen connector is above the slot in the bezel. Pass the end of the flat cable in the slot. I suggest putting the unused length in the bezel. Handle the flat cable with care. It is fragile. Use four M3 x 15 mm screws to attach the screen bezel to its base.

3) Connect the power cable to the MKS PI.

4) Put the MKS PI into the CPUBoardMainBody. Remove the uSD card before doing so. Attach it to its top plate using four M2.5 x 10 mm screws.

5) Use two M5 x 10 mm screws along with two T-nuts to mount the module on the printer. It was designed to be mounted on aluminum extrusion.

This object was designed using Solid Edge Community Edition.

Printable Files

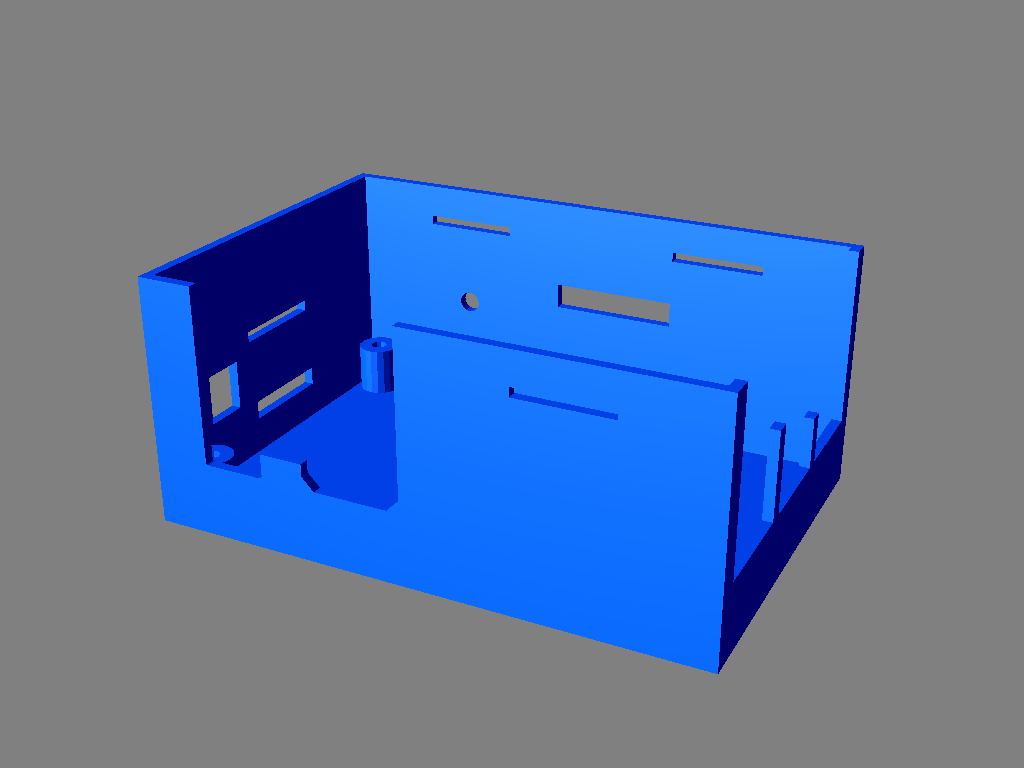

  MKS PI CPU Board Main Body

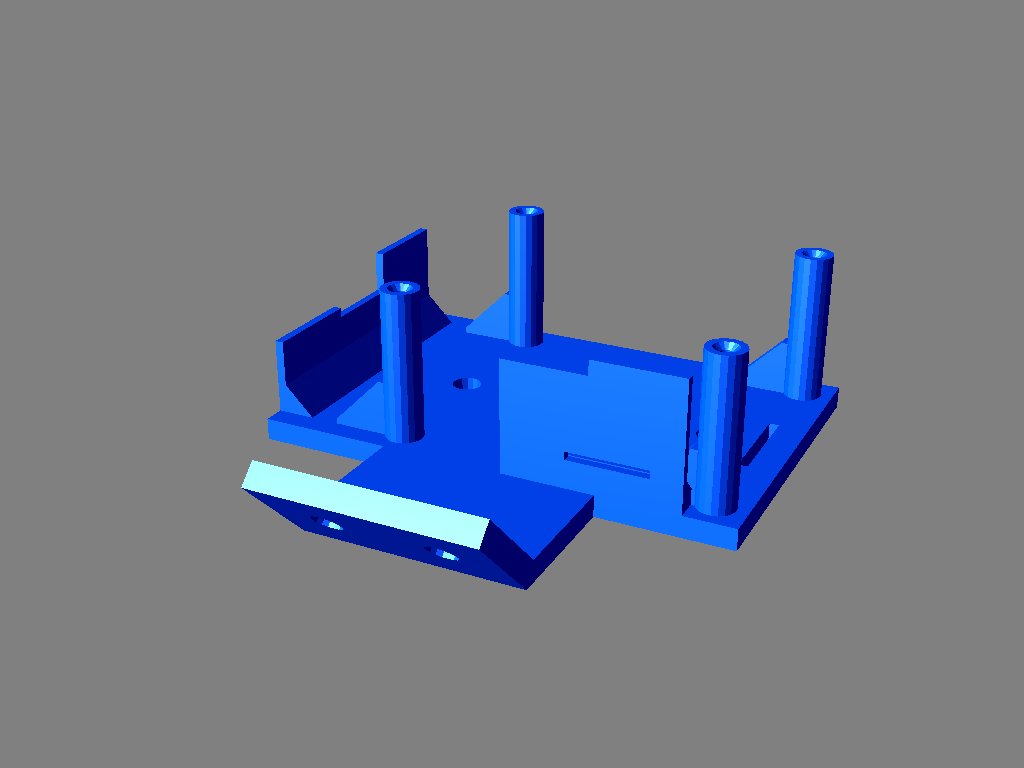

  MKS PI CPU Board Top Plate Vertical

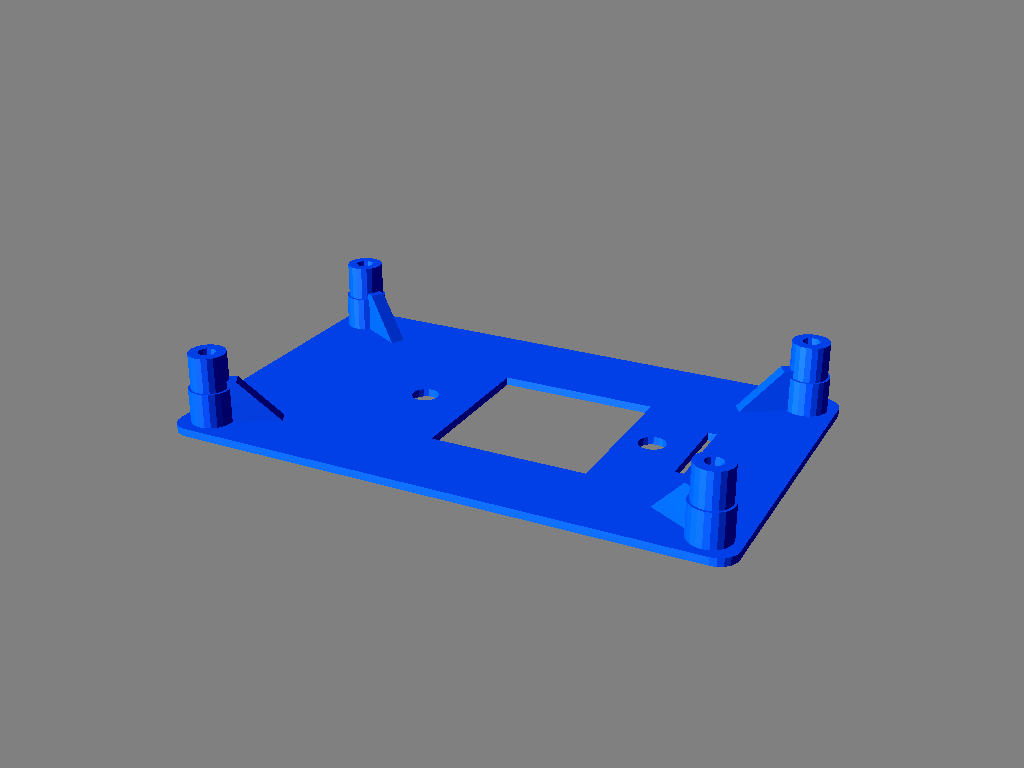

  TS-35 Screen Back Plate

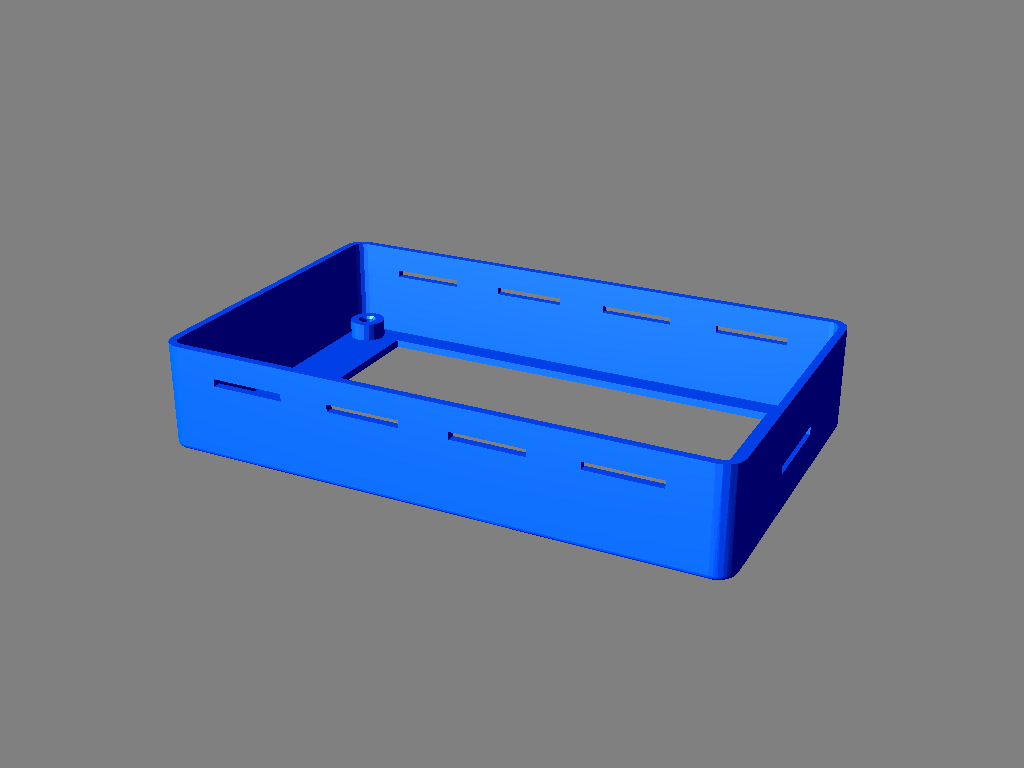

  TS-35 Screen Bezel without brass inserts

This object is also published on the following site(s):
Prusa Printers

The source files are available:

You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:

You are free to:

* Share — copy and redistribute the material except the source files in any medium or format
* Adapt — remix, transform, and build upon the material

You agree to:

* give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
* not use the material for commercial purposes
* distribute your contributions under the same license as the original if you remix, transform, or build upon the material
* not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
* not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files.

If you do not agree to any of these conditions, do NOT request the source files.

Copyright 2012-2022 by Claude “Tryphon” Théroux
