Parametric Bottle Rack



This is a simple SCAD file that generates bottle rack. Various sizes are included. To create a custom one:

  1. Open the ParametricBottleRack.scad file with openScad ( http://www.openscad.org/ )
  2. Modify the variables bottleDiameter, bottleHoldingAreaHeight, distanceBetweenBottleHoldingAreas, baseTickness, bottleNumberX, bottleNumberY to suit your needs.
  3. Press [F5] and then [F6] to generate the cover.
  4. Export it as a STL file
  5. Slice it using your favorite software and print it!

Support material is not required.

This object was designed using openScad


Printable Files

  ParametricBottleRack

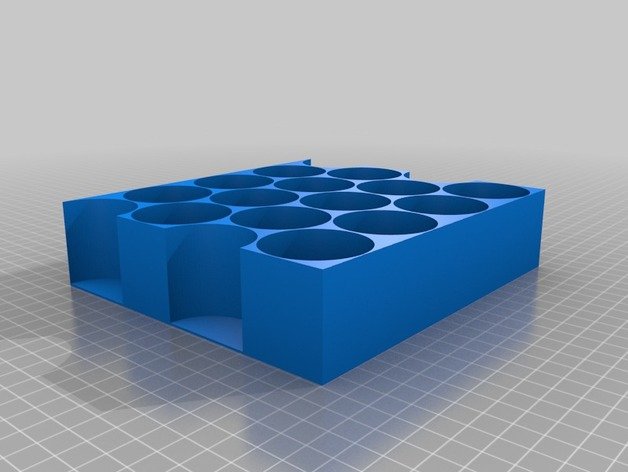

  ParametricBottleRack-23mm

  ParametricBottleRack-33mm

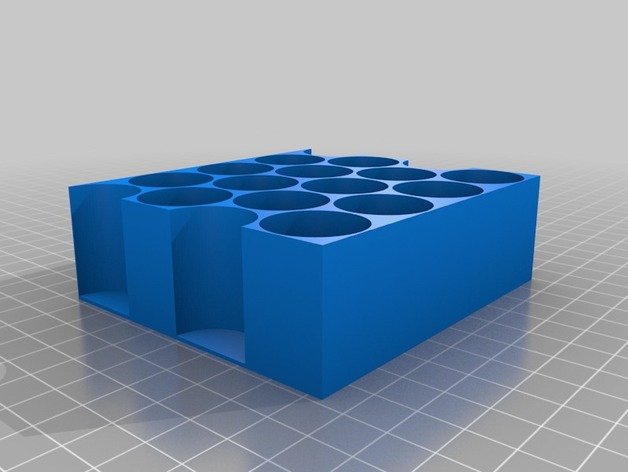

  ParametricBottleRack-43mm


This object is also published on the following site(s):
Thingiverse
