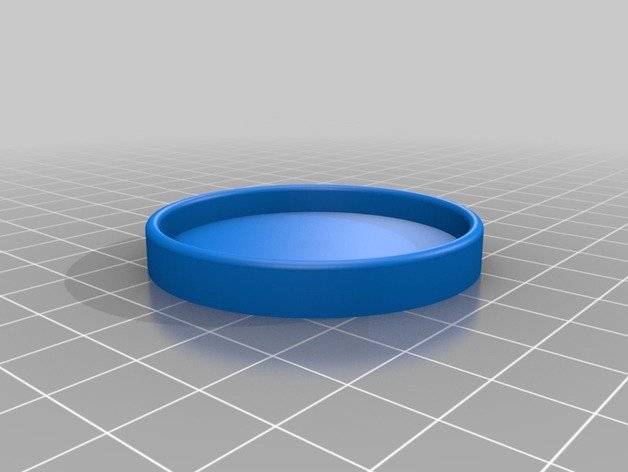

Parametric Drink Coaster



This is a simple SCAD file that generates round coaster. Various sizes are included. To create a custom one:

  1. Open the ParametricCoaster.scad file with openScad ( http://www.openscad.org/ )
  2. Modify the variables outerDiameter, bottomTickness, flangeHeight and flangeTickness to suit your needs.
  3. Press [F5] and then [F6] to generate the cover.
  4. Export it as a STL file
  5. Slice it using your favorite software and print it!

Support material is not required.

This object was designed using openScad


Printable Files

  ParametricDrinkCoaster

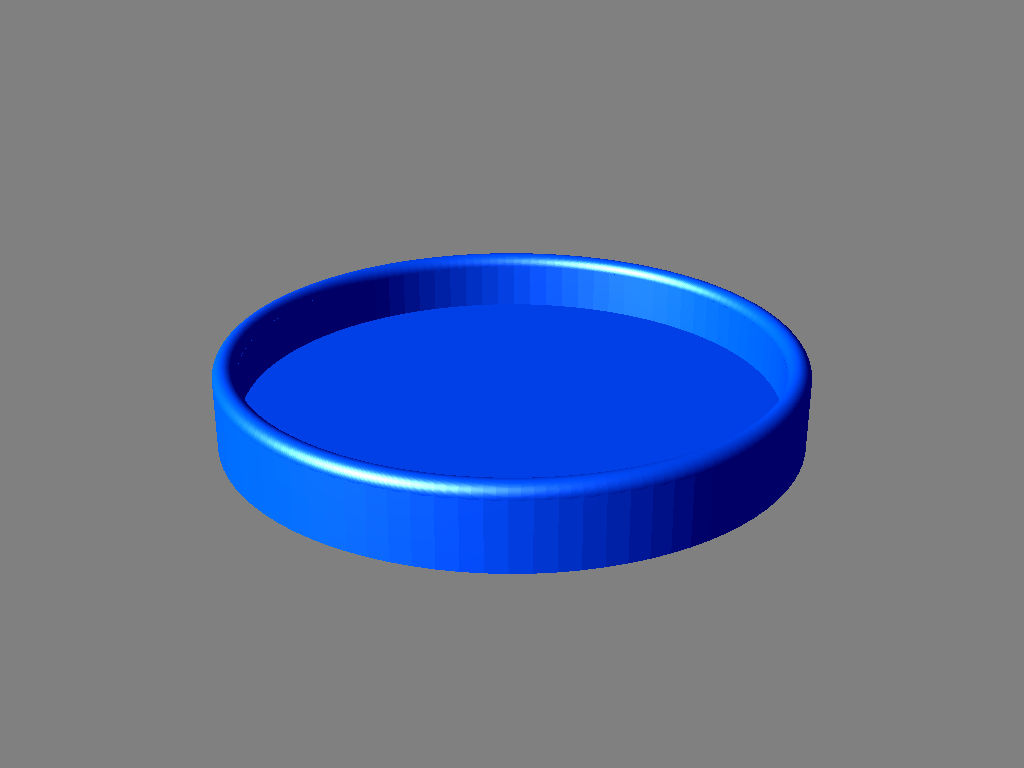

  ParametricDrinkCoaster50mm

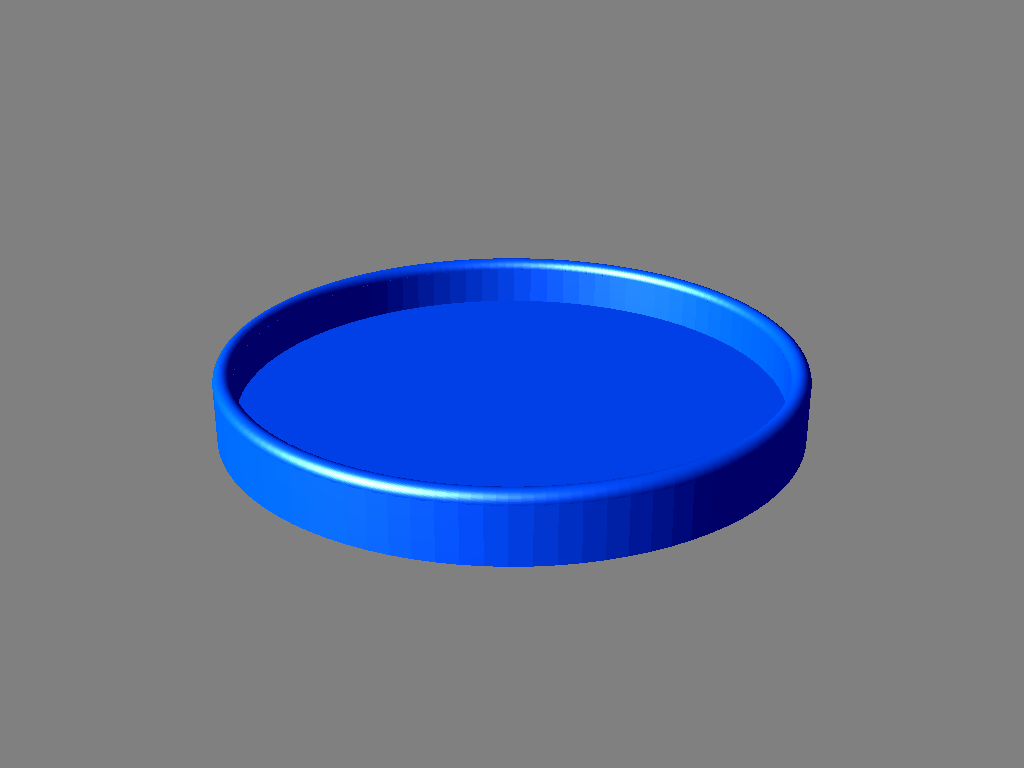

  ParametricDrinkCoaster60mm

  ParametricDrinkCoaster70mm

  ParametricDrinkCoaster80mm


This object is also published on the following site(s):
Thingiverse
