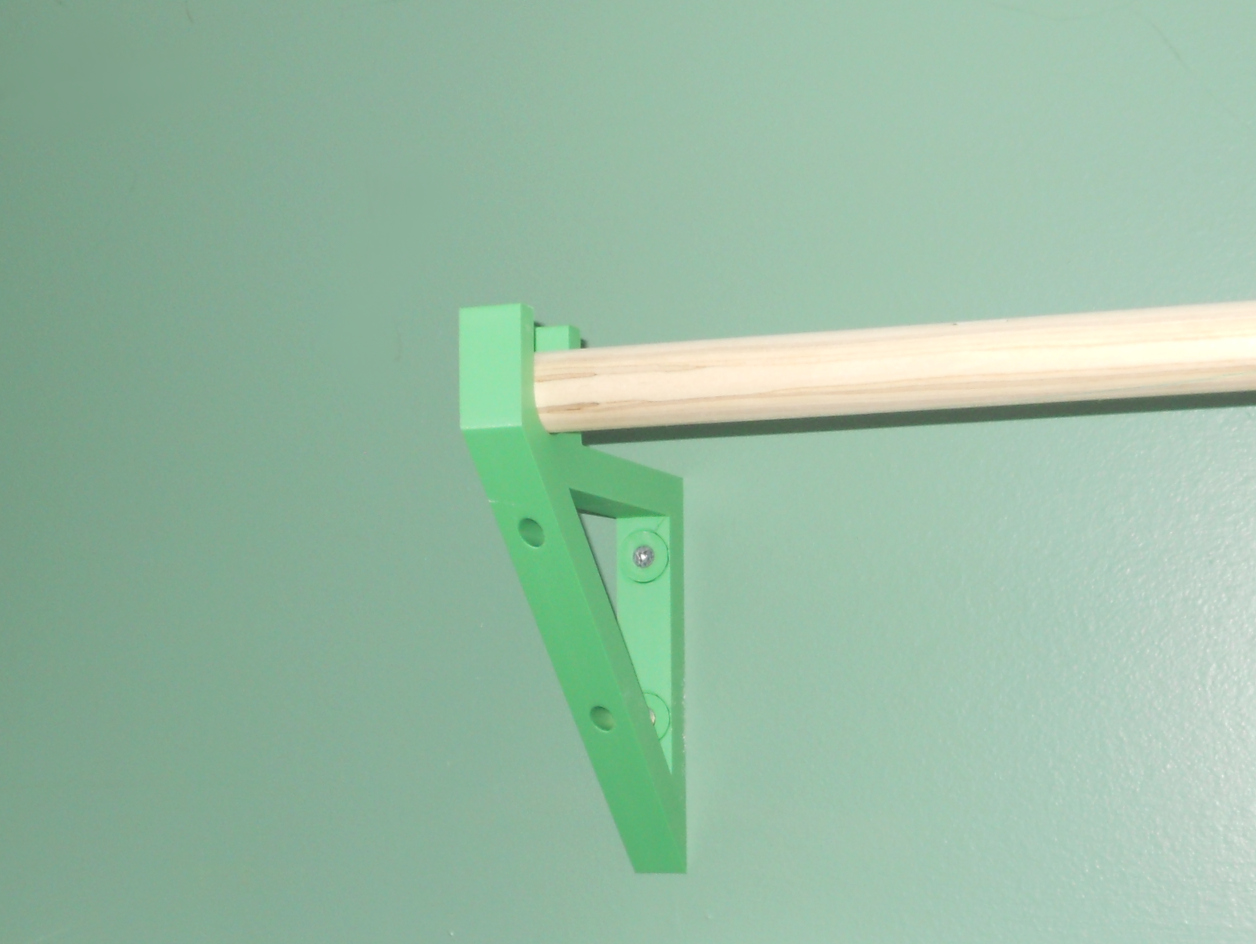

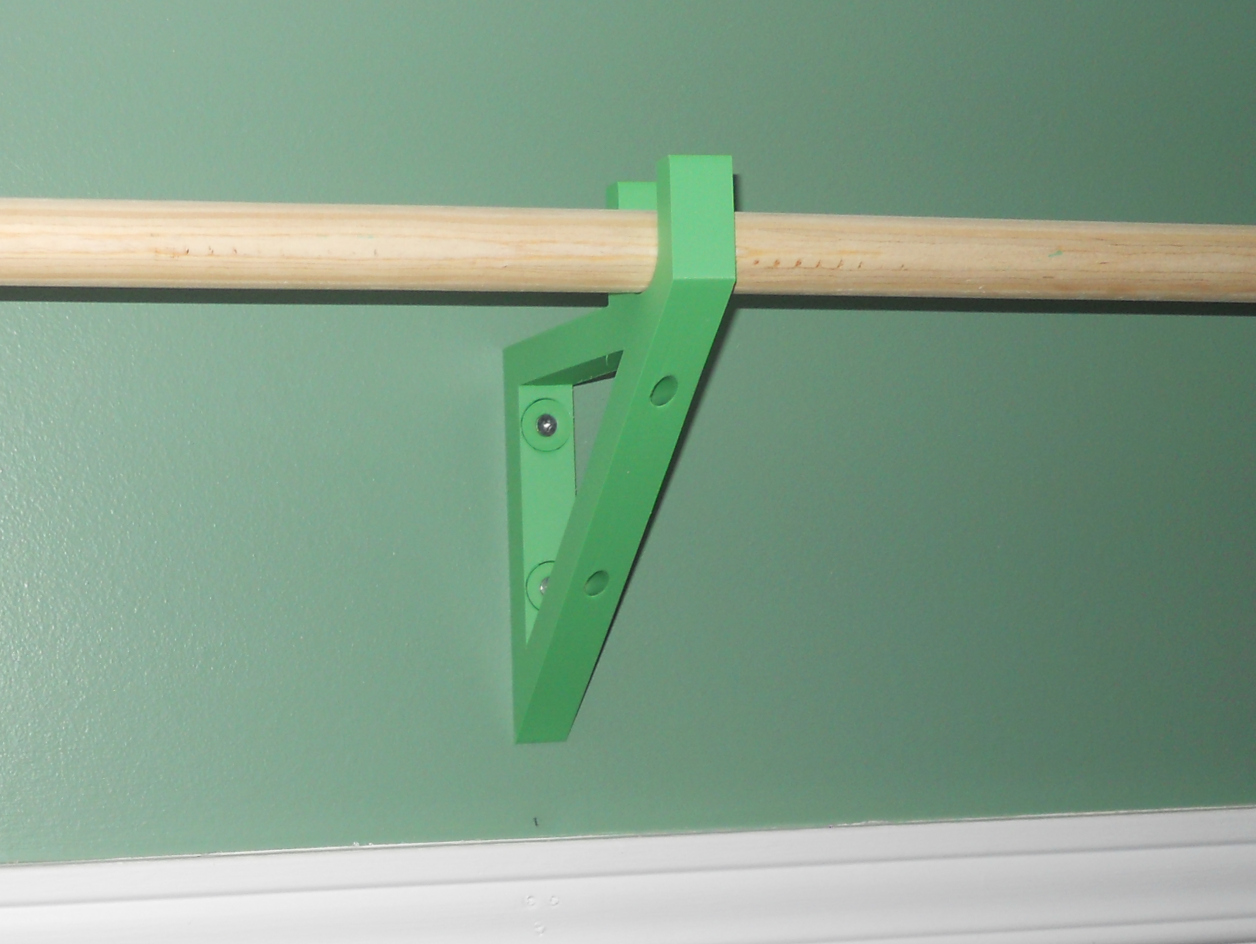

Parametric Dowel Bracket
 |  |  |  |  |

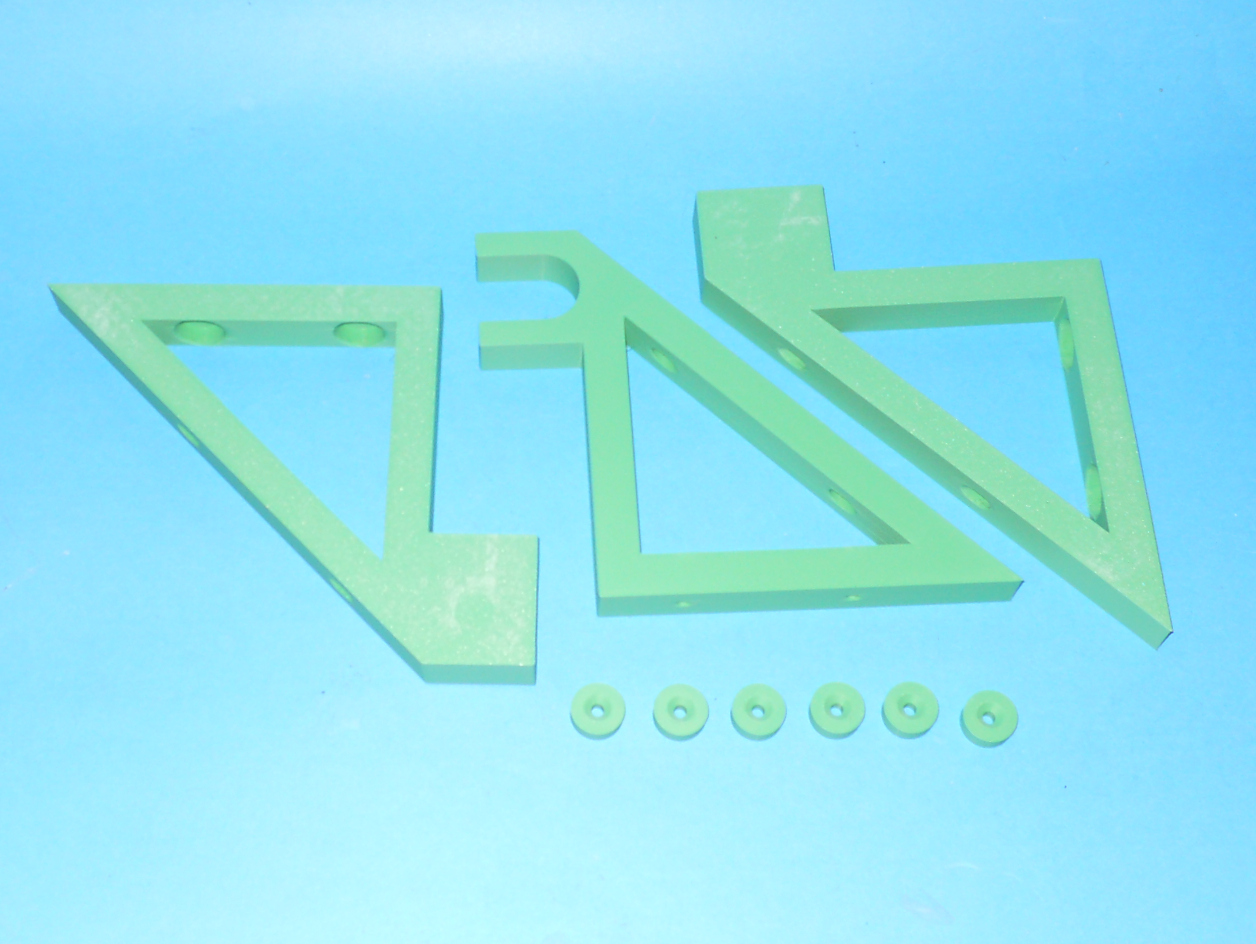

This is a parametric dowel bracket. The screw holders are printed separately to prevent the bracket from splitting if the screws are overtightened.
The example provided is designed for #8 wood screws, 1.5 inches in length, with a 12 cm distance between the center of the dowel and the back of the bracket. The DowelStopper parameter controls whether the bracket has a closed side or remains open.
Support material is not required. An infill of 30% is recommended.
This object was designed using openSCAD.
Printable Files
| | Closed dowel bracket, right side |

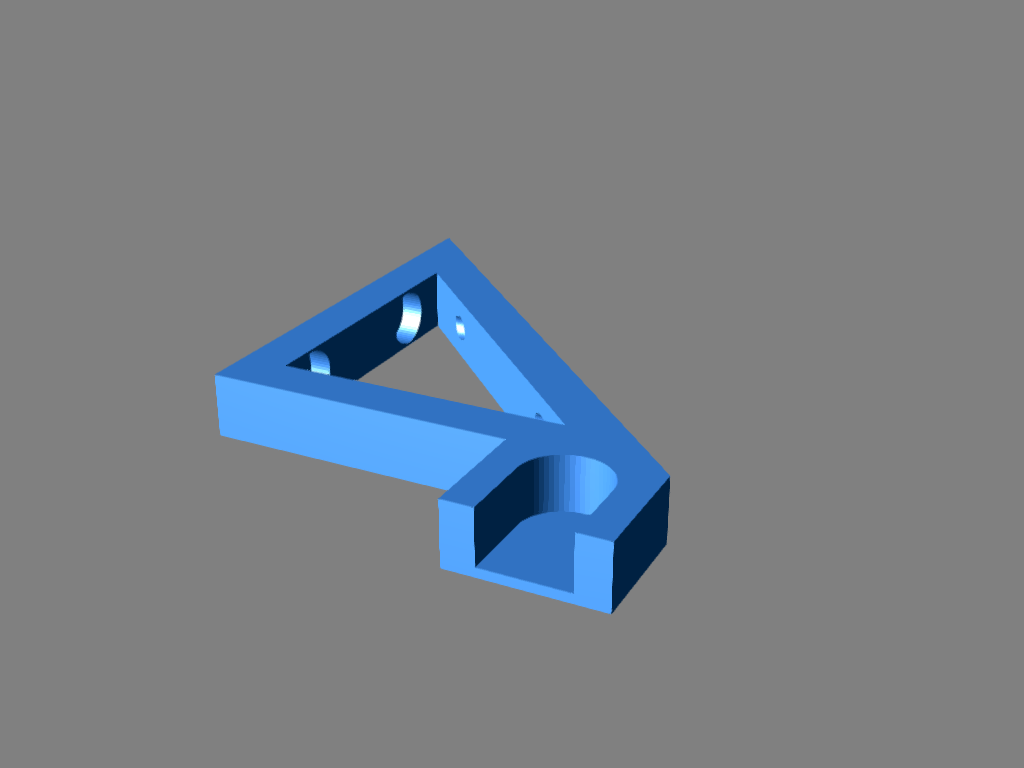

| | Closed dowel bracket, left side |

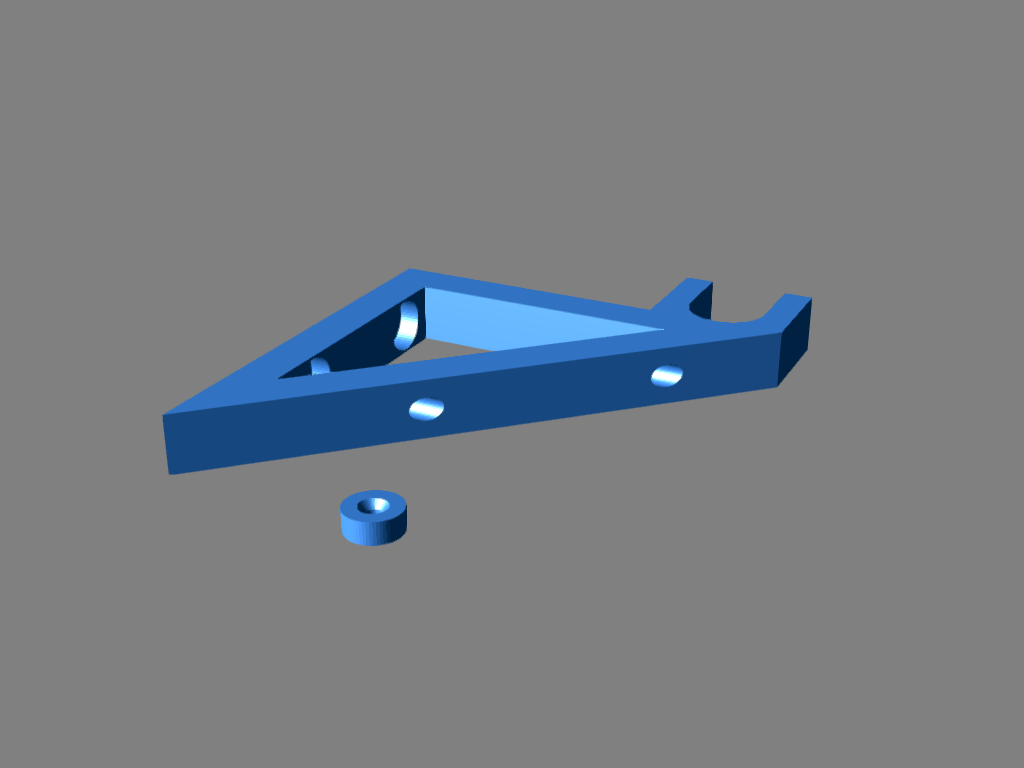

| | Open dowel bracket |
 | openSCAD script |
