Parametric Macro Pad
 |  |  |
This is a parametric macro pad using a Pi Pico. It uses Cherry MX compatible switches.

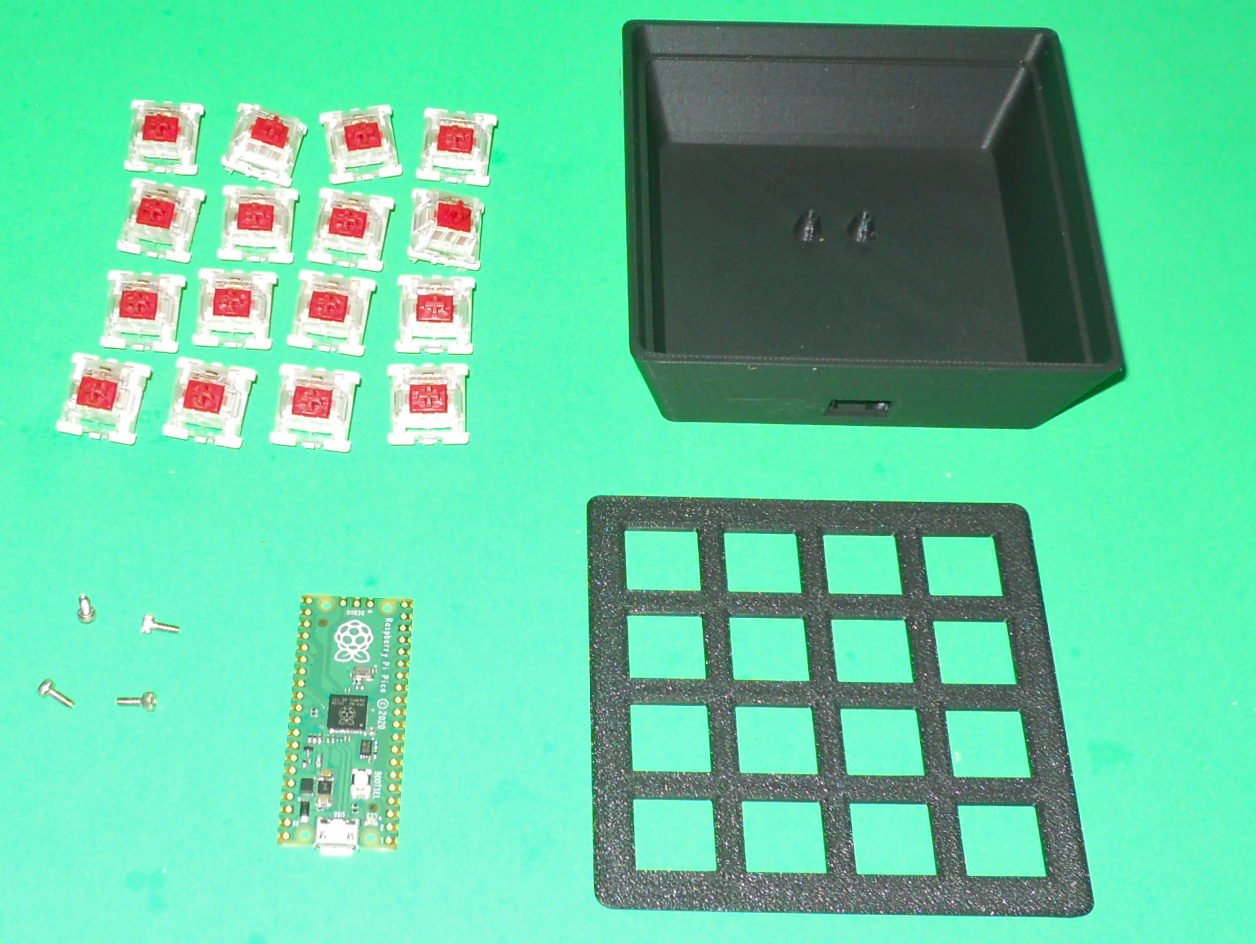

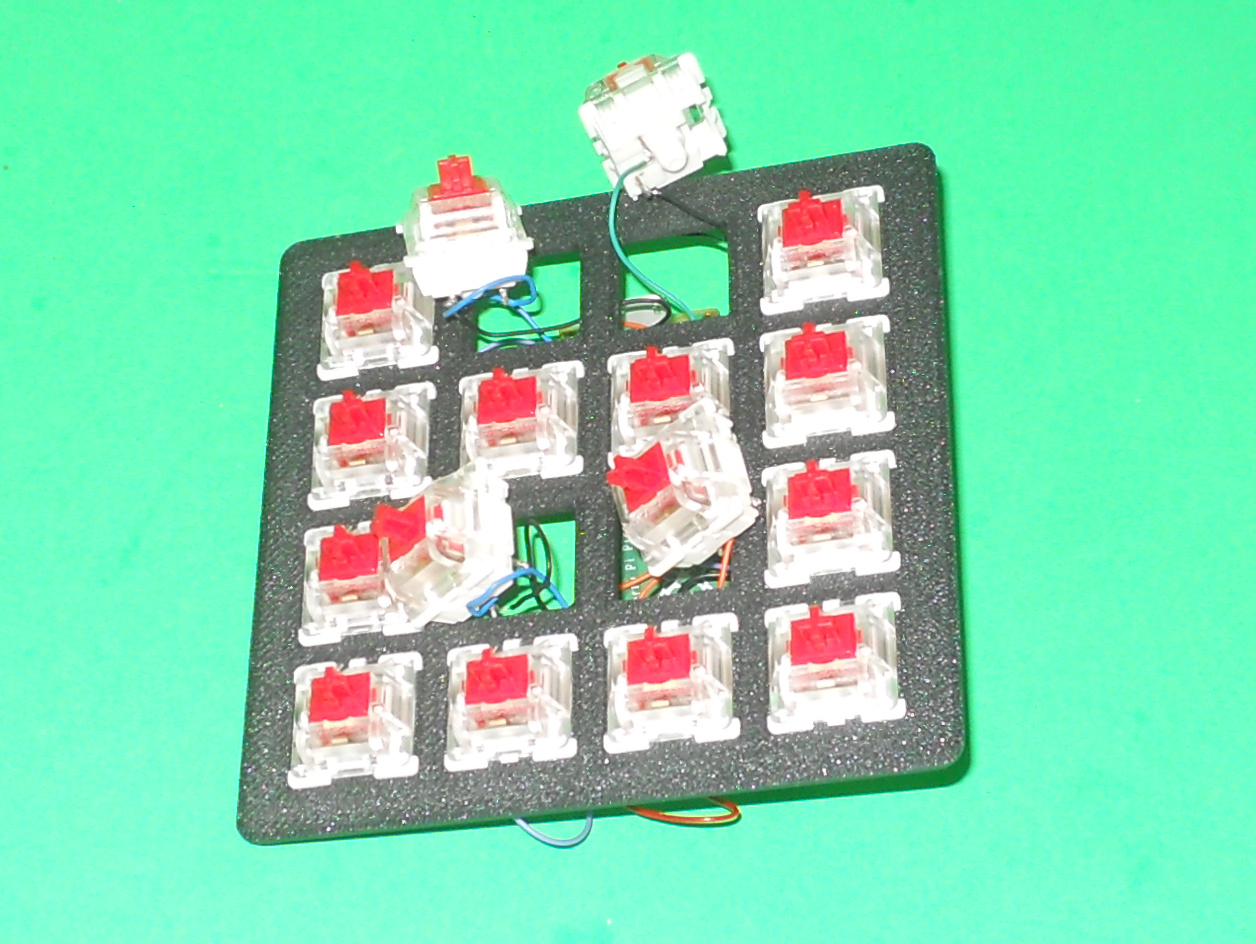

You’ll need a few drops of glue to mount the switches plate on the enclosure. As shown in the pictures, keep the 4 switches loose until you screw the Pi Pico on the enclosure. 4 M2 x 5mm screws are required.
The firmware can be found at https://github.com/ctheroux/MacroPadFirware.
Take a copy of MacroPad4x4Parameters.scad, modify it according to your macro pad and render it. You should not need to modify the other files.
Support material is not required on the build plate only. An infill of 20% is recommended.
This object was designed using openSCAD.
Printable Files

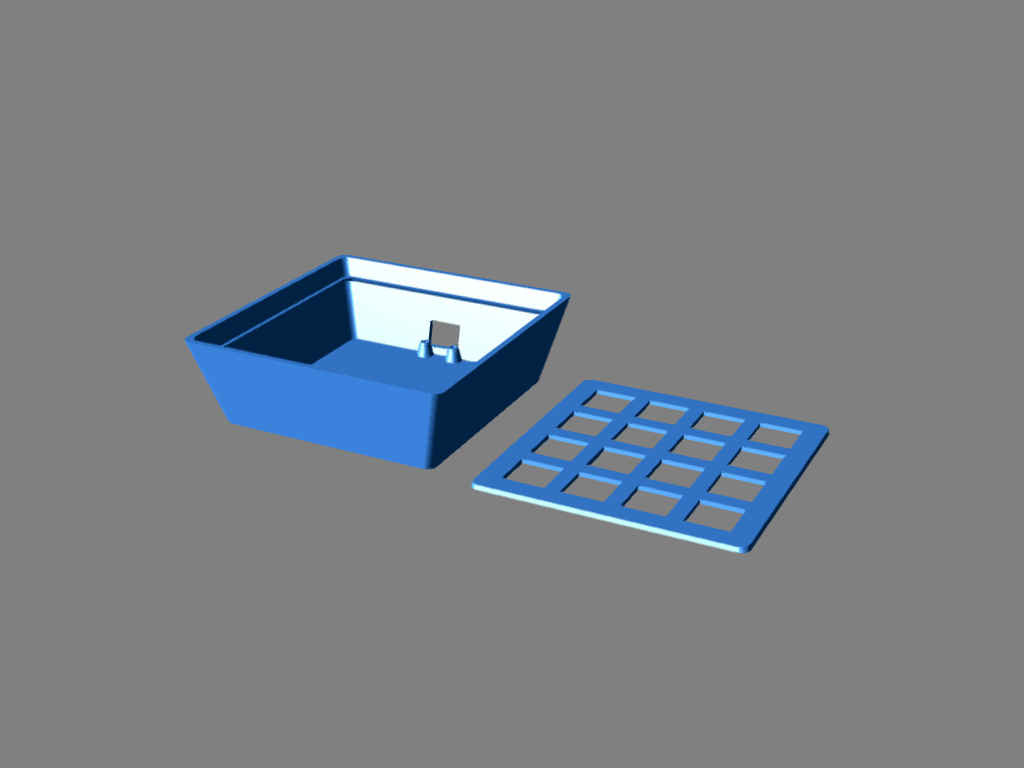

| | This is the enclosure for a 4×4 macro pad |
 | Parameters for a 4×4 macro pad. |
| | Advanced parameters for the enclosure. |
| | Code fo the enclosure generator |
This object is also published on the following site(s):
* Thingiverse
* Prusa Printers
* MakerWorld
