SBC Server Case

This is a modular SBC or Development Board enclosure. Its base design principle is you stack on top of each other plates that hold various devices such as Raspberry PI, Arduinos, ESP32, hard drives, etc. You can customize it the way you like. You may need some plates not provided yet. Feel free to contact me if some plates are needed.

It can contain up to 14.4 cm of devices in height. The plate size is 12 cm by 15 cm. The plates are held by M3 male-female brass standoffs. The fan is 120 mm by 120 mm and can up to 30 mm tick.

I designed it with two goals in mind:

  • A single external power supply
  • A single cooling fan.

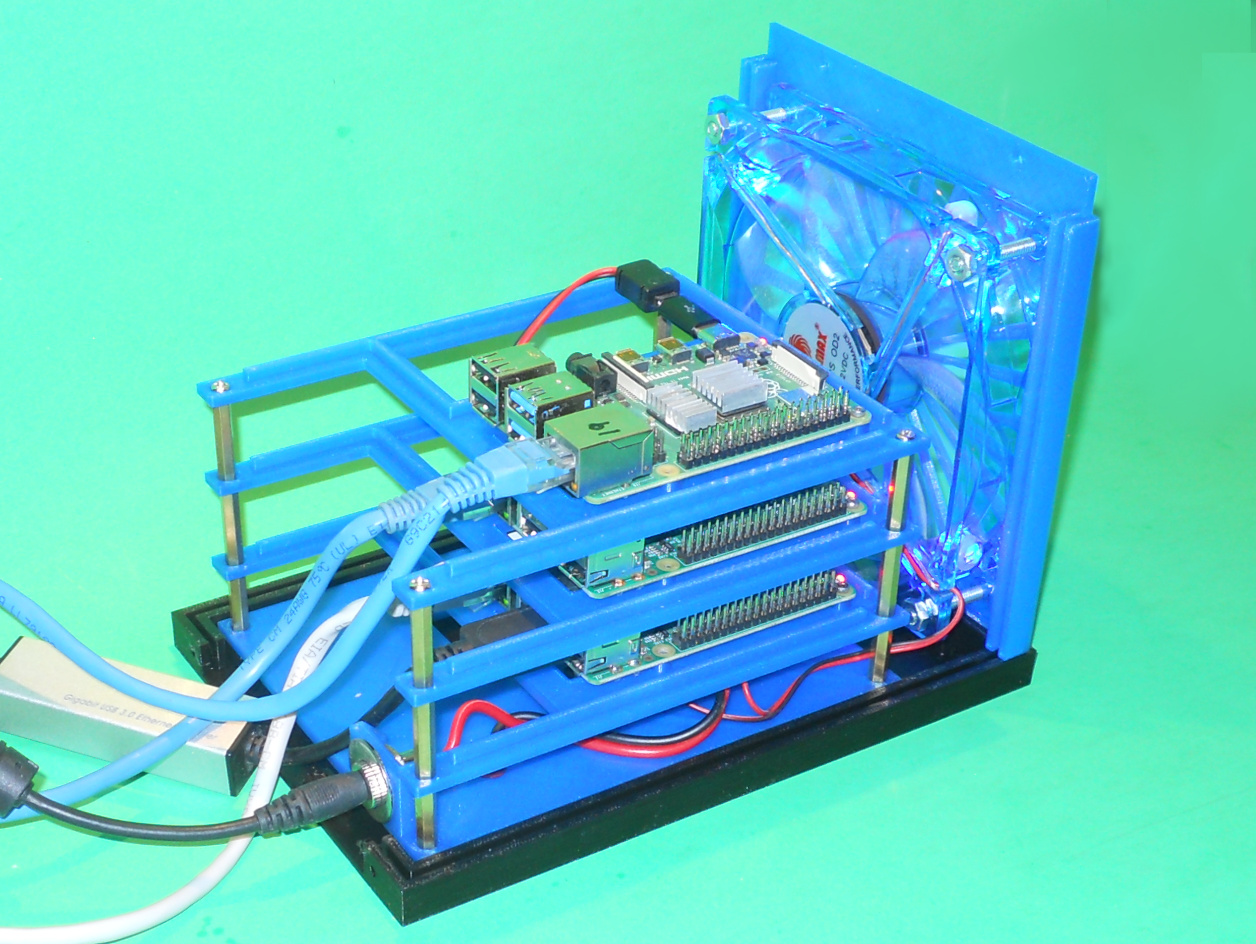

The device showned in the pictures holds 3 Raspberry PIs, and two XL4005 buck converters to supply the Raspberry PIs. On more buck converter along with another Raspberry PI can be added. It is powered by a 12V, 5A power brick. The fan is a 12 V, 120 mm computer fan. My server case contains a firewall, a DNS and DHCP server and my IOT management system.

The BOM for my device is:

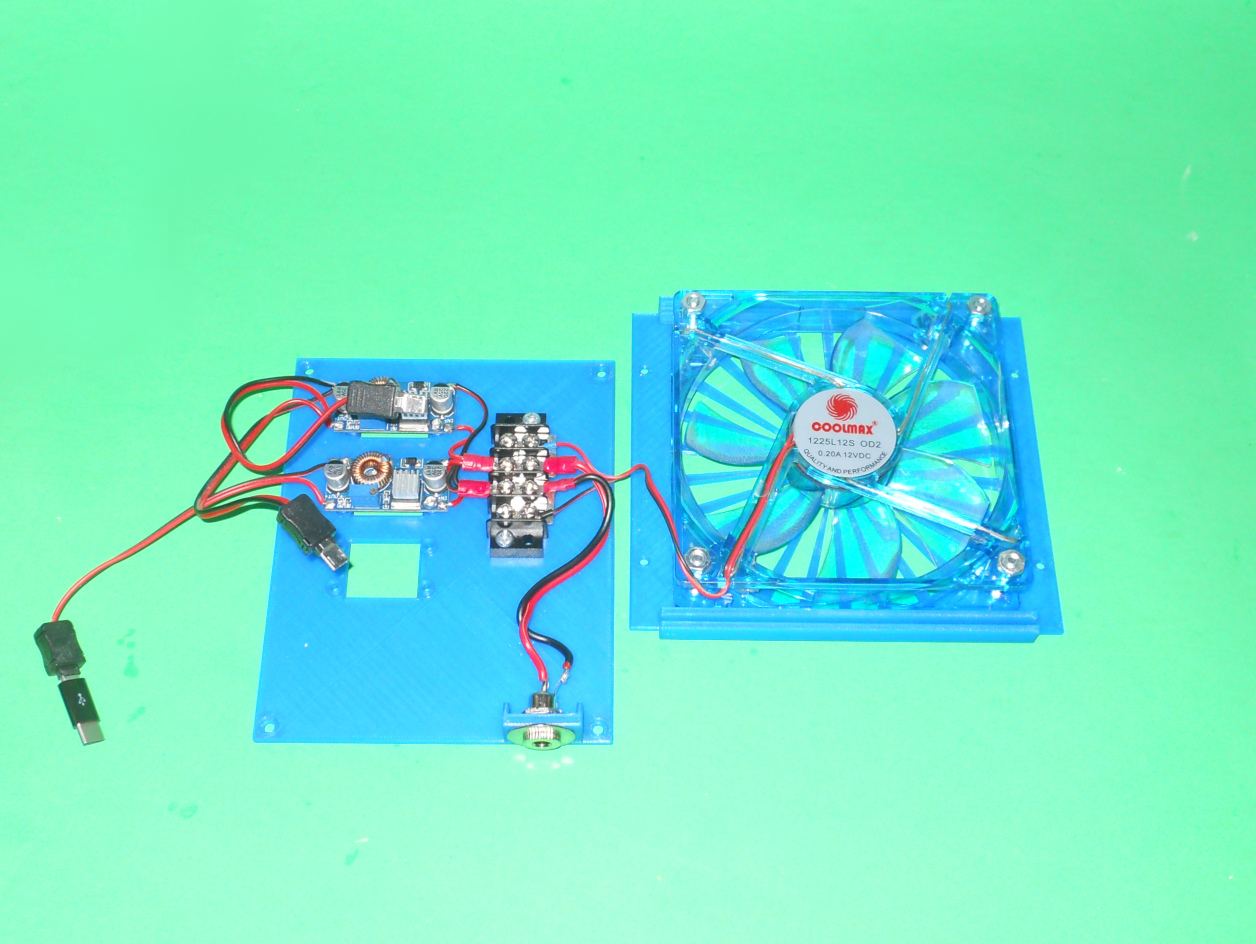

Power subsystem:

  • 1 x female 5.5/2.5 power jack, 10 mm in diameter (up to 13 mm).
  • 1 x washer to hold the 10 mm power jack.
  • 2 x XL4005 based buck converters
  • 1 x 4 by 2 terminal block
  • 2 x terminal block jumper strips
  • 3 x micro USB male connector kits
  • 1 x micro USB to type C adapter
  • 4 x #4-40 bolts, 3/8″ in length
  • 4 x #4-40 nuts
  • 2 x #8 bolts, 1/2″ in length
  • 2 x #8 nuts
  • 4 x 20 mm M3 standoffs
  • some wires

Cooling subsystem:

  • 1 x 120 mm x 25 mm 12V computer fan
  • 4 x #8 bolts, 1-1/4 inch long
  • 4 x #8 nuts

First 2 bottom Raspberry PIs:

  • 8 x 25 mm M3 standoffs
  • 4 x M2 bolts, 10 mm in length
  • 4 x M2 nuts

Top Raspberry PI:

  • 4 x M3 screws, 6 mm in length
  • 2 x M2 bolts, 10 mm in length
  • 2 x M2 nuts

3D printed parts:

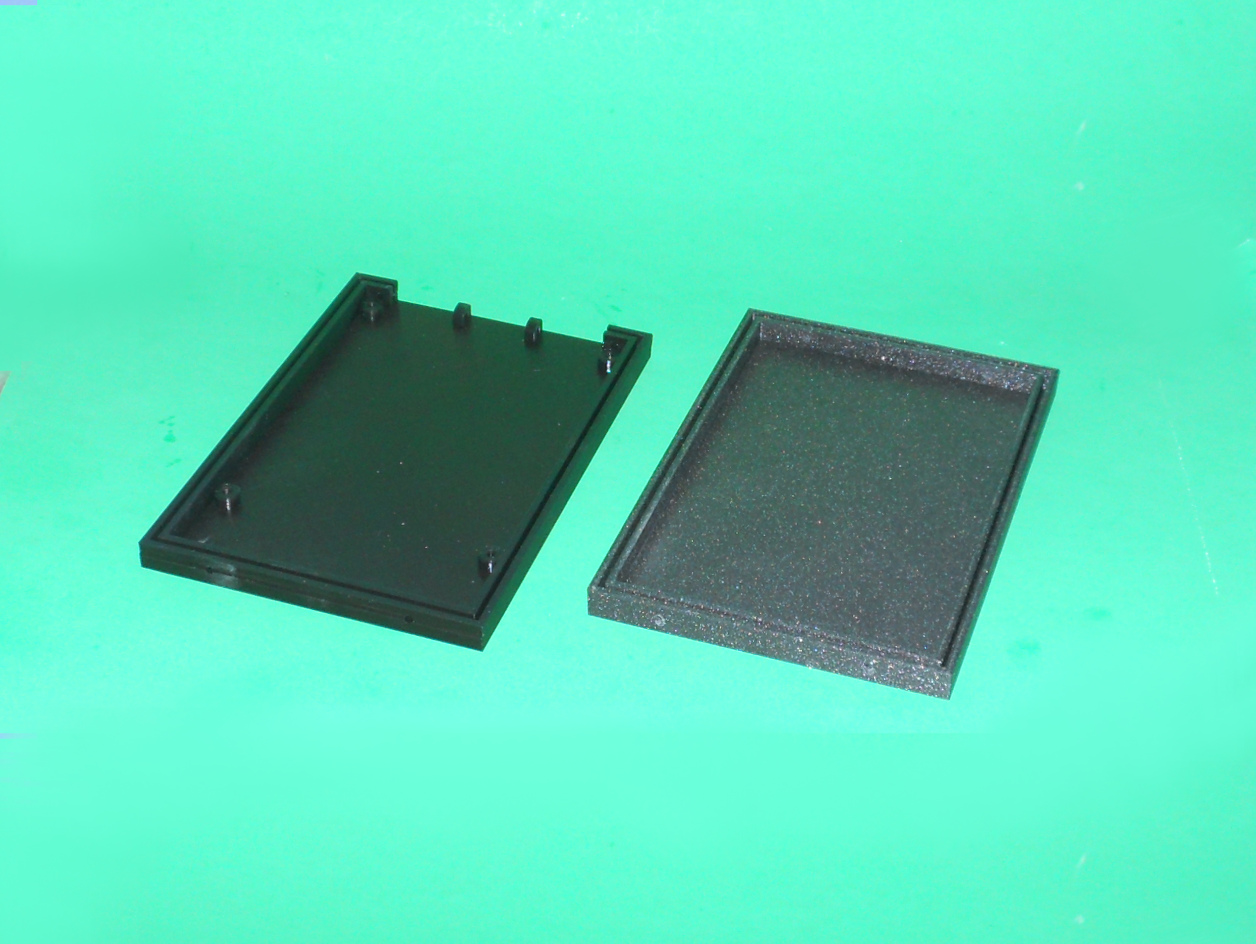

  • 1 x case bottom
  • 1 x case top

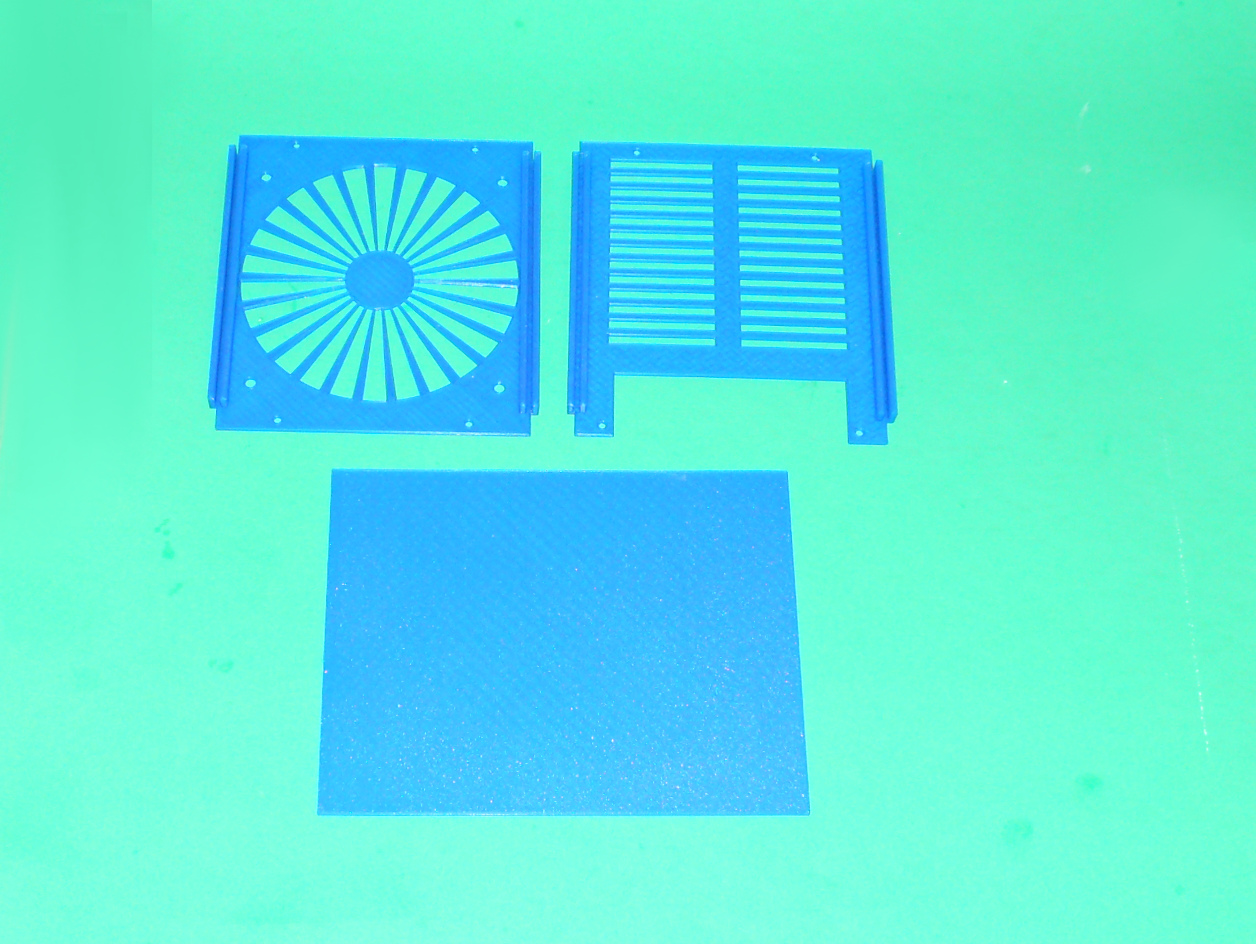

  • 2 x case sides
  • 1 x back side
  • 1 x front side

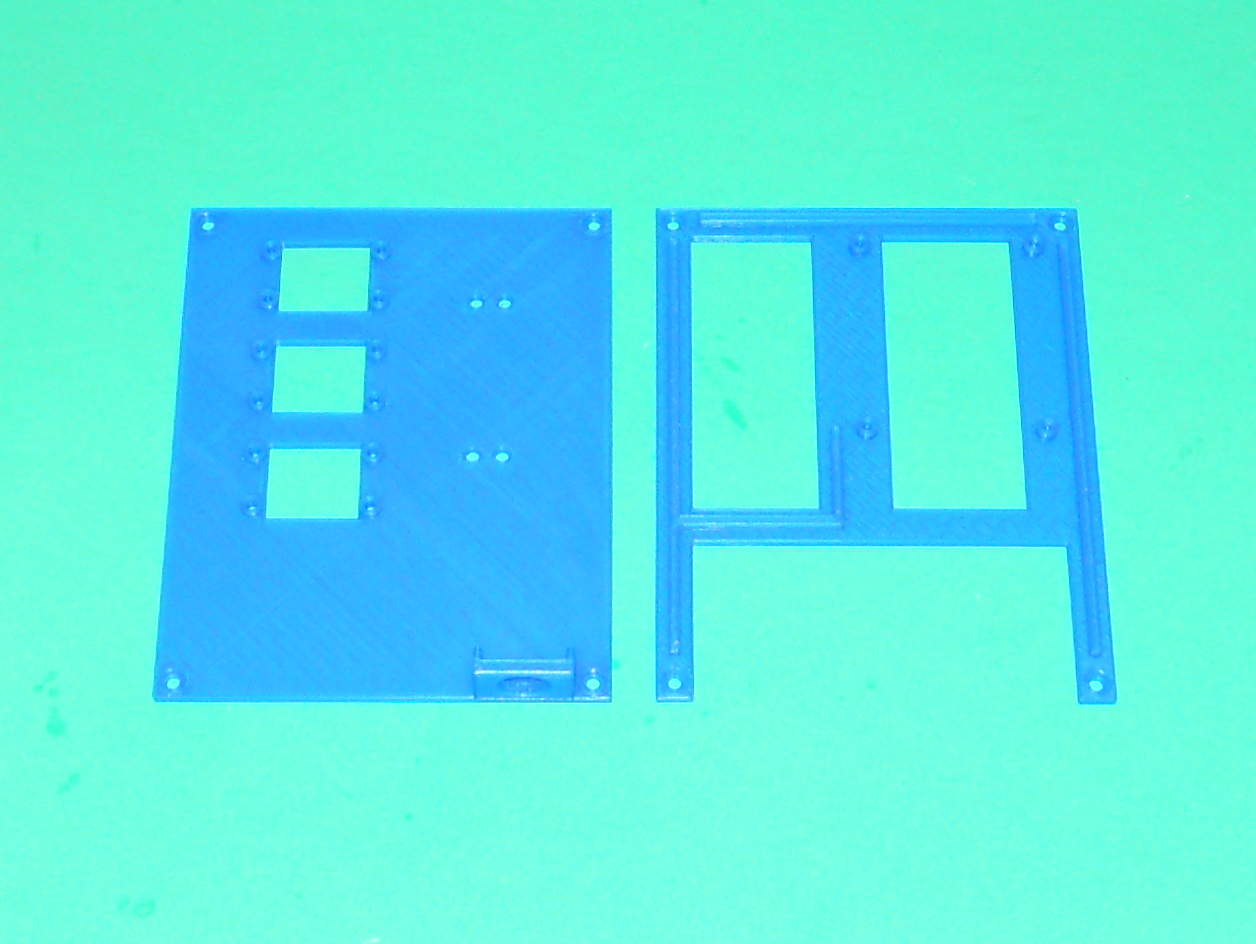

  • 1 x power supply plate
  • 3 x Raspberry PI plates

CAUTION: The fan guard mesh is a bit large. Small finger could touch the blades. If it is a concern, add a piece of window screen between the fan and the side of the case.

This object was designed using Solid Edge.

Printable Files

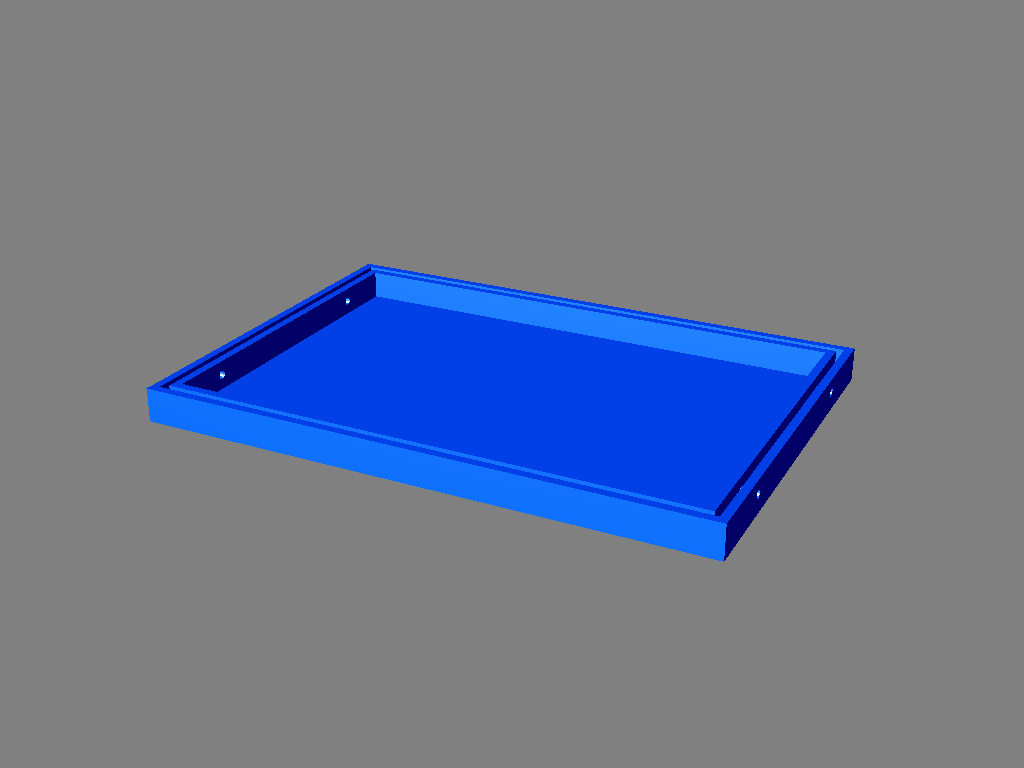

  Case Top

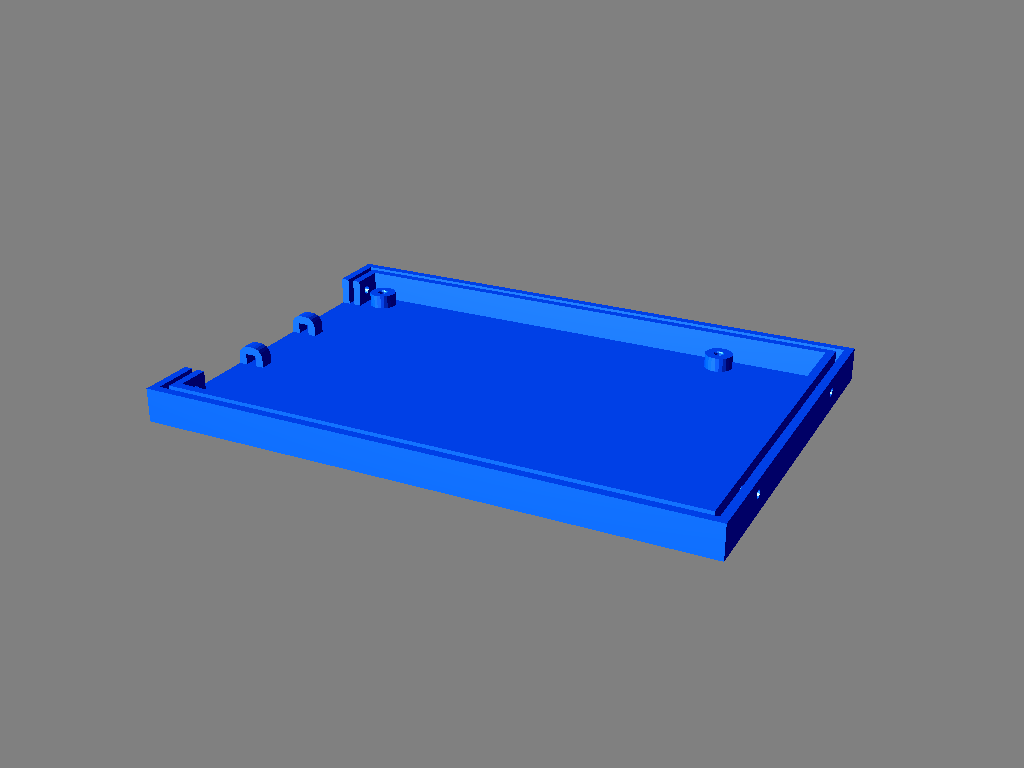

  Case Bottom

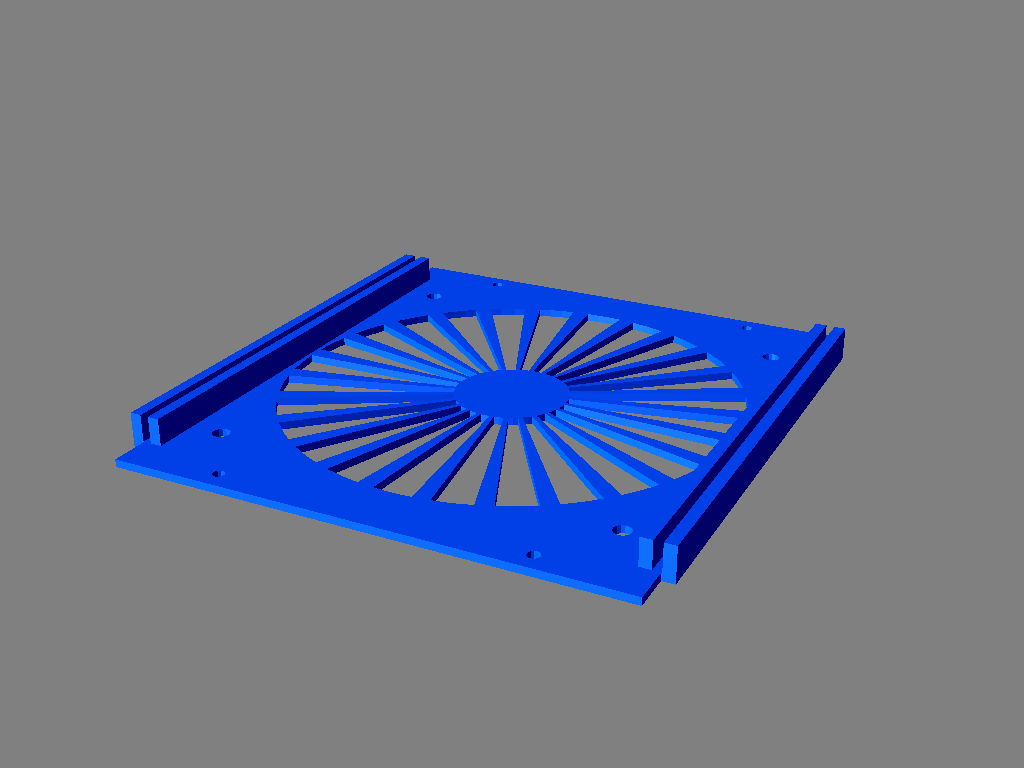

  Front Side

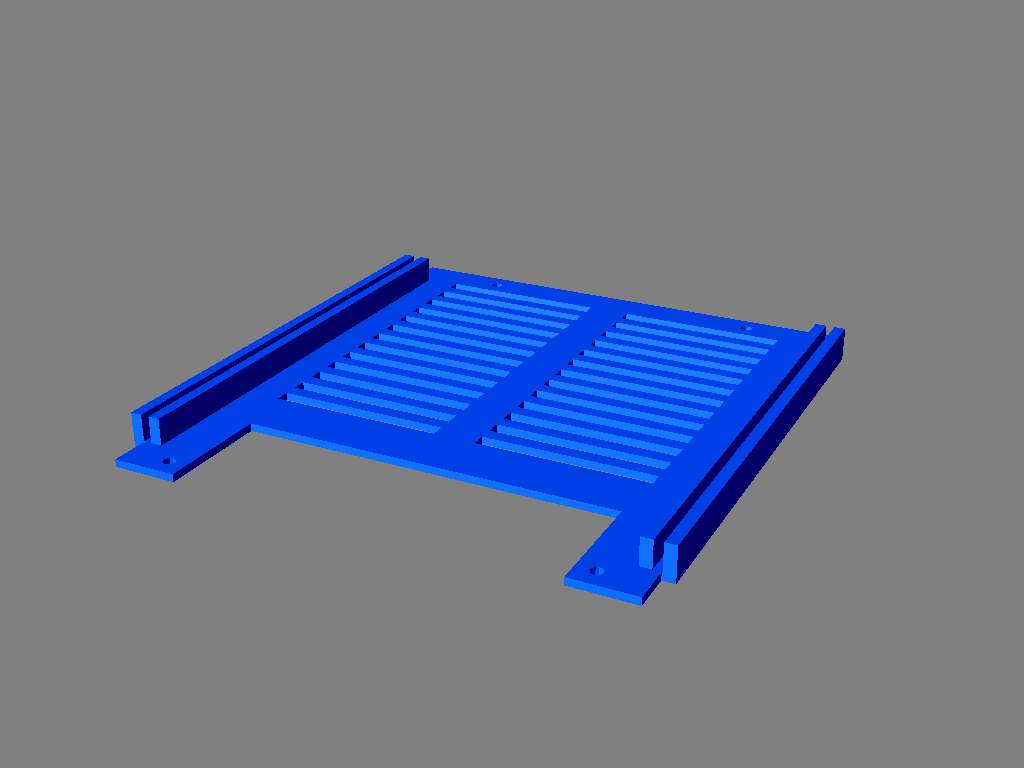

  Back Side
  Case Sides

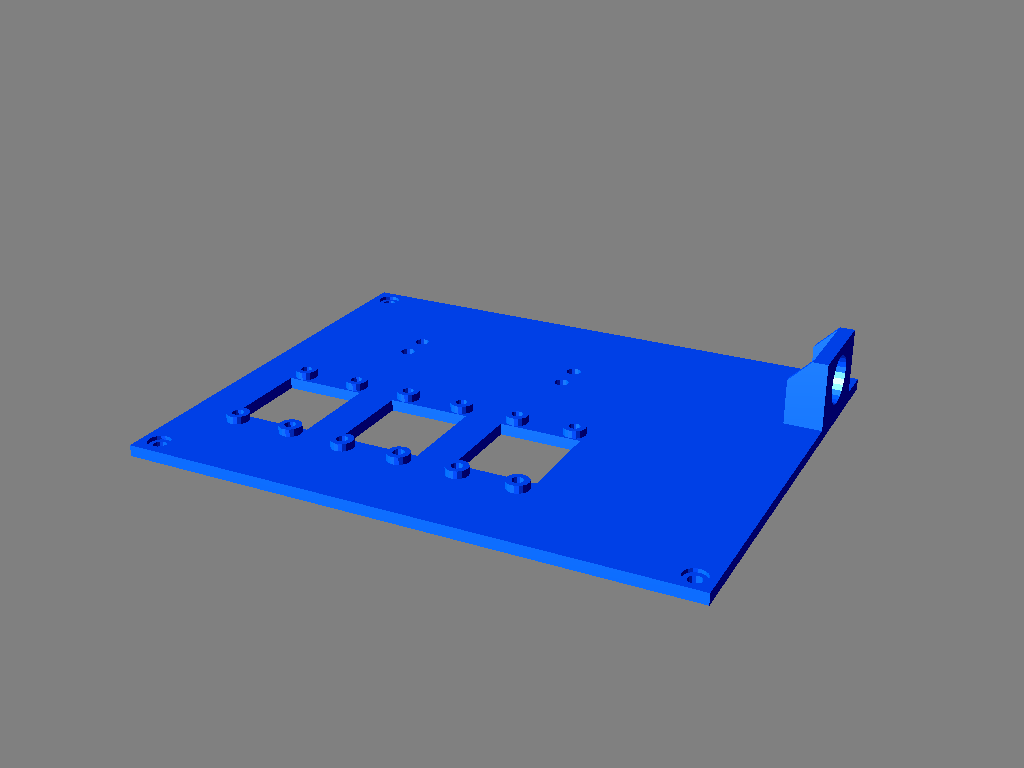

  Power Supply Plate

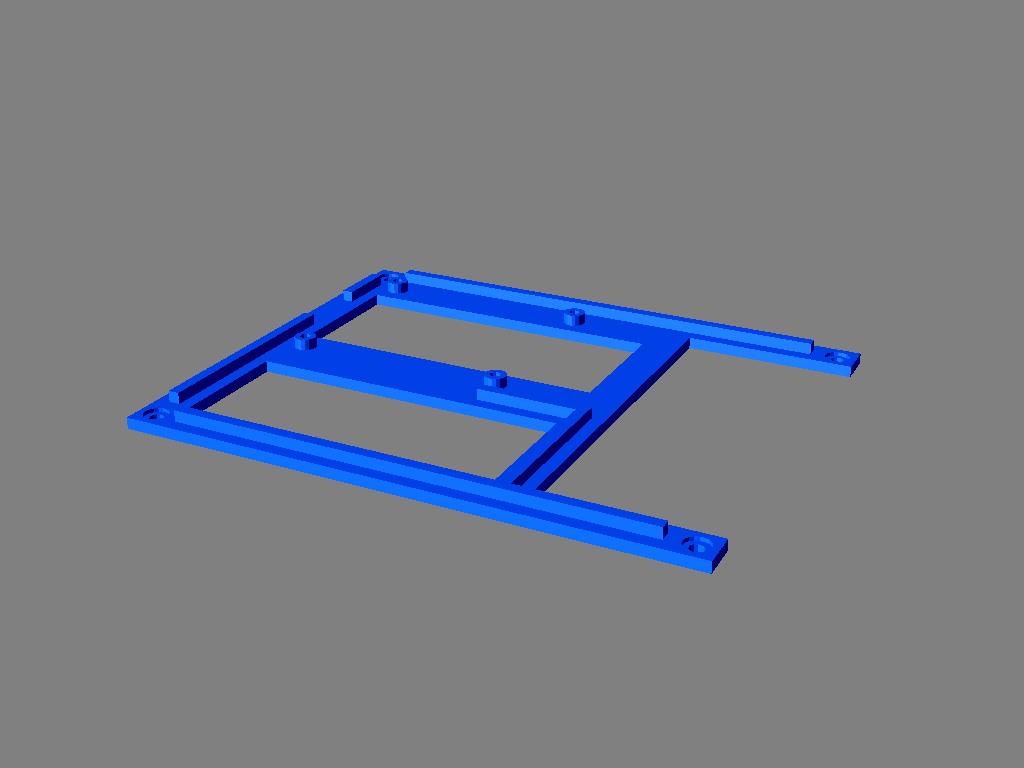

  Raspberry PI Plate

This object is also published on the following site(s):
Prusa Printers

The source files are available:

You may request the source file(s) of this object. Ask for it by posting a comment below. Your email address will NOT be used for any other purposes than delivering you the source files. By doing so:

You are free to:

* Share — copy and redistribute the material except the source files in any medium or format
* Adapt — remix, transform, and build upon the material

You agree to:

* give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
* not use the material for commercial purposes
* distribute your contributions under the same license as the original if you remix, transform, or build upon the material
* not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
* not upload the source files or modified source files on any sites. They are made available for your personal usage only. Nevertheless, you are allowed to upload the resulting STL or OBJ files.

If you do not agree to any of these conditions, do NOT request the source files.

Copyright 2012-2022 by Claude “Tryphon” Théroux
